Description:

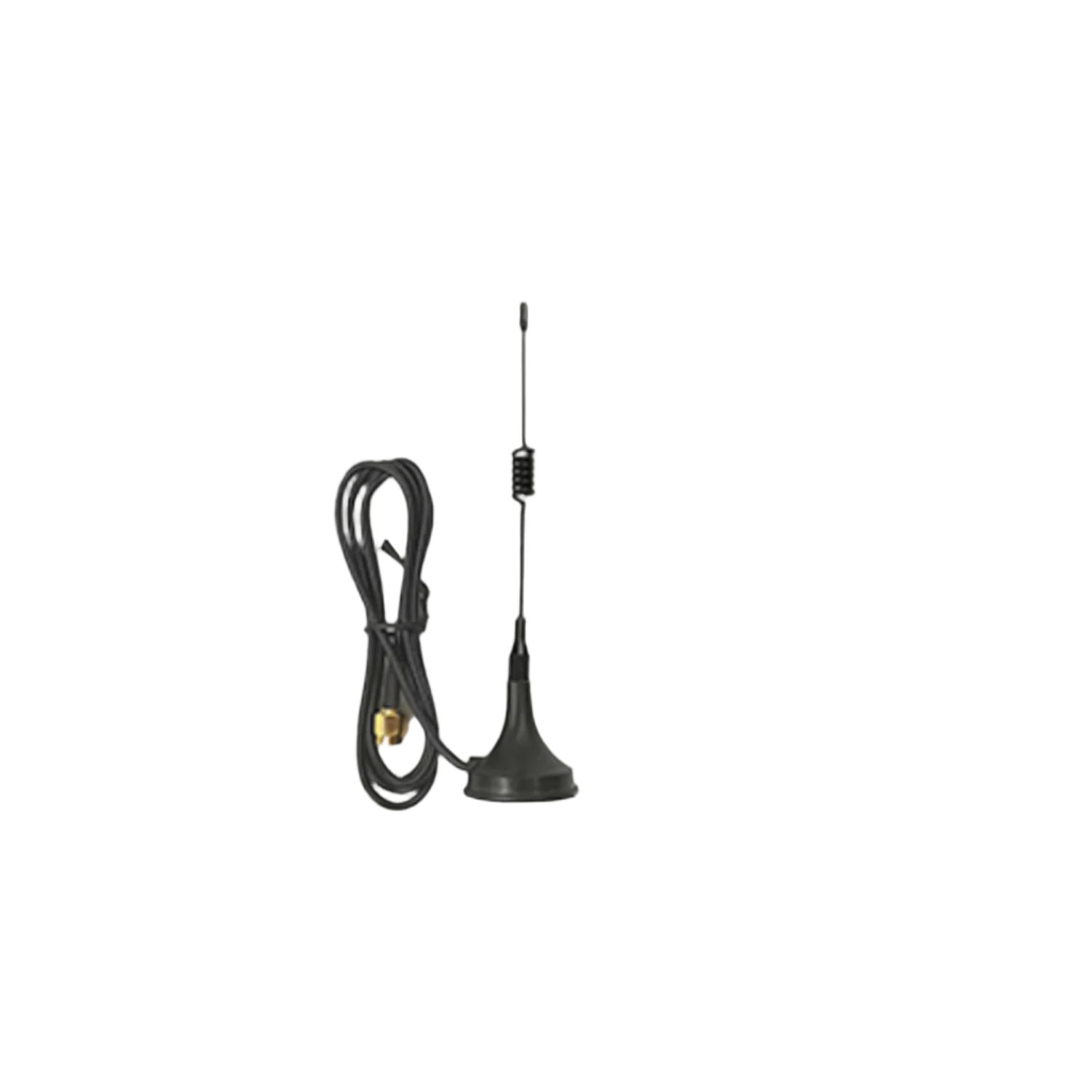

H145 Magnetic Antenna Designed for use with 408MHz and 433MHz systems, including LoRa applications. SMA-J connector for easy installation. SM Band Antenna is ideal for remote transfer receiver units. it has a magnetic base for convenient attachment to various surfaces.
Specifications:
| PN | AH1G.406 |
Electrical Properties) |
|
| Frequency | 408.0MHz +/-5 MHz |
| Impedance | 50Ω |
| VSWR | ≤1.5 |
| Gain | 3.5~4.0 dBi |
| Polarization | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable | SMA-J & RG-174 Cable |
| Material&Color | Copper/Black |
| Mounting | Magnetic |

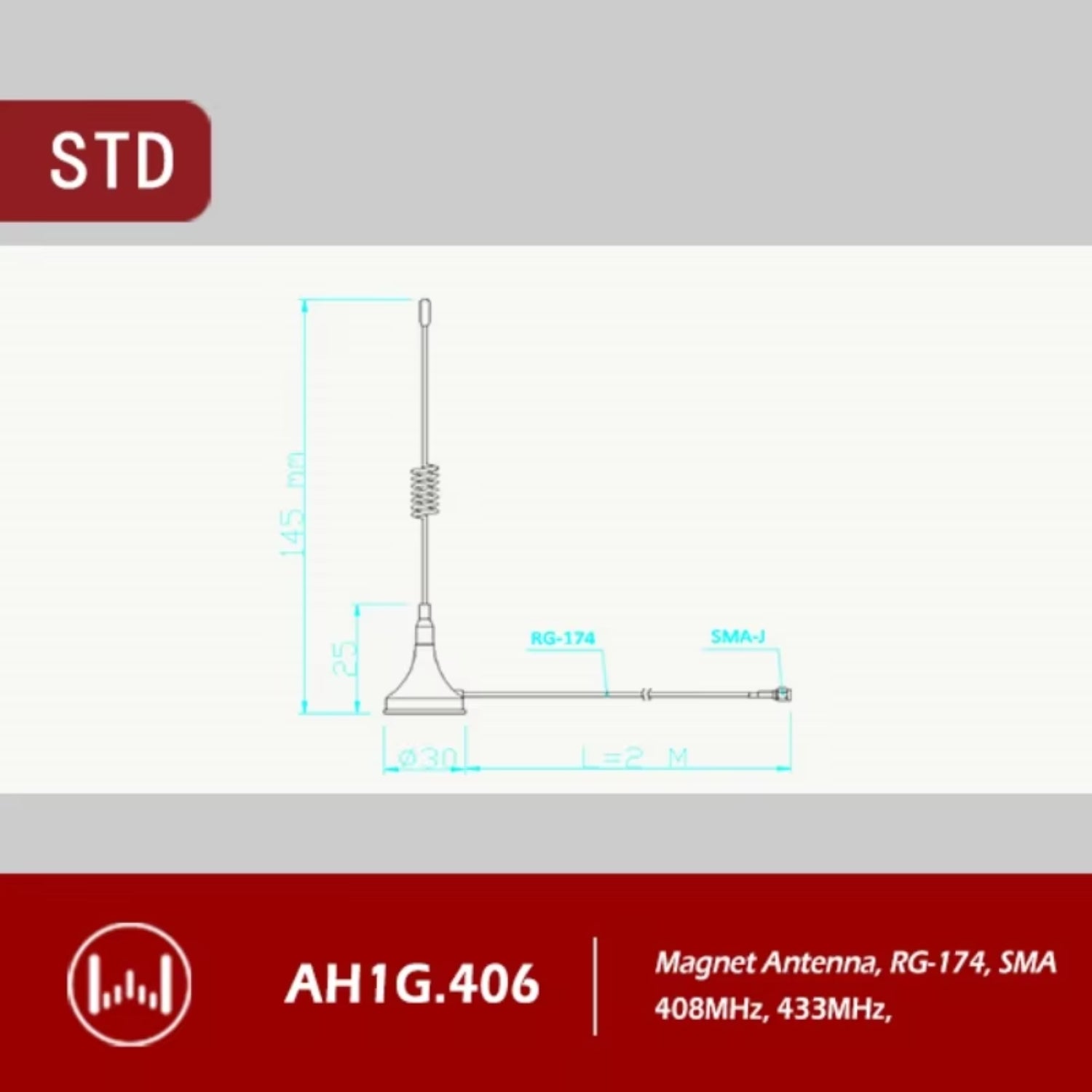

| Size | ¢30×H145 mm |
| Weight | 40.5 g/pc |
| Operate Temp | -40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Useful Link:
Package Included:
1 x Antenna Home AH1G.406 Antenna H145 Magnetic SMA-J 433MHz Antenna Remote Transfer Receiver Antenna Long Range 408MHz Antenna With Magnetic Base For SM Band and LoRa Applications
