- Current Consumption: 2mA (MAX 5mA)
- Operating Temperature Range: 0 to 60 ° C
- Humidity Range: 95% RH (non condensing)
- Humidity Measuring Range: 20 to 95% RH
Description:

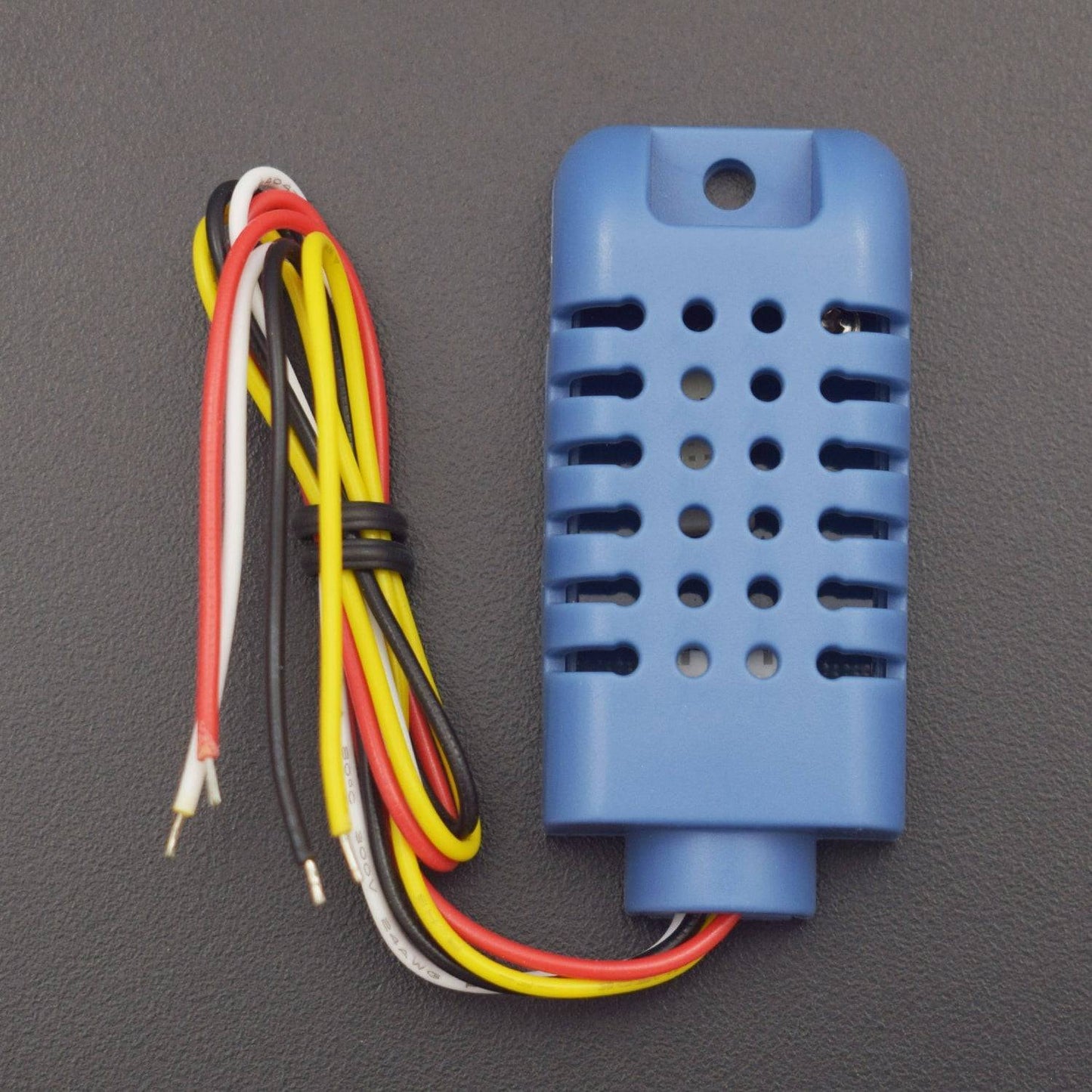

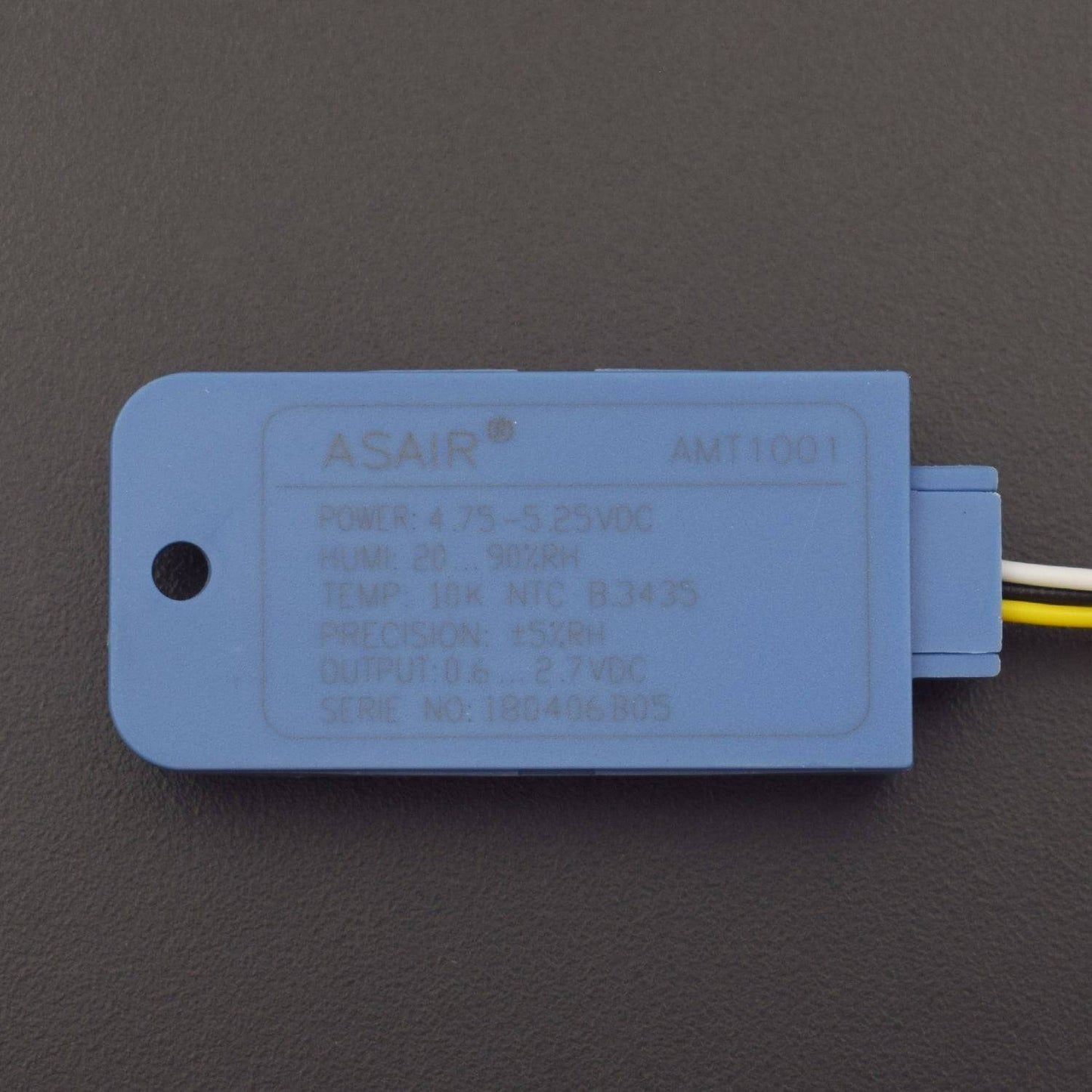

AMT1001 Resistive Humidity and Temperature Sensor Module in which AMT1001 is an integrated temperature and humidity sensor; sensor signals using analogue voltage output. This module has high accuracy, high reliability, consistency; and has been with temperature compensation to ensure long-term stability, ease of use and low price and other characteristics; especially suitable for the quality, cost requirements of more demanding businesses.
Specification:
- Supply Voltage (Vin): DC5V ± 5%
- Current Consumption: 2mA (MAX 5mA)
- Operating Temperature Range: 0 to 60 ° C
- Humidity Range: 95% RH (non condensing)
- Humidity Measuring Range: 20 to 95% RH
- Storage Temperature Range: 0 to 60 ° C
- Storage Humidity Range: 95% RH (non condensing)
- Humidity Measurement Accuracy: ± 5% RH (condition: at25 ?)
- The Standard Humidity Output Voltage: (conditions: at25 ?, Vin = 5.0V)
Features:
- Low power consumption, small size, with temperature compensation.
- Calibration microcontroller linear output, ease of use, low cost.
- Completely interchangeable.
- long-distance signal transmission.
- Precise calibration.
Application:
- HVAC air conditioners.
- Humidifiers.
- Dehumidifiers.
- Communication.
- Atmospheric environmental monitoring.
- Industrial process control.
- Agriculture.
- Measuring instruments and other applications.
Package Included:
1 x AMT1001 Resistive humidity module Humidity sensor
