Description:

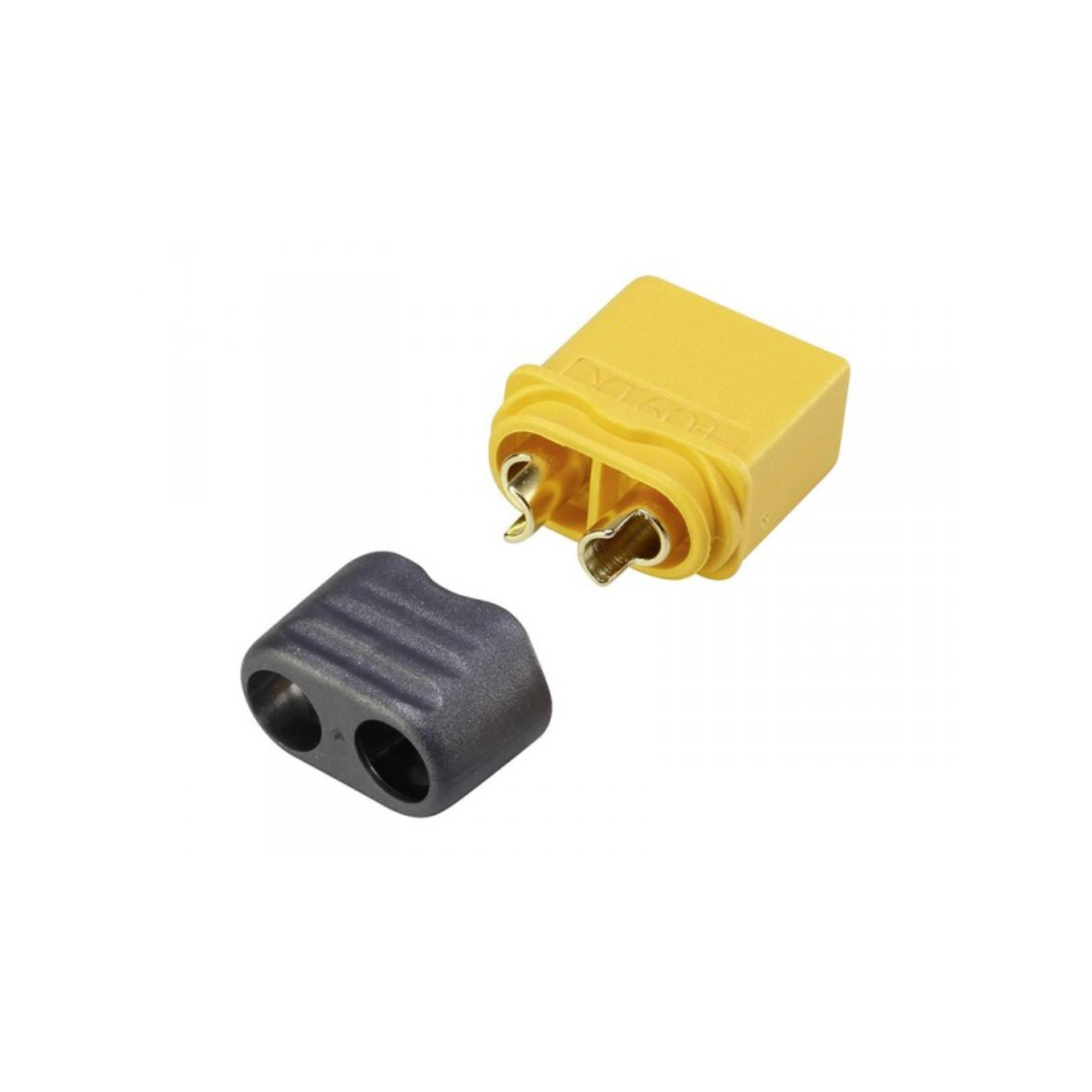

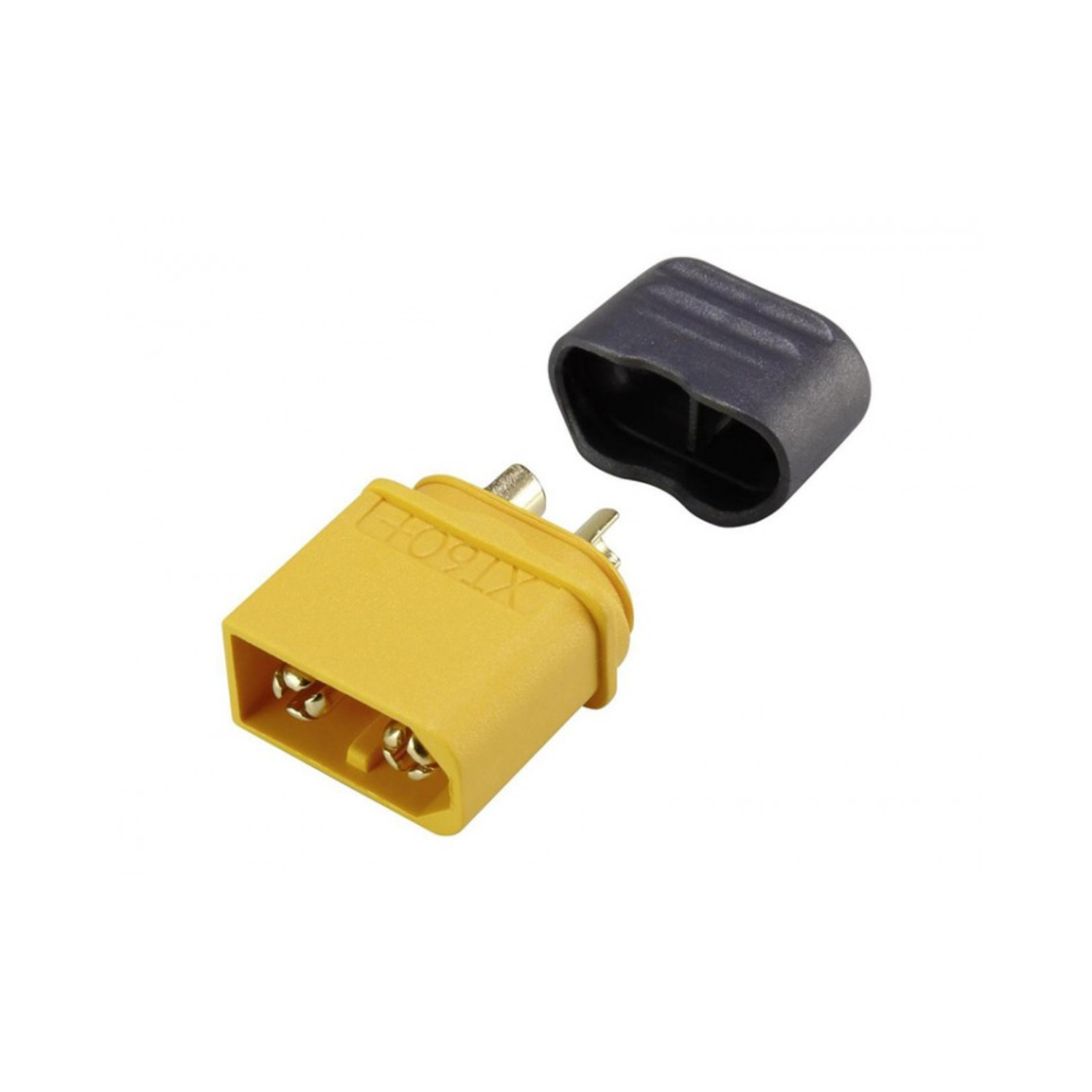

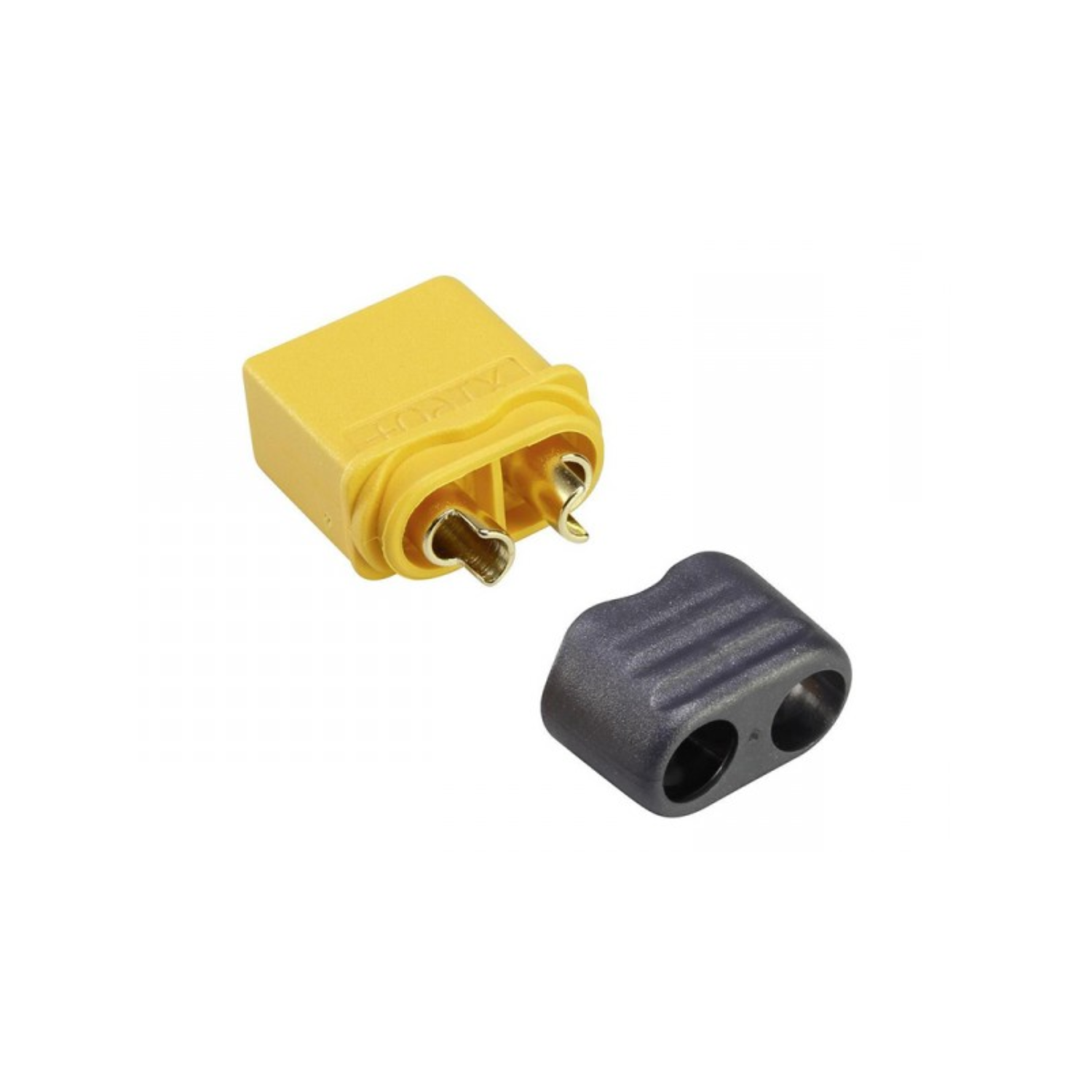

The Amass XT60H Male Connector with Housing – XT60H-M.G.Y is a premium high-current connector designed for demanding RC and drone applications. Made from high-temperature nylon and featuring gold-plated connectors, it ensures minimal resistance and reliable performance for currents up to 65A.
The enhanced XT60H design is more compact, lightweight, and offers an improved grip surface for easier connection and disconnection. Its tight-locking, insulated housing not only adds a stylish look with color-coded safety but also protects solder joints, increasing durability and safety during operation. This updated version of the classic XT60 is ideal for LiPo batteries, ESCs, quadcopters, FPV drones, and other high-performance electronics.
Specifications:
- Item Type: Battery Connector
- Model Series: XT60
- Gender: Male
- Operating Voltage: 500VDC
- Current Handle Capacity: 60A
- No. of Contact Points: 2
- Connector Type: XT60H
- Contact Material: Brass
- Contact Plating: Gold flash
- Metal Connector Size: 4.5mm
- Color: Yellow-Gray
Features:
- Cable Mounting: Mechanical
- Electrical Connection: Solder Type
- Contact Plating: Gold Flash
- Orientation: Straight
Package Included:
1 x Amass XT60H Male Connector Featuring
