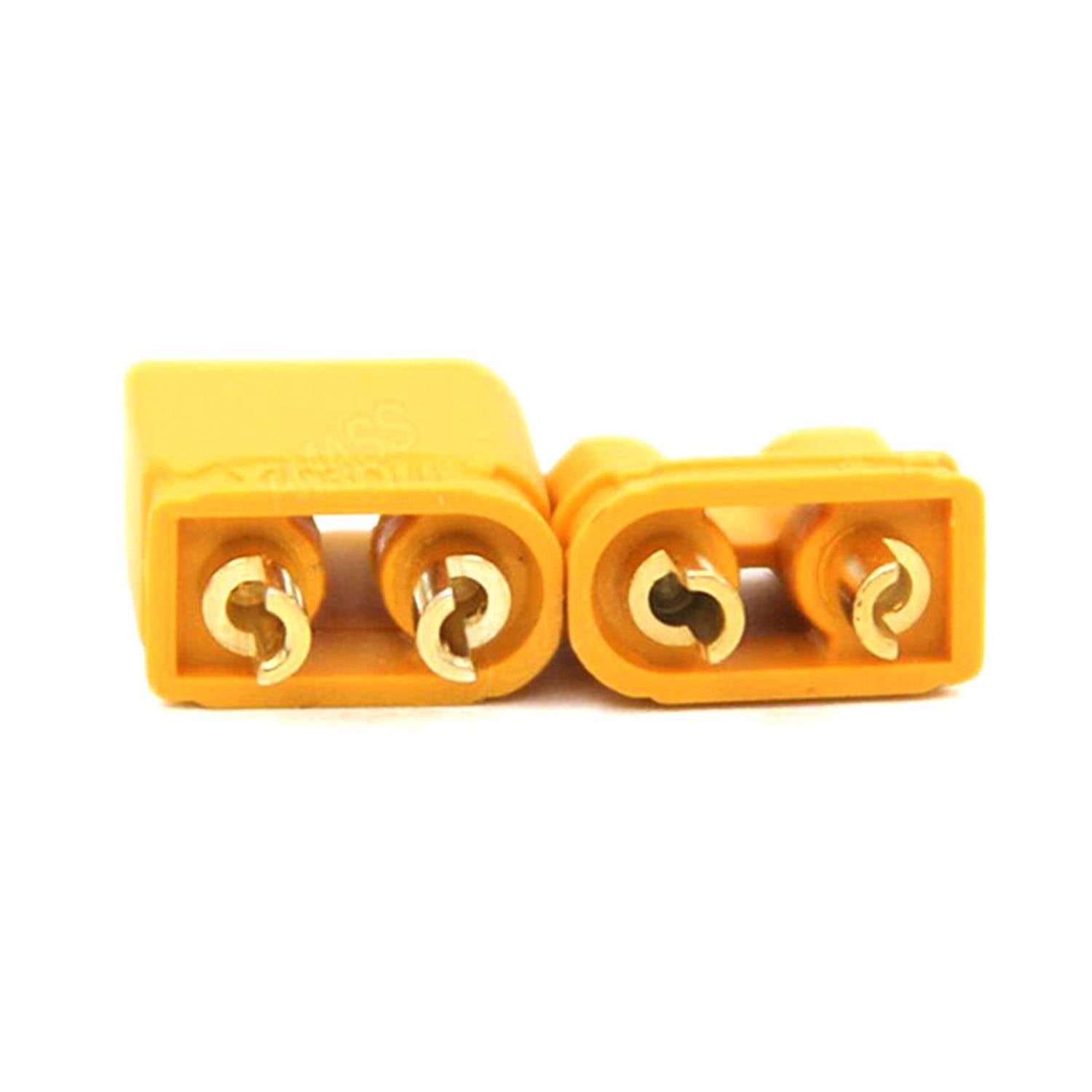

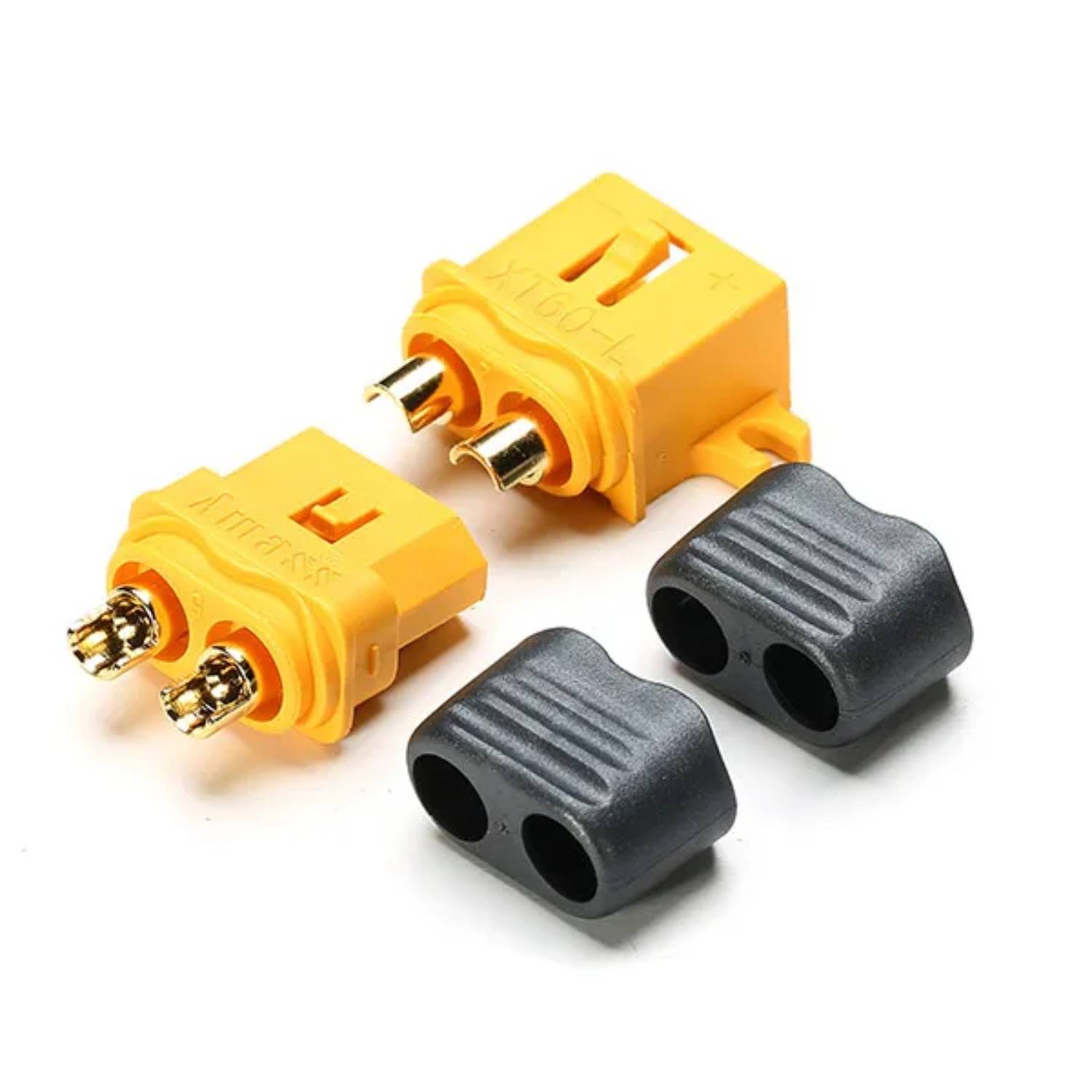

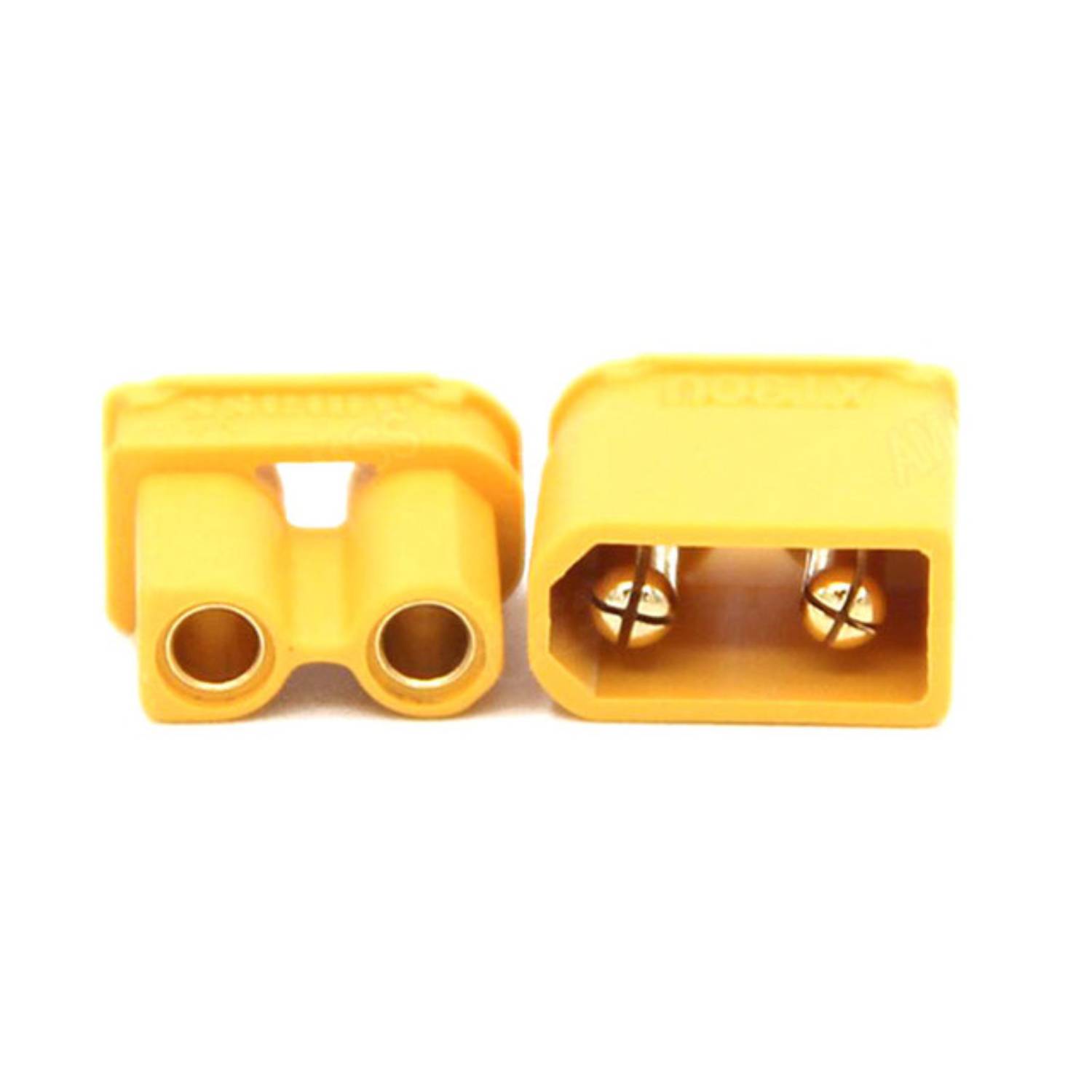

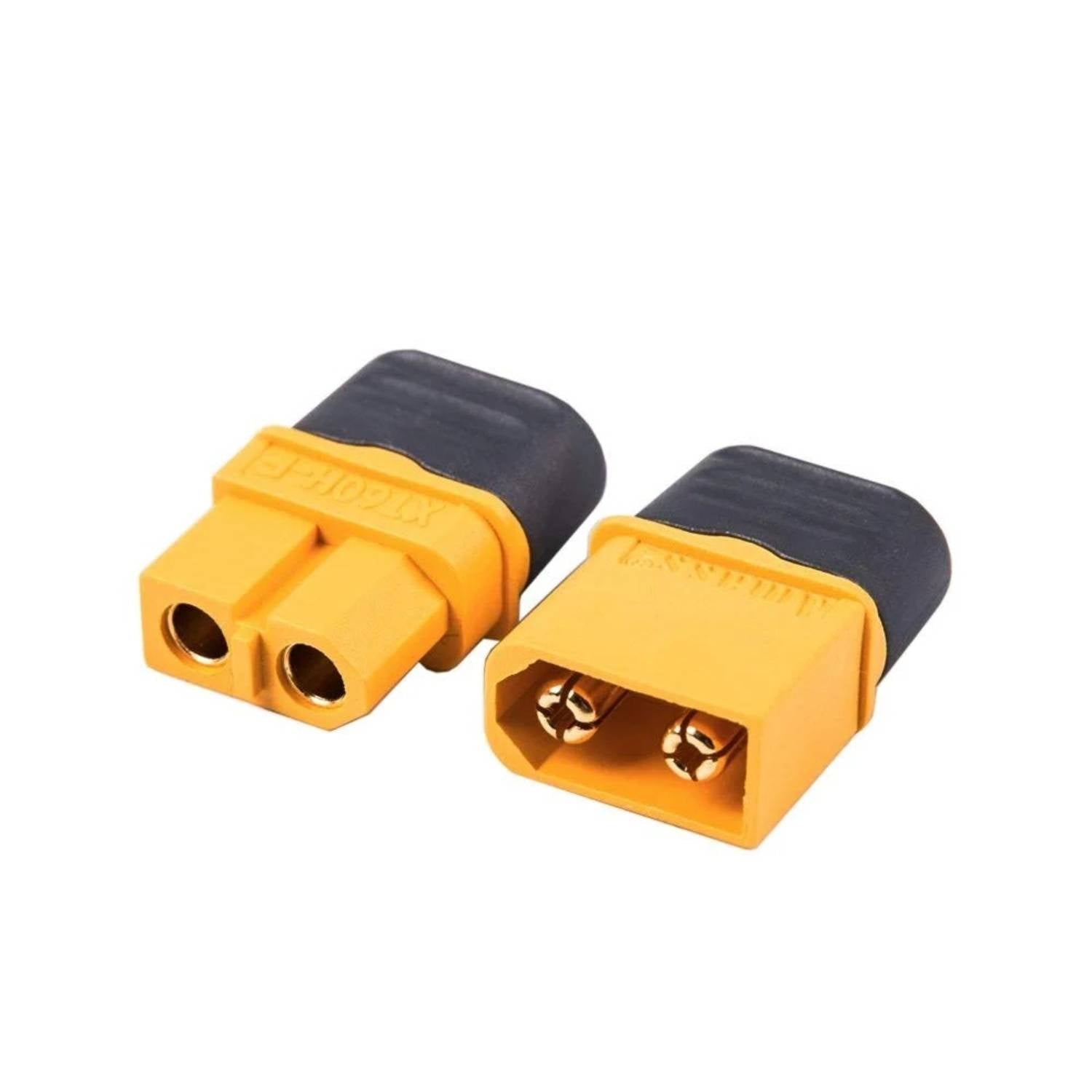

Amass XT60 Male-Female Connector Pro-Grade XT60 Connector for DIY Electronics, Pack Of 5 Pairs - RS6870

Amass XT60 Male-Female Connector Pro-Grade XT60 Connector for DIY Electronics, Pack Of 5 Pairs - RS6870

RS6870

129 in stock

Rs. 249.00
Rs. 249.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Amass XT60 Male-Female Connector are excellent DC power connections requiring a high current carrying capability of up to 60A DC in a compact package. This connector is widely used in robotics, hobbyist applications, and professional applications, cementing its reputation as a versatile and reliable connector.

XT60 connectors are primarily constructed from durable nylon for the connector housing and feature conductive elements made of gold-plated brass. The nylon provides heat resistance and durability, while the gold plating ensures reliable conductivity and corrosion prevention. This combination makes XT60 connectors well-suited for applications involving high-current DC power.

Specifications:

  • Item Name: XT60H
  • Internal Material: Nylon/PA
  • Max. RC/MC: 60A
  • Rated Voltage: 500V
  • Flammability Rating UL94V-0
  • Operating Temperature: -20 to 120°C
  • Type of connector:  DC supply
  • Connector series:  XT60H Pair

Features:

  • Genuine Amass XT60 Connector with protection housing, upgraded version, high-quality
  • Provides Solid and Reliable Connection
  • Mechanical mounting for cable
  • Electrical mounting soldered
  • Spatial Orientation Straight
  • Excellent connector solution for RC Quadcopters, Drones, UAVs,
  • Aeroplanes and Jets, Cars and Trucks, as well as RC Boats.

Package Included:

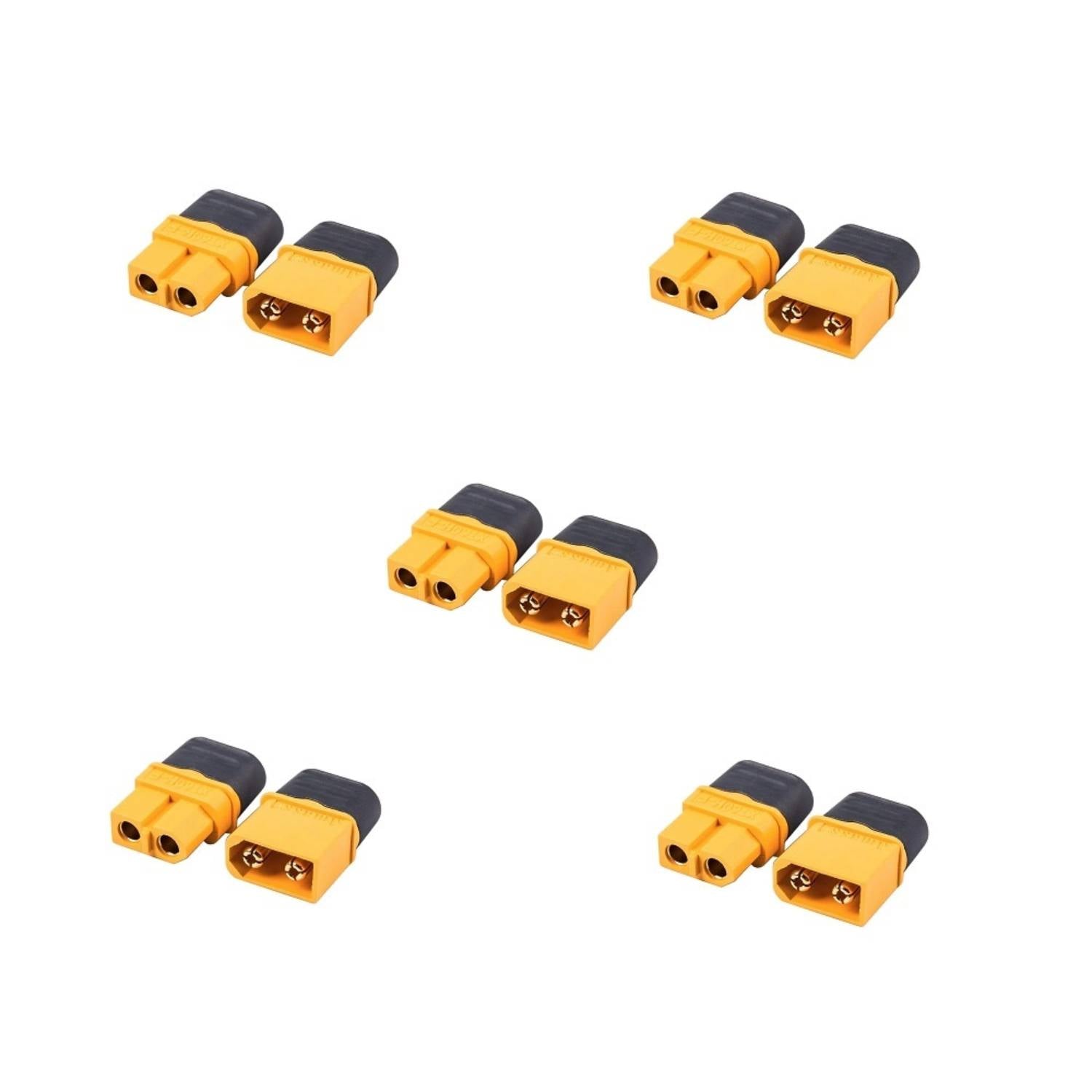

1 x Amass XT60 Male-Female Connector
