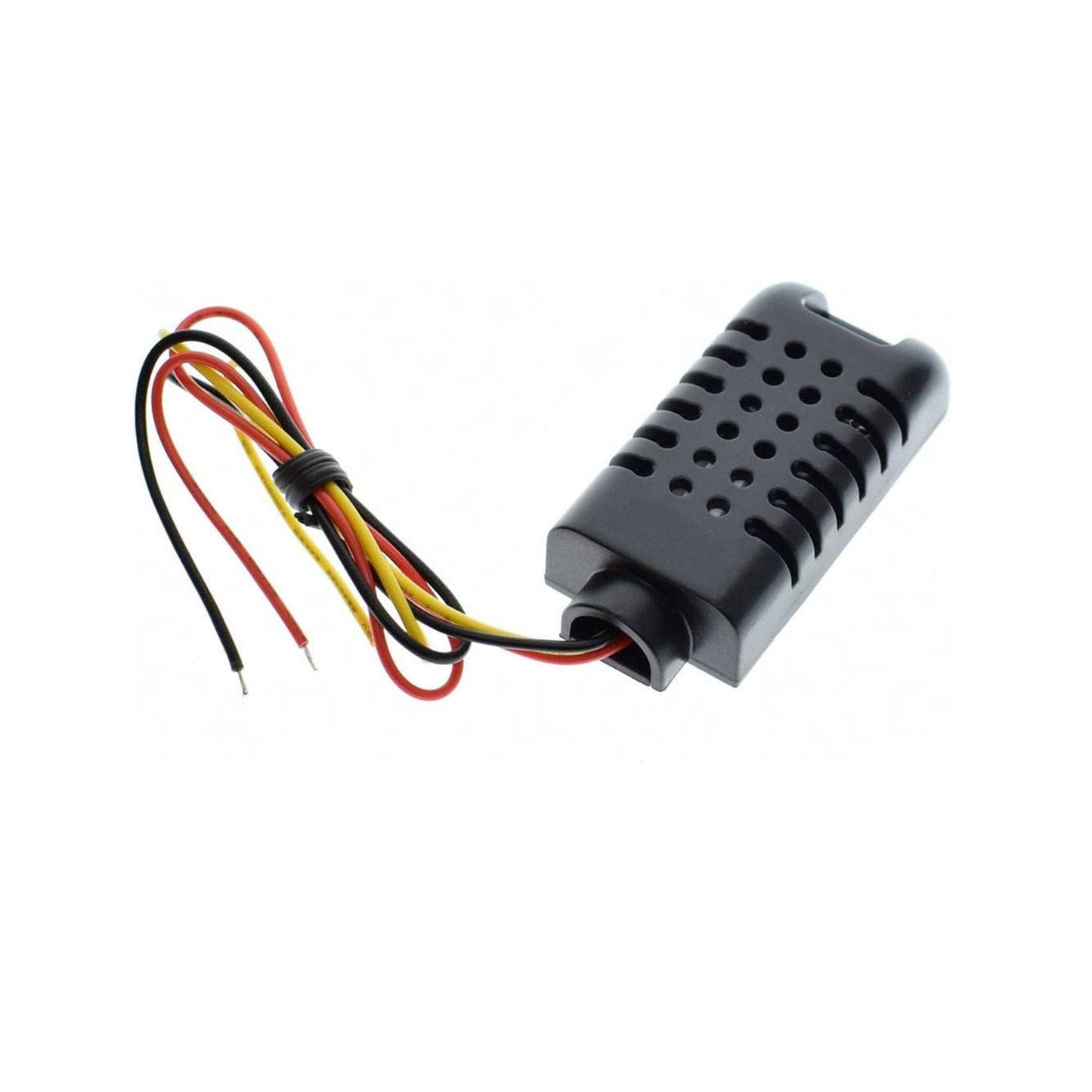

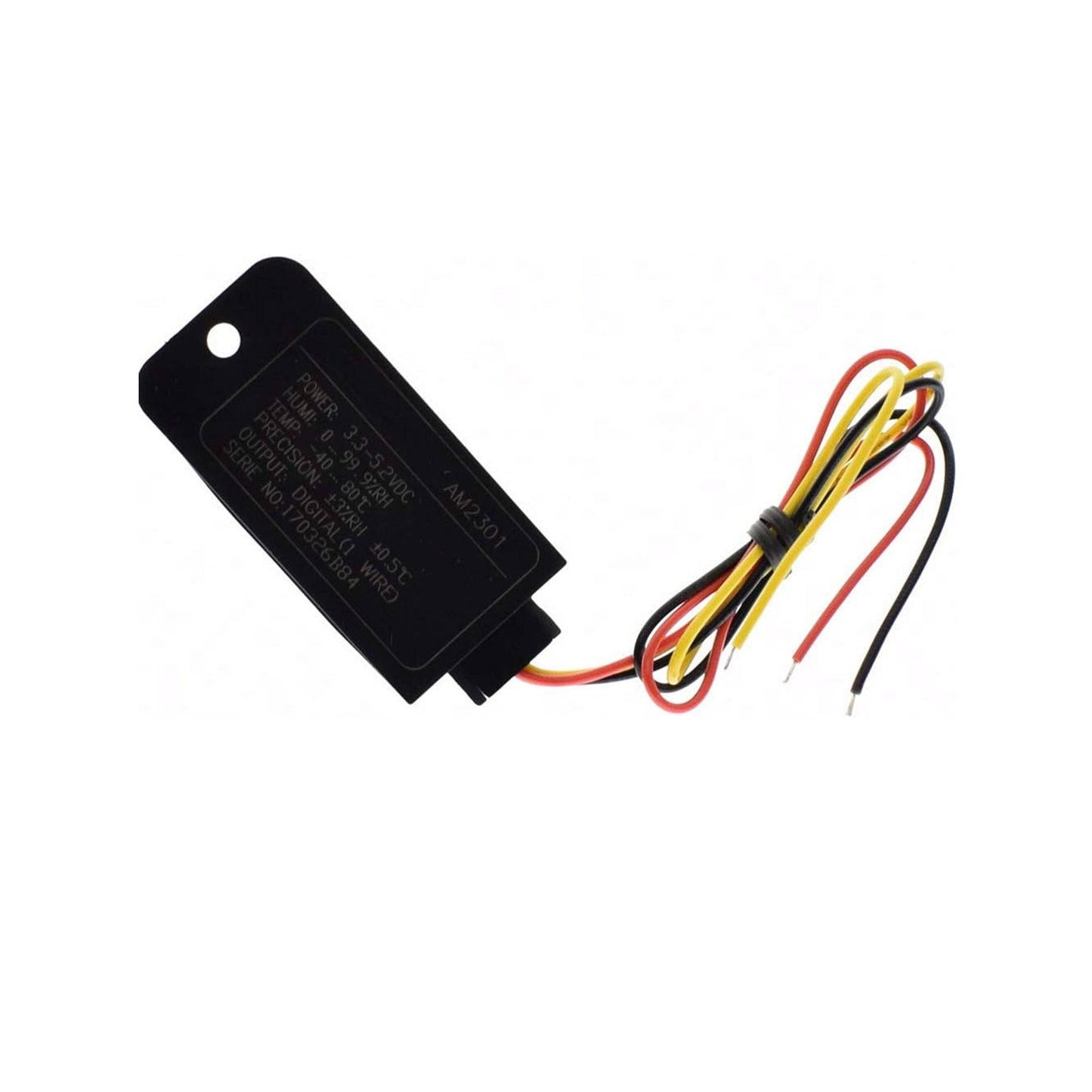

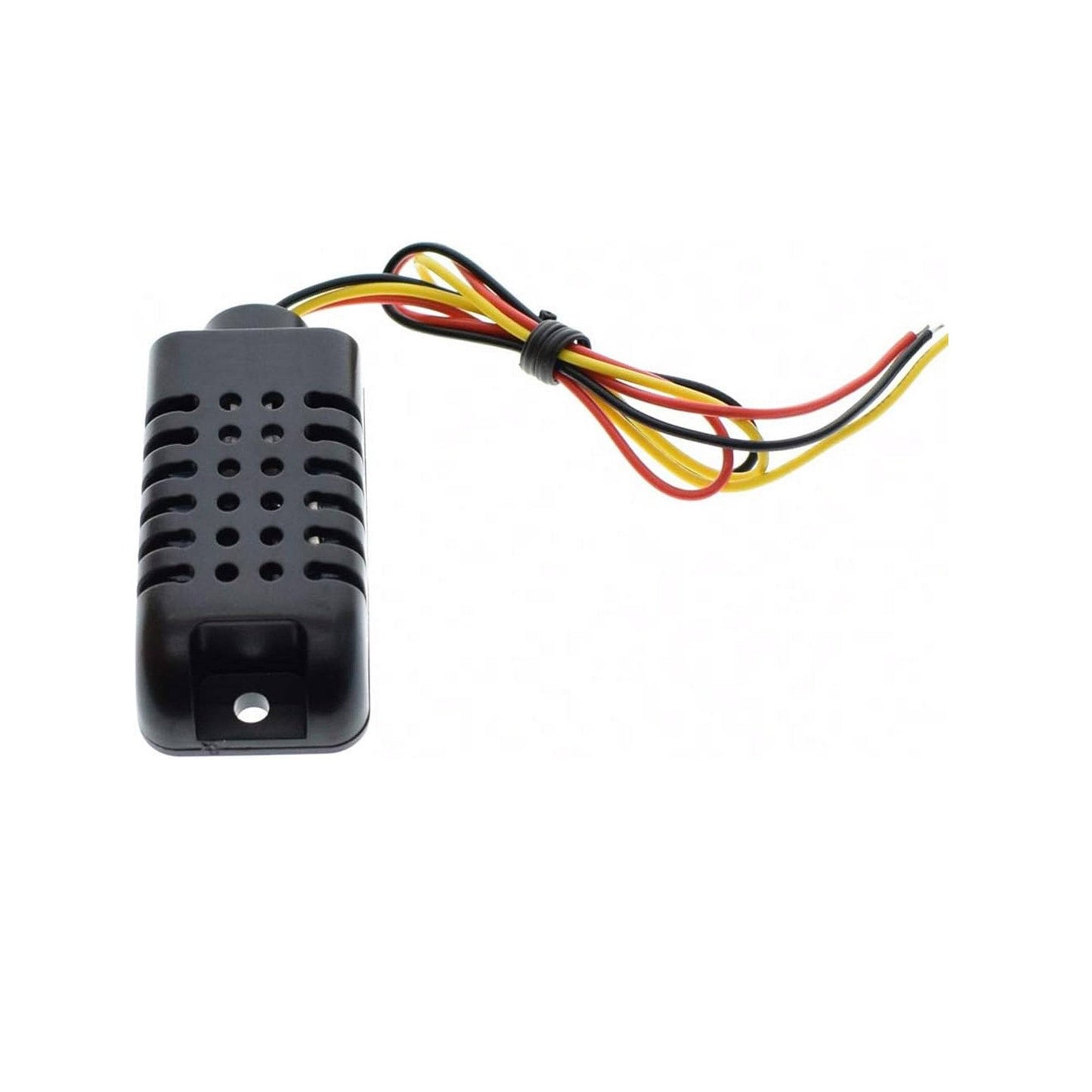

AM2301 Temperature and Humidity Sensor AM2301 Capacitive Digital Temperature and Humidity Sensor - RS3178

AM2301 Temperature and Humidity Sensor AM2301 Capacitive Digital Temperature and Humidity Sensor - RS3178

RS3178

In stock

Rs. 269.00
Rs. 269.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

AM2301 Temperature and Humidity Sensor is one of the commonest from the range of DHT temperature sensors; and boasts a relatively high-temperature measurement accuracy of 0.5°C in 0.1°C steps with a relative humidity accuracy of ± 3%. It has only 3 wires, including power and ground, meaning only one digital pin is required to interface it to a microcontroller. For Arduino development platforms the AM2301 Temperature and Humidity Sensor is very well supported by the DHT library available from the Arduino Playground website.

Specifications:

  • Supply Voltage: 3.3~5V
  • Average Current Consumption: 300μA
  • Precision: 3% RH
  • Humidity: 0~99.9 %RH
  • Output Type: Digital (1 wire)
  • Operating Temperature: -20~60°C
  • Cable Length: 20cm

Features:

  • Completely interchangeable.
  • Long-distance signal transmission.
  • Relative humidity and temperature measurement.
  • No additional components.
  • Excellent long-term stability.
  • All calibration, digital output

Package Included:

1 x AM2301 Temperature and Humidity Sensor
