- Material : Aluminium
- No. of teeth :20
- Compatible with : M3x3
- Inner Diameter (ID) (mm) : 8
- Outer Diameter (OD)(mm) : 12
- Length (mm) : 28
- Width (mm) :15
- Weight (gm) : 6
Description :

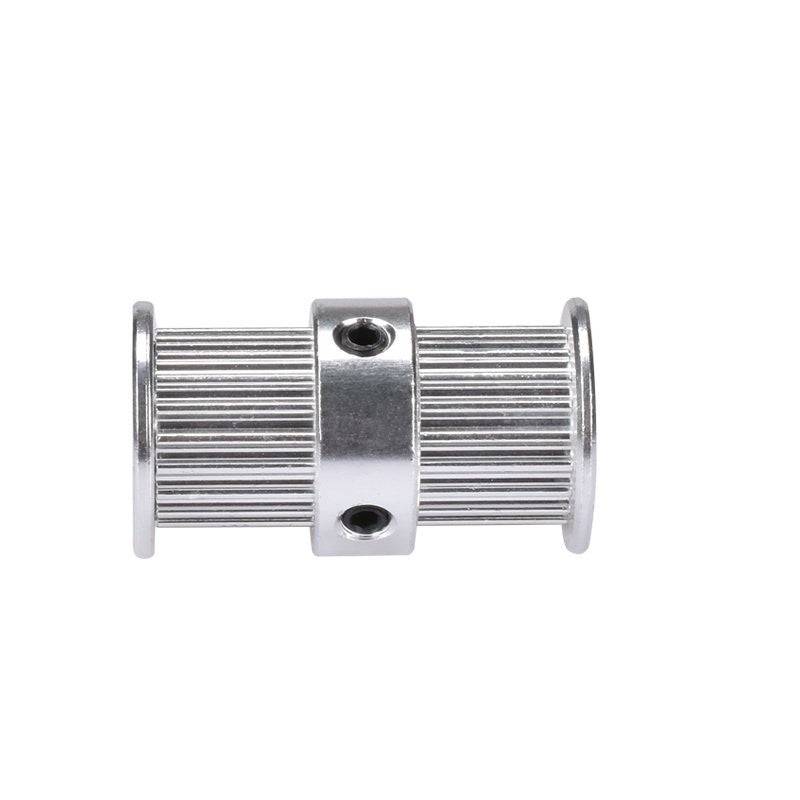

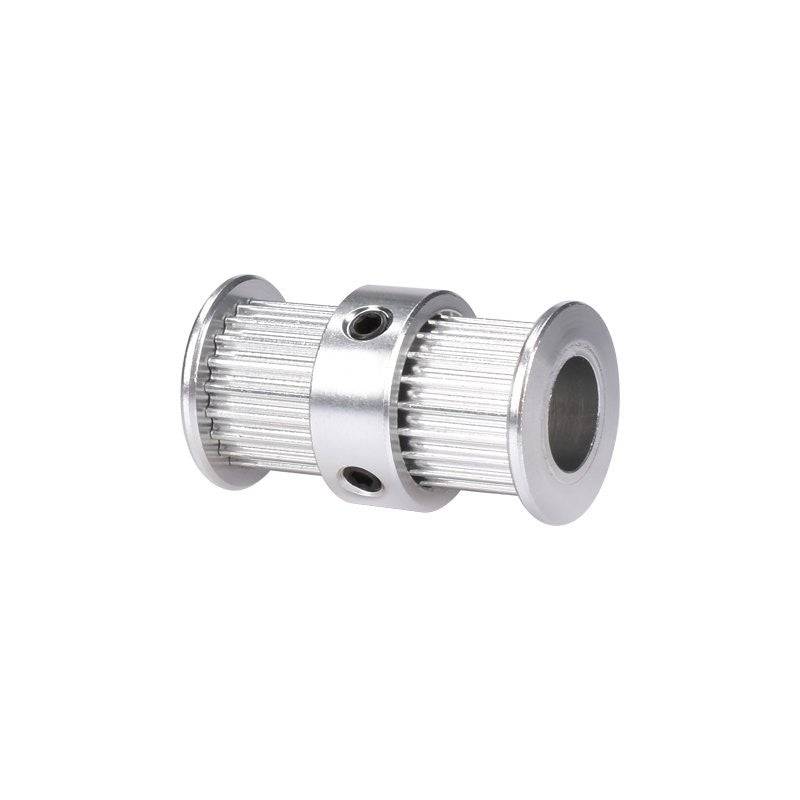

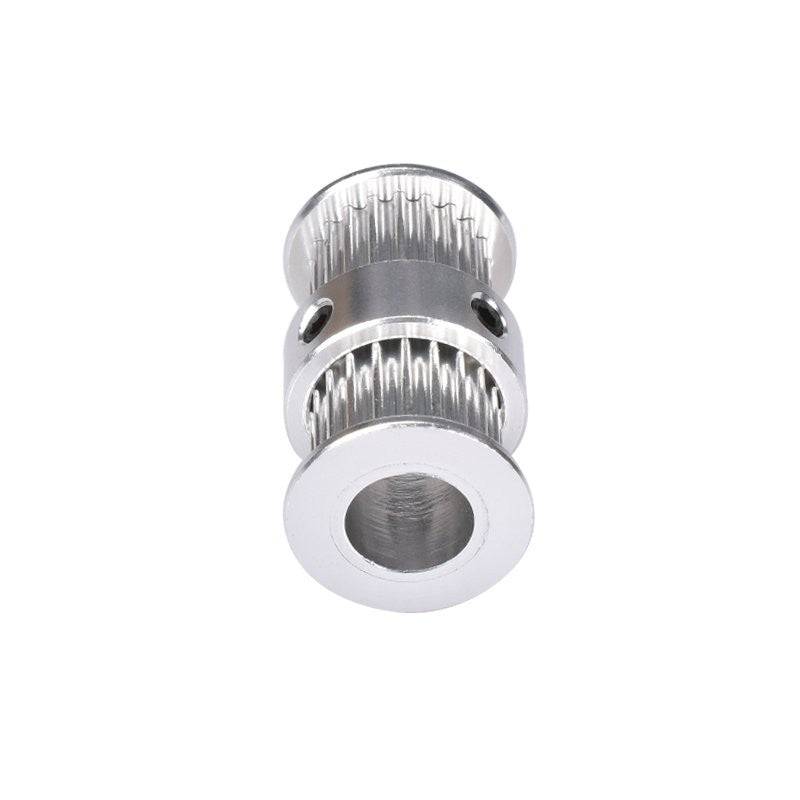

This is Aluminum GT2 Timing Double Head Pulley 20 Tooth 8mm Bore For 6mm Belt. For precise motion control, GT2 belts and pulleys offer excellent precision at a great price. This pulley is meant for use with GT2 6mm wide belts only MXL belts will slip due to the different tooth profile.
This pulley has 20 teeth, and an 8 mm inner bore. Two set screws can be used to attach it firmly to any 8 mm diameter shaft. Full aluminum construction means these are very light and very durable.
Specification :
- Material : Aluminium
- No. of teeth :20
- Compatible with : M3x3
- Inner Diameter (ID) (mm) : 8
- Outer Diameter (OD)(mm) : 12
- Length (mm) : 28
- Width (mm) :15
- Weight (gm) : 6
Package Included :
1 x Aluminum GT2 Timing Double Head Pulley For 6mm Belt 20 Tooth 8mm Bore.
2 x (M3x3)Grub screws -2pcs.
