Description:

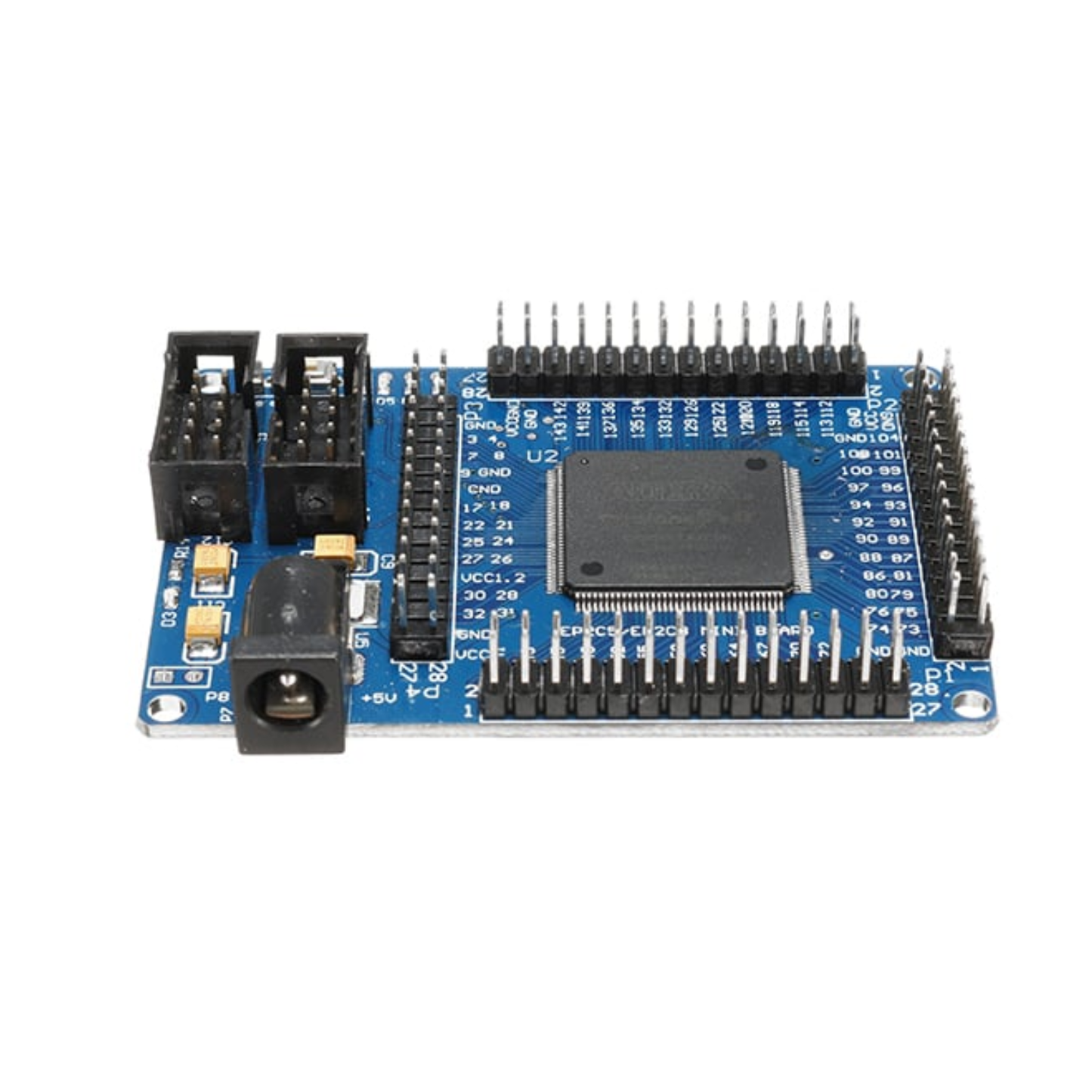

Altera FPGA EP2C5T144 Development Board At the heart of this miniature system lies the Altera Cyclone II EP2C5T144 FPGA, seamlessly integrating into diverse application environments.This versatile chip empowers the system to effortlessly handle a wide range of tasks, from basic logic control and data acquisition to complex signal processing and intricate mathematical computations.
Specifications:
- Item Type: Development board
- Model Series: Altera
- Input Voltage (V): 5
- Input / Output Pins: 89
- EEPROM chip: 4Mbit EPCS4
- Oscillator Frequency (MHz): 50
- No. of PLLs: 2
- FPGA IO voltage (V): 3.3
Features:
- Onboard the EP2C5T144 chip.
- EPROM chip configuration using EPCS4, the size of 4Mbit.
- Onboard 50M active patch crystal (Crystal Slaughter halfback).
- Power supply with a largemouth outlet, single 5V power supply.
- Board has a power indicator and resets switch.
- Onboard 3 SMD LED, the LED test can be done an experiment, more experiments using lead to complete.
- More IO ports and clock pins through the pin leads through these interfaces can be extended to any memory and peripherals.
- Board using a high-quality tantalum capacitor power filter.
- Support NiosII embedded CPU development.
Package Included:
1 x ALTERA FPGA Cyclone II EP2C5T144 System Development Board.
