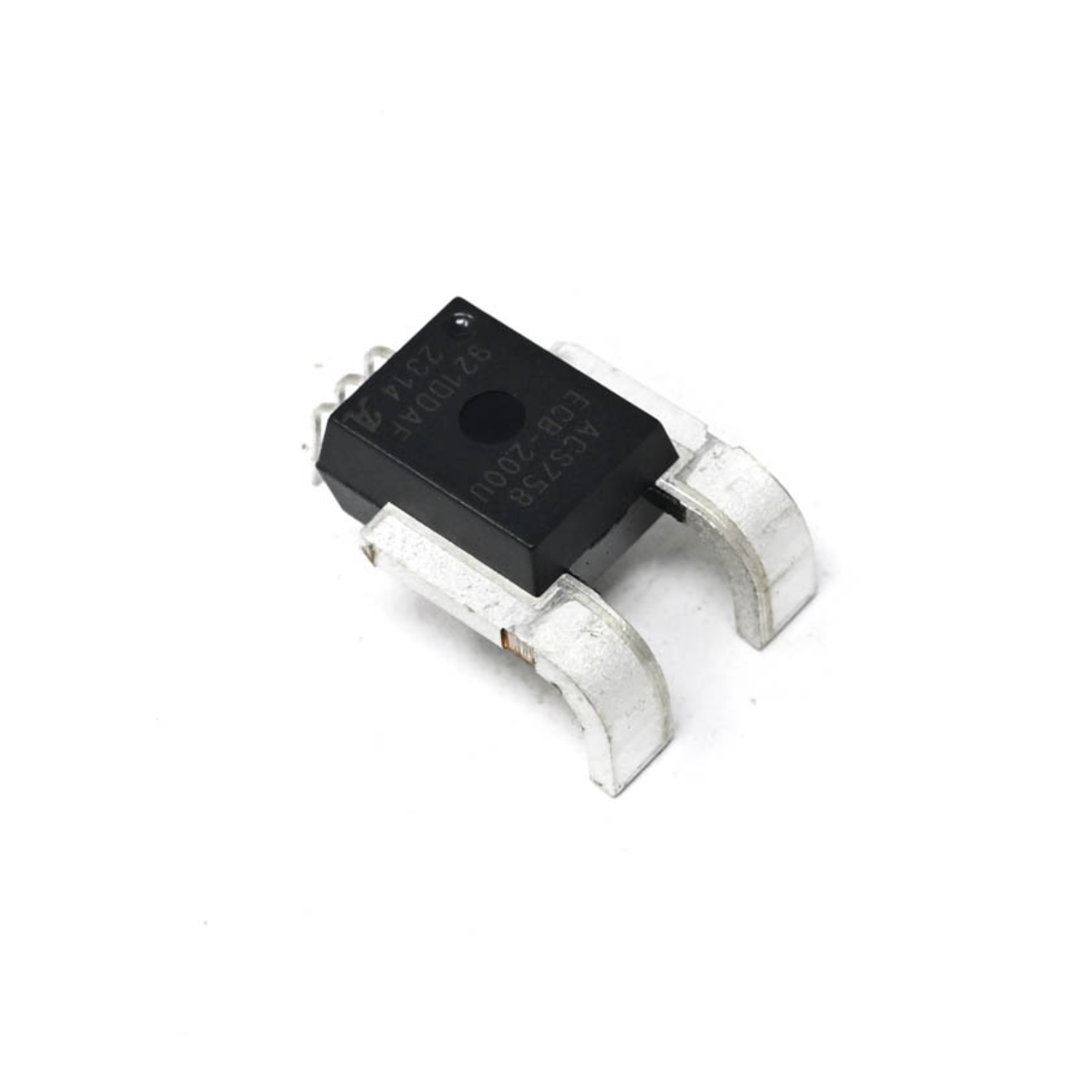

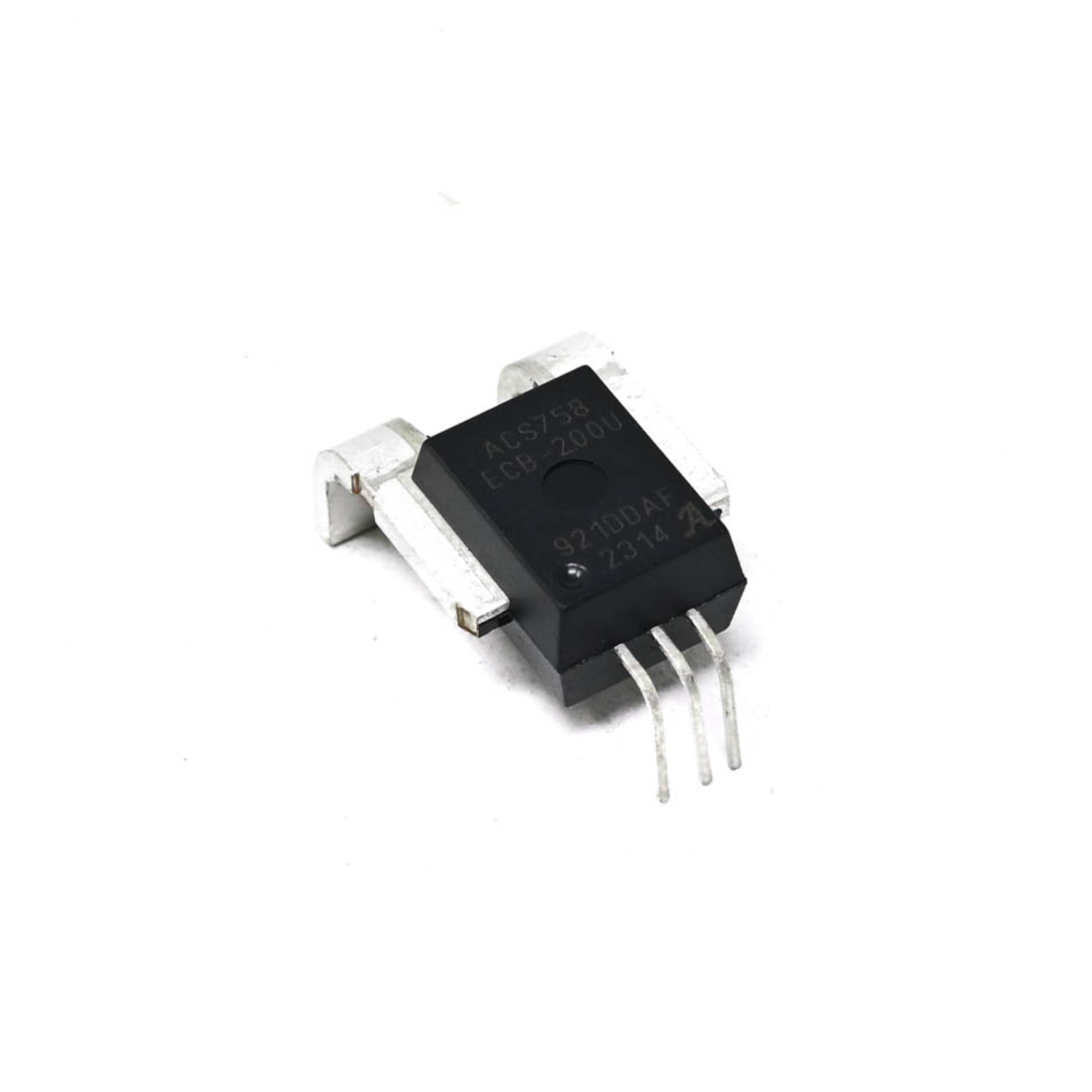

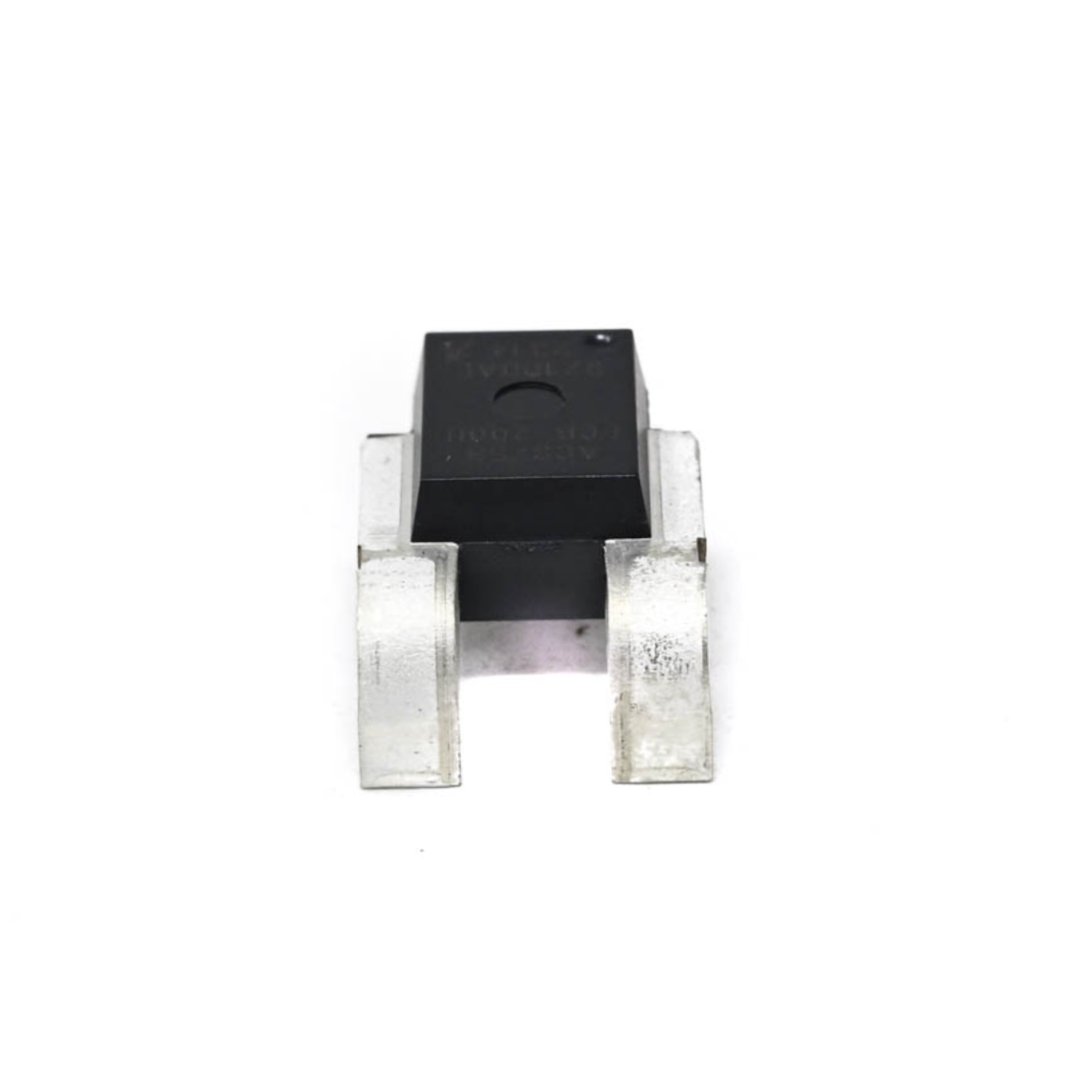

ALLEGRO MICROSYSTEMS ACS758ECB-200U-PFF-T Current Sensor For High-Bandwidth 200A PFF Package, 3.3V/5V, 120 kHz With Conductor Sensor

Description:

The ACS758ECB-200U-PFF-T is a precision, low-offset linear Hall circuit. This circuit works in conjunction with an integrated copper conduction path located in close proximity to the Hall IC. When current flows through this copper path, it generates a magnetic field. The Hall IC then detects this magnetic field and converts it into a voltage that is directly proportional to the current. This close proximity between the magnetic field source and the Hall transducer is a key factor in optimizing the device's overall accuracy.

Specifications:

• Item Type: Current Sensor
• Quiescent Current: 10mA
• Bandwidth: 120kHz
• Sensor Case Style: PFF
• No. of Pins: 5 Pins
• Supply Voltage Min: 3.3V to 5V
• Operating Temperature: -40 to 85°C

Features:

• Industry-leading noise performance through proprietary amplifier and filter design techniques
• Total output error improvement through gain and offset trim over-temperature
• Monolithic hall IC for high reliability
• 100µΩ Internal conductor resistance ultra-low power loss
• Galvanic isolation allows use in economical, high-side current sensing in high-voltage systems

Application:

• Motor Drive & Control
• Power Management

Package Included:

1 x ALLEGRO MICROSYSTEMS ACS758ECB-200U-PFF-T Current Sensor
