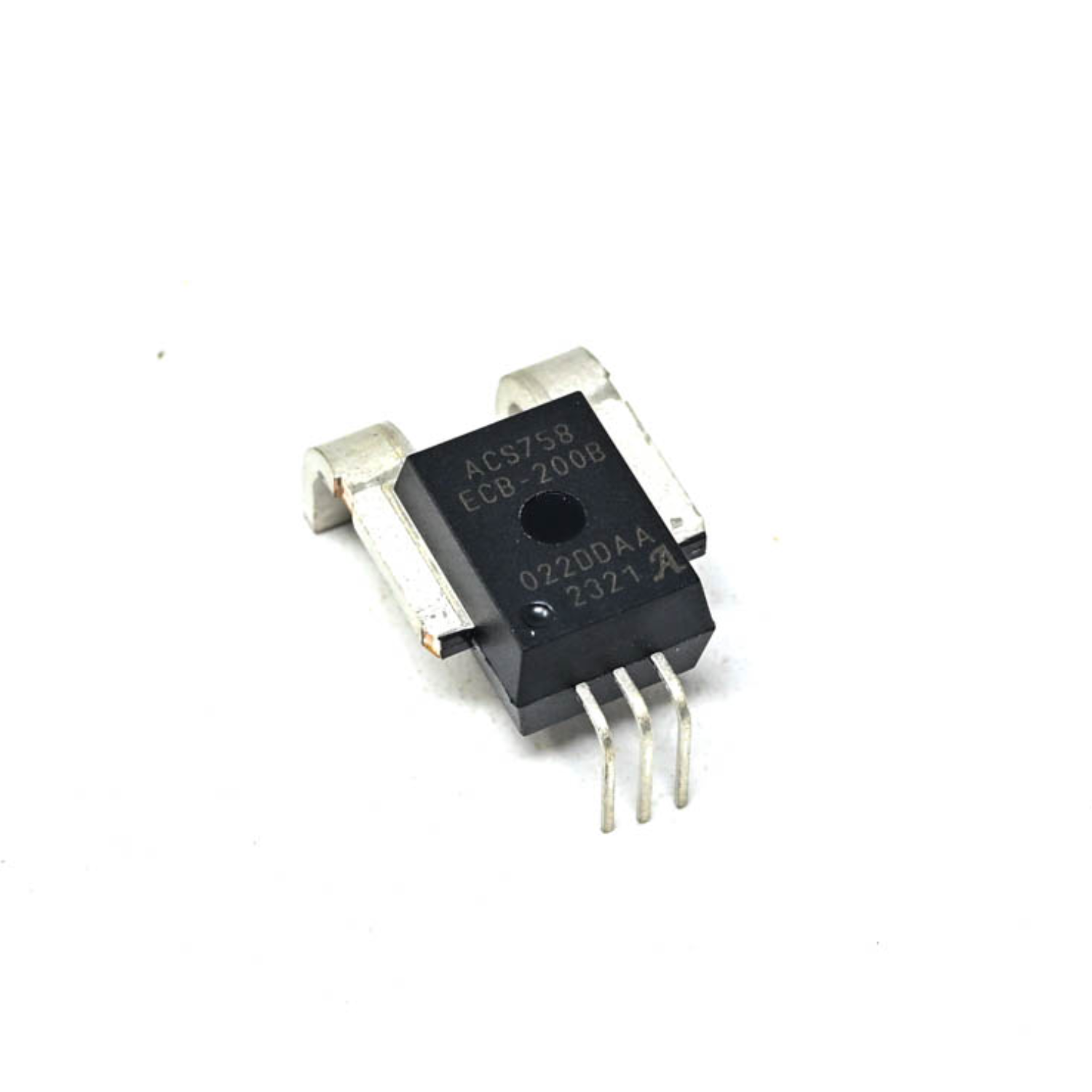

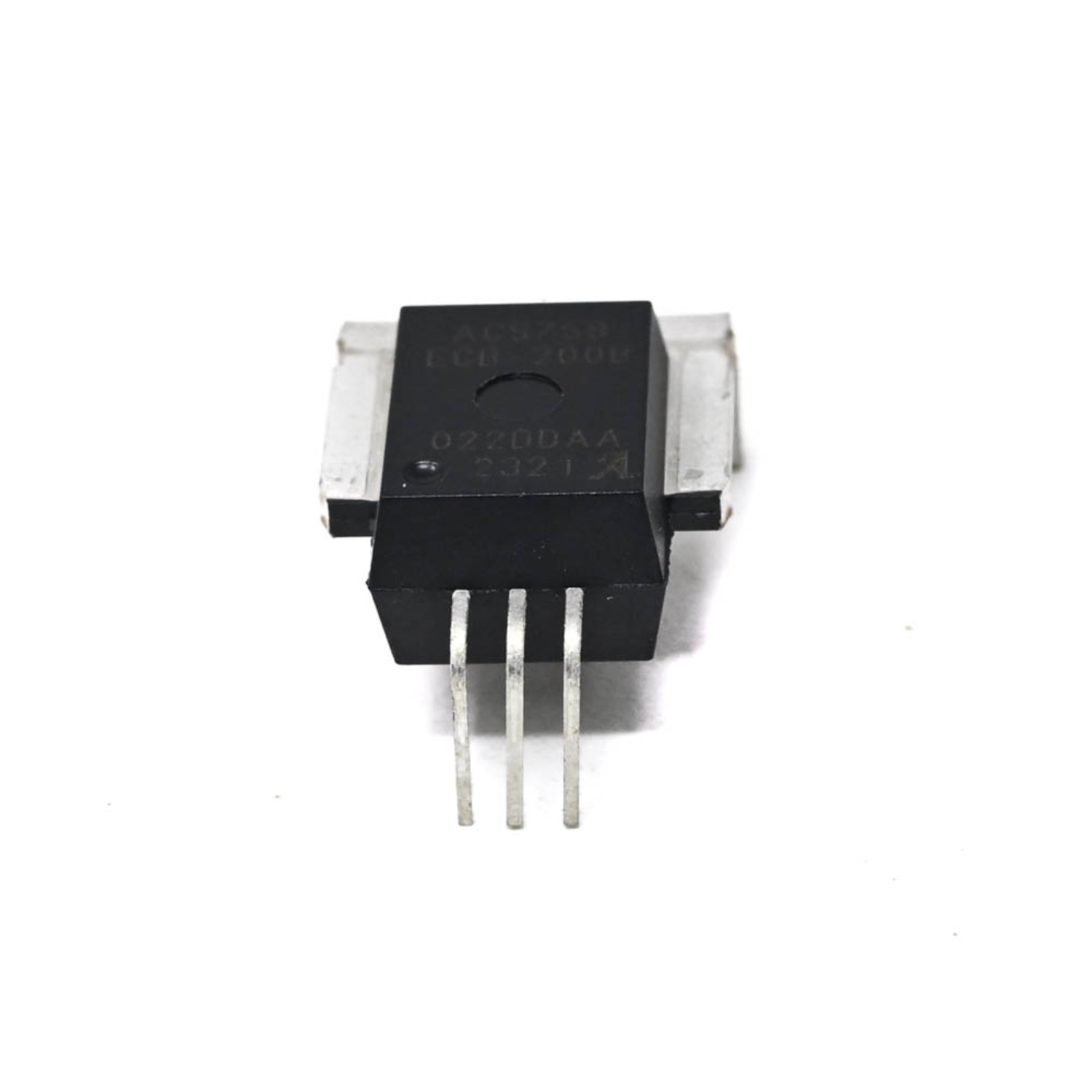

ALLEGRO MICROSYSTEMS ACS758ECB-200B-PFF-T High-Bandwidth 200A Hall-Effect Current Sensor PFF Package, 3V-5.5V, 120 kHz For Current Conductor

Description:

The ACS758ECB-200B-PFF-T is a thermally enhanced, fully integrated, Hall Effect-based linear current sensor IC packaged in a 5-pin CB package with a PFF (Pre-Formed Flat) lead form. This IC offers a cost-effective and precise solution for both AC and DC current sensing applications. It combines a high-precision, low-offset linear Hall circuit with a copper conduction path located in close proximity to the die.

The principle of operation is based on the Hall Effect. The current flowing through the integrated copper conduction path generates a magnetic field. This magnetic field is then sensed by the Hall IC, which converts it into a proportional voltage. The close proximity of the magnetic signal to the Hall transducer optimizes the device's accuracy.

Specifications:

• Quiescent Current: 10mA
• Bandwidth: 120kHz
• Sensor Case Style: PFF
• No. of Pins: 5 Pins
• Quiescent Current: 10mA
• Operating Temperature: -40 to 85°C

Features:

• Primary sampled current (Ip) of ±200A
• Sensitivity is 10mV/A
• Current directionality is bidirectional
• Automotive grade AEC Q-100 qualified
• Ultra-low power loss, 100μohm internal conductor resistance
• Single supply operation from 3V to 5.5V
• 120 KHz typical bandwidth
• 3μs output rise time in response to step input current
• Output voltage proportional to AC or DC currents
• Operating temperature ranges from -40°C to 85°C

Application:

• Sensing & Instrumentation
• Motor Drive & Control
• Power Management
• Automotive

Package Included:

1 x ALLEGRO MICROSYSTEMS Current Sensor
