- Operating Voltage: 3.3V DC
- WiFi Mode: IEEE802.11b/g/n
- Frequency Range: 2.4 ~ 2.4835GHz
- Modulation: DSSS, OFDM, DBPSK, DQPSK, CCK, QAM16/64
- Interface: UART, SPI, GPIO
Description:

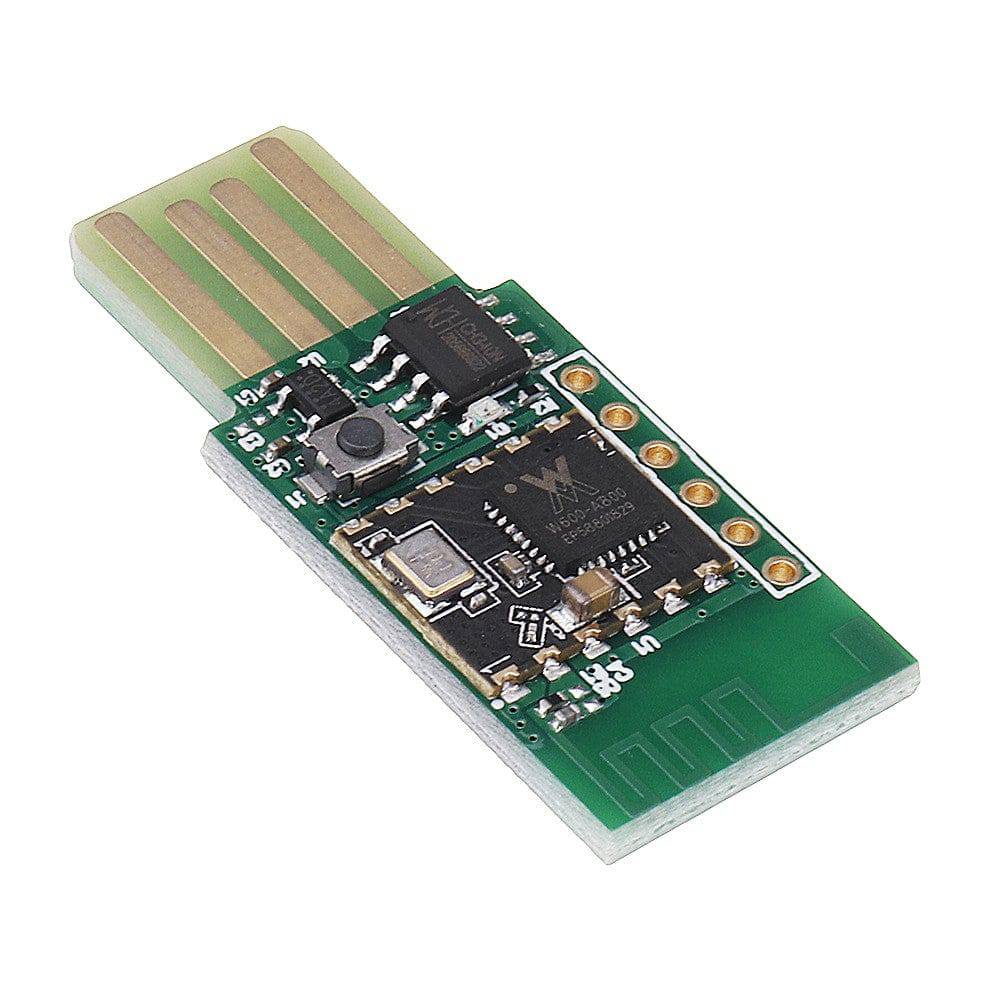

The Air602 WiFi Development Board is based on the Air602 Wi-Fi module and an integrated USB interface and Antenna. If you plug this board into your computer, it will be recognized as a Ports (COM & LPT), so that you can code it with the serial port tool. This module supportIEEE802.11b/g/n an AT command.
Specification:
- Operating Voltage: 3.3V DC
- WiFi Mode: IEEE802.11b/g/n
- Frequency Range: 2.4 ~ 2.4835GHz
- Modulation: DSSS, OFDM, DBPSK, DQPSK, CCK, QAM16/64
- Interface: UART, SPI, GPIO
- Network Type: STA/AP/AP+STA/Wi-Fi Direct
- Operating Current: 110mAPS Mode 35mADTIM = 1
- Operating Temperature: 40 ~ +85C
- Storage Temperature: 40 ~ +125C
Application:
- Intelligent home appliances
- Smart home
- Wireless audio and video
- Smart toys
- Medical monitoring
- Industrial control
- Other Internet of Things applications
Package Included:
1 x Air602 WiFi Development Board
