Ai-Thinker TB-05 Module TLSR8250 Bluetooth BLE5.0 Mesh Networking Master-Slave Wireless Serial Transmission - RS5706

Ai-Thinker TB-05 Module TLSR8250 Bluetooth BLE5.0 Mesh Networking Master-Slave Wireless Serial Transmission - RS5706

RS5706

Low stock: 5 left

Rs. 139.00
Rs. 139.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

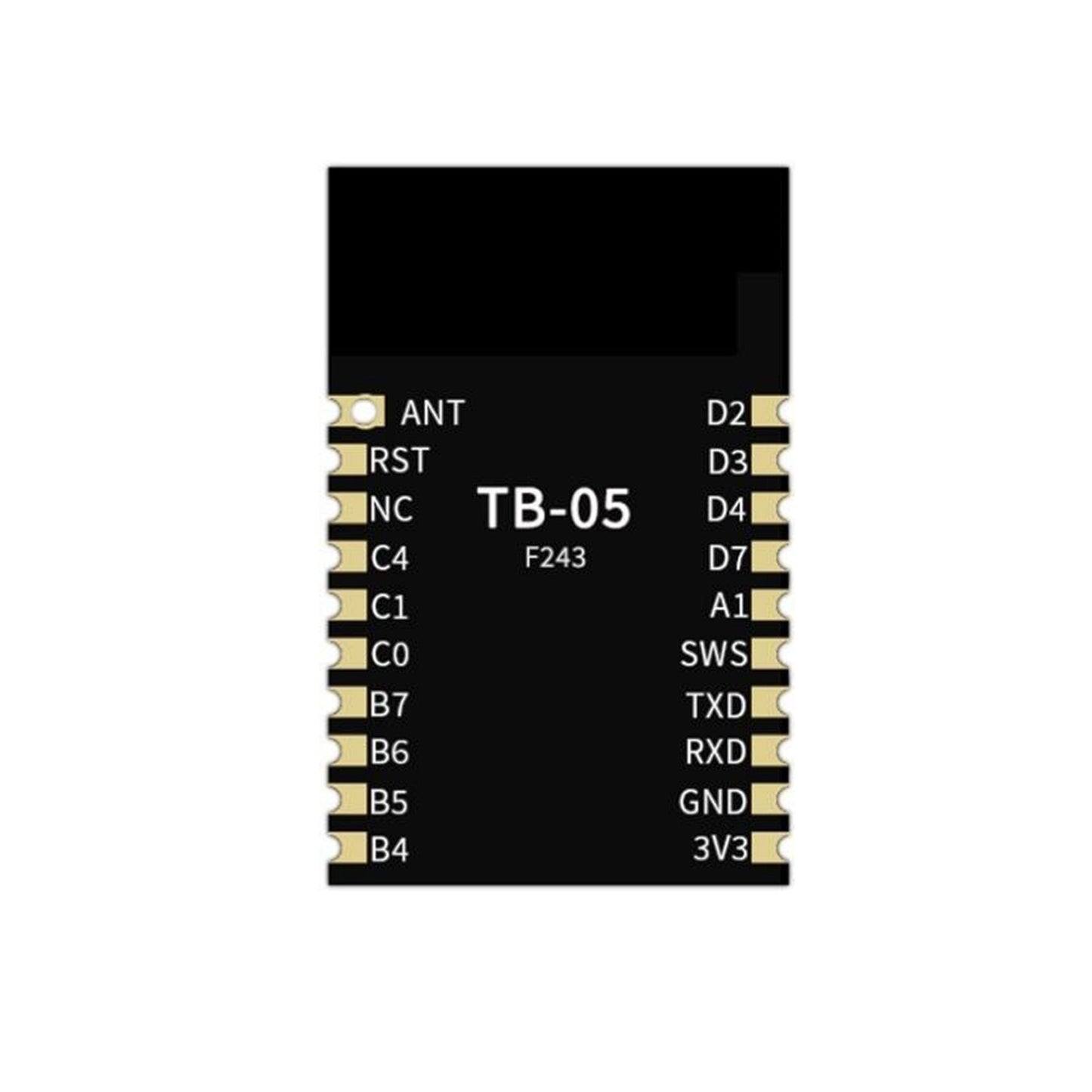

TB-05 Module is a BLE5.0 low-power consumption Tmall Genie Mesh Bluetooth module based on the based on TLSR8250 chip. The TB-05 Module supports the direct control of Tmall Genie and has the function of Bluetooth mesh networking. The TB-05 Module communicate through peer-to-peer star network and Bluetooth broadcast, which can ensure timely response in case of multiple devices. TB-05 Module is mainly used in intelligent light control, which can meet the requirements of low power consumption, low delay and short-range wireless data communication.

Specifications:

  • Model: TB-05
  • Wireless standard: Bluetooth 5.0
  • Frequency:2400~2483.5MHz
  • Maximum Tx power: Maximum 10.5dBm
  • Receiving Sensitivity: -93dBm
  • Interface: GPIO/PWM/SPI/ADC
  • Operating temperature: -40 ℃ ~ 85 ℃
  • Storage environment: -40 ℃ ~ 125 ℃ , 90%RH
  • Power supply: The power supply voltage is 2.7V ~ 3.6V, and the power supply current is ≥ 50mA
  • Power consumption: Sleep mode: 1.8 μA TX:21.56mA
  • Transmission distance: Outdoor open sight distance: ≥ 100 m

Features:

  • It can be directly controlled by the Tmall Genie without a gateway
  • 1mm pitch SMD-20 package
  • 6 PWM outputs
  • Onboard antenna, compatible with half-hole pad/through-hole pad
  • Brightness (duty cycle) adjustment range 5%-100%
  • Factory default cold colour warm colour duty cycle 50%
  • PWM output frequency 1KHz
  • With night light function
  • Colour temperature switching function with wall switch

Package Included:

1 x Ai-Thinker TB-05 Module TLSR8250 Bluetooth BLE5.0 Mesh Networking Master-Slave Wireless Serial Transmission
