Description:

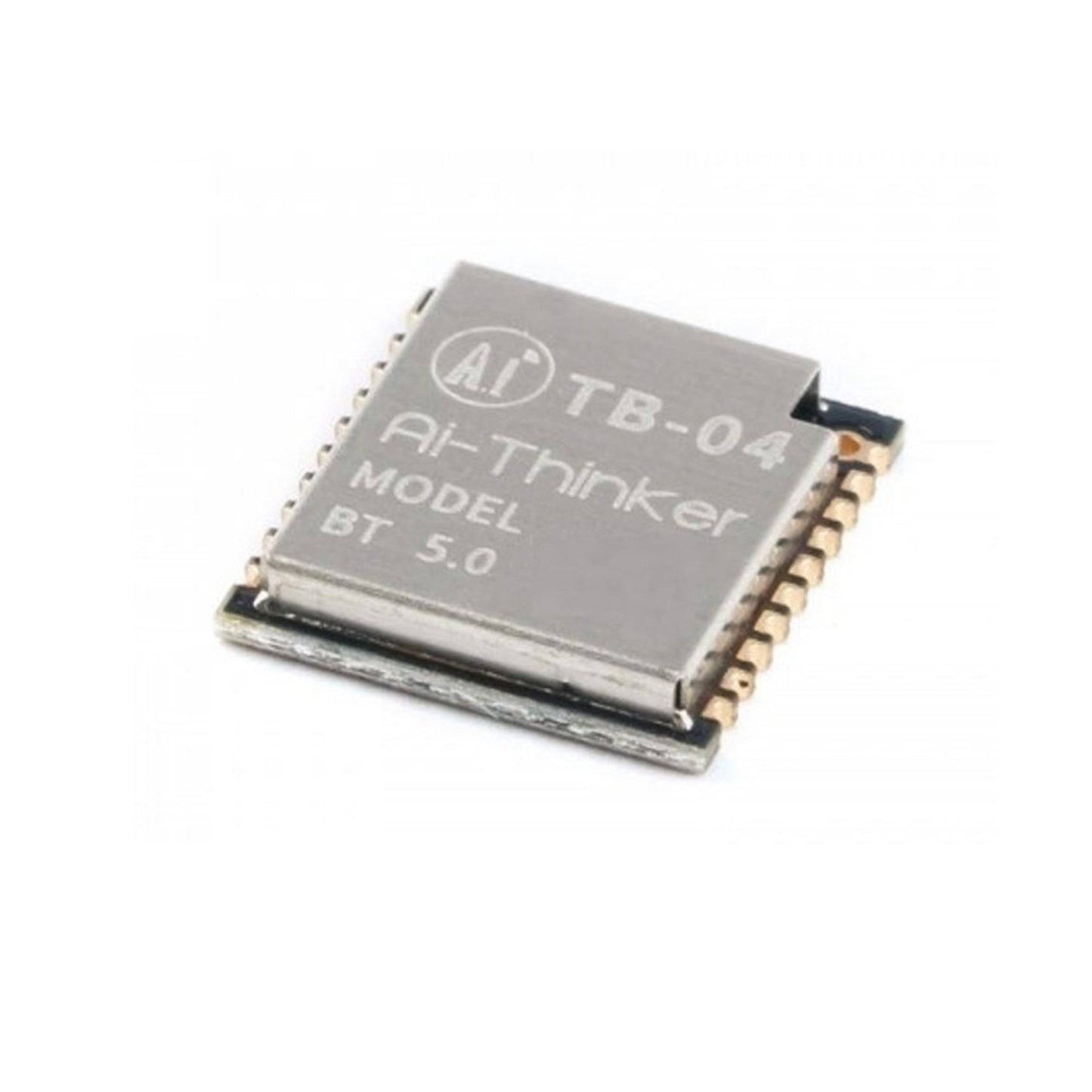

The TB-04 intelligent lighting module is a Bluetooth module based on the TLSR8253 chip and compatible with BT 5.0 low-power Tmall Genie Mesh. This TB-04 module supports the Bluetooth module directly controlled by Tmall Genie and has a Bluetooth mesh networking function. Peer-to-peer network communication, using Bluetooth broadcast for communication, ensures timely response in the case of multiple devices. TB-04 is mainly used in intelligent light control, which can meet the requirements of low power consumption, low latency, and short-range wireless data communication.
Specifications:
- Model Name: TB-04
- Size: 12.2x13x2.3(±0.2)mm
- Package: SMD-20
- Wireless Standard: Bluetooth 5.0
- Frequency Range: 2400~ 2483. 5MHz
- Transmit Power: 10dBm(Max)
- Max Sensitivity: -93dBm±2
- Interface: GPI0/PWM/SPI/ADC
- Work Temperature: -20°C~ 70 °C
- Store Temperature: -40 °C~ 125°C, <90%RH
- Voltage Range: Voltage 2.7V-3.6V current 50mA
Features:

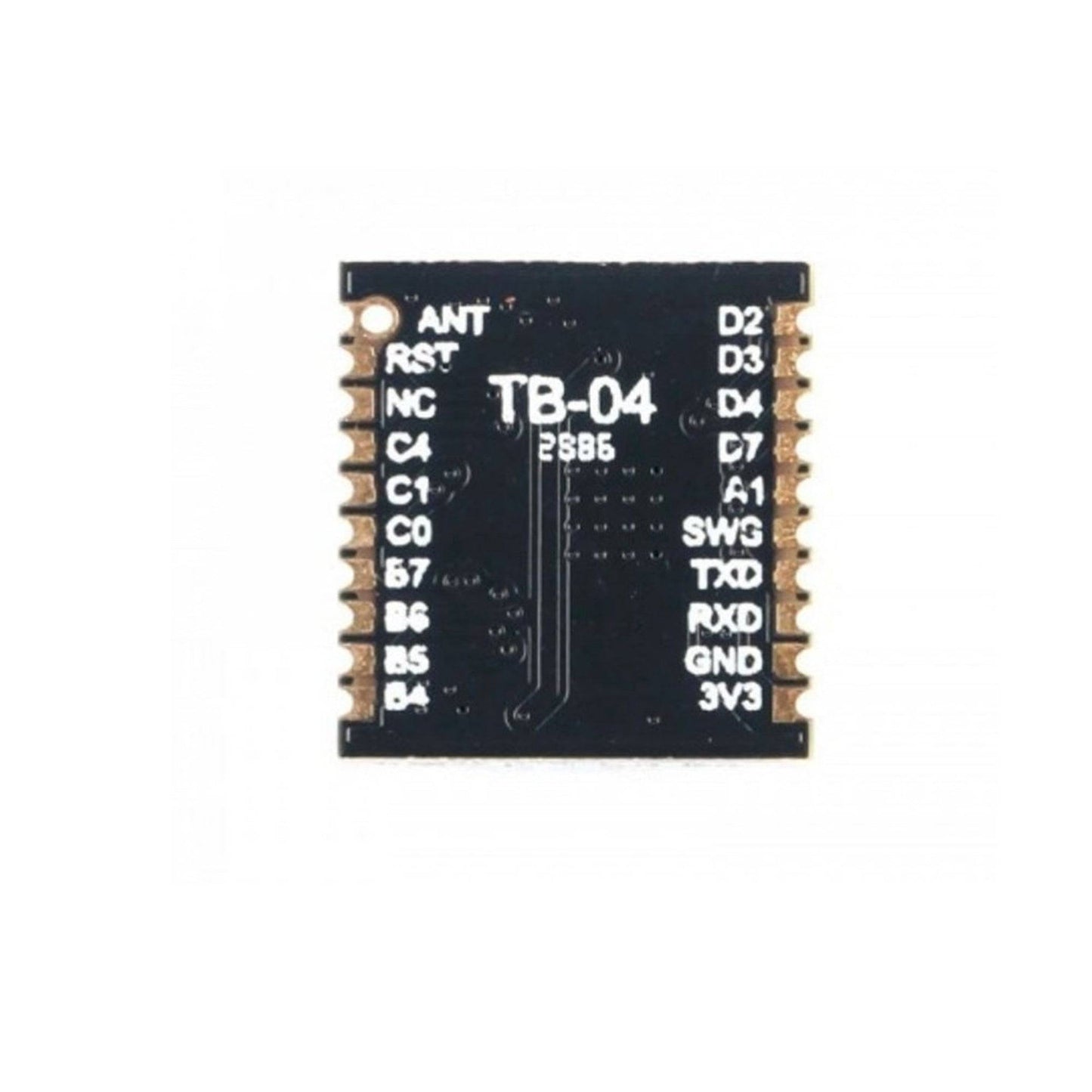

- 1.1mm spacing SMD-20 package
- 6 PWM output
- antenna patch pad, reserved antenna hole can be directly inserted spring antenna
- brightness (duty cycle) adjustment range 5-100%
- factory default warm and cool colour duty cycle 50% each
- PMW output frequency 1 KHz with small night light function
- with wall switch switching colour temperature function
Package Included:
1 x Ai-Thinker TB-04 Bluetooth Module TSLR 825x Ext Antenna dg SDK TB 04
