Description:
TB-03F intelligent lighting module is a Bluetooth module designed based on the TLSR8253 chip and conforming to BT 5.0 low-power Tmall Genie Mesh. This TB-03F module supports the direct control of Tmall Genie and has the Bluetooth mesh networking function. The devices through Star network communication, using Bluetooth broadcast for communication, which can ensure timely response in the case of multiple devices. This TB-03F module is applied to intelligent light control, which can meet the requirements of low power consumption, low latency and short-range wireless data communication.
Specifications:
- Module Model: TB-03F
- Wireless Standard: BT 5.0
- Frequency Range: 2400 ~ 2483.5MHz
- Transmit Power: Maximum 10dBm
- Receive Sensitivity: -93dBm±2
- Interface: GPIO/PWM/SPI/ADC/I2S
- Operating Temperature: -40℃ ~ 85 ℃
- Storage Environment: -40 ℃ ~ 125 ℃ , 90%RH
- Power Supply Range: Voltage 2.7V ~ 3.6V, current≥50mA
- Power Consumption: deep sleep mode: 0.4uA Standby mode: 2.51mA TX(PRBS9)@10dBm: 6.36mA TX(CarrierData)@10dBm: 20.54mA
Features:
- Can be directly controlled by Tmall Elf without a gateway

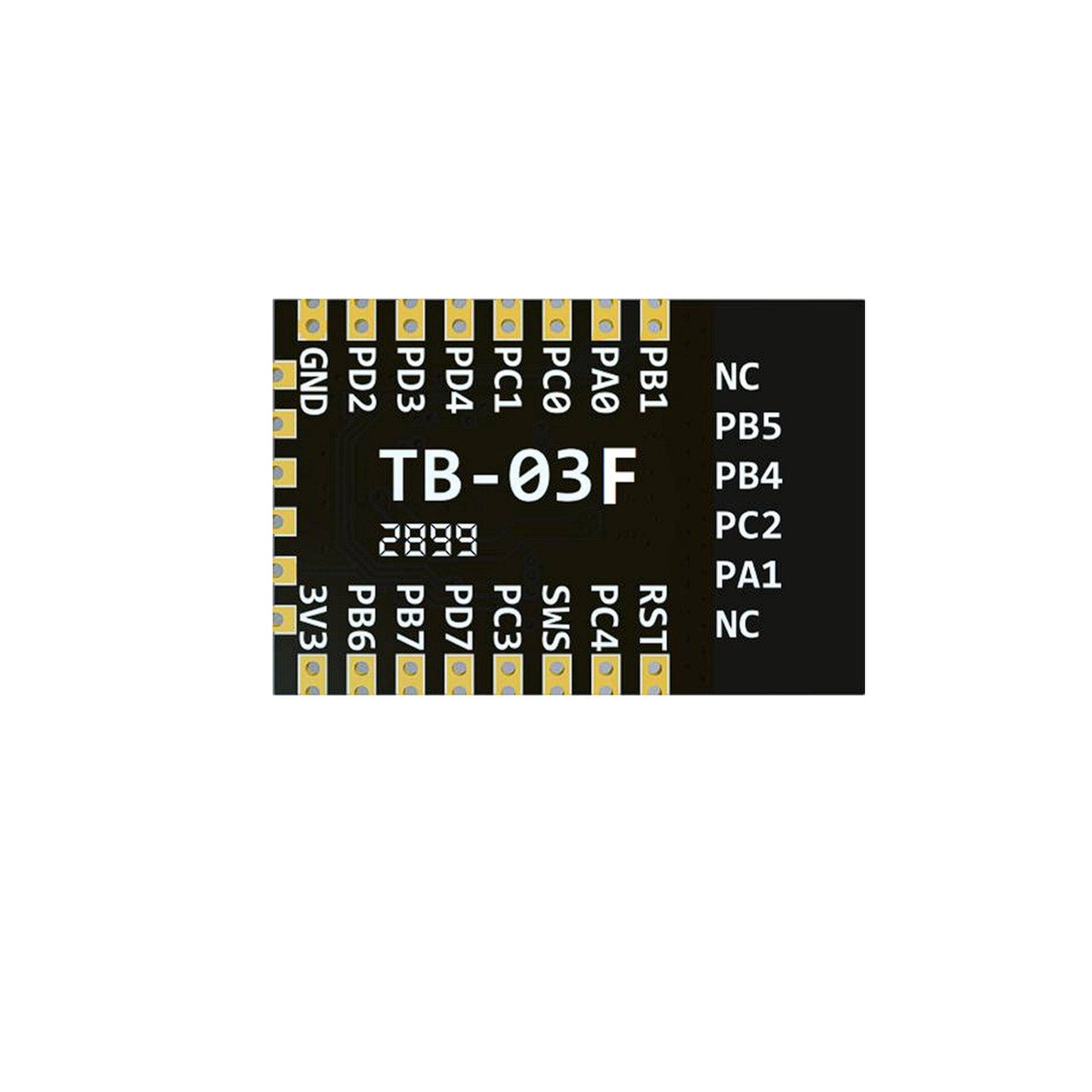

- SMD-22 package 6 PWM outputs
- With an on-board antenna, no need to design an antenna
- Brightness (duty cycle) adjustment range 5% -100%
- Factory default 50% duty cycle for cool and warm colours
- PWM output frequency 1KHz
- Support multiple sleep modes, deep sleep current as low as 0.4uA
- With a wall switch to switch the colour temperature function
- Support secondary development
Package Included:

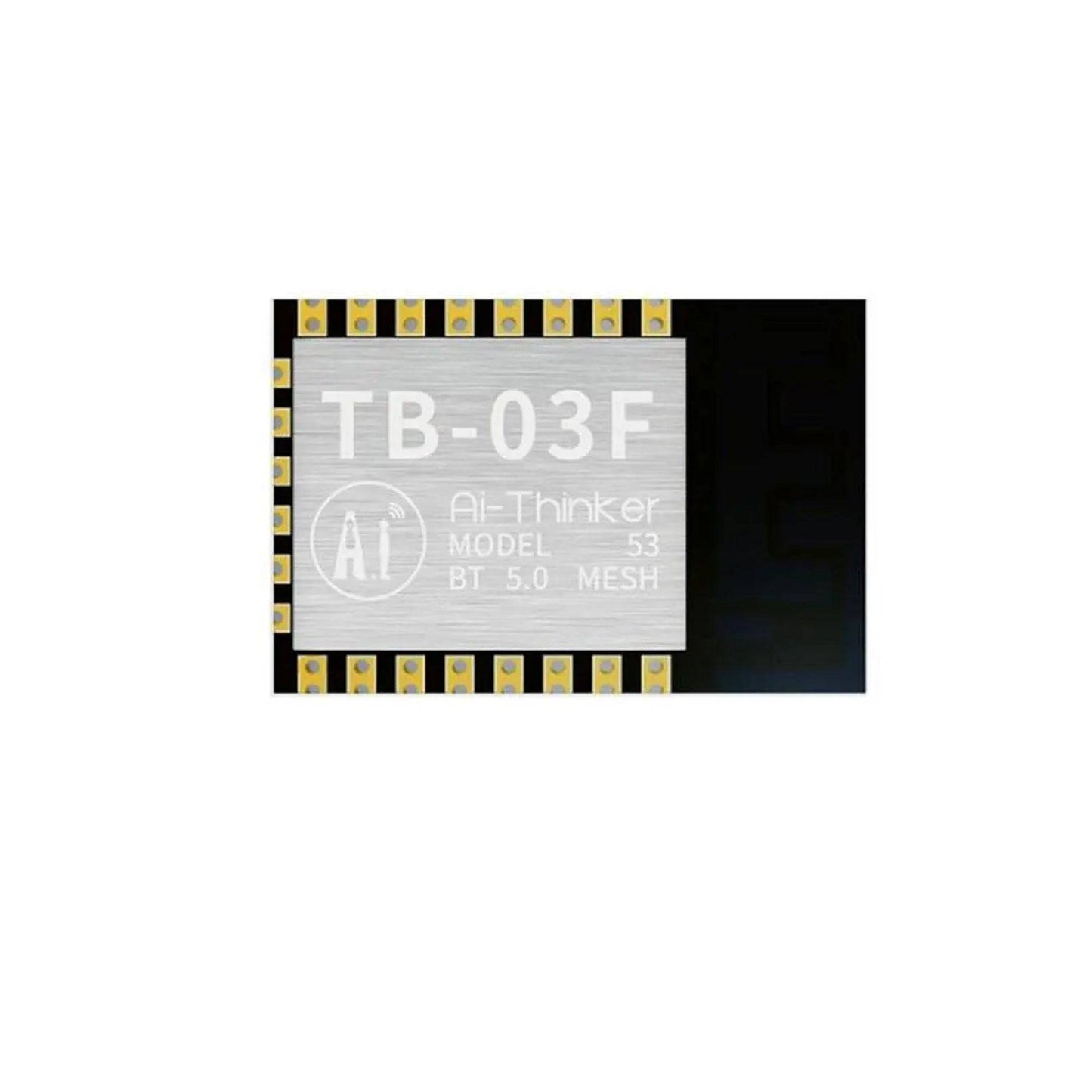

1 x Ai-Thinker TB-03F Bluetooth Module 2400~2483.5MHz
