Description:

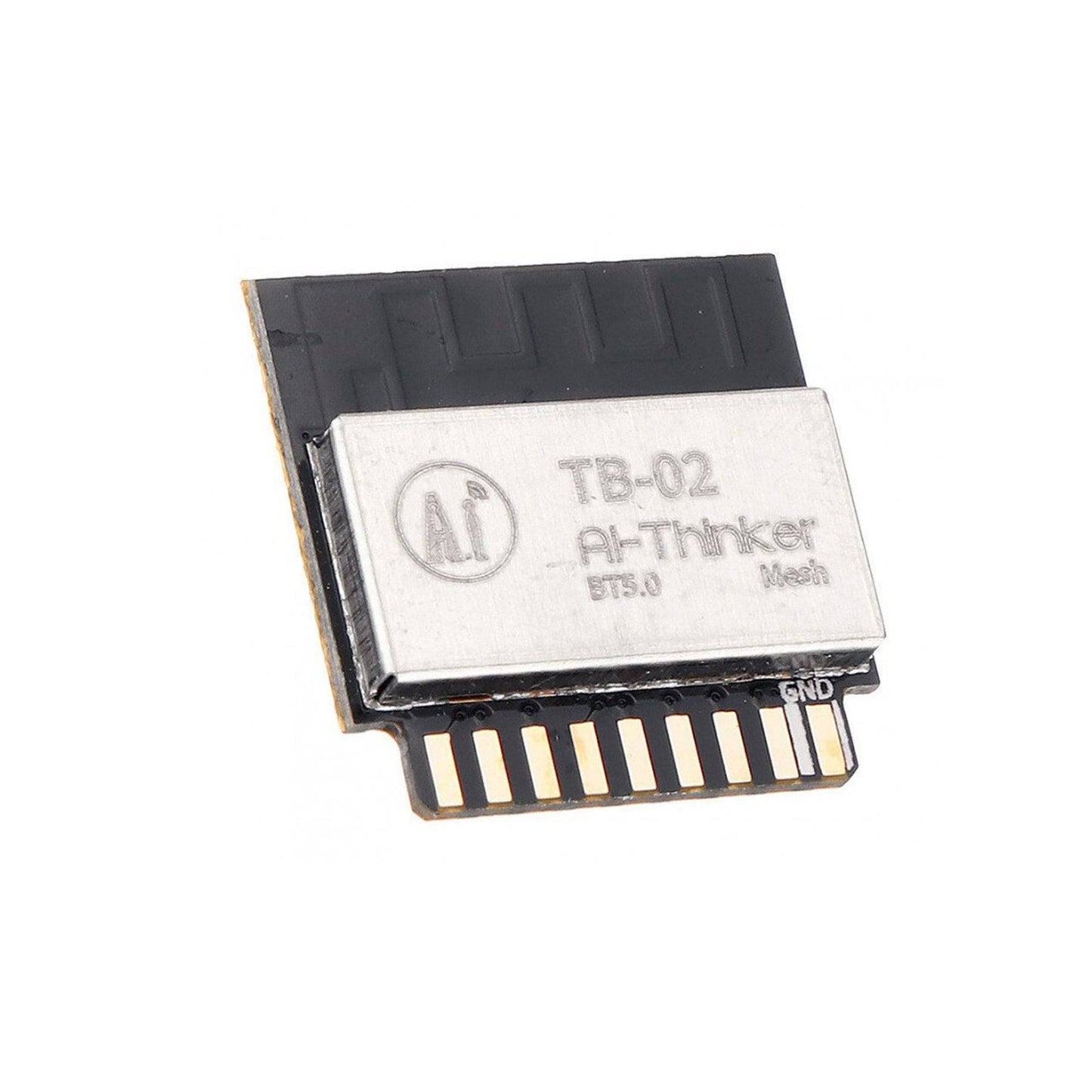

The TB-02 intelligent lighting module is a Bluetooth module based on the TLSR8250F512 chip and compatible with BT 5.0 low-power Tmall Genie Mesh. This TB-02 module supports the Bluetooth module directly controlled by Tmall Genie and has a Bluetooth mesh networking function. Peer-to-peer network communication, using Bluetooth broadcast for communication, can ensure timely response in the case of multiple devices. TB-02 is mainly used in intelligent light control, which can meet the requirements of low power consumption, low latency, and short-range wireless data communication.

Specifications:

  • Model Name: TB-02
  • Wireless Standard: Bluetooth V5.0
  • Frequency Range: 2400 ~ 2483.5MHz
  • Output Power: 10dBm
  • Sensitivity: -93dBm
  • Interface: GPIO/PWM/SPI/ADC
  • Work Temperature: -40℃ ~ 85 ℃
  • Store Temperature: -40℃ ~ 125 ℃ , < 90%RH
  • Voltage Range Voltage: 2.7V ~ 3.6V, Current≥50mA
  • Transmission Distance: 80m ~ 150m
  • Power Deep Sleep Mode: 0.8uA Sleep Mode: 1.8uA TX: 12.62mA

Features:

  • Can be directly controlled by Tmall Elf without
  • 1.6mm pitch pin vertical solder DIP18 or SMD-13 package
  • 6 PWM output
  • With an on-board antenna, no need to design an antenna
  • Brightness (duty cycle) adjustment range 5% -100%
  • Factory default 50% duty cycle for cool and warm colours
  • PWM output power 1KHz
  • With night light function
  • With a wall switch to switch the colour temperature function

Package Included:

1 x Ai-Thinker TB-02 Bluetooth Module
