Ai-Thinker RTLDUINO-BW16 WiFi Kit RTLDUINO-BW16 WiFi Development Board BW16 WiFi Kit For Compatible With Arduino Development With Type-C Interface - RS5720

Ai-Thinker RTLDUINO-BW16 WiFi Kit RTLDUINO-BW16 WiFi Development Board BW16 WiFi Kit For Compatible With Arduino Development With Type-C Interface - RS5720

SKU:RS5720

In stock

Regular price Rs. 699.00
Regular price Sale price Rs. 699.00
Preorder Sale Sold out
Shipping calculated at checkout.
Note: Thank you for your order! Please note that this is a preorder. Your item will be shipped from our Shenzhen warehouse to our Delhi warehouse via DHL. After that, it will be delivered to your address. We appreciate your patience and are excited to get your product to you soon!
  • Shipping: 12 days after checkout

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

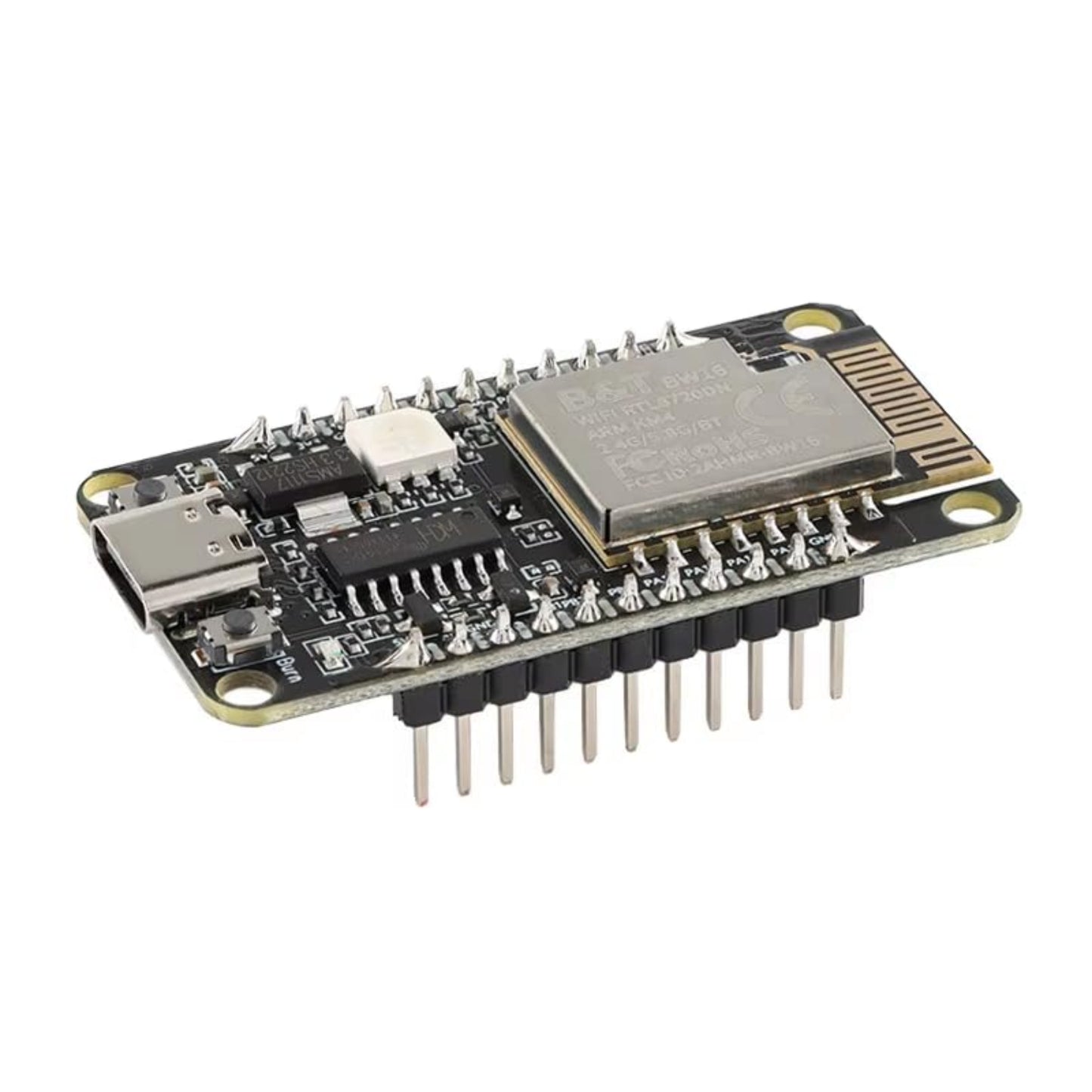

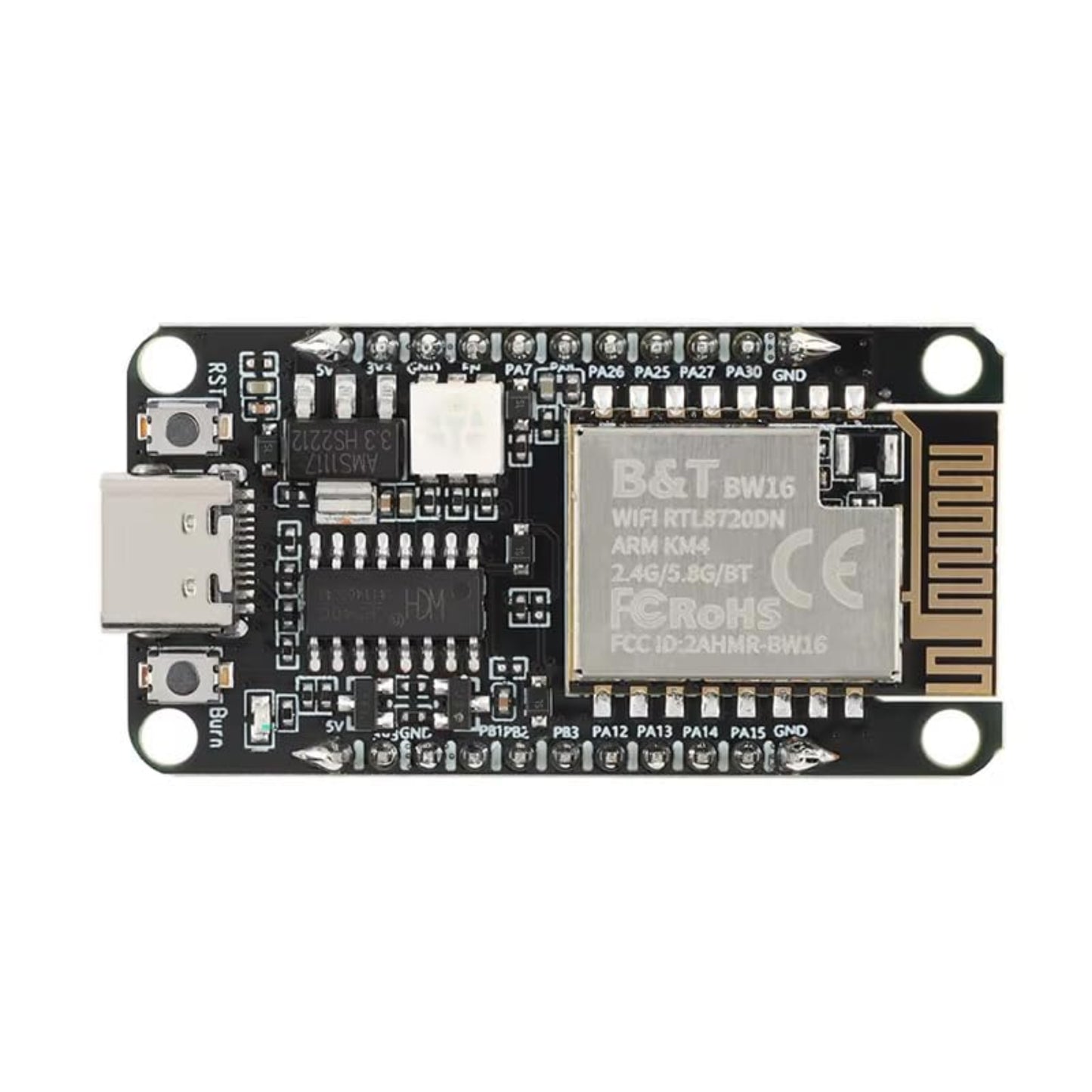

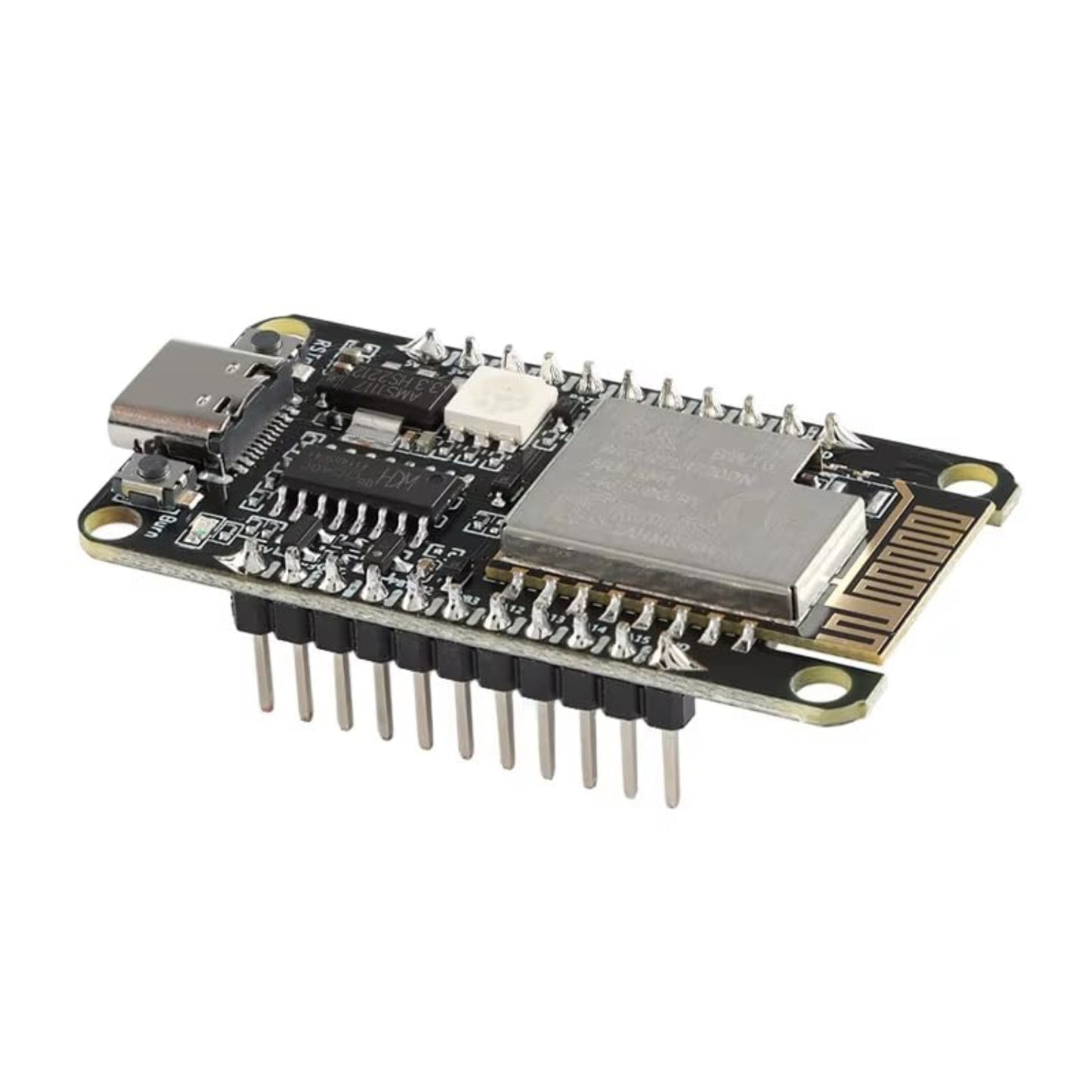

BW16 is a dual-frequency Wi-Fi Bluetooth SoC module based on RTL8720DN. BW16 supports dual-frequency (2.4ghz or 5ghz) WLAN and low-power Bluetooth5.0 it integrates ARM V8 (compatible with Cortex-M4F) high-performance MCU, ARMV8M(compatible with Cortex-M0) low-power MCU, WLAN(802.11 a / b / g / n),MAC, Bluetooth baseband and RF baseband) and provides a set of configurable GPIO ports for the control of different peripherals. BW16 integrates internal memory, supports some simple application development, and realizes complete Wi-Fi and BT 5.0 protocol functions.

Specifications:

  • Model: BW16
  • Antenna: PCB or IPEX antenna
  • Frequency Range: 2400-2483.5MHz or 5180-5825MHz
  • Bluetooth: BT5.0
  • Bluetooth Frequency Range: 2.402GHz - 2.480GHz
  • Operating Temperature: -20℃ ~ 70℃
  • Storage Environment: -40℃ ~ 125℃ , < 90%RH
  • Power Supply: Voltage 3.0V ~ 3.6V, Typ:3.3V, current >450mA
  • Interface: UART/GPIO/ADC/PWM/IIC/SPI/SWD
  • FLASH: Default 16Mbit (Support 16Mbit/32Mbit/64Mibt/128Mbit)

Features:

  • Support 802.11a/b/g/n 1x1, 2.4GHz or 5GHz.
  • Support HT20/HT40 mode
  • Support for low-power beacon listening mode, low-power reception mode, and low-power pending mode.
  • Embedded AES / DES / SHA hardware engine.
  • Support TrustZone-M and Safed start-up.
  • Support SWD debug port access protection
  • Support BLE and BT5.0
  • Bluetooth supports high power mode (7dBm, sharing the same PA with WiFi)
  • Wi-Fi and BT share the same antenna
  • Support STA/AP/STA+AP operating mode
  • Support the Smart Config(APP)/AirKiss(wechat) of Android, IOS (One-click distribution network
  • Support serial port local upgrade and remote firmware upgrade(FOTA)

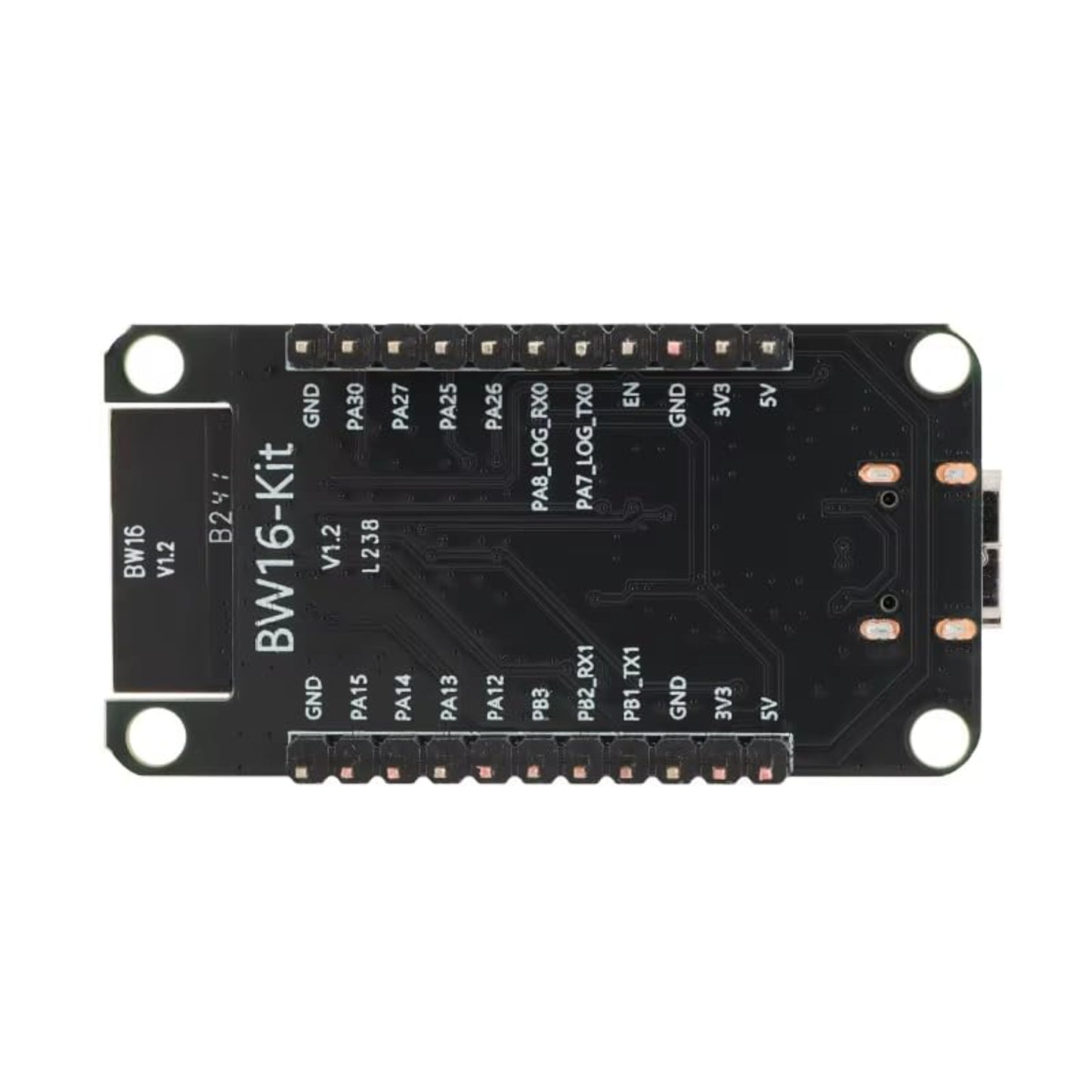

Pin Description:

Pin No. Name Description

1

2

GND

PA30

Ground

LP_PWMI

3 PA27 SWD_DATA
4 PA25 LP_I2C-SCL/LP_PWM4
5 PA26 LP_I2C-SDA/LP_PWM5
6 PA8_LOG_RX0 UART_LOG_RDX
7 PA7_LOG_TX0 UART_LOG_TDX
8 EN Chip Anable Terminal

9

10

GND

3V3

Ground

3.3V Power Supply

11 5V 5V Power Supply

12

13

5V

3V3

5V Power Supply

3.3V Power Supply

14 GND Ground

15

16

PB1_TX1

PB2_RX1

LP_UART_TXD

LP_UART_RXD

17

PB3 ADC/SWD_CLK

18

19

PA12

PA13

LP_PWM0/SPI1_MOSI

LP_PWM1/SPI1_MOSO

20

PA14 SPI1_CLK

21

22

PA15

GND

SPI1_CS

Ground

Package Included:

1 x Ai-Thinker BW16-Kit WiFi Development Board
