Description:

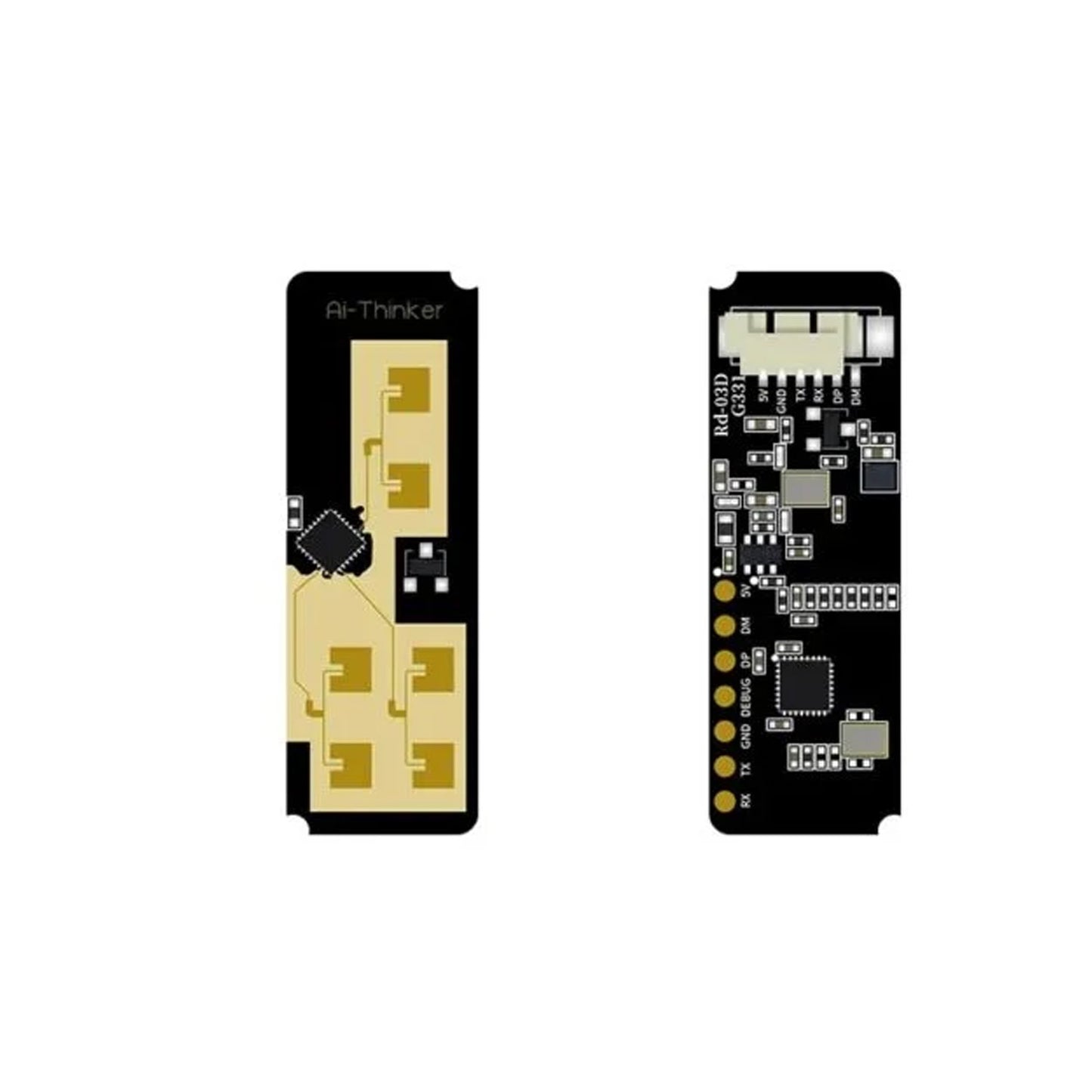

Rd-03D is a radar module developed by Ai-Thinker, which is equipped with the S5KM312CL chip. S5KM312CL is an integrated microcontroller millimeter wave sensor SoC based on FMCW radar transceiver technology. Rd-03D works in 24 GHz K-band with a maximum sweep bandwidth of 0.25 GHz. The module adopts the advanced signal processing technology of FMCW waveform and S5 series chip, combined with MCU's radar signal processing and built-in intelligent positioning and tracking algorithm, which can detect multiple targets in the specified area and report the results in real-time, and users can quickly develop the corresponding target positioning and tracking products.
The Rd-03D module accurately senses the human body and regional motion state, carries an intelligent algorithm to realize motion trajectory recognition and tracking, and realizes speed measurement and ranging of targets in the region, with faster recognition speed and lower power consumption. The Rd-03D module can be configured quickly and is suitable for all kinds of public publicity facilities. It can intelligently distinguish the human body in the form of movement, micro-movement, and rest, and control the switch of equipment. The Rd-03D module has good resistance to external interference and is not affected by wireless signals such as WIFI.
Specifications:
- Model: Rd-03D

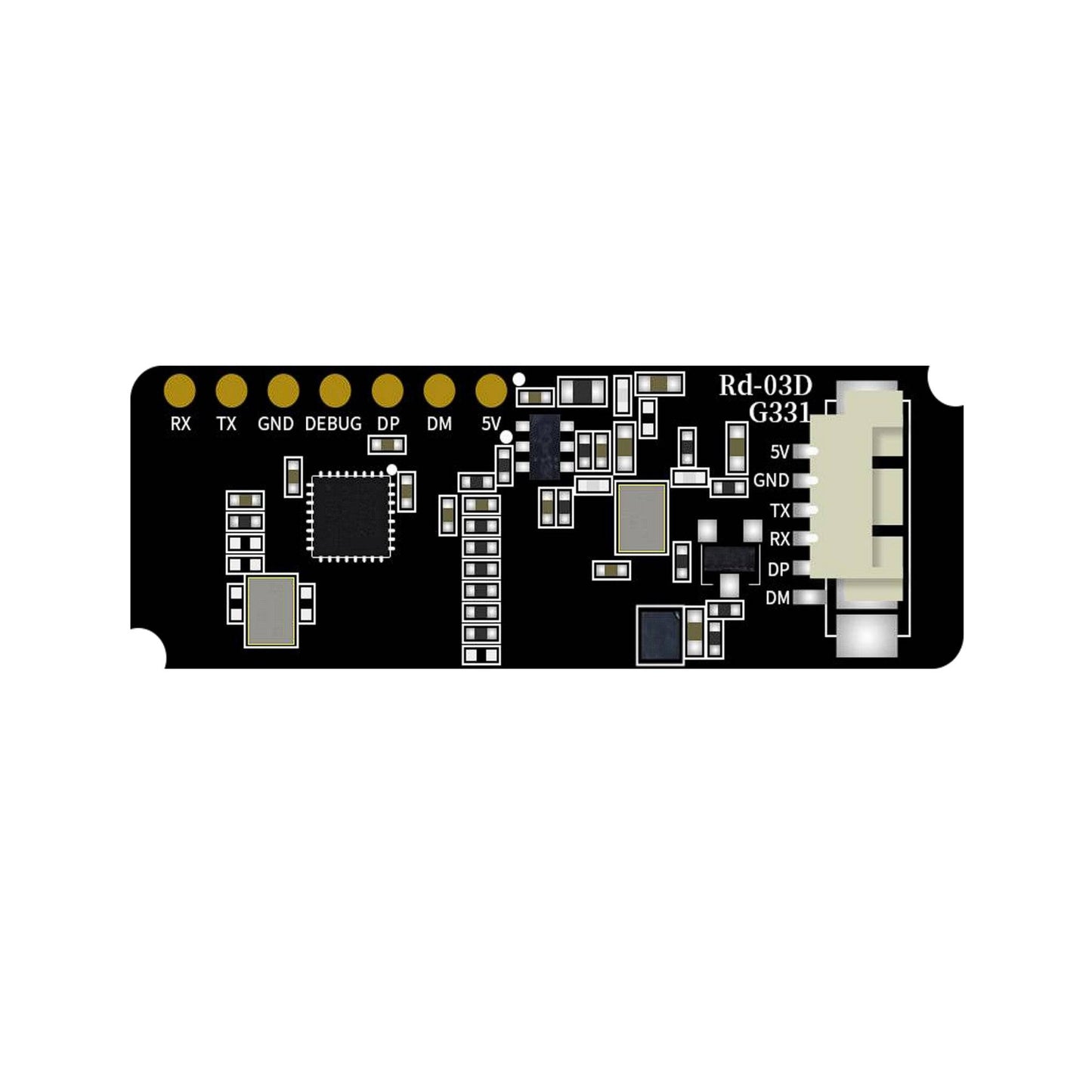

- Package: Standard 1*4P-1.25mm socket connector
- Size: 15.0*44.0(±0.2)mm

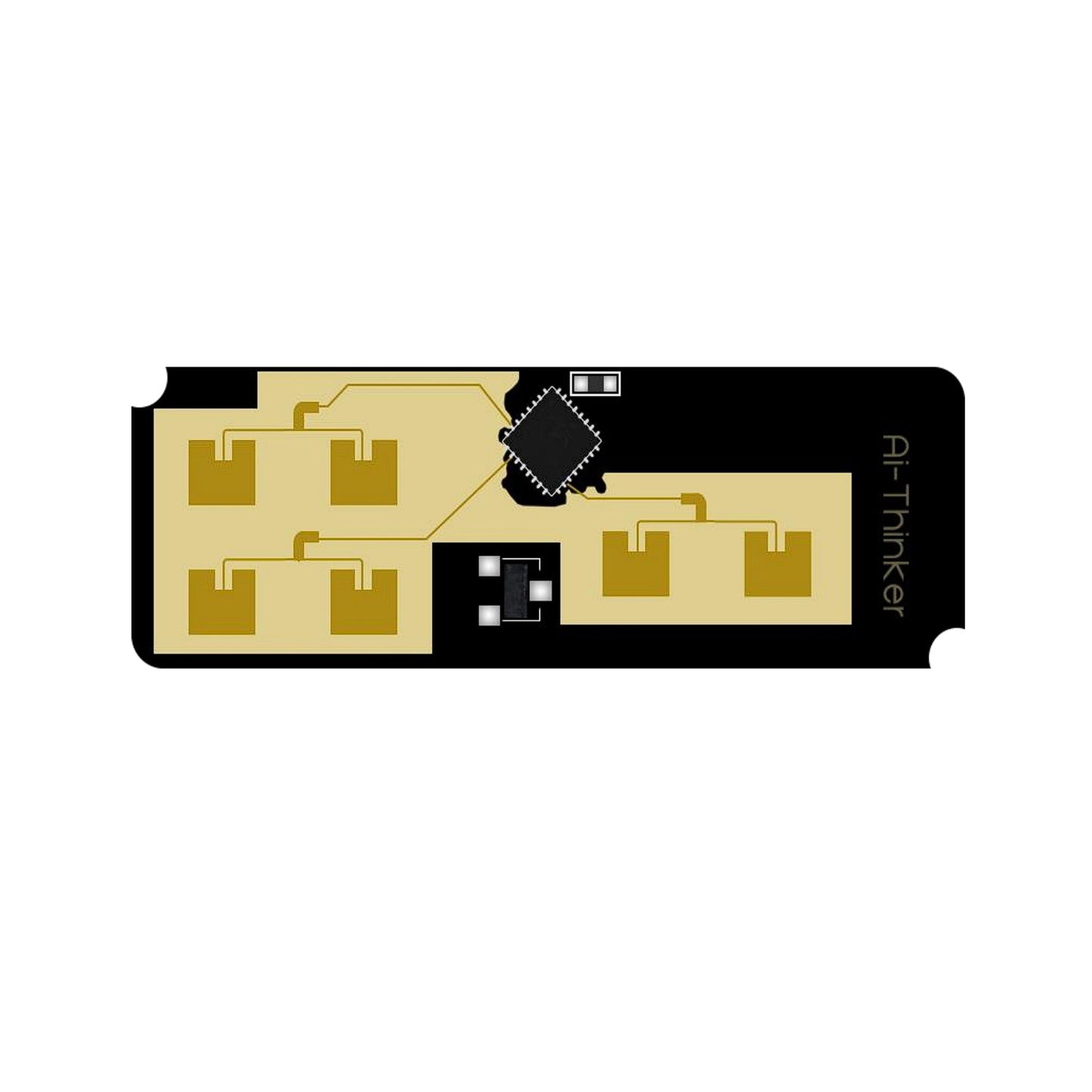

- Antenna: on-board PCB antenna
- Frequency 24G ~24.25GHz
- Working Temperature: -40℃ ~ 85℃
- Storage Temperature: -40℃ ~ 125℃, 90%RH
- Power Supply: Support voltage 5V, supply current ≥200mA
- Interface UART
- UART Rate: Default 256000 bps
Features:
- Adopts standard 1*4P-1.25mm socket connector
- Radar support 24 GHz ISM frequency band
- High-performance 1T2R antenna
- Accurate target positioning and tracking
- MAX sensing distance is 8m
- The range resolution is 0.75m, the ranging accuracy is 0.15m
- Detection range azimuth Angle ±60°, pitch Angle ±30° Wall mounting
- Provides a visual tool to configure the tracking detection range, data reporting interval, and target retention time
- Ultra-small module size: 15*44mm
- Automatically loads default configuration, plug and play
- Support UART, you can use the serial port to realize radar intelligent parameter adjustment, convenient and fast
- 5V single power supply
Package Included:
1 x Ai-Thinker Rd-03D 24G Multi-Target Human Movement Trajectory Positioning And Tracking Radar Module
