Description:

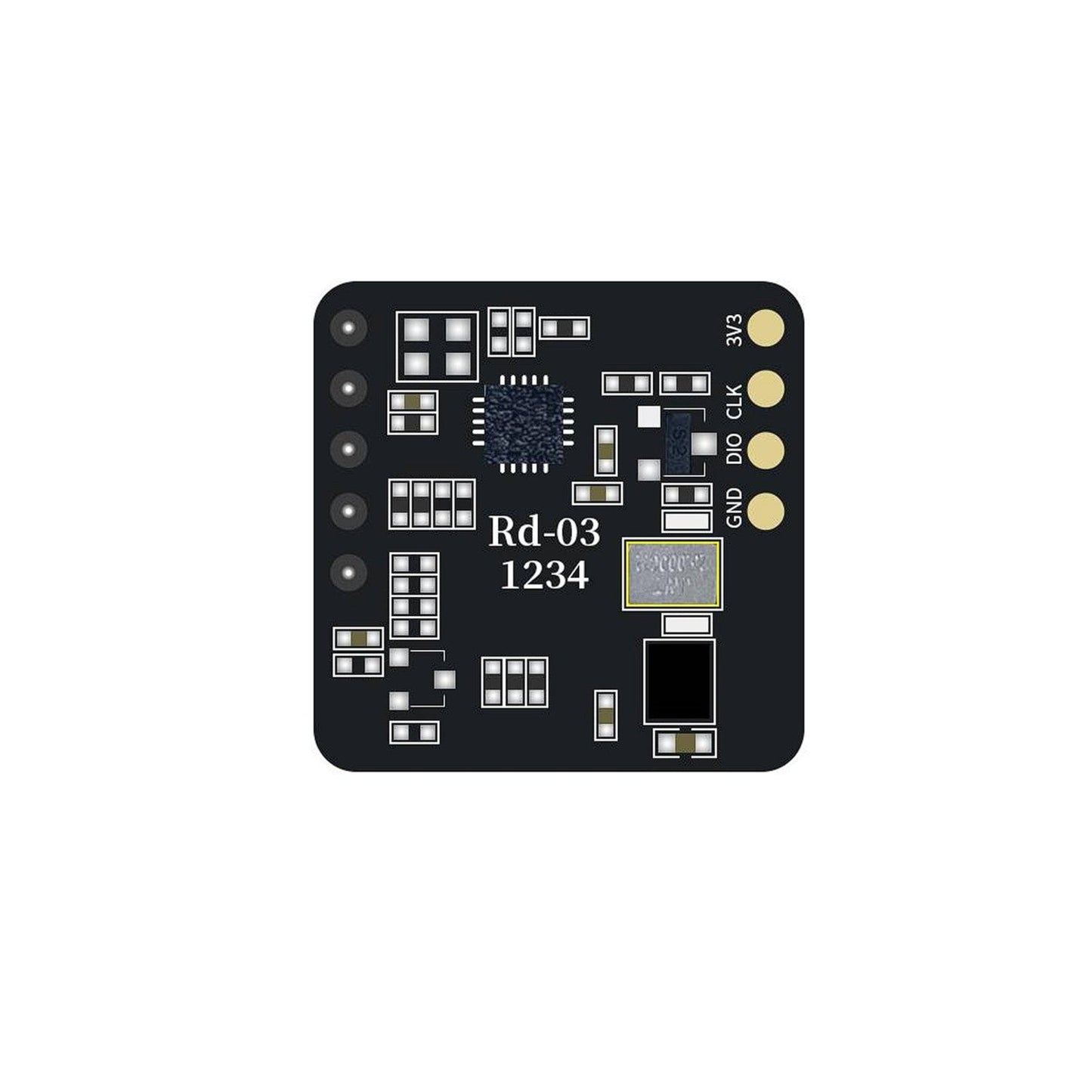

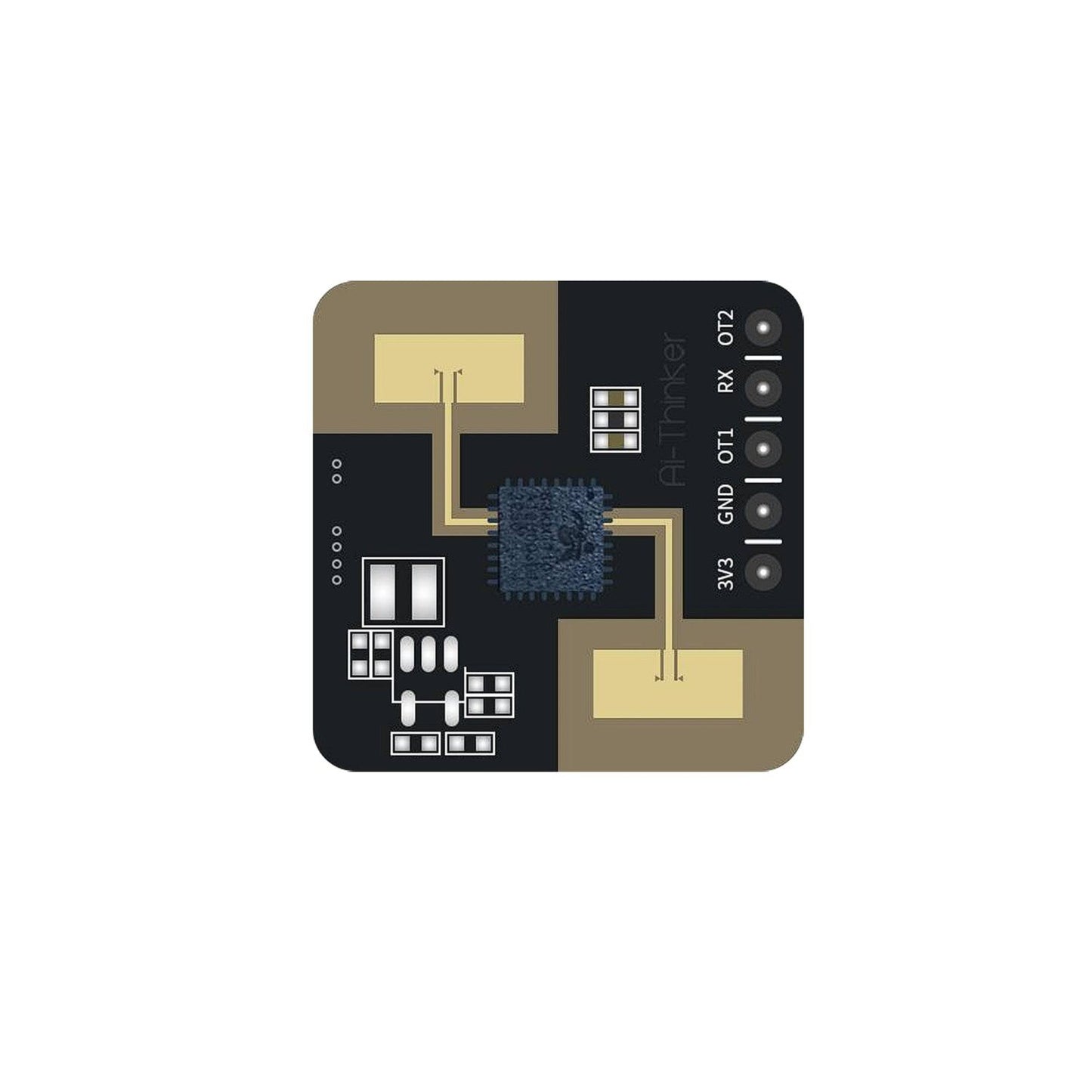

Rd-03 is a radar module developed by Ai-Thinker. It is equipped with silicon micro-S3KM1110 chips. S3KM1110 is an integrated single-chip millimeter-wave sensor SoC based on FMCW radar transceiver technology. Operates in 24 GHz K-band with up to 1 GHz modulation bandwidth per frequency. FMCW continuous wave is used to detect the target in the set space. Combined with radar signal processing and an accurate human body sensing algorithm, high-sensitivity human presence state sensing can be realized to recognize a body in motion and a static state.
The Rd-03 module can sense whether there is a moving or micro-moving human body in the area, and realize real-time detection results. A visual configuration tool is provided to easily configure the sensing distance range, sensing sensitivity in different intervals unmanned delay time, etc.
Specifications:
- Model: Rd-03
- Antenna: On-board antenna
- Frequency: 24G ~24.25GHz
- Operation Temperature: -40℃ ~ 85℃
- Storage Environment: -40℃ ~ 125℃, 90%RH
- Power Supply Voltage: 3.0V ~ 3.6V
- Power Supply Current: ≥200mA
- Interfaces: UART
- UART Rate: Default 115200 bps
Features:
- DIP package, standard 2.54mm pin
- Radar support 24 GHz ISM frequency band
- The radar antenna supports 1 receive and 1 transmit, antenna beam is narrow, high resolution, frequency bandwidth, strong anti-interference
- The radar's max sensing range is up to 5 meters
- The radar angle is big, range of ±60 degrees
- Radar range and accurate recognition, support induction range, shielding range outside interference
- The intelligent adjustment of radar parameters can be realized through the serial port, which is convenient and fast
- Rd-03 Support various installation methods such as ceiling and wall
- Rd-03 Support UART
Package Included:
1 x Ai-Thinker Rd-03 Radar Module
