Descriptions:

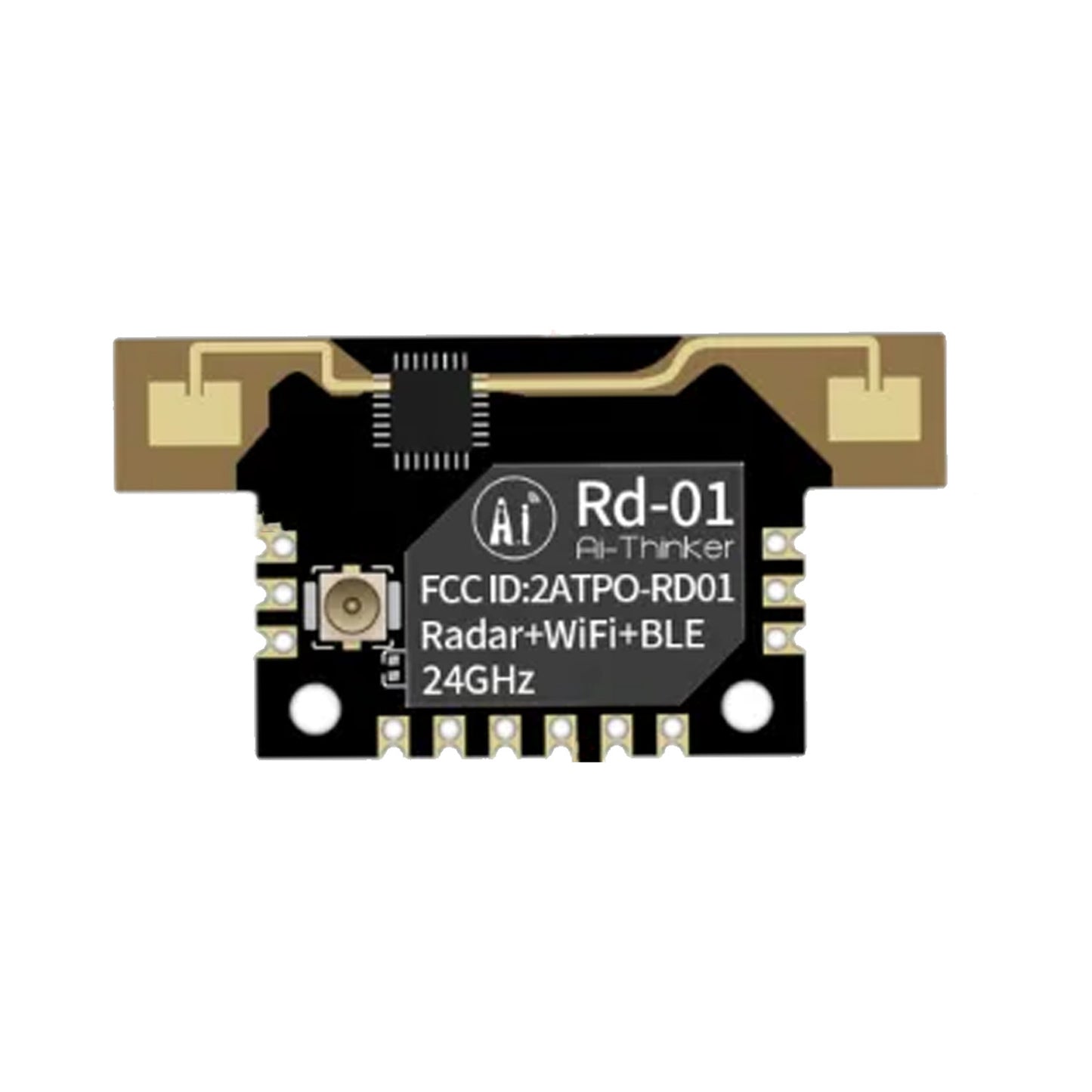

Rd-01 is a radar module developed by Shenzhen Anxinke Technology Co., LTD. The module supports Wi-F BLE. The radar part is equipped with the S3KM111L chip of Sidian Micro. S3KM111L is an integrated monolithic single-wave sensor SoC based on FMCW radar technology. Operates in 24GHzkband with up to 1 GHz modulation bandwidth per frequency. FMCWcontinuous wave is used to detect the target in the set space. Combined with radar signal processing and an accurate human body sensing algorithm, high-sensitivity human presence state sensing can be realized to recognize the human body in motion and static state. Wi-Fi BLE is equipped with a BL602 chip as the core processor and supports Wi-Fi.
802.11b/g/n and BLE 5.0. The BL602 chip has a built-in low-power 32-bit RISCCPU, 276KB of RAM, and a wealth of peripheral interfaces, including SPI, UART, I2C, PWM, ADCandGPIO. Rd-01module can sense whether there is a moving or twitching human body in the area, and transmit the detection result in real time through Wi-Fi BLE. Provide visual configuration tools, which can be easily configured with induction distance range, and induction sensitivity of different.
sections and unmanned delay time. It also supports Wi-Fi BLE wireless configuration of radar parameters, greatly improving the efficiency of construction operation and maintenance, convenient and fast.
Specifications:
- Model: Rd-01
- Antenna Radar: On-Board Antenna Wi-Fi BLE: IPEX
- Frequency Radar: 24G ~24.25GHz Wi-Fi：2400 ~ 2483.5MHz
- Operation Temperature: -40℃ ~ 85℃
- Storage Environment: -40℃ ~ 125℃, 90%RH
- Power Supply: Support Voltage 3.0V ~ 3.6V, Power Supply Current ≥500mA
- Interfaces: UART/GPIO/ADC/PWM/I2C/SPI
- I/O: 8
- UART Rate: Default 115200 bps
- Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Flash: Default 2MByte
Features:

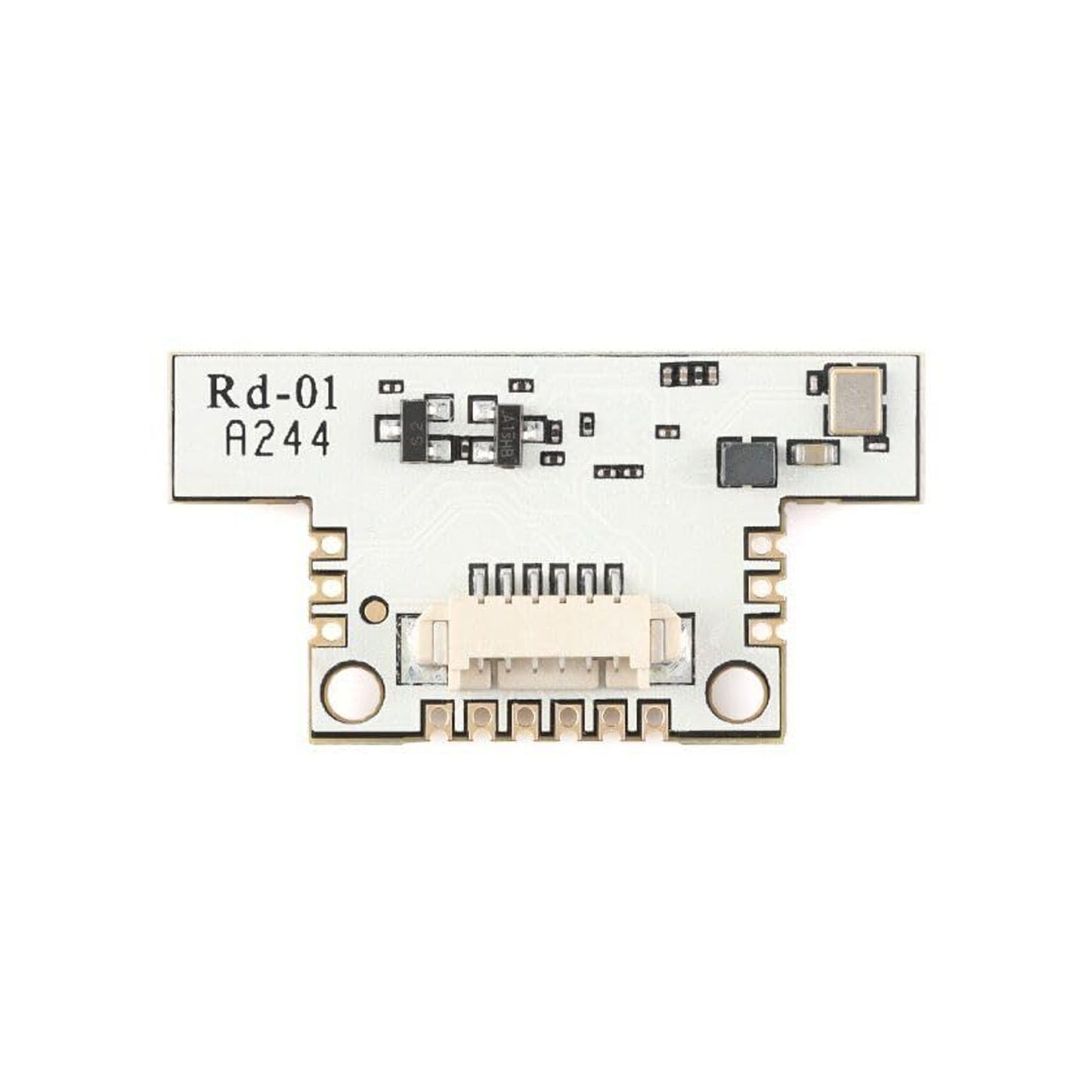

- SMD-12 package, compatible with standard socket or pin interface
- Radar support 24 GHz ISM frequency band
- The radar's max sensing range is up to 5 meters
- The radar Angle is big, range of ±60 degrees
- Radar range and accurate recognition, support induction range, shielding range outside interference
- It can realize the intelligent parameter adjustment of radar through Bluetooth, convenient and fast
- Support roof, hang a wall to install a variety of ways
- Supports IEEE 802.11 b/g/n agreement
- Wi-Fi security support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 Support 20 MHZ bandwidth, the highest rate of 72.2 Mbps
- Bluetooth low energy 5.0, Bluetooth Mesh
- Support Station + BLE model、Station + SoftAP + BLE model
- Support 32-bit RISC CPU, 276KB RAM
- The secure startup supports the use of ECC - 256 signature image
- Support QSPI/SPI Flash instant AES decryption (OTFAD), support AES 128 CTRmode
- Support AES 128/192/ - bit encryption engine
- Support SHA-1/224/256
- Support for real random number generators (TRNG)
- Public key Accelerator (PKA), supports the basic operation of large numbers, software provides the signature, authentication, and so on the application program interface
- Support SPI, UART, I2C, PWM, ADC, and GPIO etc. Integration Wi-Fi MAC/BB/RF/PA/LNA/BT
- Supports a variety of sleep mode
- Supports secondary development, integrated with Windows, Linux development environment
- Assembly way flexible, compatible patch/needle/socket and so on a variety of ways
- Typical application scenario
Pin Description:

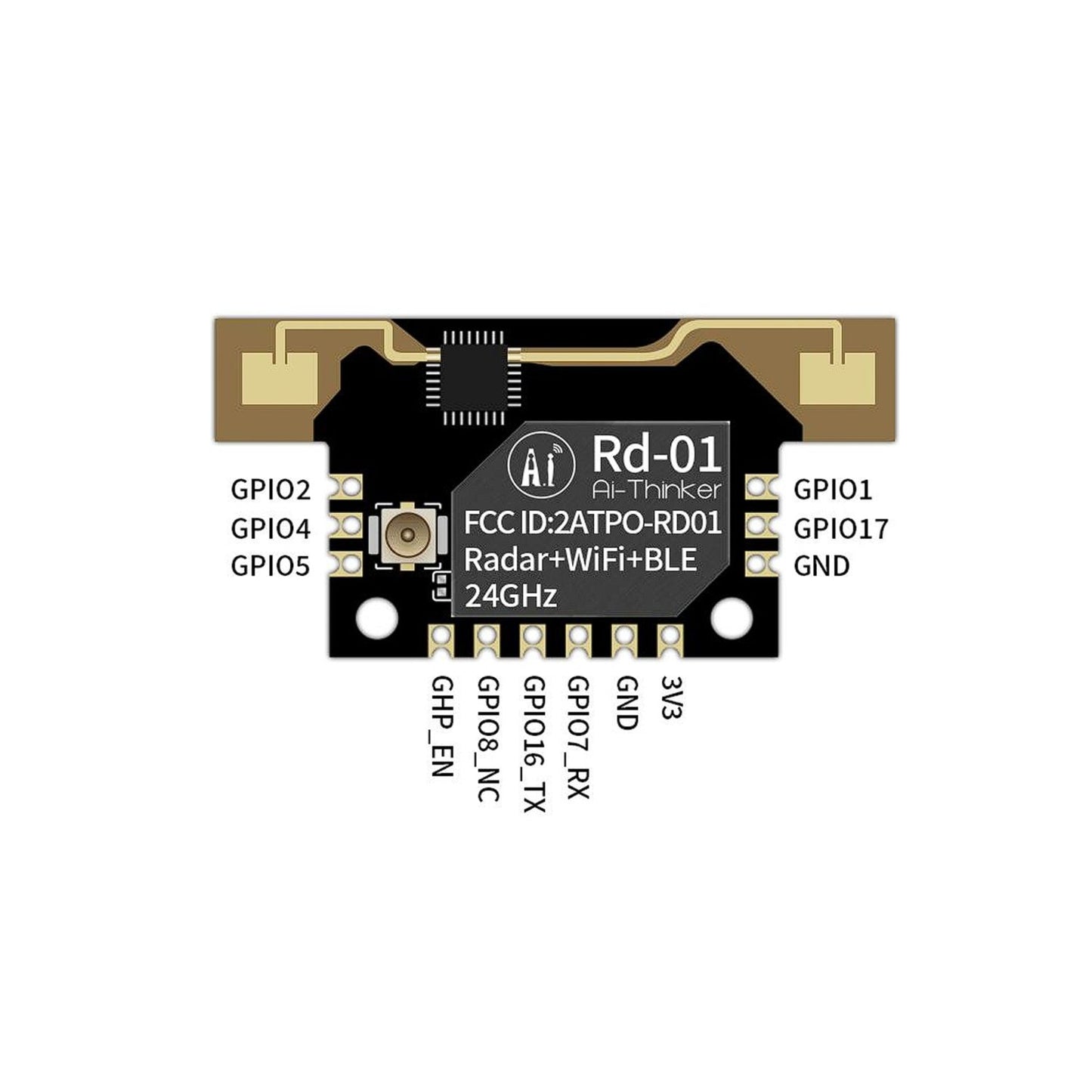

- Rd-01 connects to a total of 12 interfaces, for example, the pin diagram, the pin function definition table is the interface definition.
Package Included:
1 x Ai-Thinker Rd-01 Human Body Sensor Module 24GHz Millimeter Wave Radar Module Induction Module/Radar +WiFi+BLE Module Non-Contact Human Presence Detection Sensor Millimeter Wave Radar For Smart Home Applications
