Description:

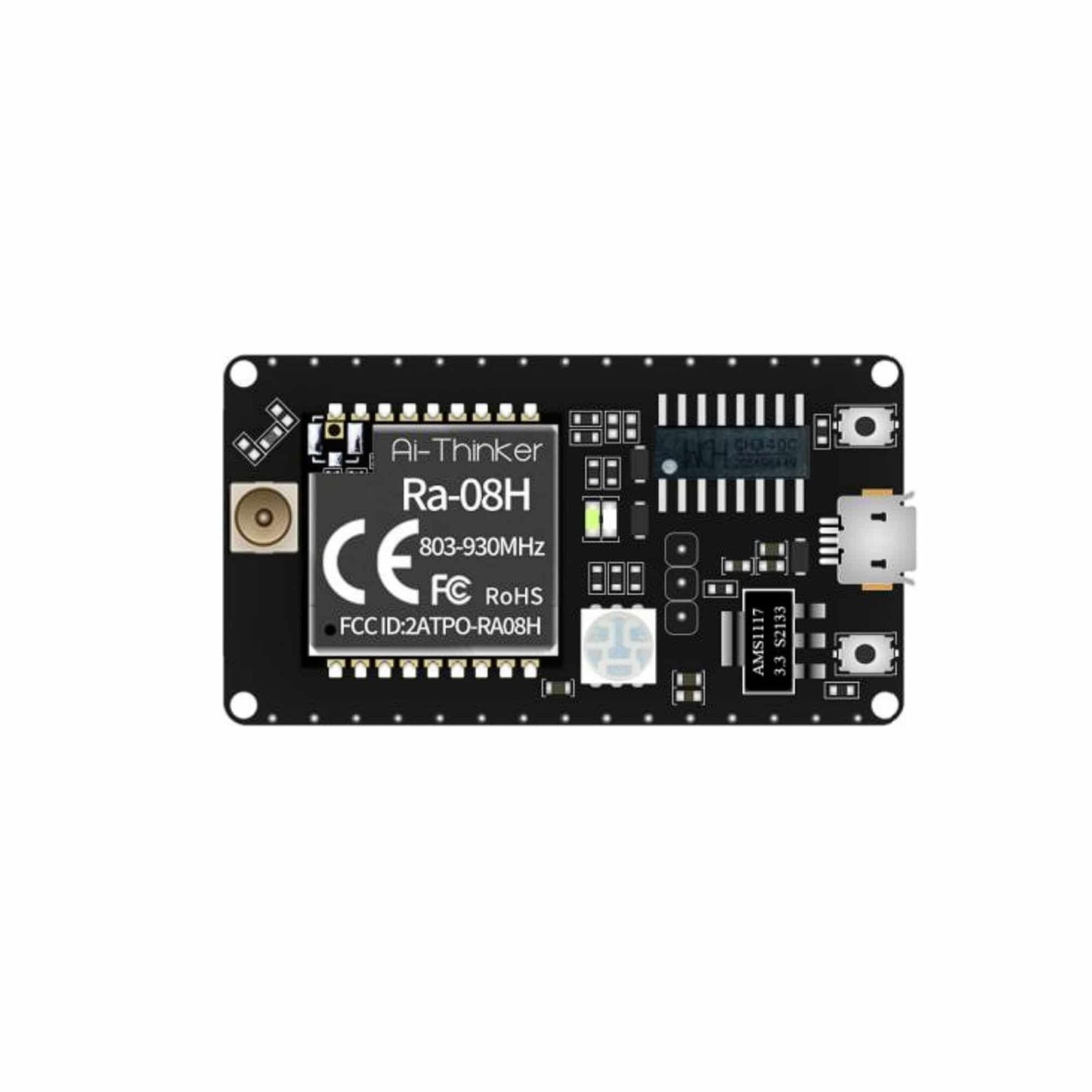

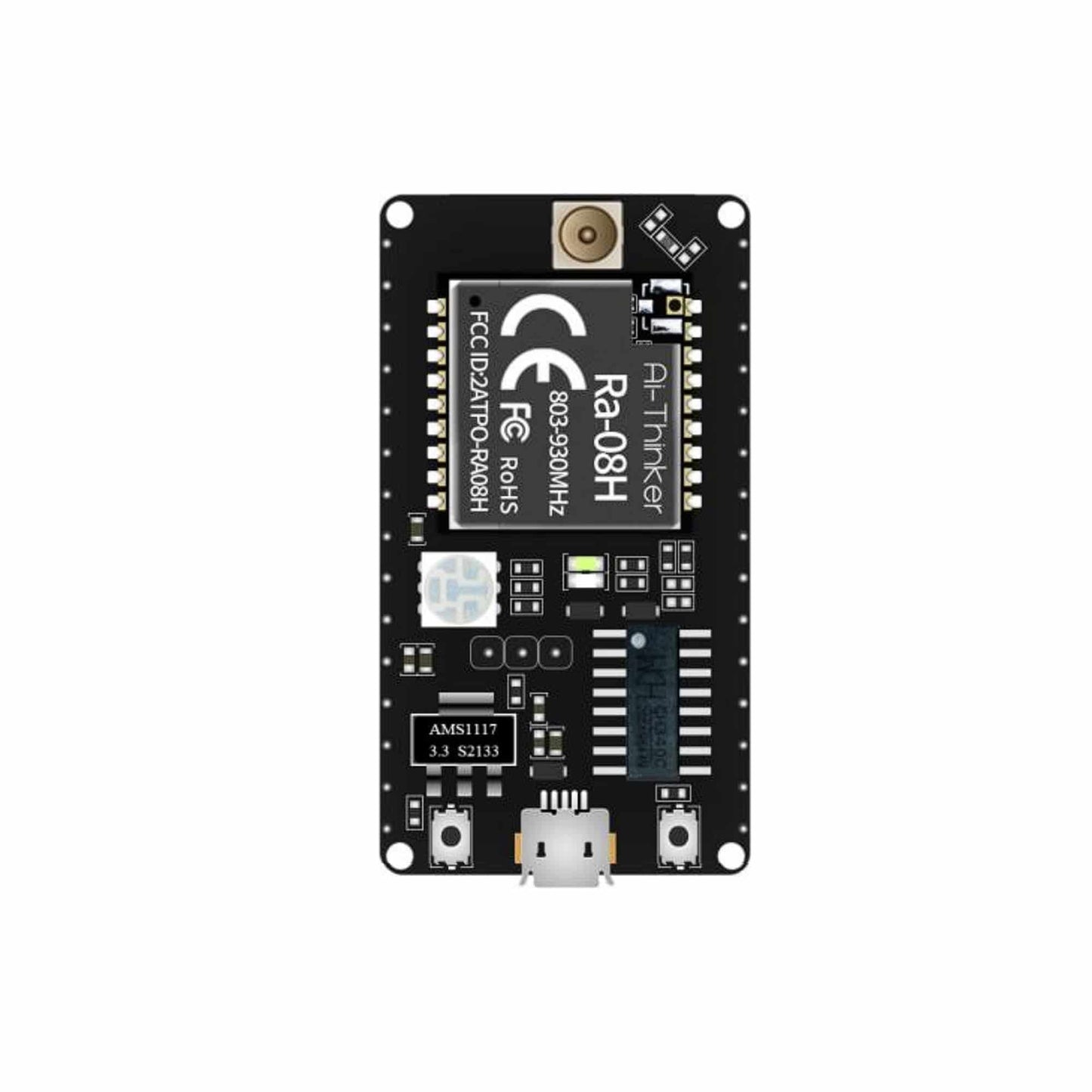

Ra-08H-Kit is a LoRaWAN development board designed and developed by Ai-Thinker. The development board is equipped with a LoRa module and leads out the serial port and peripheral pins, which can be connected to the serial port with the factory firmware. The assistant can easily send and receive LoRaWAN control by sending commands.
The chip ASR6601 on the development board is a general-purpose LPWANwireless communication SoC that integrates an RF transceiver, a modem and a 32-bit RISCMCU. TheMCU adopts an ARM core, and the operating frequency can reach 48MHz. The Ra-08Hmodulesupports LoRa modulation and traditional (G)FSK modulation under the LPWAN use case; at the same time, the transmitter also supports BPSK modulation and (G)MSKmodulation, and the receiver supports (G)MSK modulation.
The Ra-08H module on the development board provides ultra-long range and ultra-low-power communication for LPWAN applications, which can be widely used in smart meters, supply chain and logistics, home building automation, security systems, remote irrigation systems and other scenarios.
Specifications:
- Development board model: Ra-08H-Kit
- Suitable module: Ra-08H
- Package: DIP-30
- Size: 25.40*48.26(±0.2)mm
- Antenna: External SMA
- Frequency: 803 - 930 MHz
- Operating Temperature: -40°C ~ 85°C
- Storage Temperature: -40°C ~ 125 °C, < 90% RH
- Power Supply: Voltage 5V, Current >500mA
- Interface: UART/GPIO/ADC/DAC/I2C/I2S/SPI/PWM

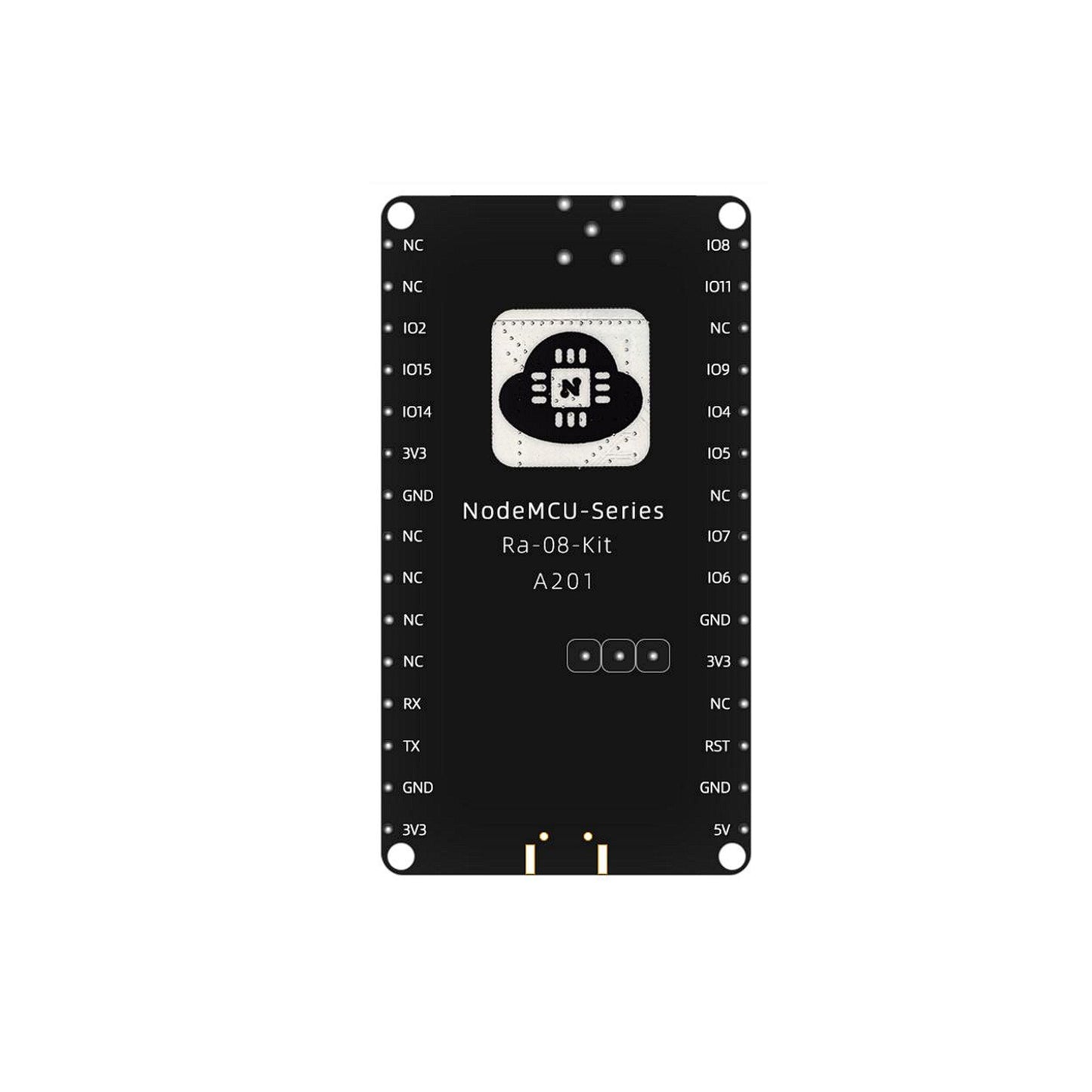

- IO: IO2,IO4,IO5,IO8,IO9,IO11,IO14,IO15
- UART Rate: Low-speed serial port, default 9600 bps
- Transfer Protocol: LoRaWAN, LinkWAN
- SPI Flash: 128KB
Features:
- Support spread spectrum factor SF5/SF6/SF7/SF8/SF9/SF10/SF11/SF12
- Embedded memory，128KB FLASH,16KB SRAM
- RA-08H-Kit support LoRa/(G)FSK/BPSK/(G)MSK modulation
- RA-08H-Kit support multiple sleep modes: depth sleep current is low to 0.9uA
- RA-08H-Kit support external antenna, the antenna uses SMA interface
Package Included:
1 x Ai-Thinker RA-08H-Kit LoRaWAN Development Board
