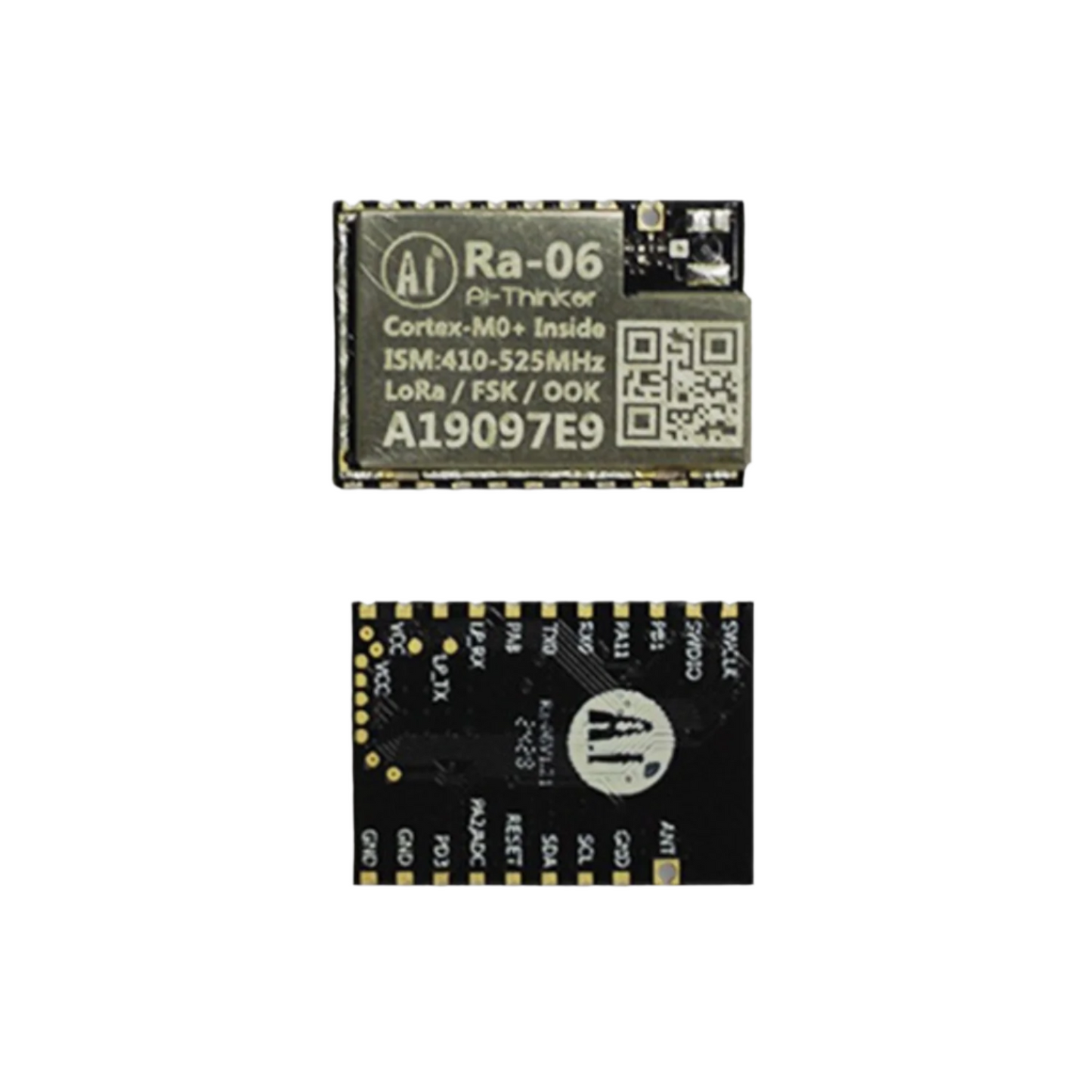

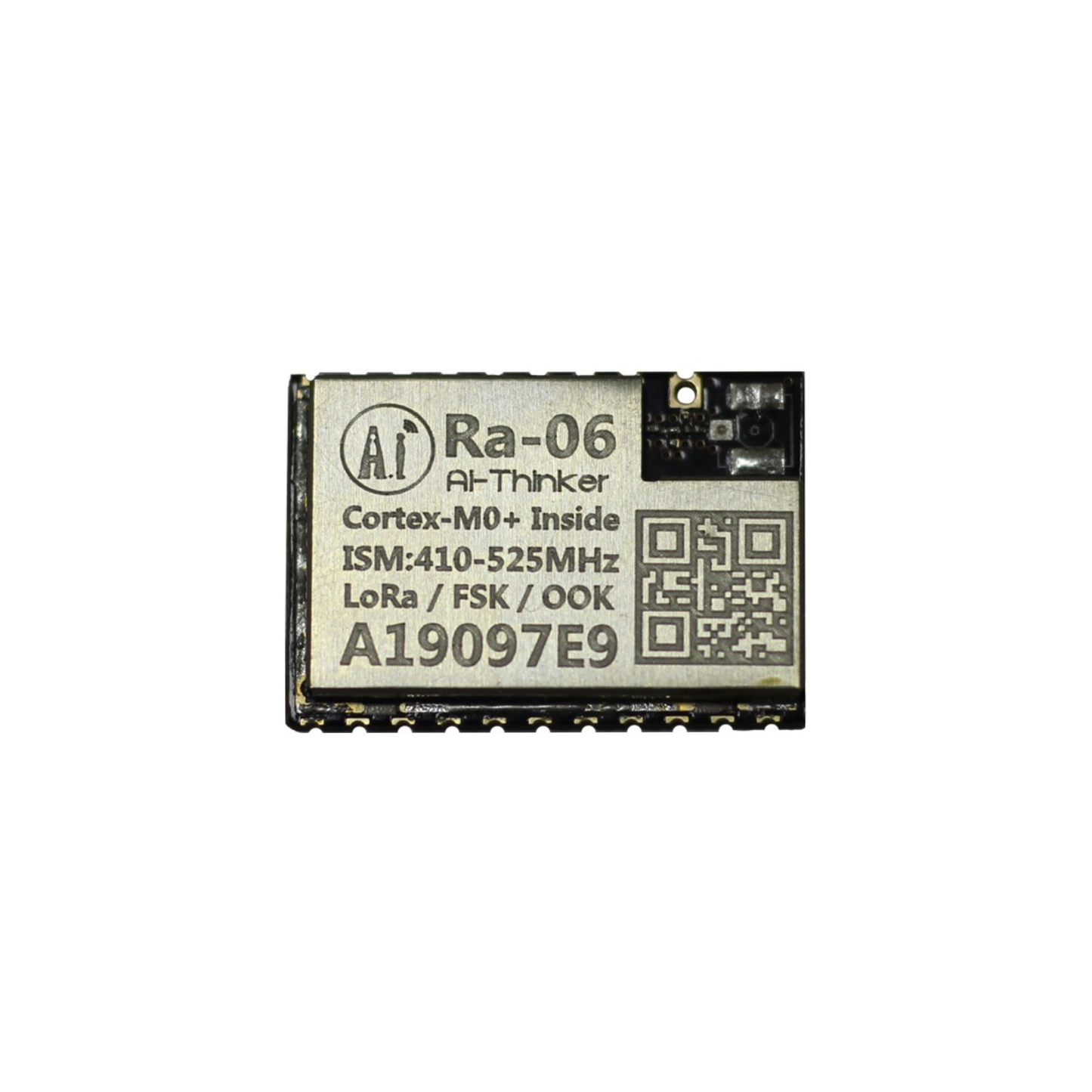

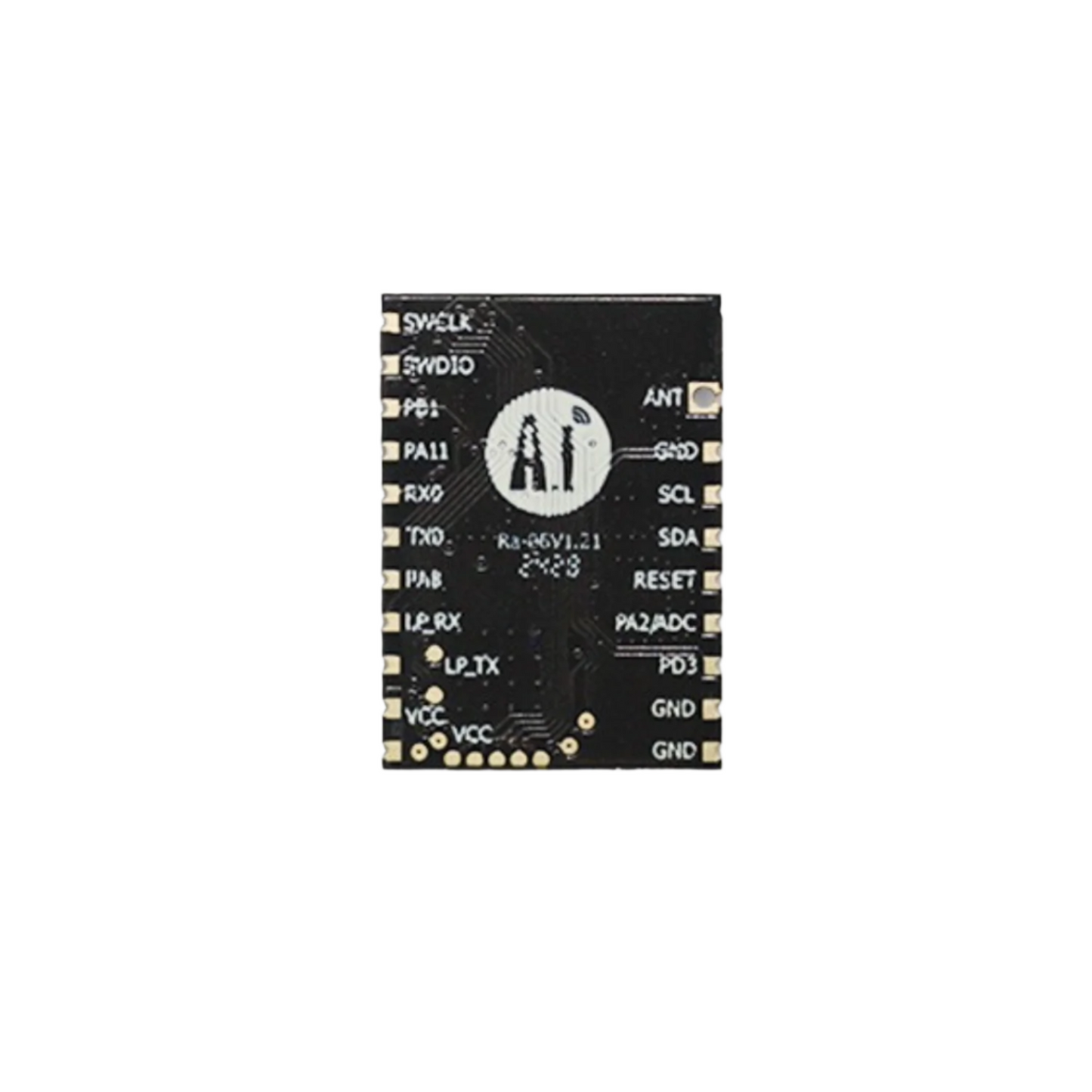

Ai Thinker RA-06 LoRa Module SX1262 Based Long-Range Wireless Transceiver with SPI Interface - RS8437

Description:

The SEMTECH LoRa series module (Ra-06) is designed and developed by SEMTECH. The RA-06 module has built-in SX1278 RF chip and Huada ultra-low power 32-bit core cortex MO+ MCU HC32L130F8UA, SK Byte RAM, 64K Byte FLASH. This module is used for ultra-long distance spread spectrum communication, and its RF chip is SX1278. With SEMTECH's LoRa M patented modulation technology, SX1278 has a high sensitivity of more than -148dBm, a power output of +20dBm, a long transmission distance, and high reliability. At the same time, compared with traditional modulation technology, LoRa™ modulation technology also has obvious advantages in anti-blocking, solving the problem that traditional design solutions cannot take into account distance, anti-interference, and power consumption at the same time.

Specifications:

• Model: RA-06
• Antenna Form: IPEX Terminals/Through Hole Pads
• Spectrum Range: 410MHz~525MHz
• Working Temperature: -40°C ~ 85°C
• Storage Environment: -40°C~125°C, <90%RH
• Power Supply Range: 2.7~3.6V, typical value 3.3V, Current>300mA
• Support Interface: SPI/URAT/I2C
• Programmable Bit Rate: Upto 300kbps

Features:

• LoRa™ Modem
• With 8K Byte RAM and 64K Byte FLASH
• Support FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation
• Support frequency band 410MHz~525MHz
• Operating voltage is 3.3V, maximum output +20dBm
• Low power consumption in the receiving state, receiving current is 12.15mA, standby current is 1.6mA
• High sensitivity: as low as -140dBm
• Small size double row stamp hole patch package
• Support customized firmware
• The module uses SPI interface, half-duplex communication, CRC, up to 256 bytes of data packet engine

Useful Link:

Ai Thinker RA-06 LoRa Module

Package Included:

1 x Ai Thinker RA-06 LoRa Module
