Description:

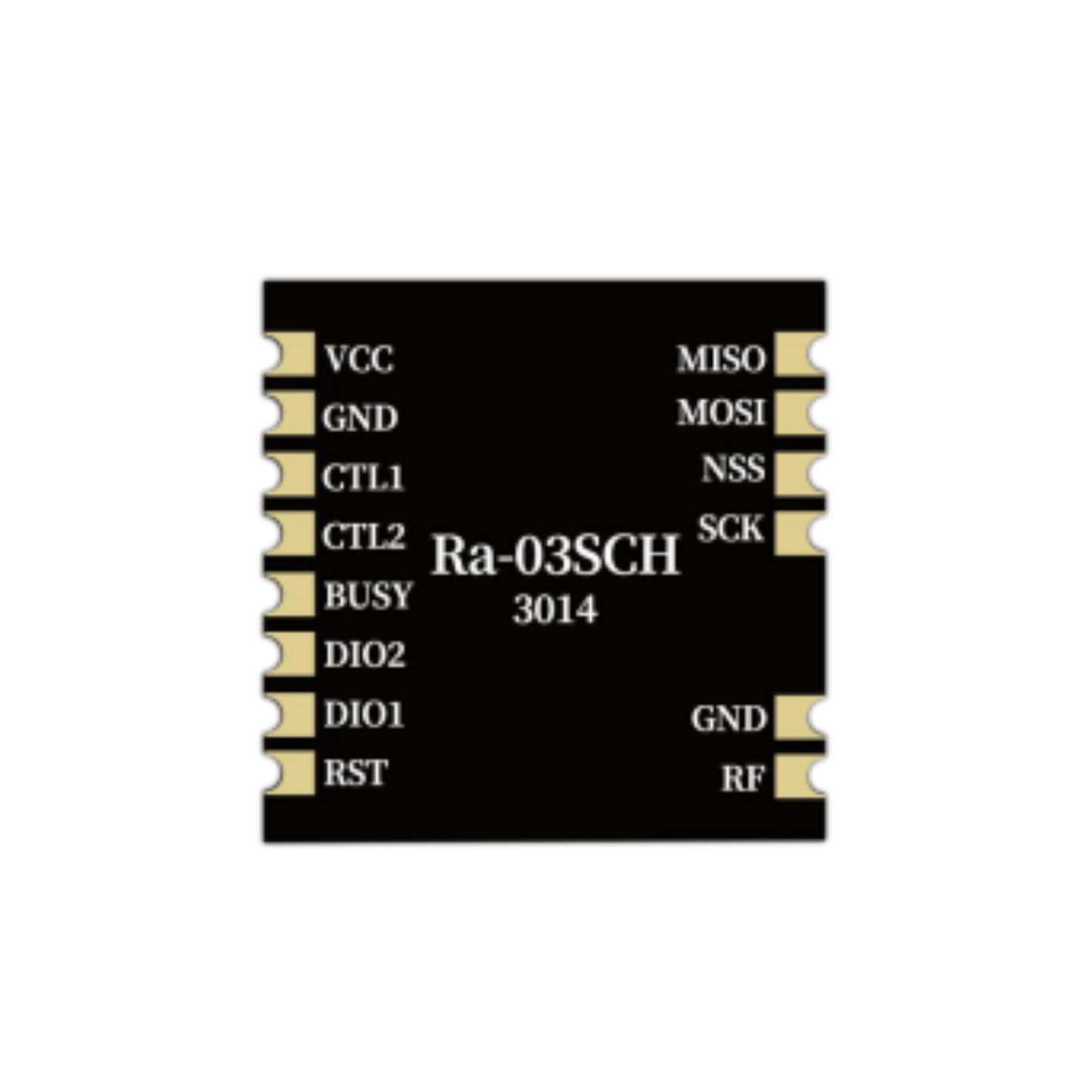

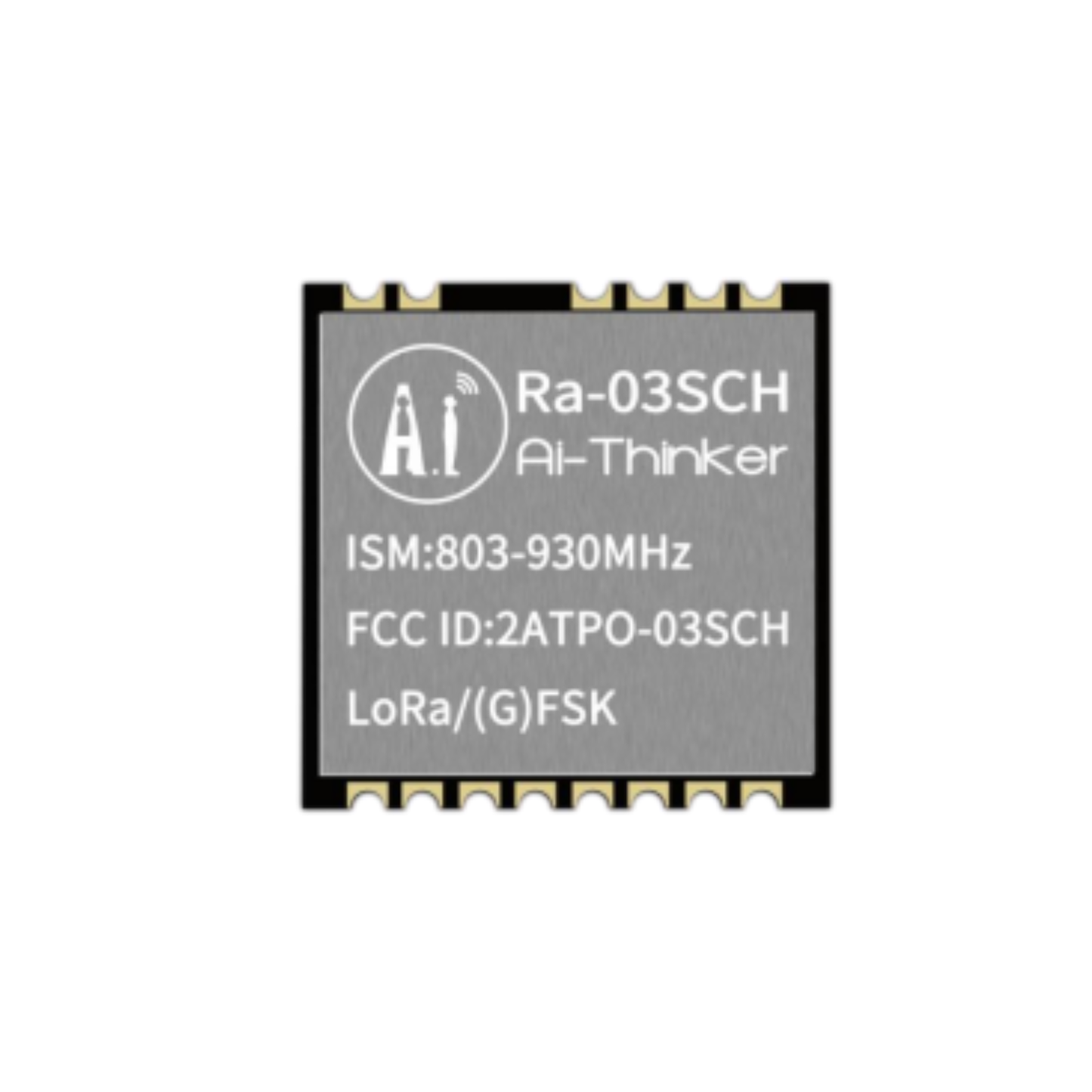

Ra-03SCH is a LoRa module developed by Shenzhen Ai-Thinker Technology Co., Ltd. This module is used for ultra-long-distance spread-spectrum communication. Its RF chip LLCC68mainly uses a LoRa™ remote modem for ultra-long-distance spread-spectrum communication. It has strong anti-interference and can minimize current consumption. With SEMTECH's LoRa™patented modulation technology, LLCC68 has a high sensitivity of over -129dBm, a transmit power of +22dBm, a long transmission distance, and high reliability. At the same time, compared with traditional modulation technology, LoRa™ modulation technology also has obvious advantages in anti-blocking and selection, which solves the problem that traditional design schemes cannot take into account distance and anti-interference. and power consumption at the same time.
Specifications:
- Model: Ra-03SCH
- Antenna: Half Hole Pad
- Frequency: 803MHz~930MHz
- Operating Temperature: -40℃ ~ 85℃
- Storage Temperature: -40℃ ~ 125℃, < 90%RH
- Power supply: Power supply voltage 2.7~3.6V，Typical value 3.3V，Current>200mA
- Interface: SPI
- Programmable Bit Rate: Up to 300kbps
Features:
- Support FSK, GFSK, LoRa® modulation method
- Support frequency band 803MHz~930MHz
- The working voltage is 3.3V, the maximum output power is +22dBm, and the maximum working current is 140mA
- Low power consumption in the receiving state, the minimum receiving current is 4.2mA, and the standby current is 0.6mA.
- High sensitivity: as low as -129dBm
- Support spreading factor SF5/SF6/SF7/SF8/SF9/SF10/SF11
- Small-volume dual-stamp hole SMD package
- The module adopts SPI interface, using half-duplex communication, with CRC, upto256bytes packet engine
- The antenna interface is in the form of a half-hole pad, which can be connected to the motherboard for an external antenna.
Useful Link:
Ai-Thinker Ra-03SCH Lora Module
Package Included:
1 x Ai-Thinker Ra-03SCH Lora Module
