Description:

Anxinke LoRa series modules (Ra-01SH) are designed and developed by Anxinke Technology. This module is used for ultra-long-distance spread-spectrum communication. Its radio chip, SX1262, mainly uses LoRa™remote modemforultra-long-distance spread-spectrum communication. It has strong anti-interference and can minimize current consumption. With SEMTECH's LoRa™patentedmodulation technology, SX1262 has a high sensitivity of over -148 dBm, a power output.

Of +22 dBm, a long transmission distance, and high reliability. At the same time, compared to traditional modulation technology, LoRa™modulation technologyalsohas obvious advantages in anti-blocking and selection, which solves the problem of distance, anti-interference, and power consumption that traditional design solutions cannot simultaneously take into account. Application areas include automatic meter reading, home building automation, security systems, and remote irrigation systems.

Specifications:

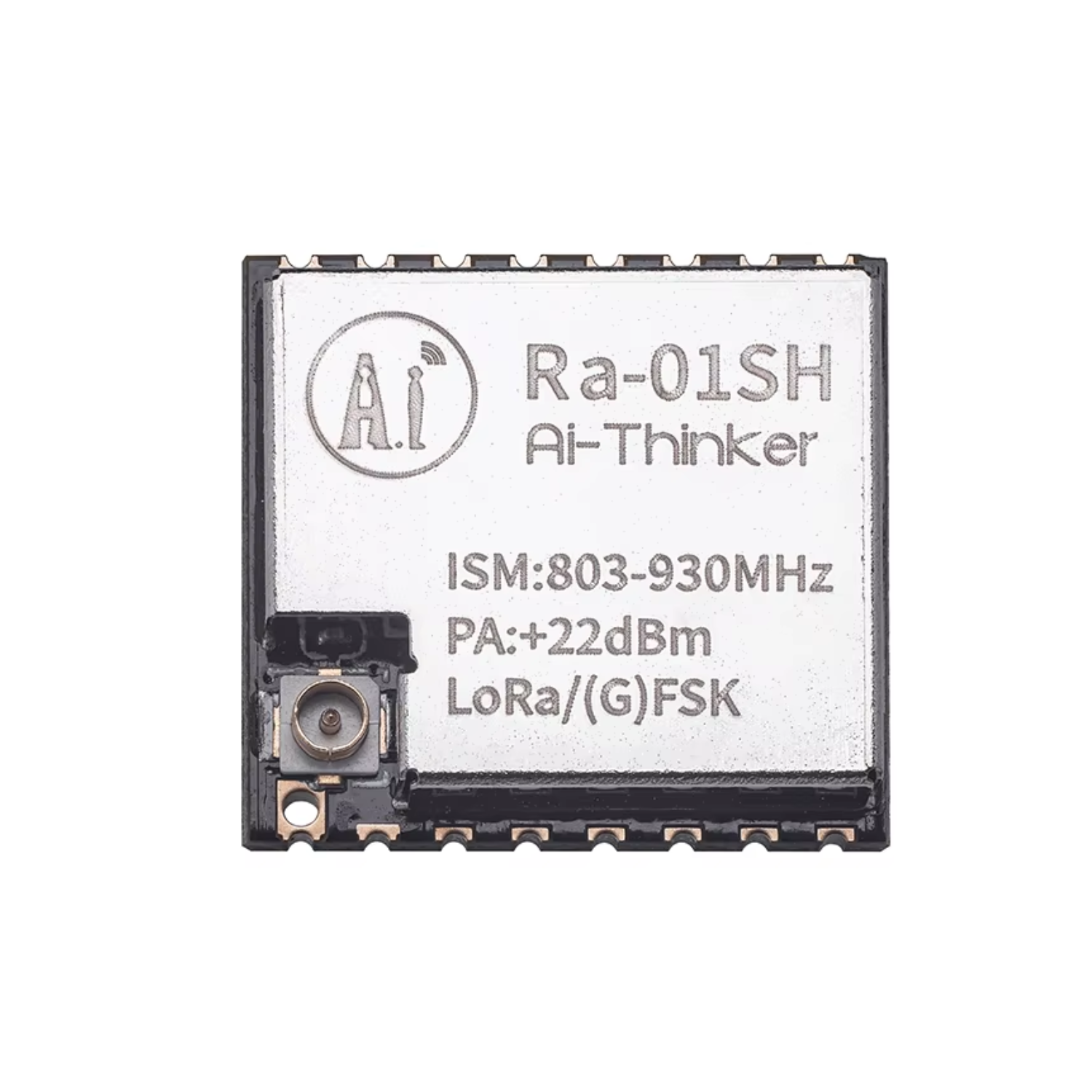

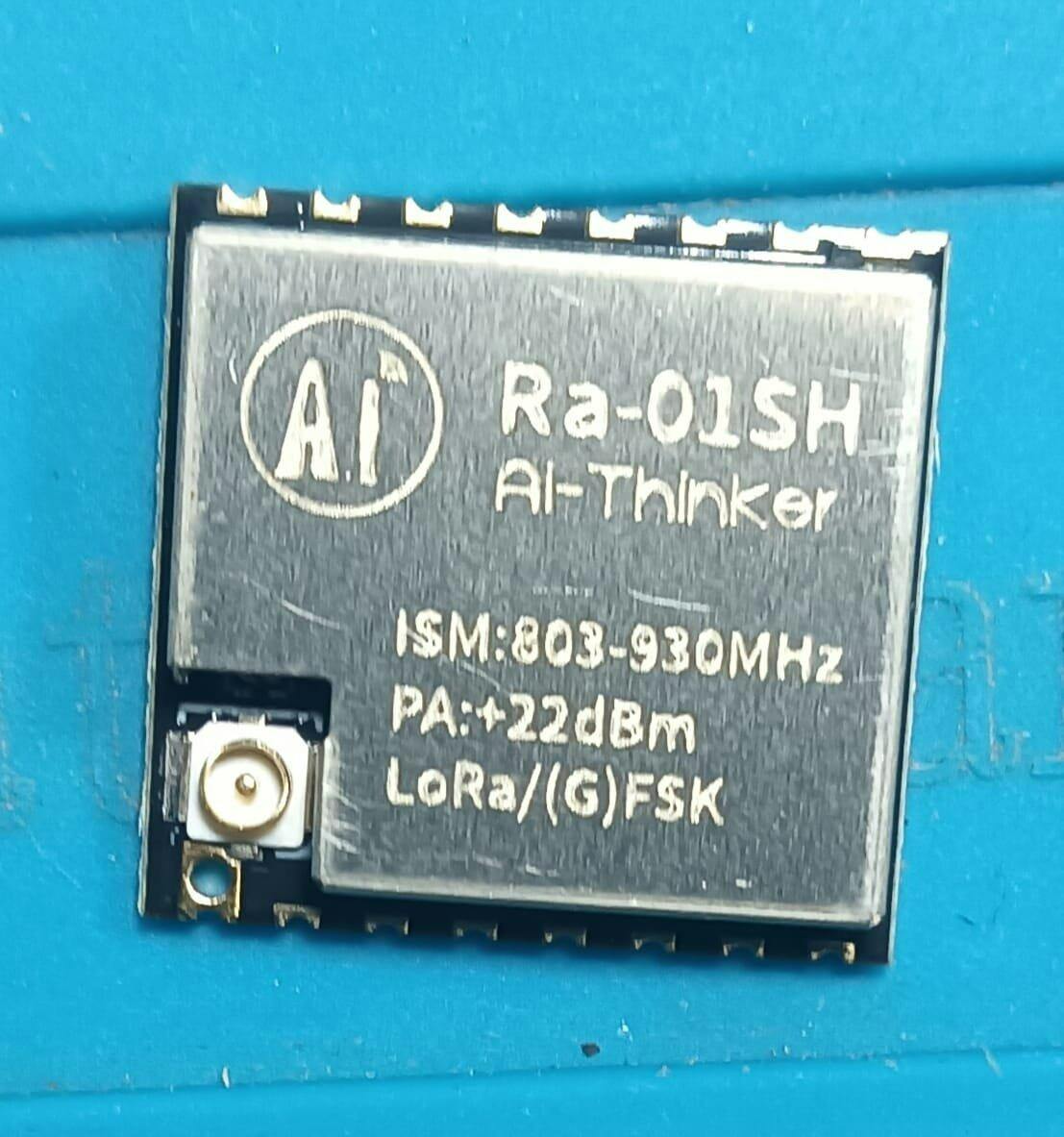

  • Model: Ra-01SH
  • Package: SMD16
  • Size: 17*16*3.2(±0.2)MM
  • Antenna: Compatible with half-hole pads/through-hole pads (need to be soldered)
    the antenna)/IPEX socket
  • Spectrum range: 803MHz~930MHz
  • Operating temperature: -40 ℃ ~ 85 ℃
  • Storage environment: -40 ℃ ~ 125 ℃ , < 90%RH
  • Power supply: 2.7~3.6V，default 3.3V，current ＞ 200mA
  • Interface: SPI
  • Programmable bit rate: Up to 300kbps
  • Certificate: /

Features:

  • LoRa™ modem
  • Support FSK, GFSK, MSK, GMSK, LoRa™, and OOK modulation methods.
  • Support frequency band 803MHz~930MHz
  • Working voltage is 3.3V, maximum output is +22dBm, maximumworkingcurrent is140mA
  • Low power consumption characteristics in receiving state, the minimum receiving current is 4.2 mA, the standby current is 1.6mA
  • High sensitivity: as low as -140 dBm
  • Small volume dual row stamp hole patch package

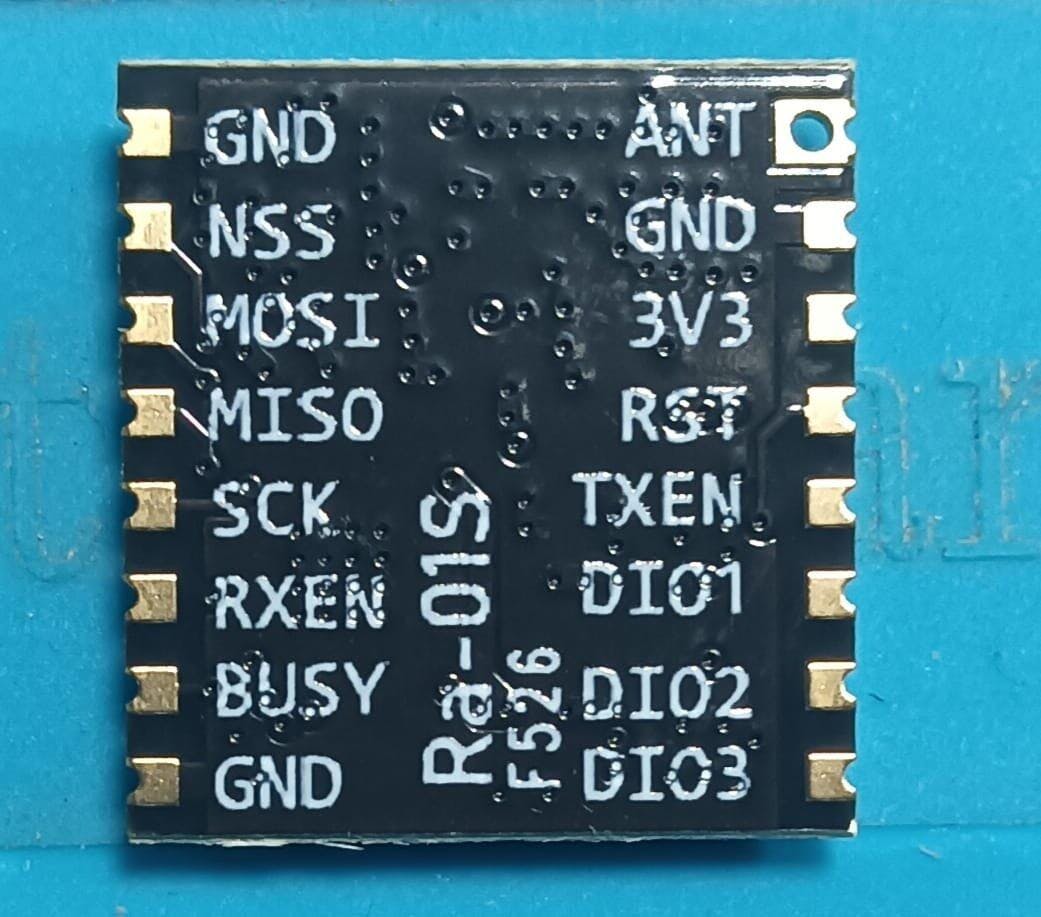

  • The module adopts an SPI interface, half-duplex communication, with CRC, up to a 256-byte packet engine

Package Included:

1 x Ra-01SH LoRa Wireless RF Module SX1262
