Description:

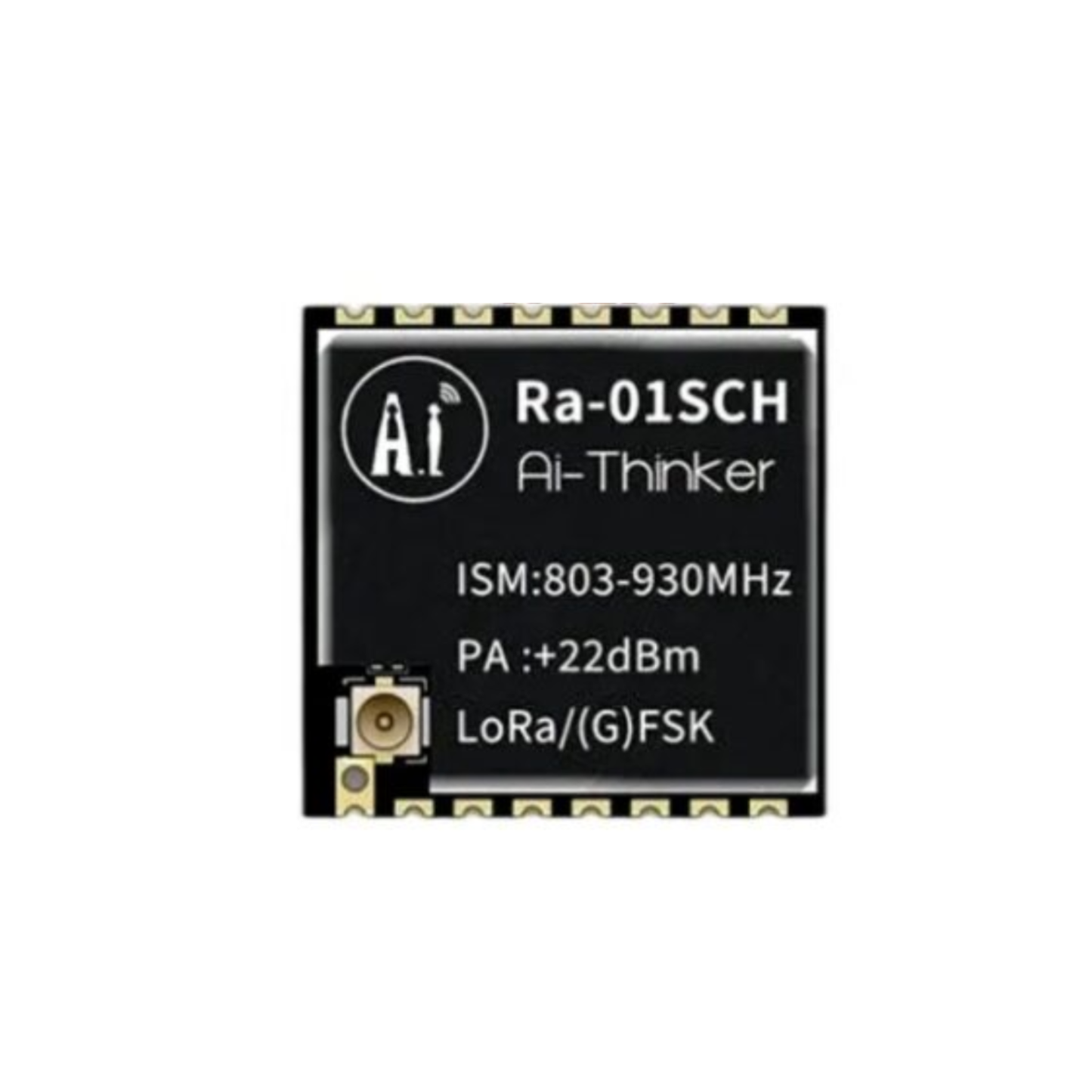

Ra-01SCH is a LoRa series module designed and developed by Ai-Thinker Technology. The module is used for ultra-long-range extended frequency communication, and its radio frequency chip LLCC68 mainly uses LoRa™ remote modem, which is used for ultra-long-range extended frequency communication. It has strong anti-interference resistance and can minimize current consumption. With the help of SEMTECH's LoRa™patented modulation technology, the LLCC68 has high sensitivity over 129dBm, + 22dBm transmission power, long-range transmission, and high reliability.
At the same time, compared with the traditional modulation technology, LoRa™ modulation technology also has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme cannot take into account the distance, anti-interference, and power consumption simultaneously
Specifications:
- Model: Ra-01SCH
- Antenna: Compatible with half-hole pad / through-hole pad (welded antenna required) / IPEX holder
- Frequency Range: 803MHz~930MHz
- Operating Temperature: -40℃ ~ 85℃
- Storage Temperature: -40℃ ~ 125℃, < 90%RH
- Power Supply: The power supply voltage is 2.7~3.6V, the typical value is 3.3V, and the current is greater than 200mA
- Interface: SPI
- Programmable bit rate: Up to300kbps
Features:
- Support FSK, GFSK, and LoRa® modulation mode
- Support frequency range 803MHz~930MHz
- The operating voltage is 3.3V, the maximum output power is + 22dBm, and the maximum working current is 120mA
- The RX state has low power consumption characteristics, the lowest RXcurrent is 4.2mA, and the standby current is 0.6mA
- High sensitivity: as low as-129dBm
- Support for the expansion factor SF5/SF6/SF7/SF8/SF9/SF10/SF11
- Small volume double-column stamp hole patch package
- The module adopts an SPI interface, half-duplex communication, and with CRC, a packet engine of up to 256 bytes
- The antenna interface is compatible with stamp hole /through-hole and IPEX, which support more scheme selection

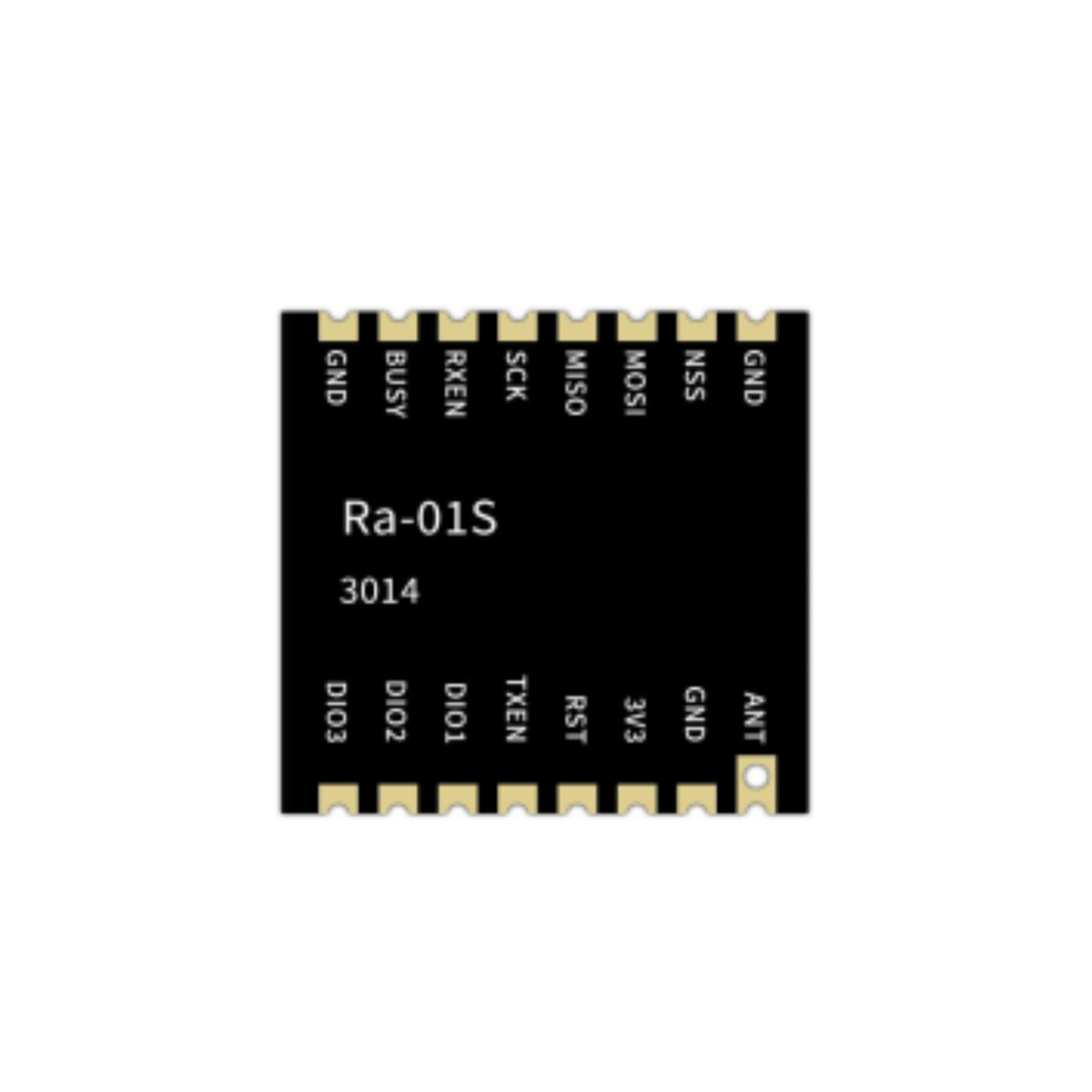

Pin Description:
| No. | Name | Function |
| 1 | ANT | Connect antenna |
| 2 | GND | Ground |
| 3 | 3V3 | Typical power supply value 3.3V |
| 4 | RESET | Reset pin |
| 5 | TXEN | RF control port |
| 6 | DIO1 | Digital IO1 software configuration |
| 7 | DIO2 | Digital IO2 software configuration |
| 8 | DIO3 | Digital IO3 software configuration |
| 9 | GND | Ground |
| 10 | BUSY | Status indicator pins, which must be connected to the IOport of the master MCU |
| 11 | RXEN | RF control port |
| 12 | SCK | SPI clock input |
| 13 | MISO | SPI data output |
| 14 | MOSI | SPI data input |
| 15 | NSS | SPI selection input |
| 16 | GND | Ground |
Useful link:
Ai-Thinker Ra-01SCH LoRaWAN Module
Package Included:
1 x Ai-Thinker Ra-01SCH LoRaWAN Module
