Description:

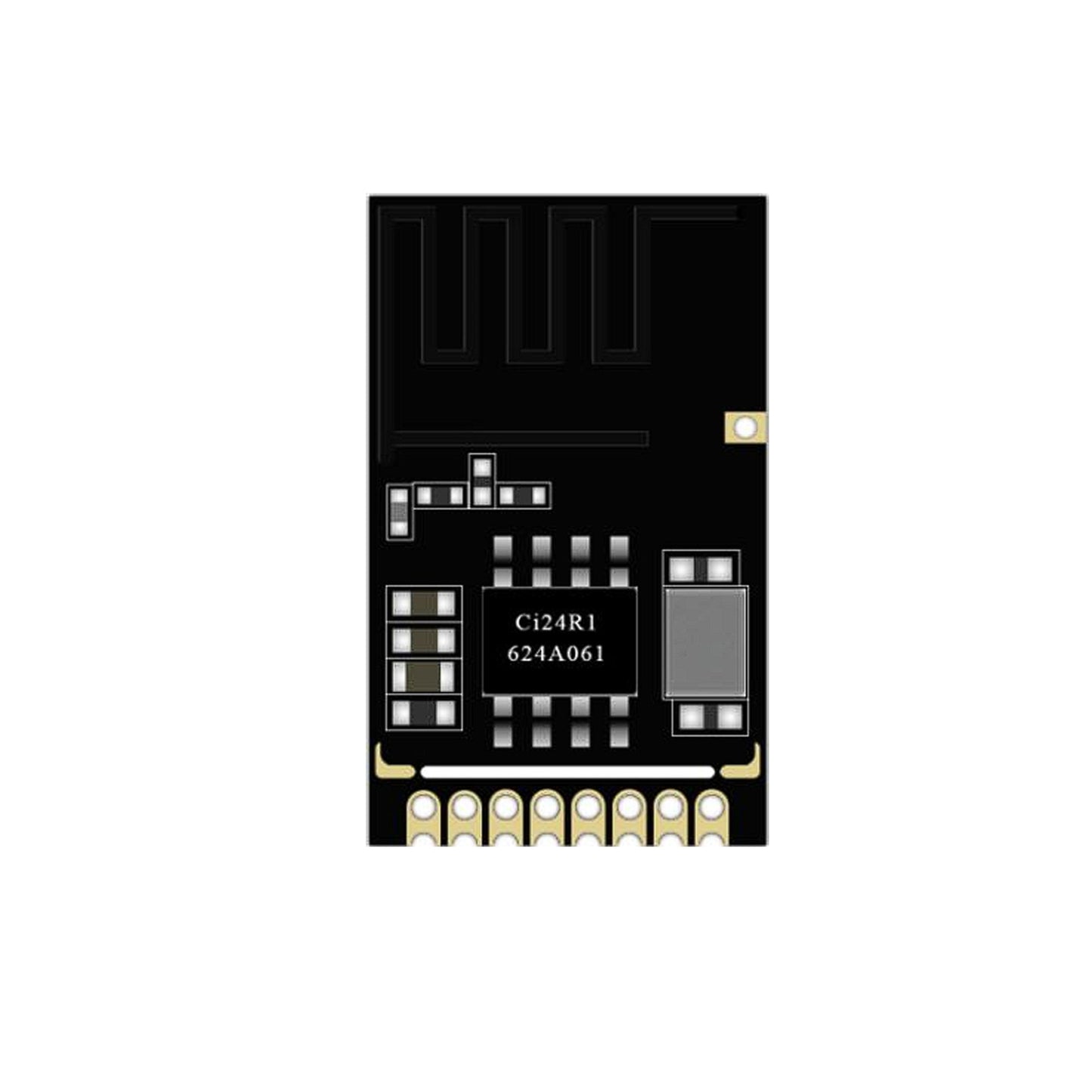

NF-05 is a 2.4GHz module developed by Ai-Thinker. The core processor chip Ci24R1 is a high-performance 2.4ghz GFSK wireless transceiver chip, designed for a wireless mouse, keyboards, wireless remote control, motion sensing devices, smart power grids, smart homes, wireless audio, wireless data transmission, and other applications. NF-05chips have industry-leading low power performance and rf performance, supporting GFSK/FSK protocols The chip integrates high PSRR LDO and an intelligent ARQ baseband protocol engine. The chip has a fast startup time of less than 160uS and ultra-low power.

Specifications:

  • Model: NF-05
  • Power Supply: 3.6V
  • Current: 100mA
  • Debug Mode: GFSK/FSK
  • Power Consumption：2uA
  • Operating Temperature: -40℃ ~ 85℃
  • Storage Temperature: -40℃ ~ 125℃ , < 90%RH
  • Working Frequency: 2.4GHz ISM band

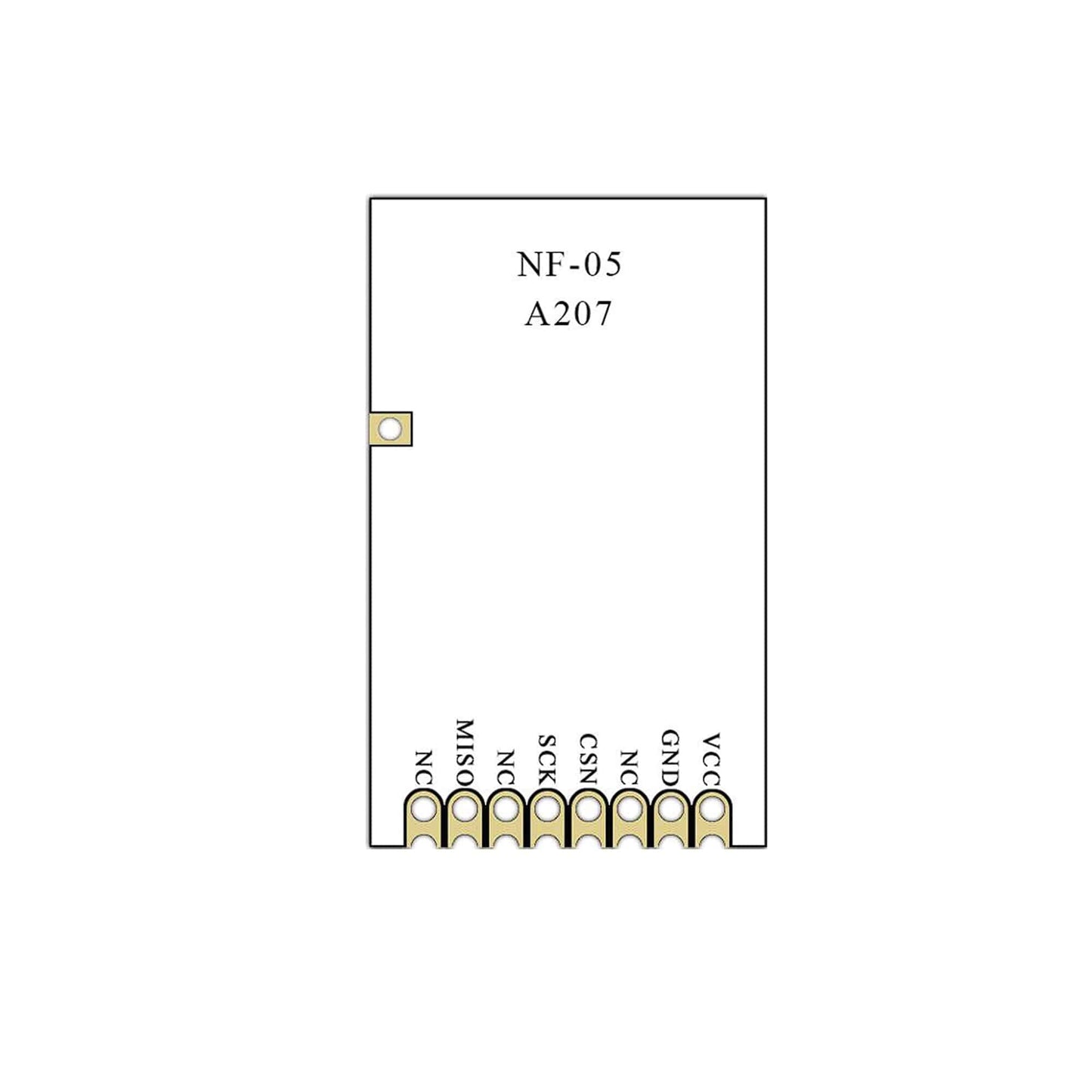

  • Interface: SPI
  • Product: Core processor chip

Features:

  • Fast start selectable recovery time<160uS
  • Low Power consumption
  • High internal integration PSRR LDO
  • Maximum 10MHz two-wire SPI interface
  • Internal integration of intelligent ARQ baseband protocol engine
  • The hardware for sending and receiving data is interrupted
  • Supports 1bit RSSI output
  • Few peripheral devices, reduce the system application cost

    Package Included:

    1 x Ai-Thinker NF-05 Module 2400~2525MHz
