Ai-Thinker LoRa Ra-01SH-P Module 868/915MHz Wireless Transceiver with Integrated Antenna Switch for Optimized Performance - RS8434

Ai-Thinker LoRa Ra-01SH-P Module 868/915MHz Wireless Transceiver with Integrated Antenna Switch for Optimized Performance - RS8434

RS8434

In stock

Rs. 400.00
Rs. 400.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

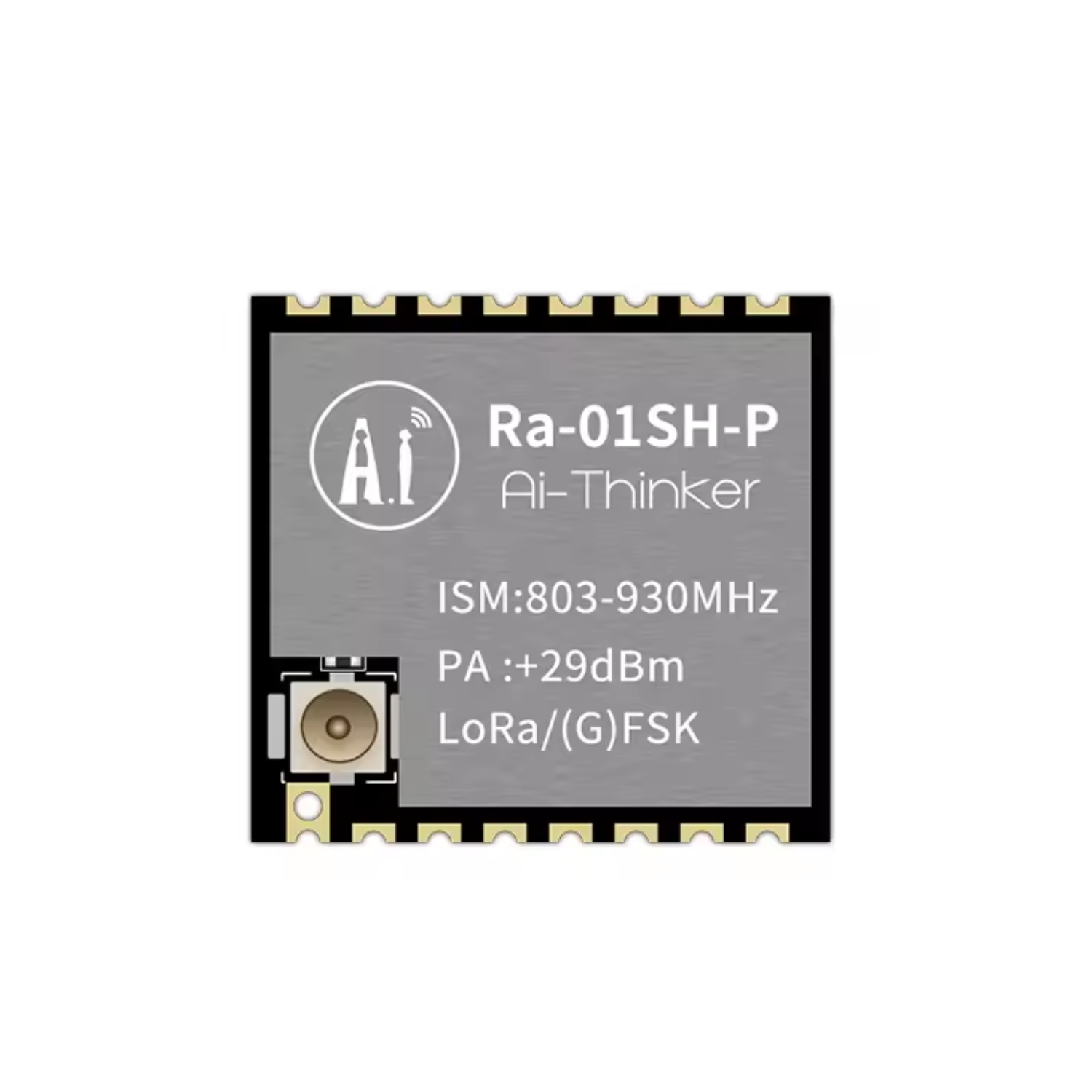

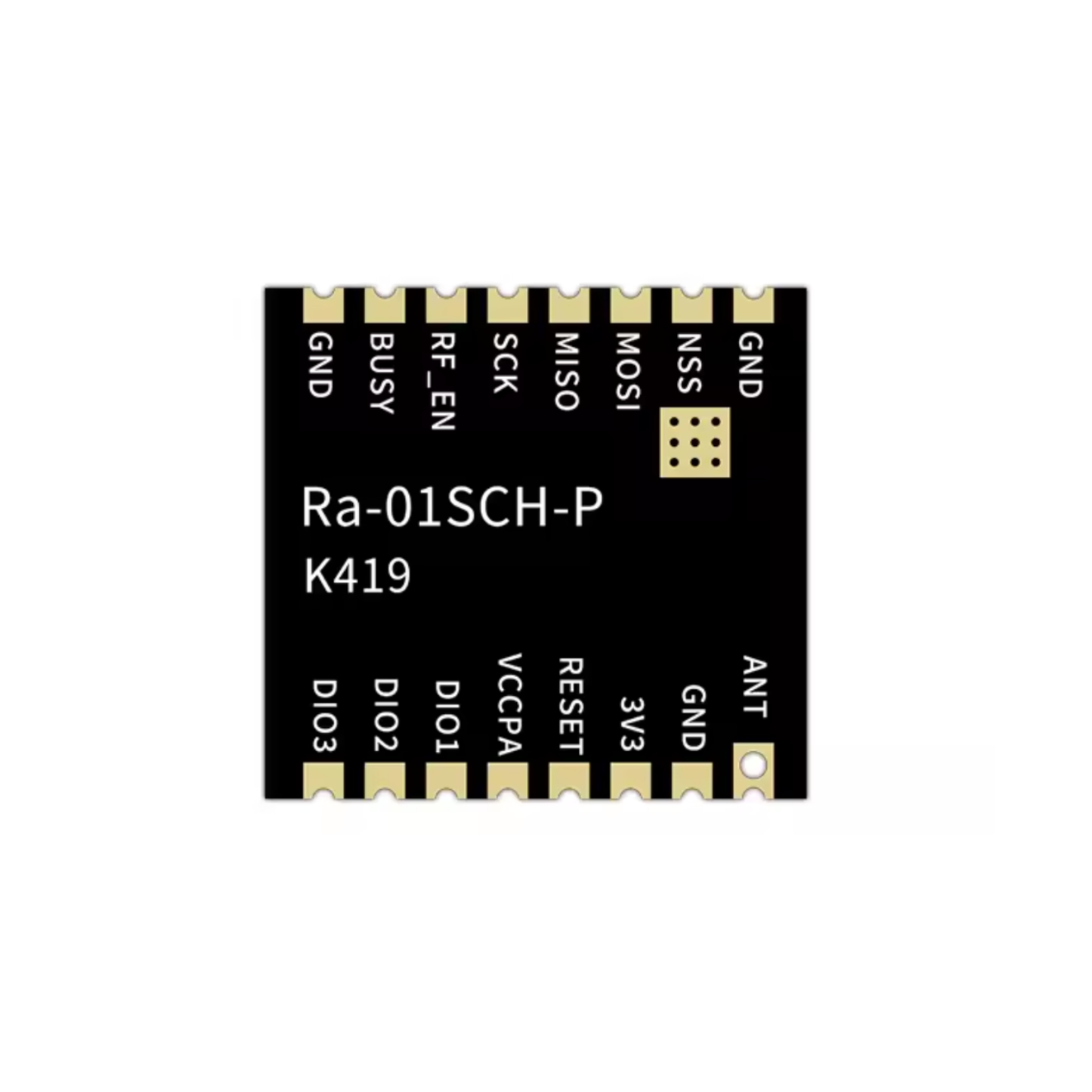

Ra-01SH-P is a LoRa series module designed and developed by Shenzhen Ai-Thinker
Technology Co., Ltd. This module is used for ultra-long distance spread spectrum communication. Its RF chip SX1262 mainly uses LoRa™ long-range modem for ultra-long distance spread spectrum communication, with strong anti-interference and the ability to minimize current consumption. With the help of SEMTECH's LoRa™ patented modulation technology, the module has a built-in power amplifier (PA) and low noise amplifier (LNA) on this basis, with high sensitivity exceeding -137dBm, +29dBm transmission power, long transmission distance, and high reliability.

At the same time, compared with traditional modulation technology, LoRa™ modulation technology also has obvious advantages in anti-blocking and selection, solving the problem that traditional design solutions cannot take into account distance, anti-interference, and power consumption at the same time.

Specifications:

  • Model: Ra-01SH-P
  • Antenna: Antenna Compatible with half-hole pad/through-hole pad/IPEXconnector
  • Frequency: 803MHz~930MHz
  • Operating Temperature: -40℃~ 85℃
  • Storage Temperature: -40℃~ 125℃, <90%RH
  • Power Supply: Supply voltage 3.0~3.6V, typical value 3.3V, current greater than 1A
  • Interface: SPI
  • Programmable bit rate: Up to 300kbps

Features:

  • Support FSK, GFSK, LoRa® modulation
  • Support frequency band: 803MHz~930MHz
  • Maximum transmit power is optional (see the design guide below for the configuration method)

    1. Default configuration: The internal PA uses a 3.3V power supply voltage. In this state, the maximum Tx Power can reach +29dBm, and the operating current is 750mA;

    2. Optional configuration: The internal PA uses a 5V power supply voltage. In this state, the maximum Tx Power can reach +31dBm, and the operating current is 1A;

  • High sensitivity: as low as -137dBm@SF10 125KHz
  • Extremely small size 17*16*3.2(±0.2)MM, double row stamp hole patch package
  • Support spreading factors SF5/SF6/SF7/SF8/SF9/SF10/SF11/SF12
  • It has low power consumption in receiving state, and the minimum receiving current is 16mA
  • The module uses SPI interface, half-duplex communication, CRC, and up to 256 bytes of data packet engine
  • Support a variety of antenna installation methods, compatible with half-hole pad/through-hole pad/IPEX connector

Useful Link:

Ai-Thinker LoRa Ra-01SH-P Module

Package Included:

1 x Ai-Thinker LoRa Ra-01SH-P Module
