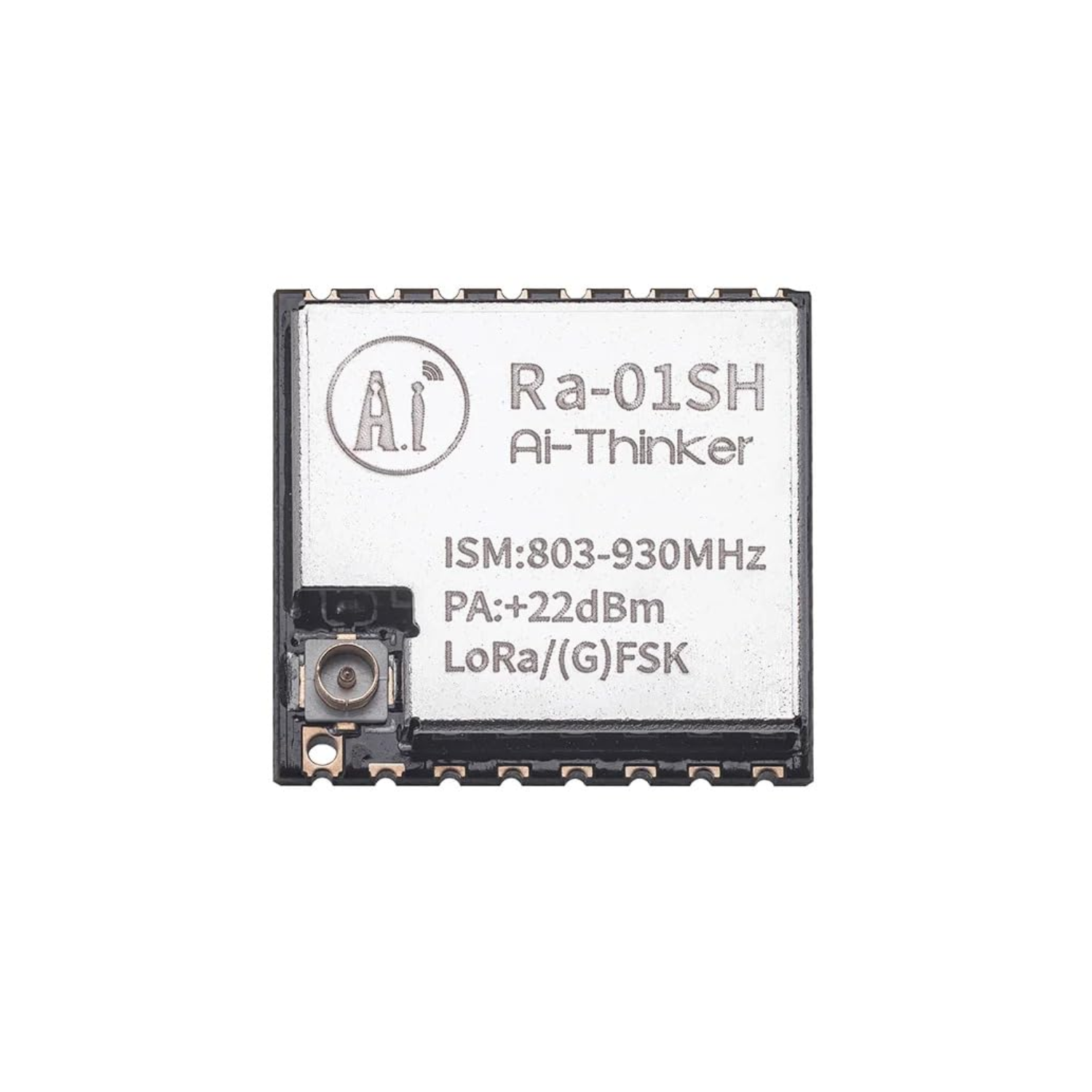

Ai-Thinker LoRa Ra-01SH Module High-Performance Wireless Transceiver Module - RS8433/RS5694

Ai-Thinker LoRa Ra-01SH Module High-Performance Wireless Transceiver Module - RS8433/RS5694

RS8433/RS5694

In stock

Rs. 455.00
Rs. 455.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Anxinke LoRa series modules (Ra-01SH) are designed and developed by Anxinke Technology. This module is used for ultra-long-distance spread-spectrum communication. Its radio chip SX1262 mainly uses a LoRa™remote modem for ultra-long-distance spread-spectrum communication.

It has strong anti-interference and can minimise current consumption. With SEMTECH's LoRa™patentedmodulation technology, SX1262 has a high sensitivity of over -148dBm, a power output of +22dBm, a long transmission distance, and high reliability.

At the same time, compared to traditional modulation technology, LoRa™modulation technology also has obvious advantages in anti-blocking and selection, which solves the problem of distance, anti-interference, and power consumption that traditional design solutions cannot simultaneously take into account. Application areas are used in automatic meter reading, home building automation, security systems, and remote irrigation systems

Specifications:

  • Model: Ra-01SH
  • Package: SMD16
  • Antenna: Compatible with half-hole pads/through-hole pads (need to solder the antenna)/IPEX socket
  • Spectrum Range: 803MHz~930MHz
  • Operating Temperature: -40 ℃ ~ 85 ℃
  • Storage Environment: -40 ℃ ~ 125 ℃ , 90%RH
  • Power Supply: 2.7~3.6V，default 3.3V，current ＞ 200mA
  • Interface: SPI
  • Programmable Bit Rate: Up to 300kbps

Features:

  • LoRa™ modem
  • Support FSK, GFSK, MSK, GMSK, LoRa™, and OOK modulation methods
  • Support frequency band 803MHz~930MHz
  • Working voltage is 3.3V, maximum output is +22dBm, maximum working current is140mA
  • Low power consumption characteristics in the receiving state, the minimum receiving current is 4.2 mA, standby current is 1.6mA
  • High sensitivity: as low as -140dBm
  • Small volume dual row stamp hole patch package
  • The module adopts SPI interface, half-duplex communication, with CRC, upto256-byte packet engine

Useful link:

Ai-Thinker LoRa Ra-01SH Module

Package Included:

1 x Ai-Thinker LoRa Ra-01SH Module
