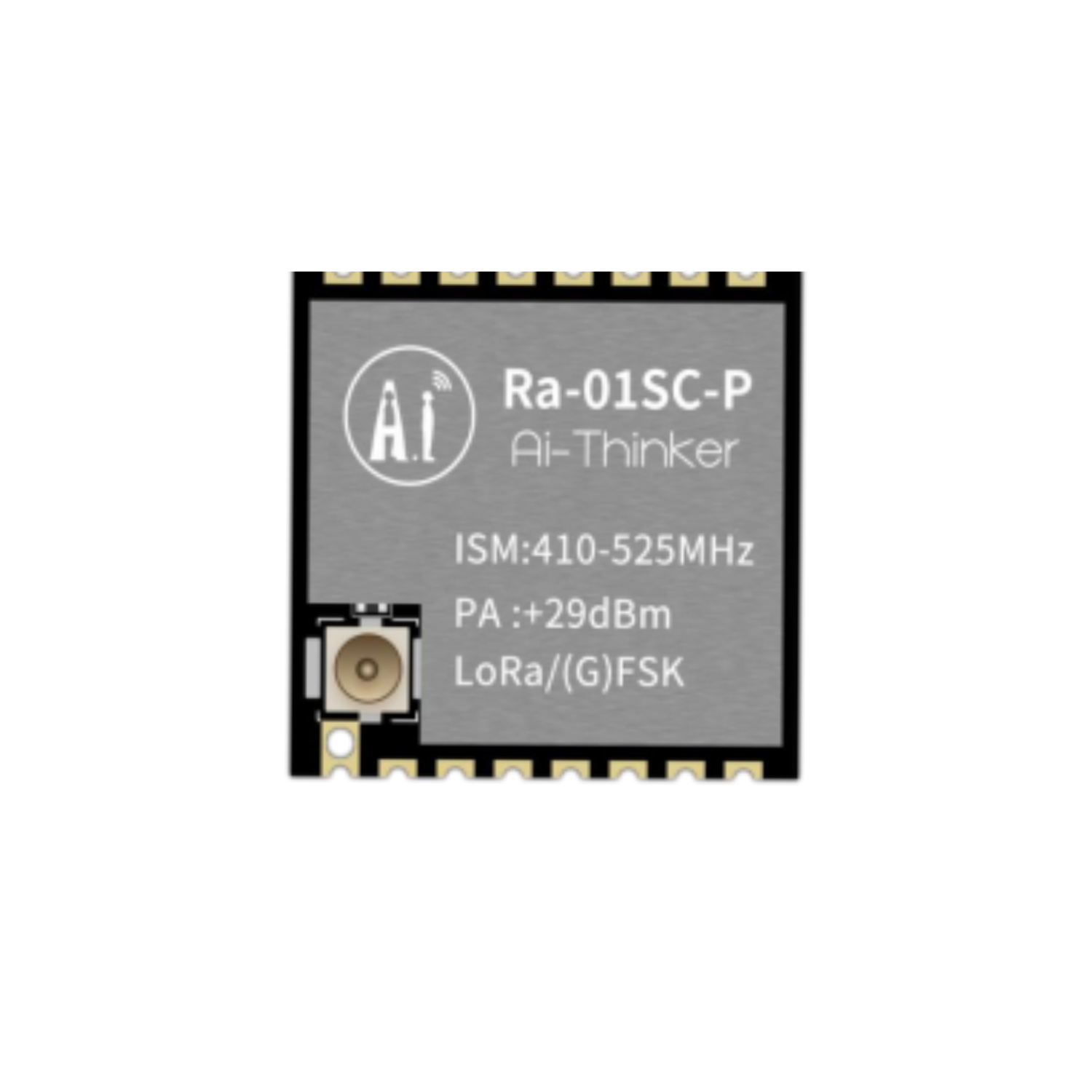

Ra-01SC-P is a LoRa series module designed and developed by Shenzhen Ai-Thinker Technology Co., Ltd. This module is used for ultra-long distance spread spectrum communication. Its RF chip LLCC68+ mainly uses a LoRa™ long-range modem, which is used for ultra-long distance spread spectrum communication, has strong anti-interference ability, and can minimize current consumption. With the help of SEMTECH's LoRa™ patented modulation technology, the module has a built-in power amplifier (PA) and low-noise amplifier (LNA) on this technology, with high sensitivity exceeding -137dBm, +29dBm transmission power, long transmission distance, and high reliability.
At the same time, compared with traditional modulation technology, LoRa™ modulation technology also has obvious advantages in anti-blocking and selection, solving the problem that traditional design solutions cannot take into account distance, anti-interference, and power consumption at the same time.
Specifications:
- Model: Ra-01SC-P
- Antenna: Compatible with half-hole pad/through-hole pad/IPEX connector
- Frequency: 410MHz~525MHz
- Operating Temperature: -40℃~ 85℃
- Storage Temperature: -40℃~ 125℃, < 90%RH
- Power Supply: Supply voltage 3.0~3.6V, typical value 3.3V, current＞1A
- Interface: SPI
- Programmable Bit Rate: Up to 300kbps
Features:
- Supports FSK, GFSK, LoRa® modulation modes
- Supports frequency band 410MHz~525MHz
- Maximum transmit power +29dBm, operating current 700mA
- High sensitivity: as low as -137dBm@SF10 125KHz
- Extremely small size 17*16*3.2(±0.2)MM, double-row stamp hole patch package
- Support spread factor SF5/SF6/SF7/SF8/SF9/SF10/SF11
- Low power consumption in the receiving state, with a minimum receiving current of 11mA.
- The module uses an SPI interface, half-duplex communication, with CRC, and a data packet engine of up to 256 bytes.
- Supports multiple antenna installation methods, compatible with half-hole
pads/through-hole pads/IPEX connector

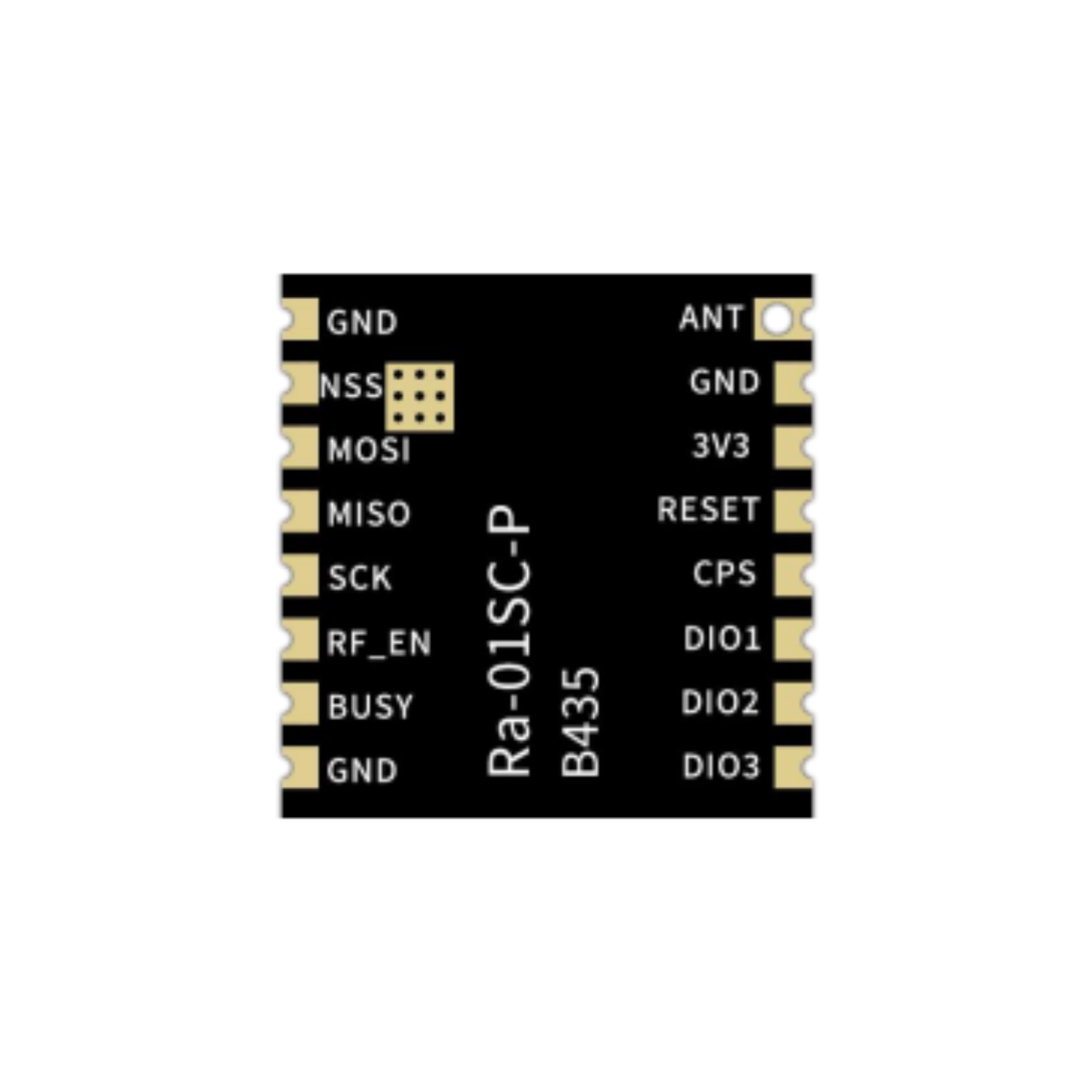

Pin Description:
| No. | Name | Function |
| 1 | ANT | Connect antenna |
| 2 | GND | Ground |
| 3 | 3V3 | Typical value 3.3V power supply |
| 4 | RESET | Reset Pin |
| 5 | CPS | FEM chip TX pass-through enable pin, in transmit mode, this pin is low level RFand is directly output without PA amplification and is internally pulled up by default |
| 6 | DIO1 | Digital IO1 software configuration |
| 7 | DIO2 | Digital IO2 software configuration |
| 8 | DIO3 | Digital IO3 software configuration |
| 9 | GND | Ground |
| 10 | BUSY | Status indication pin |
| 11 | RF_EN | FEM chip enable pin, high level is effective, the module is pulled up by default; High level is in a working state, low level is in sleep state |
| 12 | SCK | SPI clock input |
| 13 | MISO | SPI data output |
| 14 | MOSI | SPI data input |
| 15 | NSS | SPI chip select input |
| 16 | GND | Ground |
| EPAD | GND | Ground, reliable grounding is required to facilitate heat dissipation |
