Description:

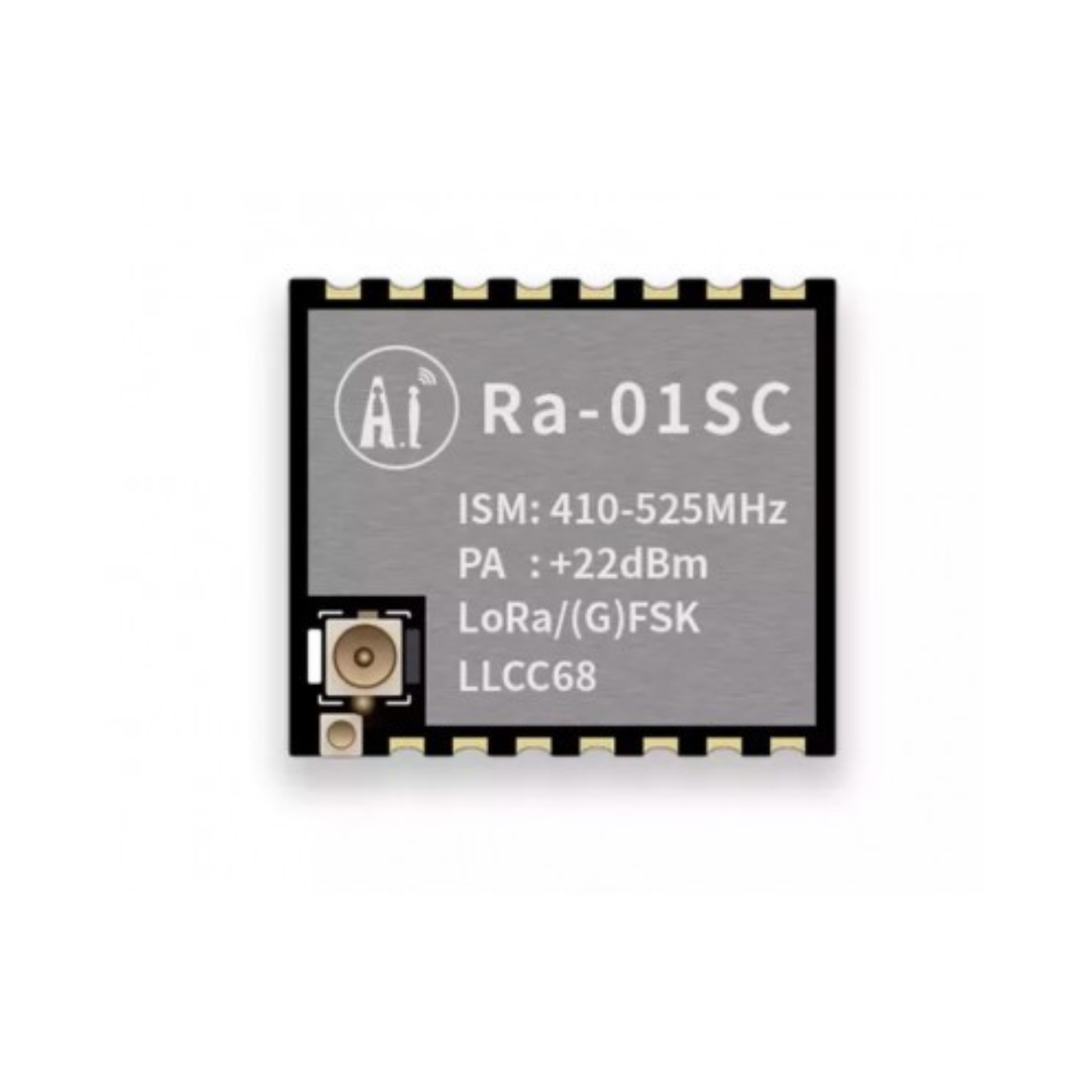

LoRa series module Ra-01Sc is designed and developed by Shenzhen Ai-Thinker
Technology Co., Ltd. This module is used for ultra-long distance spread spectrum
communication. Its RF chip LLCC68 mainly uses a LoRa™ remote modem for ultra-long
distance spread spectrum communication, with strong anti-interference and low power
consumption.
LLCC68 chip has a high sensitivity of over-129 dBm, a 20 dBm power output, a long transmission distance, and a high reliability with SEMTECHs LoRa ™ patent modulation technique. Meanwhile, compared with the traditional modulation technology, LoRa ™ provides significant advantages in both blocking and selectivity over conventional modulation techniques.
It solves the problem of simultaneously balancing the distance, the anti-interference and the power consumption, which the traditional design scheme can’t achieve. Application areas: automatic meter reading, supply chain and logistics, home building automation, security system, remote irrigation system.
Specifications:
- Model: Ra-01SC
- Package: SMD16
- Antenna: Compatible with half-hole pad/through-hole pad (antennas need to be
soldered)/IPEX - Frequency Range: 410MHz~525MHz
- Operating Temperature: -40 ℃ ~ 85 ℃
- Storage Environment: 40 ℃ ~ 125 ℃ , < 90%RH
- Power Supply: 2.7~3.6V，typical value 3.3V，recommended current > 200mA
- Support Interface: SPI
- Programmable Bit Rate: Max up to 300Kbps
- Crystal Frequency: 32MHz
- Transmission Distance: In an open environment, this module matched with a spring antenna had a transmitting range of 2.8km, or matched with a suction cup antenna the transmitting range can reach 4.6km.
Features:
- LoRa™ modem
- Support FSK、GFSK、MSK、GMSK、LoRa™ and OOK mode
- Frequency supports 410MHz~525MHz
- Operating voltage is 3.3V, Max output transmitting power:+22dBm,Max current:140m
- Low power consumption in a received state, the min received current is 4.2mA, stand-by current is 0.6mA
- High sensitivity: As low as -129dBm
- Support spreading factor: SF5/SF6/SF7/SF8/SF9/SF10/SF11
- Small volume double-row stamp hole patch for SMD package
- Adopts SPI interface, half-duplex communication, with CRC, up to 256-byte packet engine
- Compatible with various antenna interfaces: stamp hole/round hole and IPEX, supports more scheme selection.

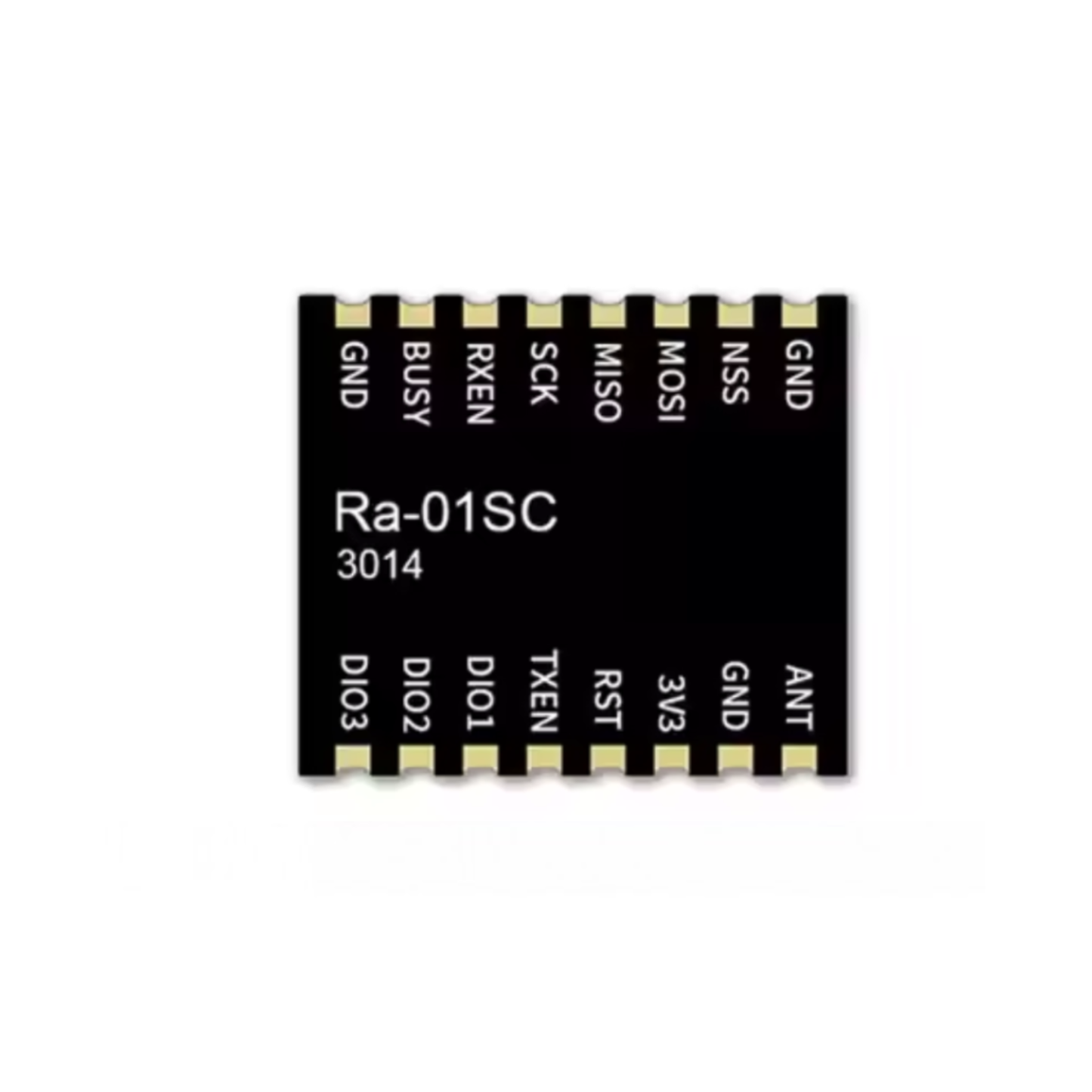

Pin Description:
| No. | Name | Function Instruction |
| 1 | ANT | Ground |
| 2 | GND | Ground, connect to the power reference ground |
| 3 | 3.3V | Typical value 3.3V，recommended current > 200mA |
| 4 | RESET | Reset |
| 5 | TXEN | RF control port |
| 6 | DIO1 | Digital IO1 software configuration |
| 7 | DIO2 | Digital IO2 software configuration |
| 8 | DIO3 | Digital IO3 software configuration |
| 9 | GND | Ground |
| 10 | BUSY | Status indicator pin（Be sure to connect to the IO port of the master MCU） |
| 11 | RXEN | RF control port |
| 12 | SCK | SPI clock input |
| 13 | MISO | SPI data output |
| 14 | MOSI | SPI data input |
| 15 | NSS | SPI chip select input |
| 16 | GND | Ground, connect to the power reference ground |
Useful Link:
Ai-Thinker LoRa Ra-01SC Module
Package Included:
1 x Ai-Thinker LoRa Ra-01SC Module
