Description:

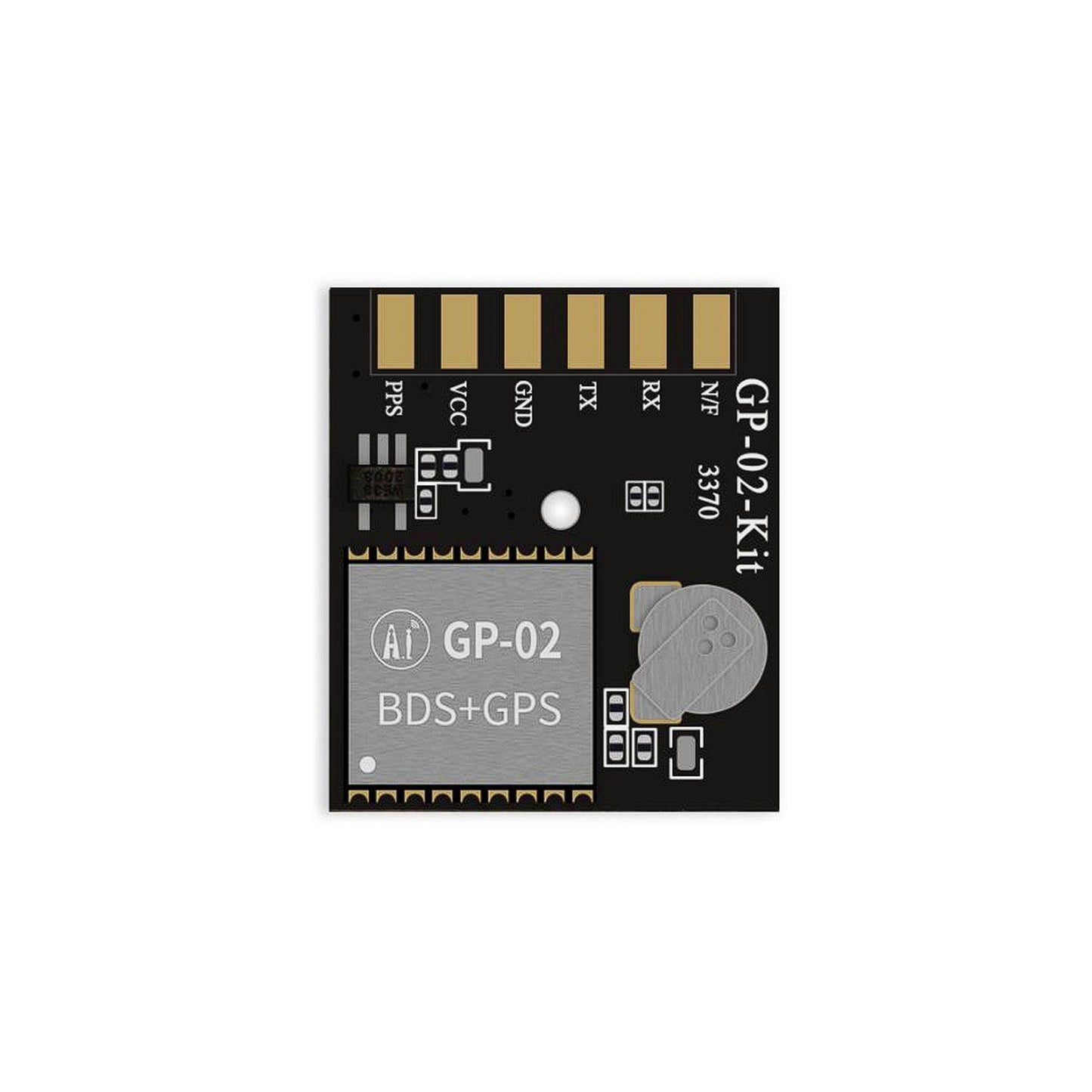

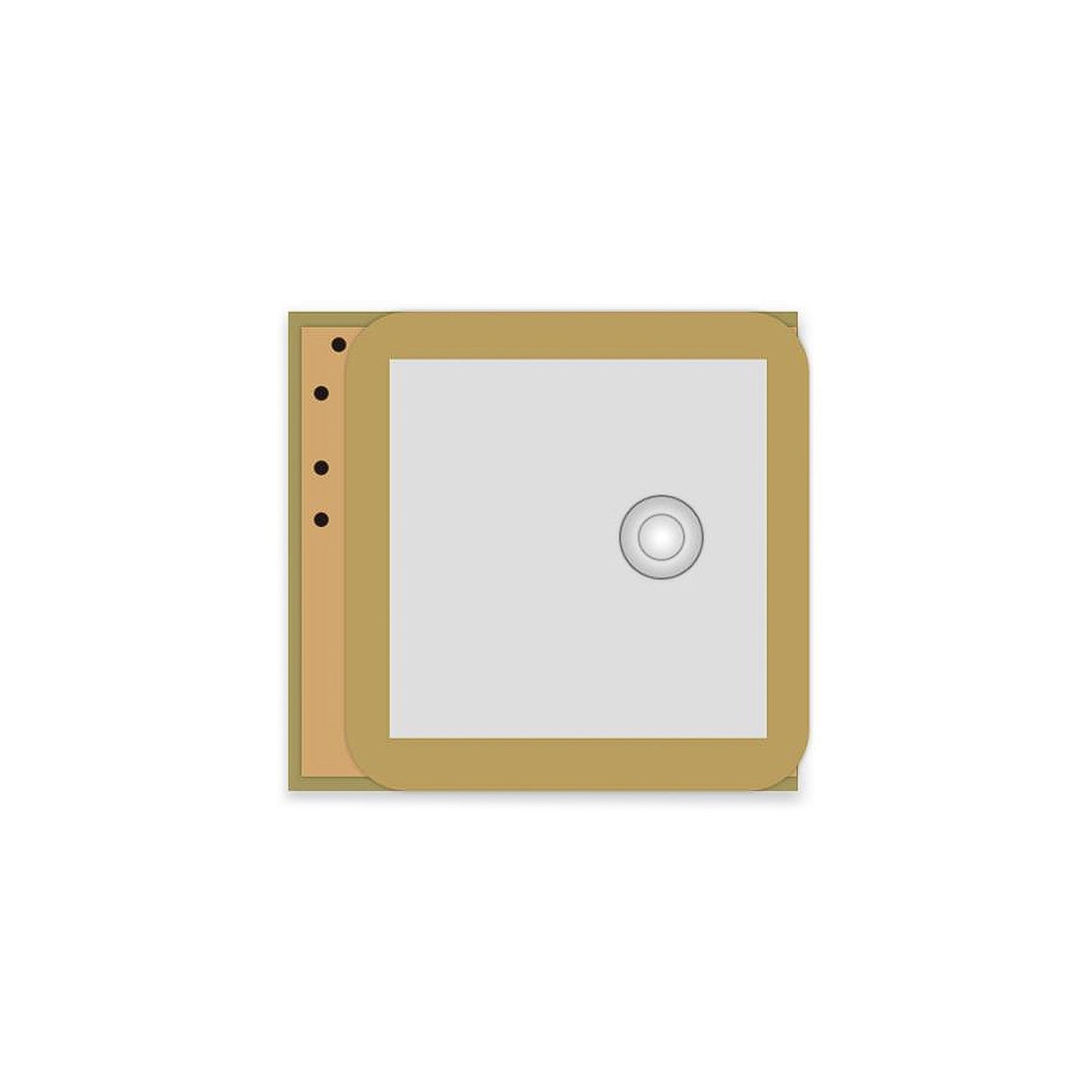

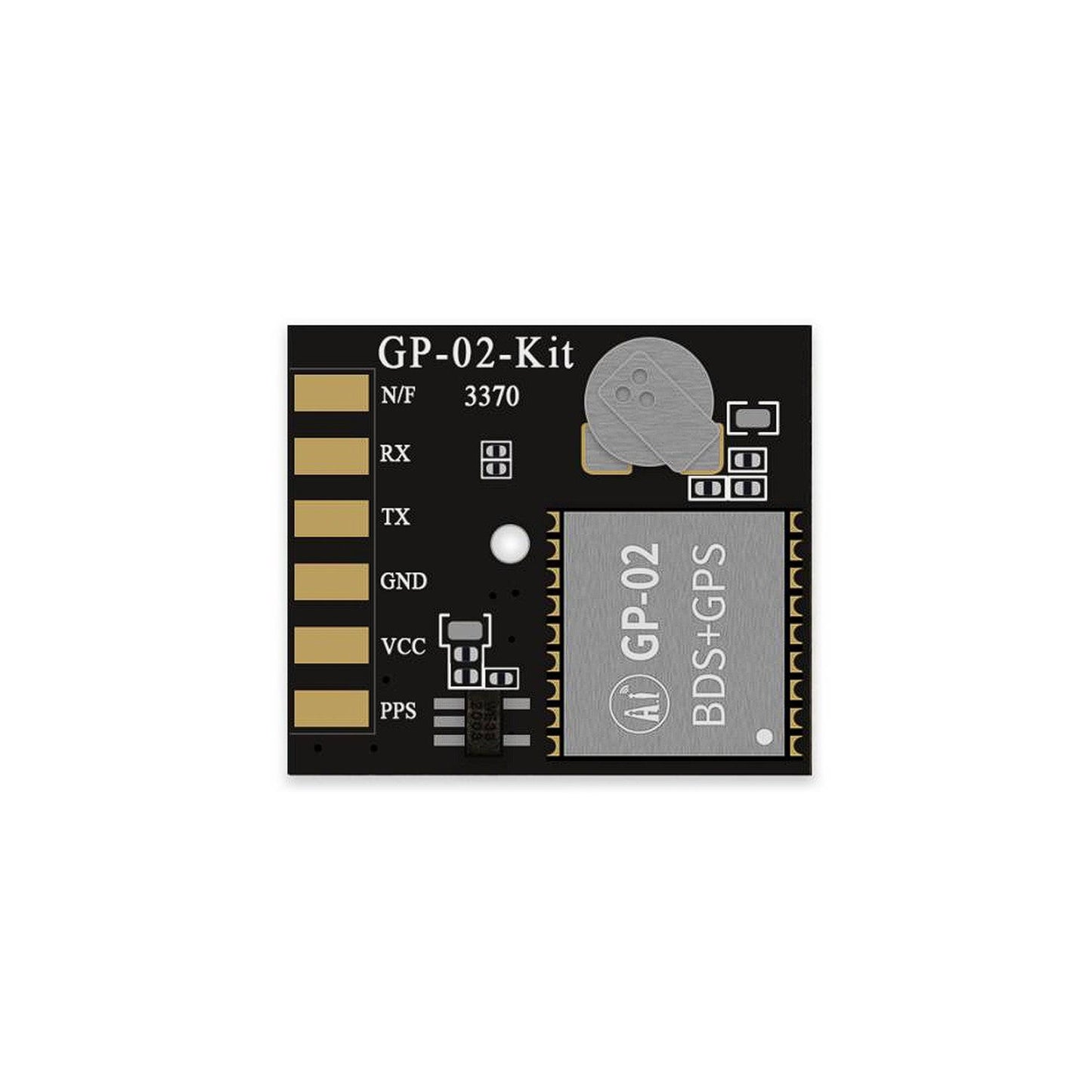

The Ai-Thinker GP-02 GPS Development Board is a highly sophisticated SOC development board that comes with a ceramic antenna and a high-performance BDS/GNSS multi-mode satellite navigation receiver. The main component of this board is the AT6558R satellite positioning chip. This board is not just a simple GPS device, it also includes an integrated radio frequency front end, a digital baseband processor, a 32-bit RISC CPU, power management, and active antenna detection and protection functions. This makes it a versatile and powerful tool for a variety of applications. The GP-02-Kit operates following the NMEA protocol and sends instructions through serial communication to control the work content of the development board. This makes it a user-friendly device, suitable for both beginners and experienced users.
Specifications:
- Model: GP-02-Kit
- Operating Temperature: -40°C ~ 85°C
- Storage Environment: -40°C ~ 125°C, < 90%RH
- Power supply: 5V
- UART Rate: Maximum support 256000bps
- Certification: RoHS
Features:
- Ai-Thinker GP-02 GPS Development Board
- Incorporates a high-performance BDS/GNSS multi-mode satellite navigation receiver
- Features an integrated radio frequency front end and a 32-bit RISC CPU
- Supports multiple satellite navigation systems for enhanced accuracy
- Operates on the user-friendly NMEA protocol
- Compact size allows easy integration into various projects
- GP-02-Kit is a highly integrated SOC development board with a ceramic antenna and a high-performance BDS/GNSS multi-mode satellite navigation receiver
- GP-02-Kit follows the NMEA protocol and sends instructions through serial communication to control the work content of the development board
Package Included:
1 x Ai-Thinker GP-02 Kit GPS Development Board
