Description:

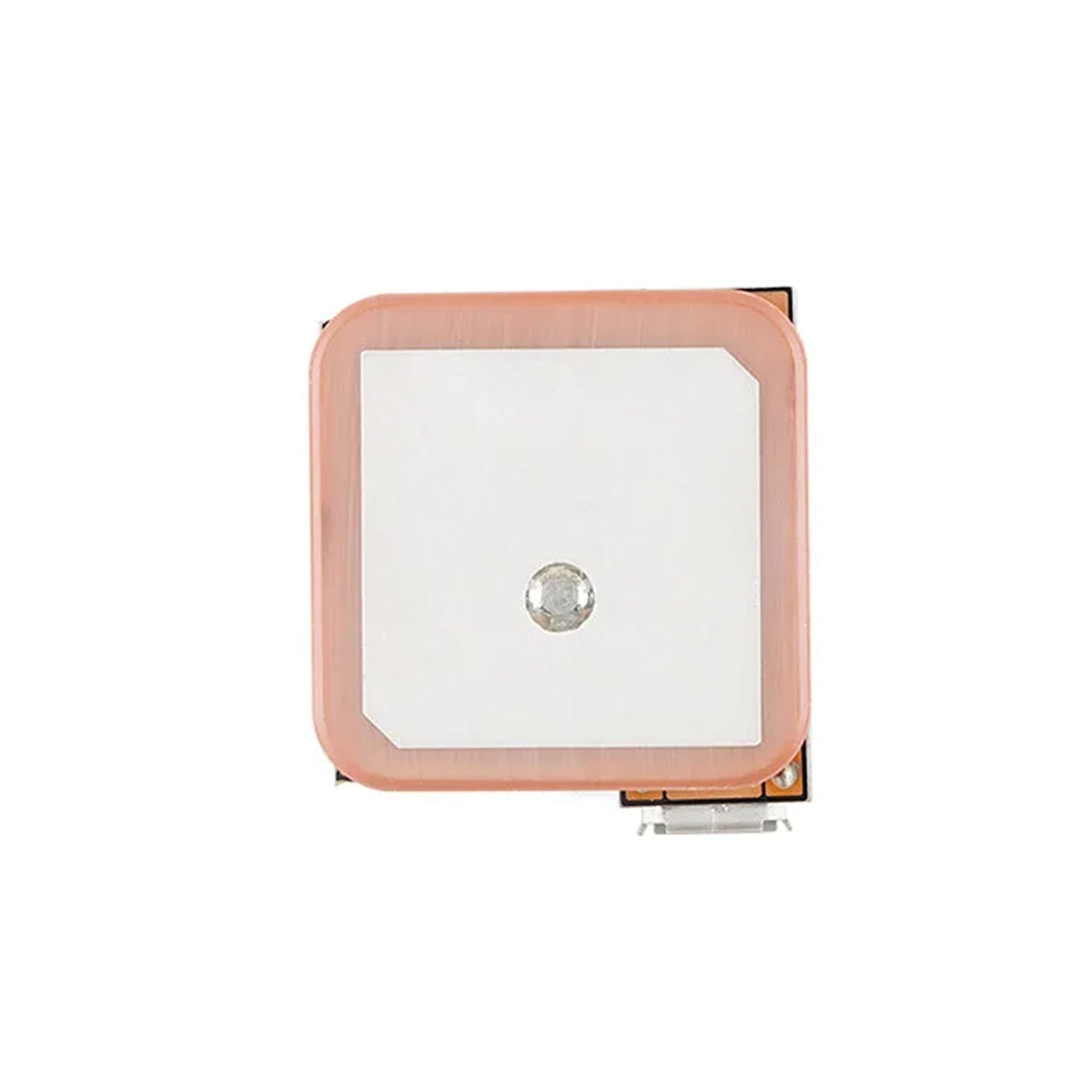

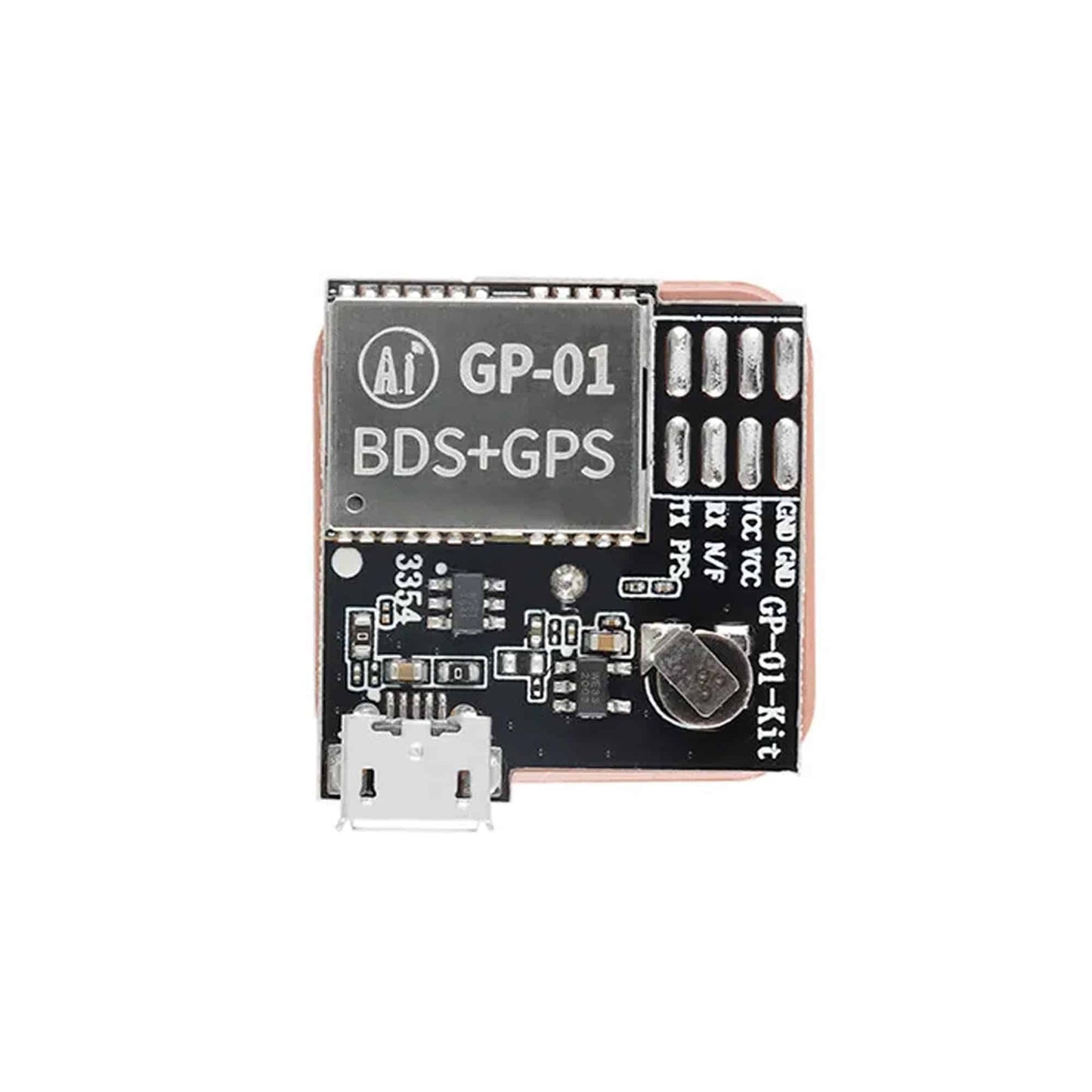

The Ai-Thinker GP-01-KIT GPS AT6558R Development Board is a highly integrated SOC development board that features a ceramic antenna and a high-performance BDS/GNSS multi-mode satellite navigation receiver. The main component of this board is the AT6558R satellite positioning chip. This development board is equipped with an integrated radio frequency front end, a digital baseband processor, a 32-bit RISC CPU, power management, and active antenna detection and protection functions. The GP-02-Kit adheres to the NMEA protocol and sends instructions through serial communication to control the work content of the development board. This product is ideal for those seeking a reliable and high-performance development board for their satellite navigation projects.
Specifications:
- Model: GP-01-Kit
- Operating Temperature: -40°C ~ 85°C
- Storage Environment: -40°C ~ 125°C, <90%RH
- Power Supply: Typical 5V (support Micro USB 5V power supply)
- UART Rate: Maximum support 256000bps
- Certification: RoHS
Features:
- Ai-Thinker GP-01-KIT GPS AT6558R Development Board
- Features high-performance BDS/GNSS multi-mode satellite navigation receiver
- Equipped with integrated radio frequency front end and 32-bit RISC CPU
- Supports multiple satellite navigation systems for joint positioning
- Adheres to NMEA protocol for controlling work content
Package Included:
1 x Ai-Thinker GP-01-KIT GPS AT6558R Development Board
