Description:

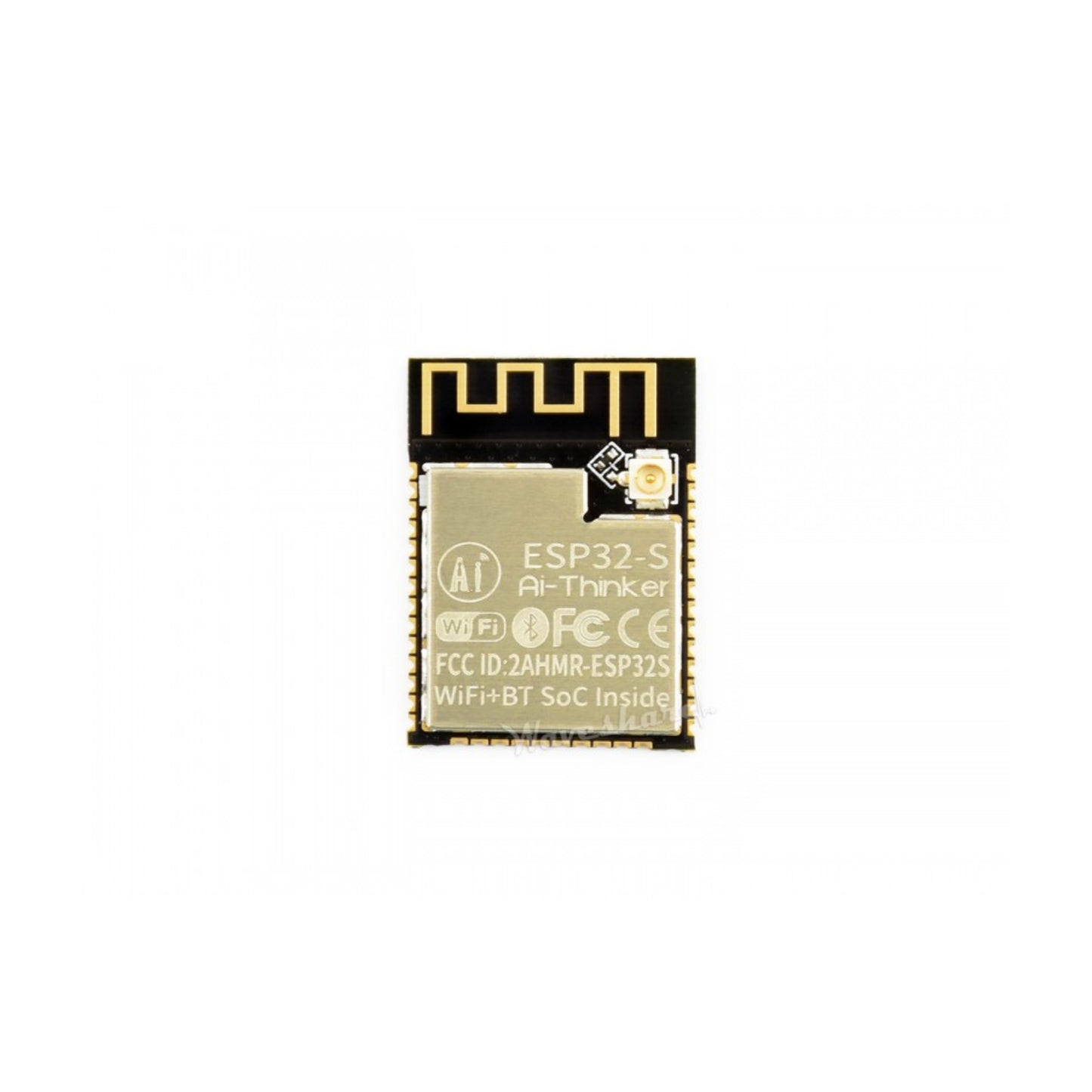

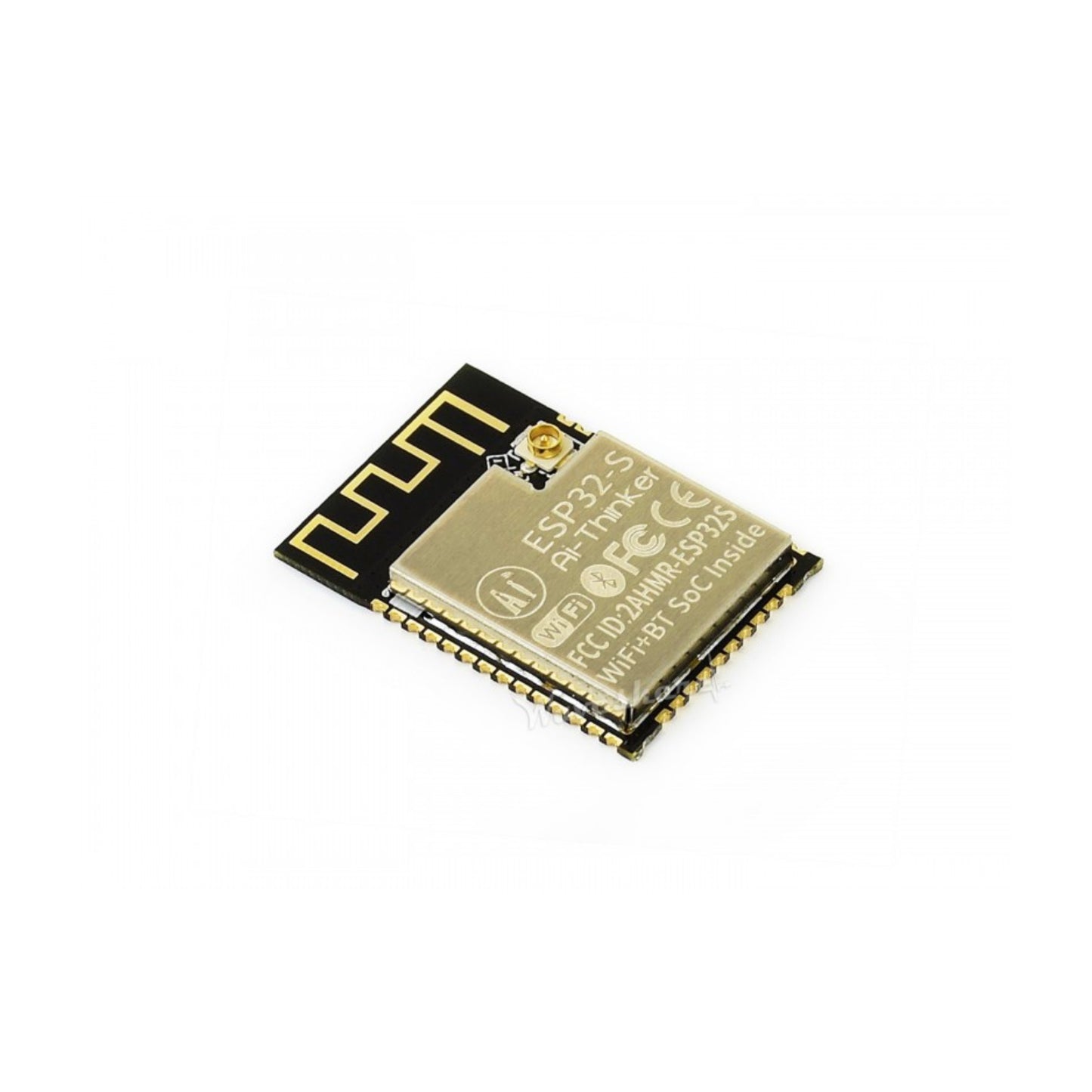

The ESP32-S is a wireless module based on ESP32, which supports WiFi and Bluetooth 4.2, with built-in 32Mbit Flash, in the SMD38 package. There's also an onboard PCB antenna and metal shield. In short, it's a small form factor and a fairly cost-effective wireless module.

ESP32-S WiFi+BT Module the pre-flashed AT firmware, you can control the module through UART AT commands easily. The module integrates MCU inside and supports other developments like Lua/Micropython/Arduino to achieve flexible and fast prototyping, making it easy to integrate the module into IoT applications.

Specification:

  • Module model: ESP32-S
  • Package/Case: SMD-38
  • Custom IO Port: 22
  • SPI Flash: Default 32Mbit
  • Wifi: 82.11 b/g/n/e/i
  • Transmit Power (dBm): 802.11b: 17±2 dBm (@11Mbps)
  • Receiving Sensitivity: 54 Mbps (3/4 64-QAM): -70dBm, 6 Mbps (1/2 BPSK): -88dBm, CCK, 1 Mbps : -90dBm, CCK, 11 Mbps: -85dBm, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
  • Supply Voltage (V): 3.0 to 3.6
  • Bluetooth Version: 4.2
  • Antenna Type: IPex And PCB
  • Operating Temperature (°C): -10 to 50
  • Security: WPA/WPA2/WPA2-Enterprise/WPS

Features:

  • The smallest 802.11b/g/n WiFi BT SoC Module
  • Low power 32-bit CPU, can also serve the application processor
  • Up to 160MHz clock, speed summary computing power up to 600 DMIPS
  • Overview built-in 520KB SRAM
  • Supports UART/SPI/I2C/PWM/ADC/DAC
  • SMD-38 package for easy welding
  • Support for OpenOCD debugging interface
  • Deep sleep current as low as 6.5A
  • Embedded Lwip and FreeRTOS
  • Supports STA/AP/STA+AP operation mode
  • Support Smart Config/AirKiss technology
  • General AT commands can be used quickly
  • Support for serial port local and remote firmware upgrades (FOTA)

Applicable:

The ESP32-S suit for IOT applications such as:

  • Smart home
  • Intelligent building
  • Industrial automation
  • Wearable devices
  • IP camera
  • Intelligent agriculture

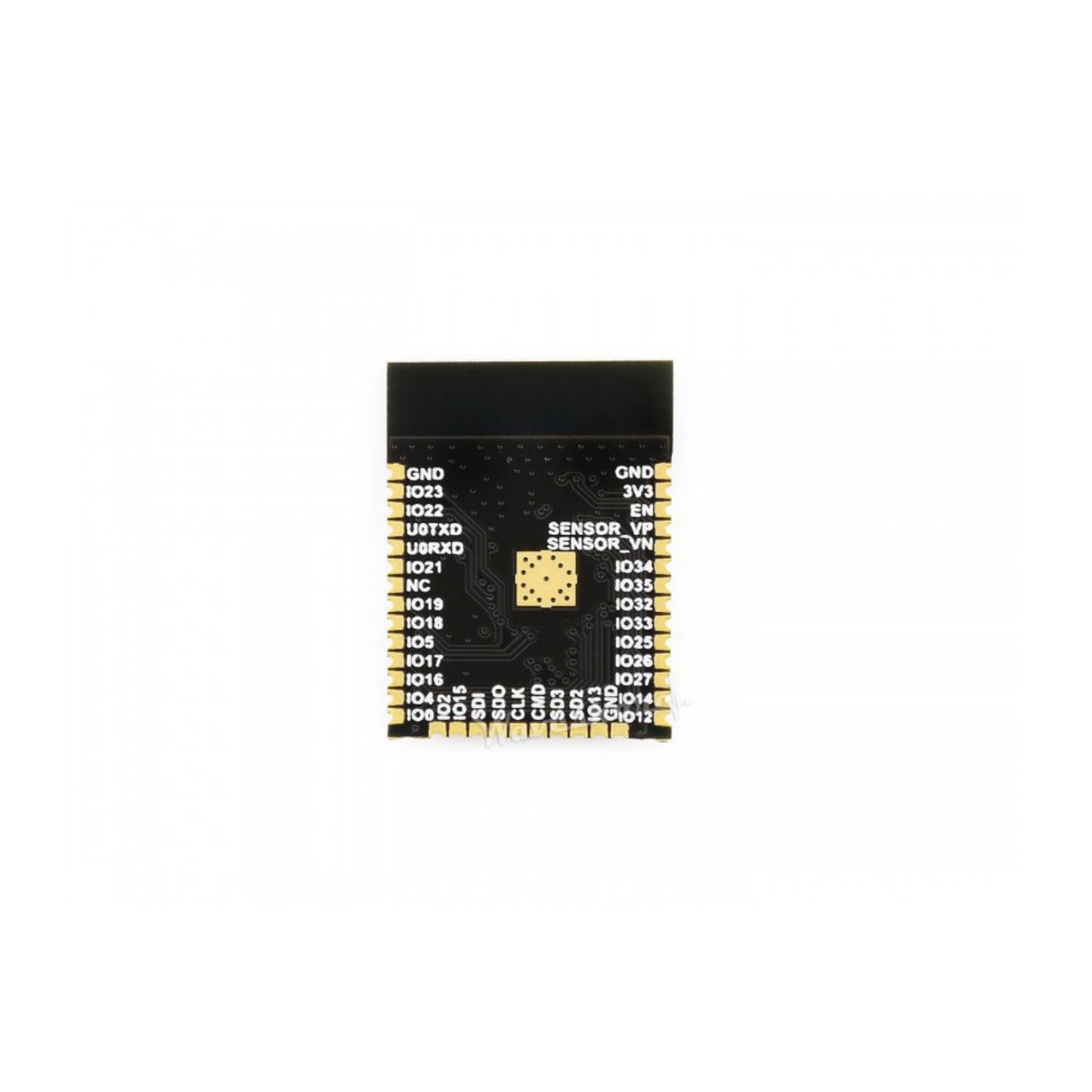

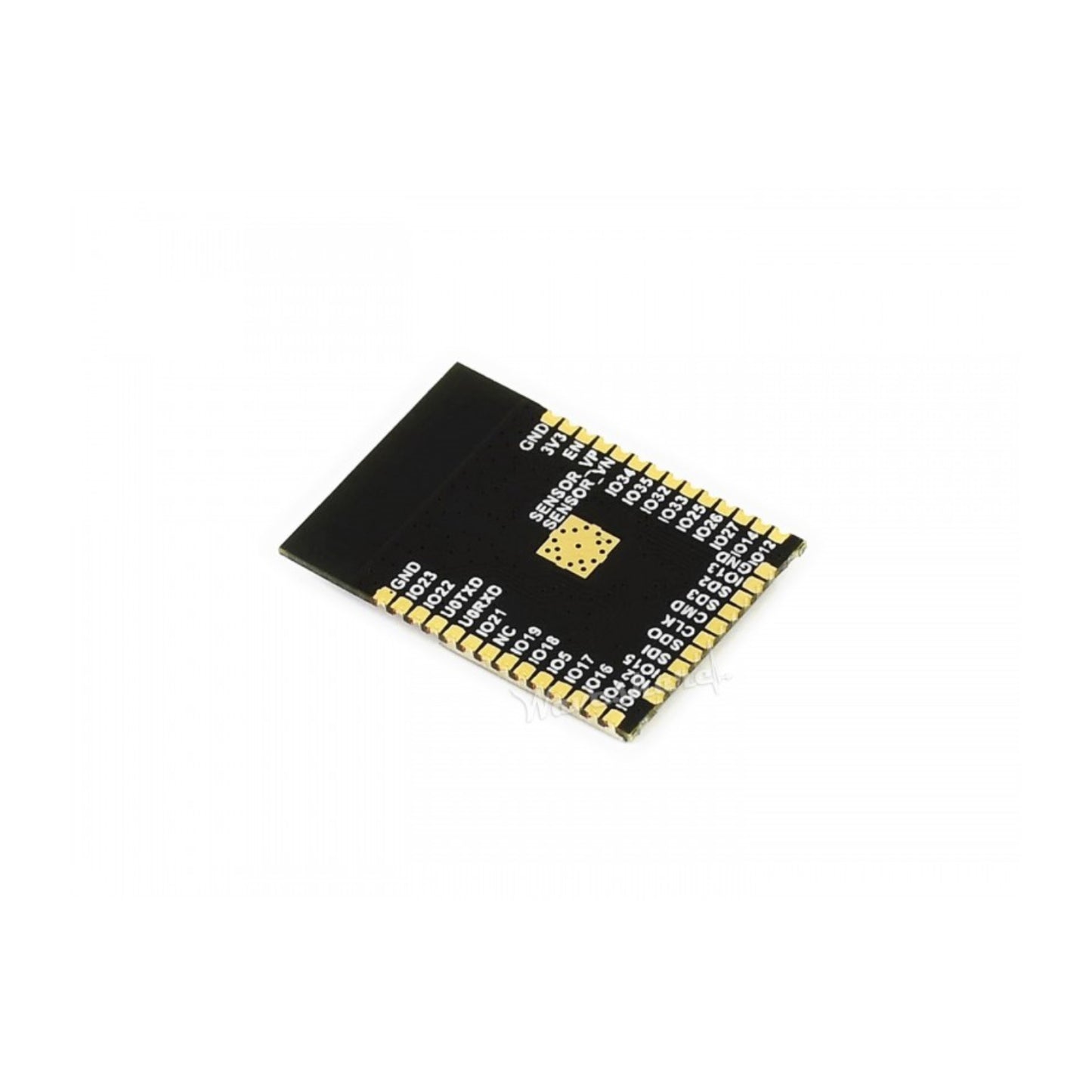

Pin Description:

Package Included:

1 x Ai Thinker ESP32-S WiFi+BT SoC Module ESP32-S SoC ESP32-S WiFi+BT Module Powerful WiFi And Bluetooth Combo Module Wireless Connectivity With ESP32-S
