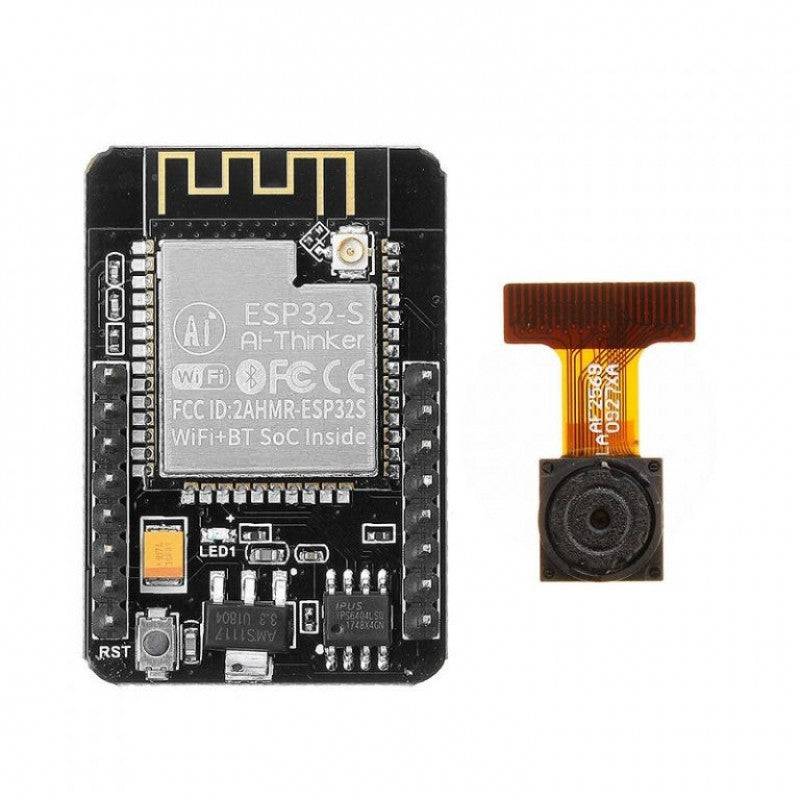

Ai Thinker ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module - RS3265

Ai Thinker ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module - RS3265

SKU:RS3265

Regular price Rs. 695.00
Regular price Sale price Rs. 695.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Module Model : ESP32-CAM
  • Custom IO Port : 9
  • SPI Flash : Default 32Mbit
  • RAM : 520KB SRAM +4M PSRAM
  • WIFI : 802.11 b/g/n/e/i
  • Bluetooth Version : 4.2
  • Antenna Type : IPEX and PCB
  • Input Supply Range (VDC) : 3.6 ~ 5
  • Current Dissipation (mA) : 180 , 310
  • Transmit Power (dBm) : 802.11b: 172 dBm (@11Mbps) , 802.11g: 142 dBm (@54Mbps) , 802.11n: 132 dBm (@MCS7)

Description :

The ESP32-CAM is an Ai-Thinkers Original ESP32 CAM WiFi+Bluetooth with OV2640 Camera Module based on the ESP32 chip with the additional facility of using a camera. It is ideal for various IoT applications. The ESP32-CAM has a very competitive small-sized camera module that can operate independently as a minimum system.
Ai-Thinker ESP32 CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

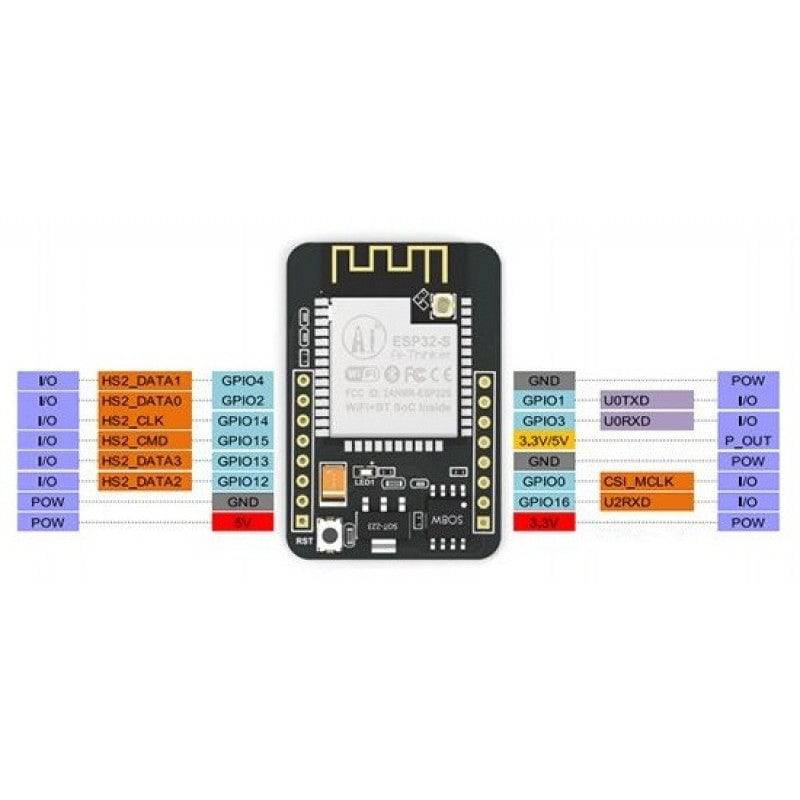

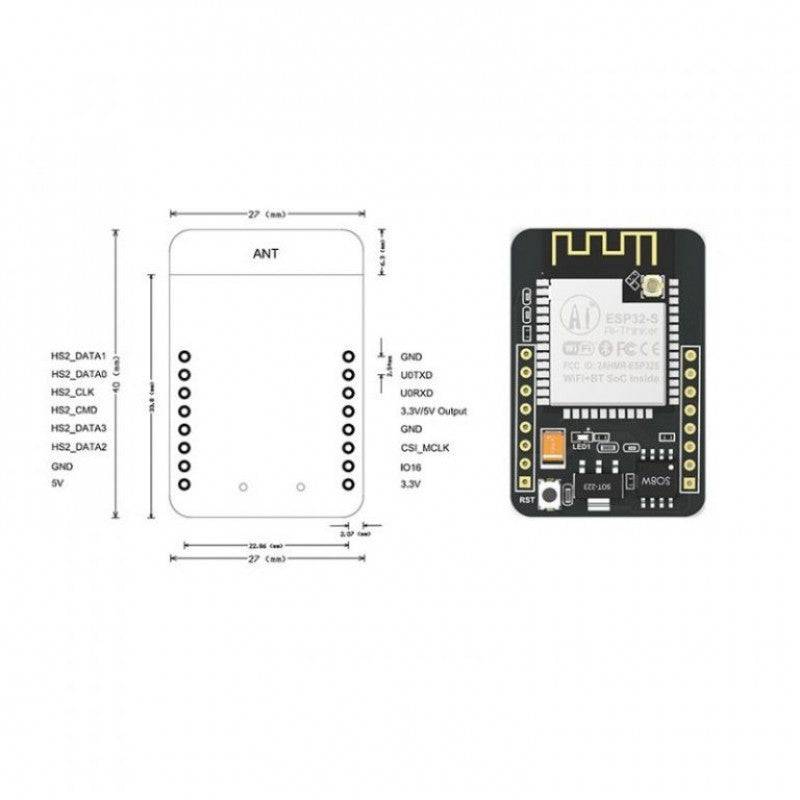

Pin Configuration:

ESP32-CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.

Features:

  • Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
  • Low-power dual-core 32-bit CPU for application processors
  • Up to 240MHz, up to 600 DMIPS
  • Built-in 520 KB SRAM, external 4M PSRAM
  • Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
  • Support OV2640 and OV7670 cameras with built-in flash
  • Support for images WiFI upload

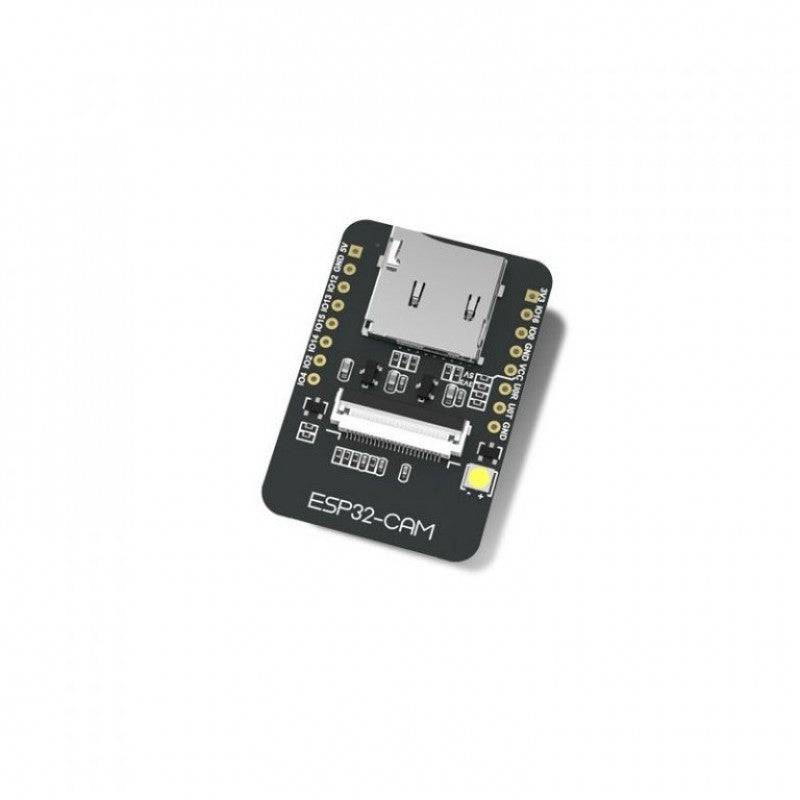

  • Support TF card
  • Support multiple sleep modes
  • Embedded Lwip and FreeRTOS
  • Support STA/AP/STA+AP working mode
  • Support Smart Config/AirKiss One-click distribution network
  • Support for serial local upgrade and remote firmware upgrade (FOTA)

Additional information

  • Module Model : ESP32-CAM
  • Custom IO Port : 9
  • SPI Flash : Default 32Mbit
  • RAM : 520KB SRAM +4M PSRAM
  • WIFI : 802.11 b/g/n/e/i
  • Bluetooth Version : 4.2
  • Antenna Type : IPEX and PCB
  • Input Supply Range (VDC) : 3.6 ~ 5
  • Current Dissipation (mA) : 180 , 310
  • Transmit Power (dBm) : 802.11b: 172 dBm (@11Mbps) , 802.11g: 142 dBm (@54Mbps) , 802.11n: 132 dBm (@MCS7)
  • Receiving Sensitivity : 54 Mbps (3/4 64-QAM): -70dBm , 6 Mbps (1/2 BPSK): -88dBm , CCK, 1 Mbps : -90dBm , CCK, 11 Mbps: -85dBm , MCS7 (65 Mbps, 72.2 Mbps): -67dBm
  • UART Baudrate : Default 115200 bps
  • Operating Temperature (C) : -20 to 80
  • Security : WPA/WPA2/WPA2-Enterprise/WPS

Package Included:

1 x Ai-Thinker ESP32 CAM Development Board WiFi+Bluetooth with OV2640 Camera Module
