Ai-Thinker

Ai-Thinker ESP-07 ESP8266 Serial WIFI Module Wireless Transceiver Module ESP-07 Send Receive LWIP AP+STA - AB062/RS5614

Ai-Thinker ESP-07 ESP8266 Serial WIFI Module Wireless Transceiver Module ESP-07 Send Receive LWIP AP+STA - AB062/RS5614

SKU:AB062/RS5614

Low stock: 3 left

Regular price Rs. 175.00
Regular price Sale price Rs. 175.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

ESP8266 Serial WIFI Module (ESP-07) is a cheap and easy way to connect any small microcontroller platform, like Arduino, wirelessly to the Internet. ESP8266 has powerful onboard processing and storage capabilities that allow it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy minimal PCB area.

ESP8266 Serial WIFI Module (ESP-07) is addressable over SPI and UART, making this an exceptionally easy choice for anyone wanting to build an Internet of Things thing. You can use AT commands to connect to WiFi networks and open TCP connections without the need to have TCP/IP stack running in your own microcontroller: You can simply connect any microcontroller to this module and start pushing data up to the Internet.

Specifications:

  • WIFI Direct (P2P), SOFT-AP
  • The AT command is perfect, efficient, concise
  • Support three modes: AP, STA and AP+STA coexistence mode the TCP/IP protocol suite
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLL, regulators, DCXO and power management units
  • +19.5dBm output power in 802.11b mode
  • Power down leakage current of <10uA
  • Integrated low-power 32-bit CPU could be used as an application processor
  • SDIO 1.1/2.0, SPI, UART
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)

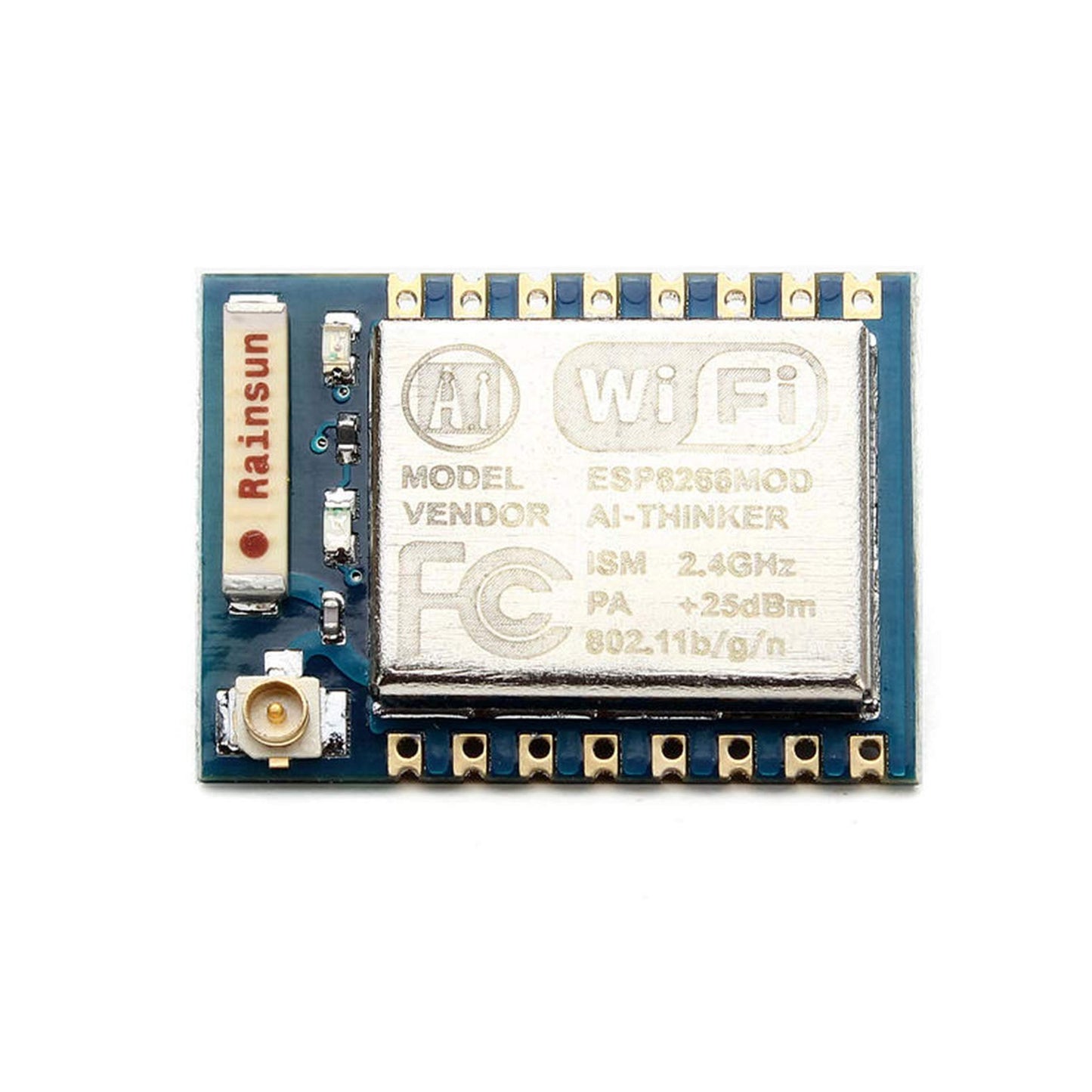

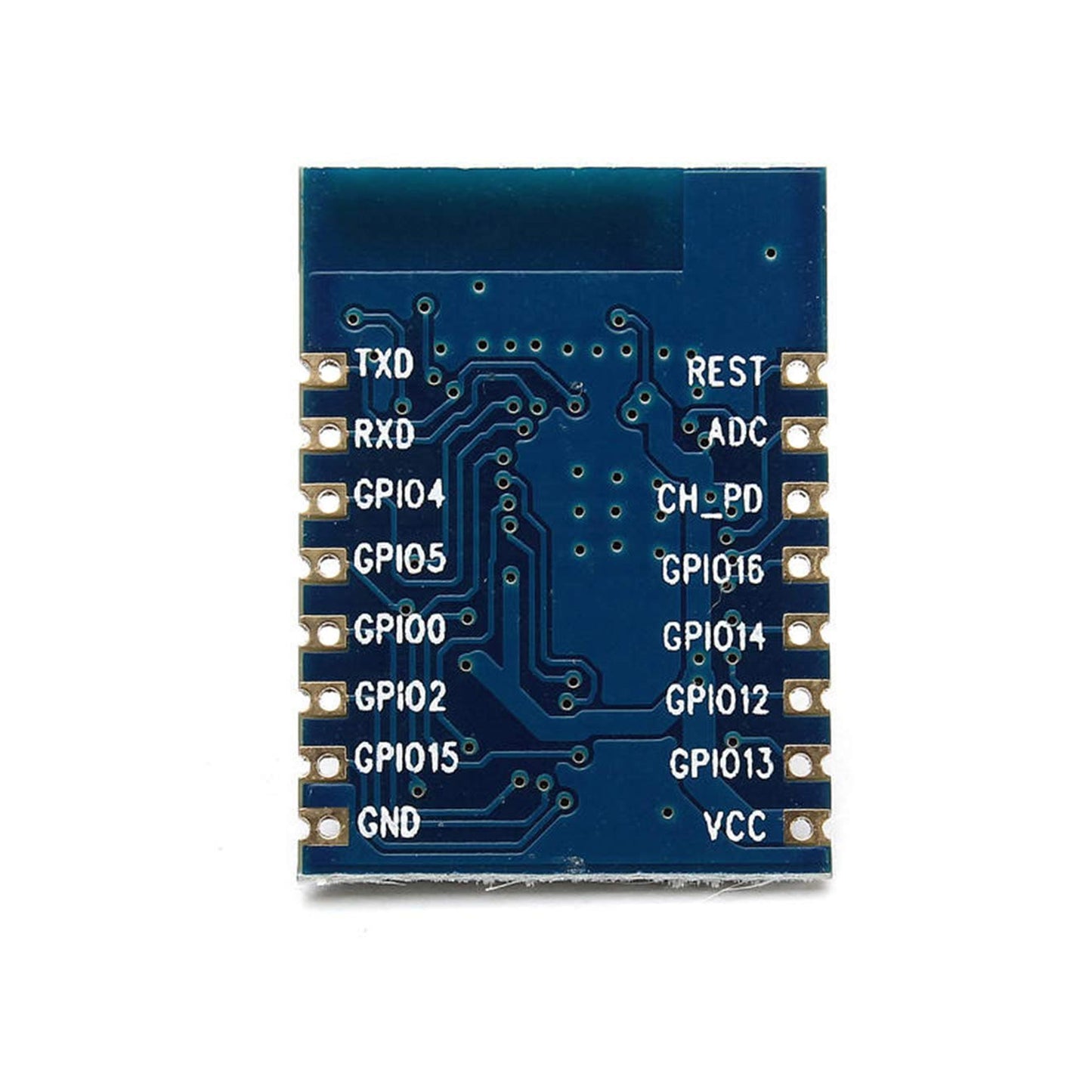

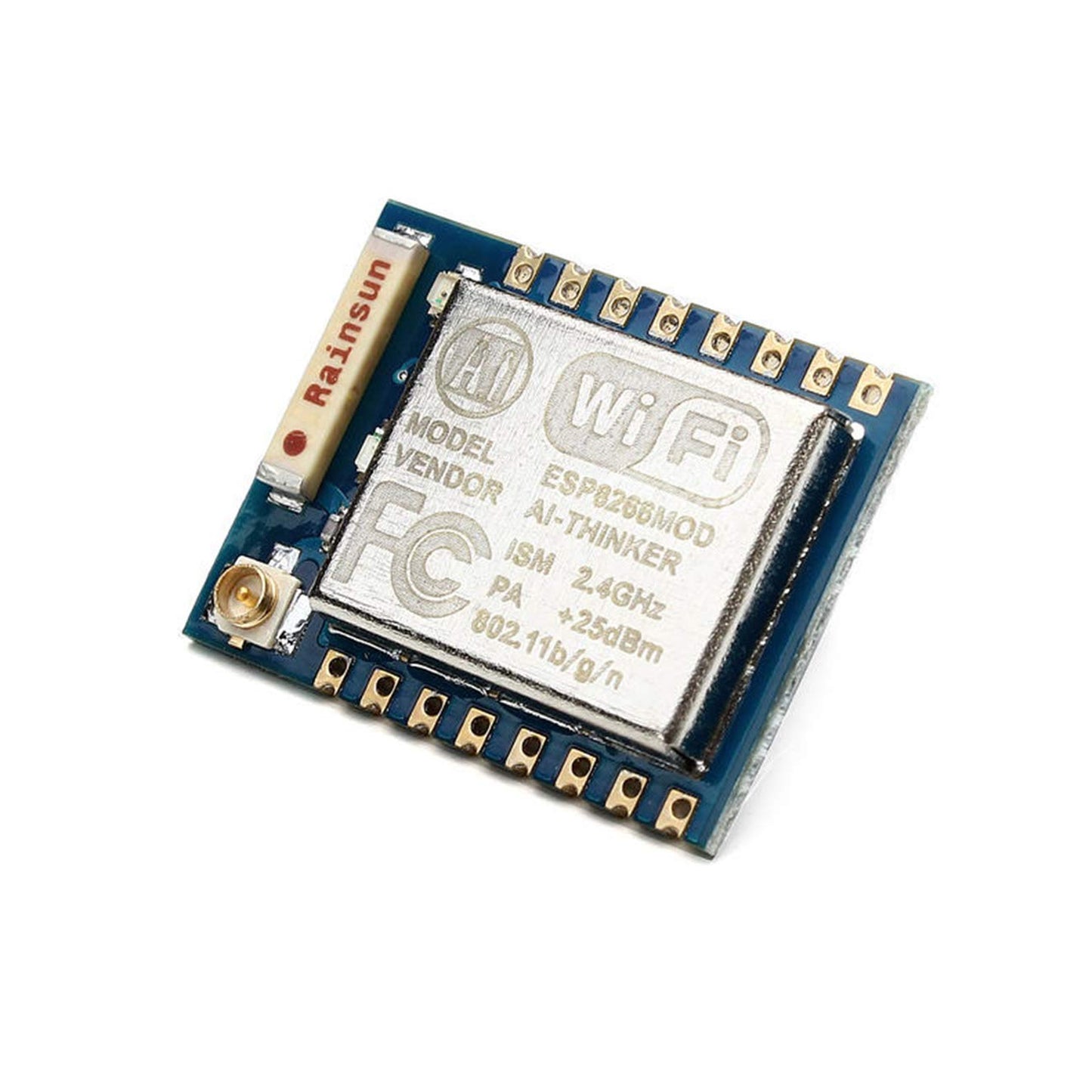

  • ESP-07: Semi-hole SMT technology, all are led by IO, with metal shielding case, support external IPX antenna as well as an internal ceramic antenna.

Features:

  • Serial UART Interface
  • It runs LWIP
  • 802.11 bgn
  • WIFI Direct (P2P), SOFT-AP
  • Built-in TCP/IP
  • The AT command is perfect, efficient, concise
  • Support three modes: AP, STA, and AP+STA coexistence mode
  • Onboard Chip Antenna

Package Included:

1 x Ai-Thinker ESP-07 ESP8266 Serial WIFI Module Wireless Transceiver Module ESP-07 Send Receive LWIP AP+STA
