Description:
BW16 is a dual-band Wi-Fi+Bluetooth SoC module developed based on RTL8720DN. BW16 supports dual-band (2.4GHz or 5GHz) WLAN and Bluetooth low energy 5.0, BW16 Wi-Fi Bluetooth Module integrates ARM V8 (Cortex-M4F compatible) high-performance MCU, ARM V8M (Cortex-M0 compatible) low-power MCU, WLAN (802.11 a / b / g / n), MAC, Bluetooth baseband and RF baseband, and provides a set of configurable GPIO ports for the control of different peripheral devices. BW16 Wi-Fi Bluetooth Module also integrates internal memory, supports simple application development, and can implement complete Wi-Fi and BT 5.0 protocol functions.
Specifications:
- Model: BW16
- Package: SMD-16
- Dimensions: 24x16x3mm
- Antenna Form: Onboard PCB antenna or IPEX antenna
- Spectrum Range: 2400-2483. 5MHz or 5180-5825MHz
- Bluetooth: BT5.0
- Bluetooth Frequency Range: 2.402GHz-2.480GHz
- Support Interface: UART / GPIO / ADC / PWM / IIC / SPI / SWD
- Power Supply Range : voltage 3.0V ~ 3.6V, typical value 3.3V, power supply current> 450mA
- Operating Temperature: -209C ~ 70 ° C
- Storage Environment: -40 ° C ~ 125 ° C, <90% RH
- Certification: RoHS, FCC, CE, SRRC
Features:
- Supports 802.11a/b/g/n 1×1, 2.4GHz or 5GHz
- BW16 Wi-Fi Bluetooth Module supports HT20/HT40 mode
- Support low-power beacon monitoring mode, low-power receiving mode, low-power suspend mode
- Built-in AES/DES/SHA hardware engine
- BW16 Wi-Fi Bluetooth Module supports TrustZone-M, supports safe boot
- Support SWD debug port access protection and prohibited mode
- BW16 Wi-Fi Bluetooth Module supports BLE and BT5.0
- Bluetooth supports high power mode (7dBm, sharing the same PA with Wi-Fi)
- Wi-Fi and BT share the same antenna
- BW16 Wi-Fi Bluetooth Module supports STA/AP/STA+AP working mode
- Support Simple Config (APP) / AirKiss (WeChat) one-click distribution network for Android and IOS
- Support serial local upgrade and remote firmware upgrade (FOTA)
Package Includes:

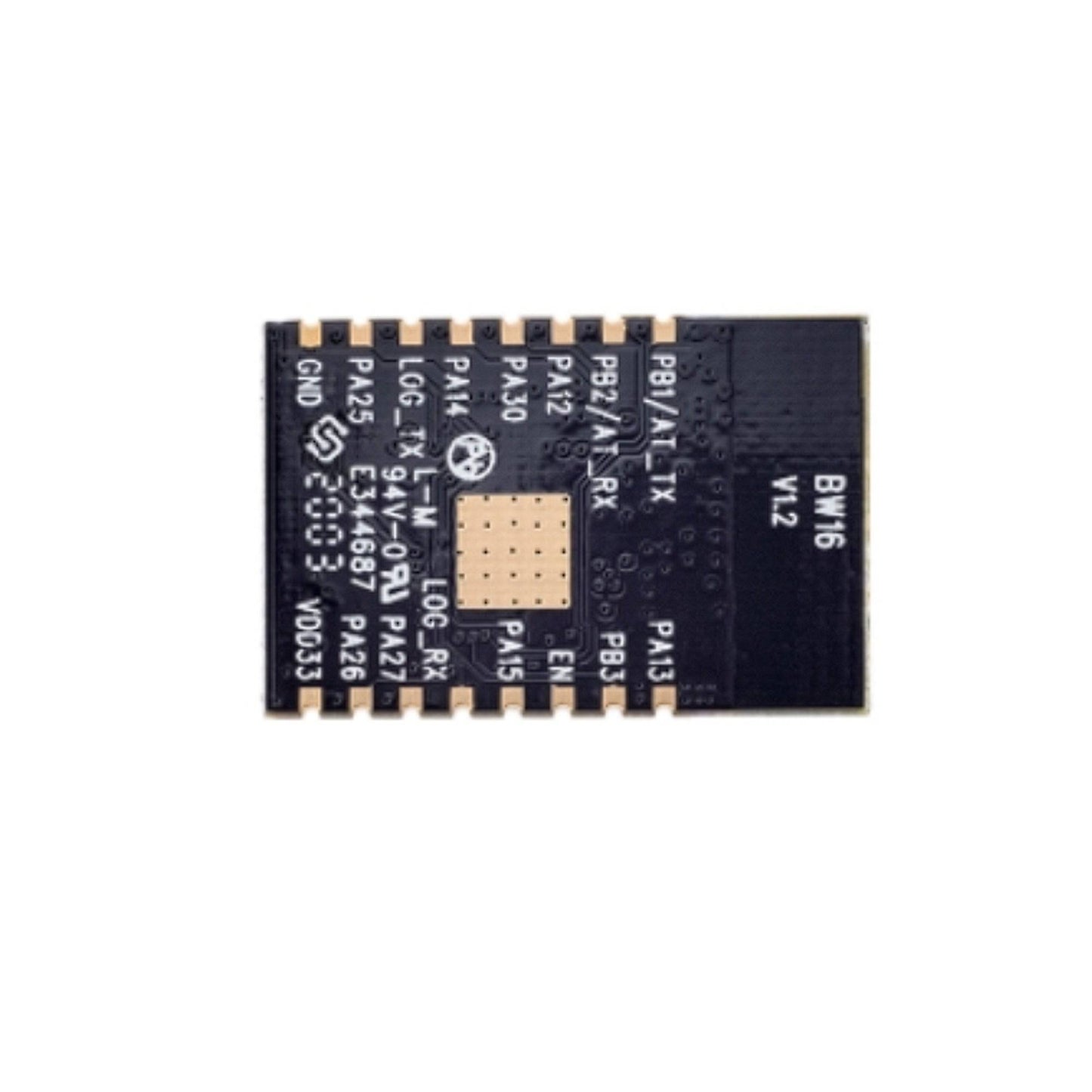

1 x Ai-Thinker BW16 Wifi Module Support 802.11a/b/g/n 1x1, 2.4GHz or 5GHz
