Description:

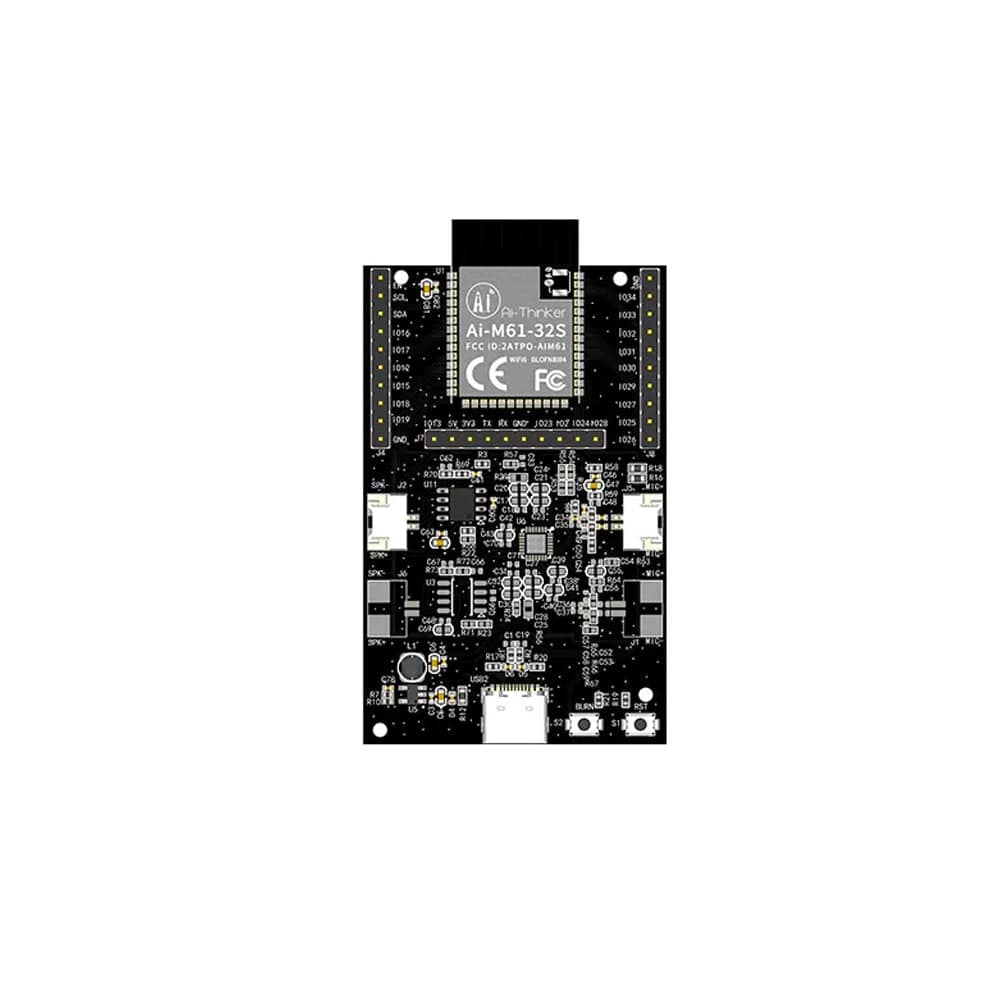

AiPi-Voice is a development board designed by the Ai-Thinker open-source team for Ai-M61-32S, which supports WiFi6 and BLE 5.3. The Ai-M61-32S module has rich peripheral interfaces, including DVP, MJPEG, Dispaly, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/ MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO. The AiPi-Voice enables voice output processing through a built-in voice chip, which can be recorded and played through an audio codec. The external display screen can make the control play the sound.
Features:
- Using CodeC chip inside the chip
- Single output (Input not supported)
- Support 8~48KHz dual-channel audio
- Support 16 to 32-bit depth audio
- Default dual-channel 2W 80 speaker
- Type-C USB 5V power supply
- Support WiFi 6, Support BLE 5.3
- Support WiFi/BLE/Thread coexist
- Integrated Windows, Linux development environment
- Code open source, arbitrary development
Package Included:

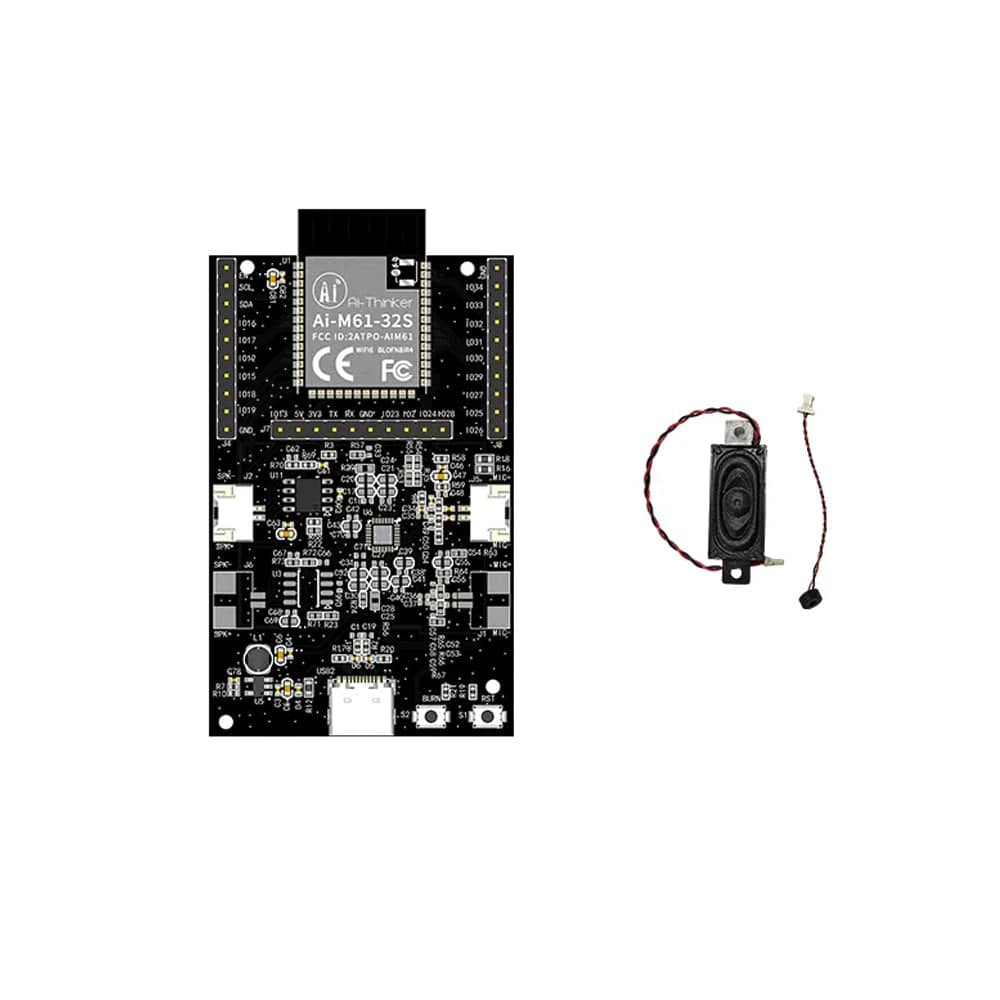

1 x Ai-Thinker AiPi-Voice Open Source Hardwar
