Description:

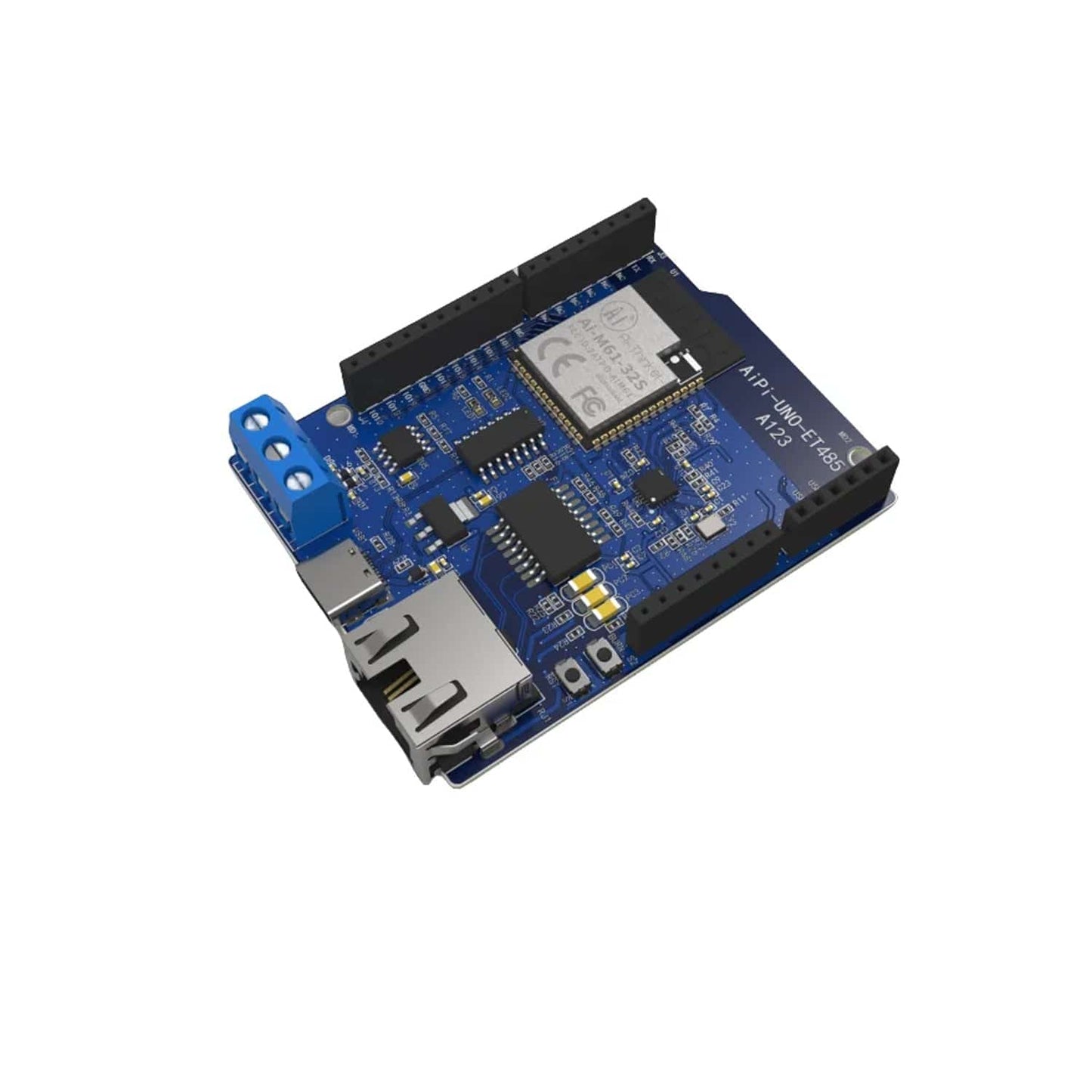

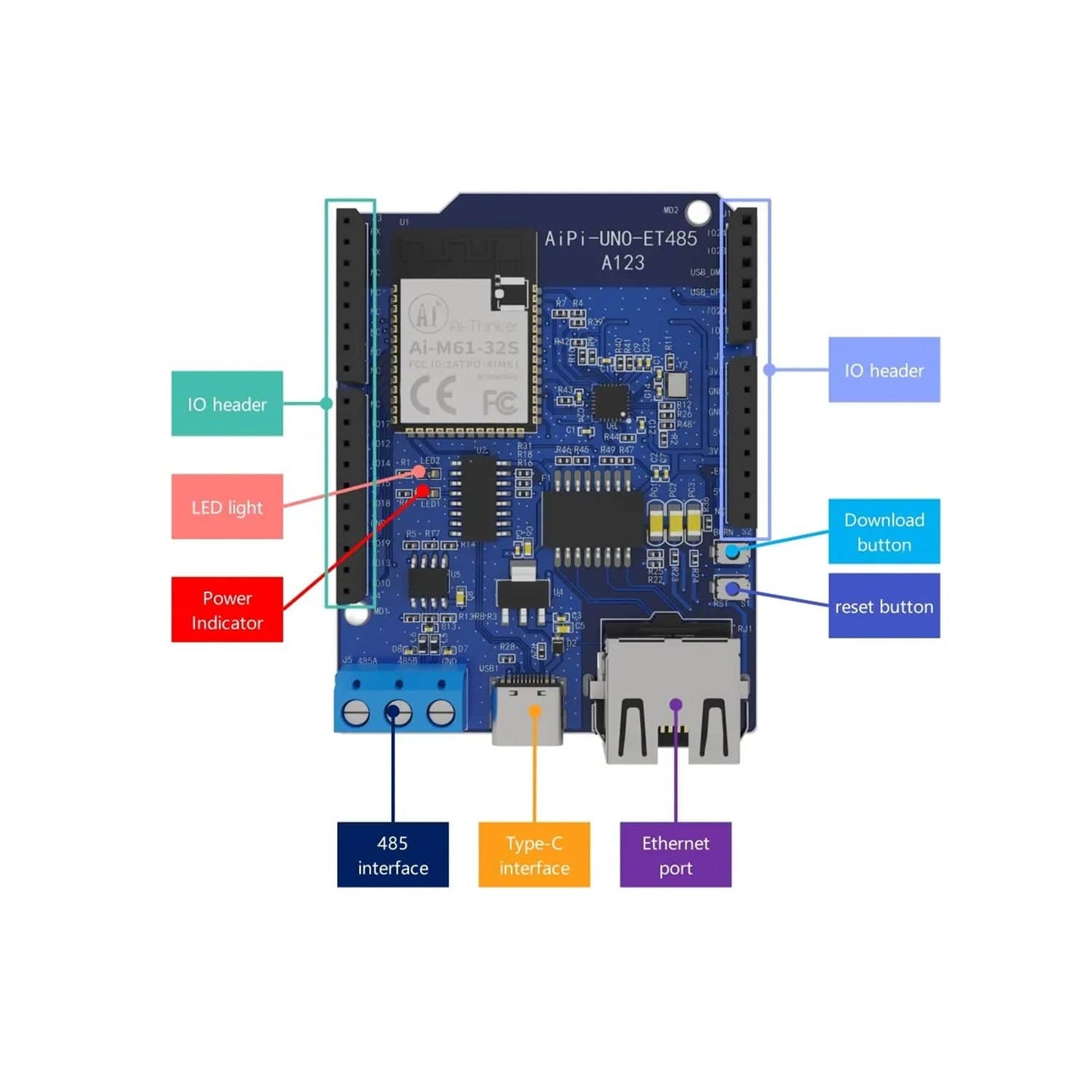

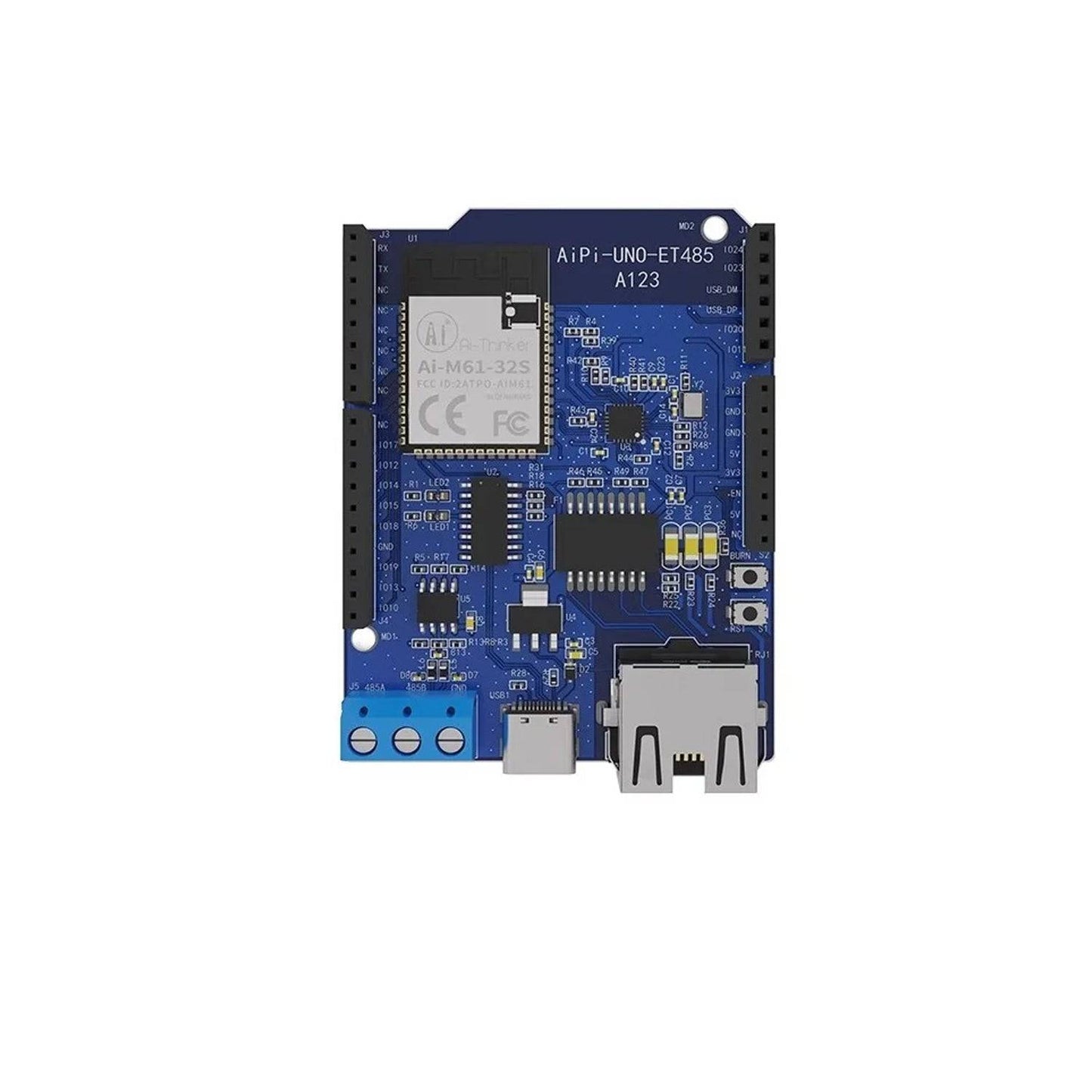

AiPi-UNO-ET485 Arduino development board adopts the classic Arduino UNO board design. The female header is also compatible with the classic shape. The AiPi-UNO-ET485 Arduino Development Board has an Ethernet port that is not available in other Xiao Anpai. The main control module is still the Ai-M61–32S WiFi6 module, which leads to all available GPIOs for easy expansion.
To be compatible with UNO’s classic appearance, the PCB cannot be expanded and the audio circuit, screen driver circuit, etc. cannot be integrated into the board. However, it can be achieved through an expansion board.
Specifications:
- Model: AiPi-UNO-ET485
- Supports: 485 Interfaces
Features:
- AiPi-UNO-ET485 Arduino Development Board compact design for ease of handling and integration.
- Battery power detection module for monitoring and managing power usage.
- The lithium battery charging module ensures efficient power replenishment.
- Offline voice module for convenient voice-activated commands.
- Infrared transmitter module for versatile remote control applications.
- 8-key combination module for diverse user inputs and commands.
- Factory firmware adapted for Midea air conditioners, allowing control through buttons, touch screen, and offline voice.
Useful Link:
Ai-Thinker AiPi-UNO-ET485 Arduino Development Board
Package Included:
1 x Ai-Thinker AiPi-UNO-ET485 Arduino development Board Base On Ai-M61–32S Module
