Description:

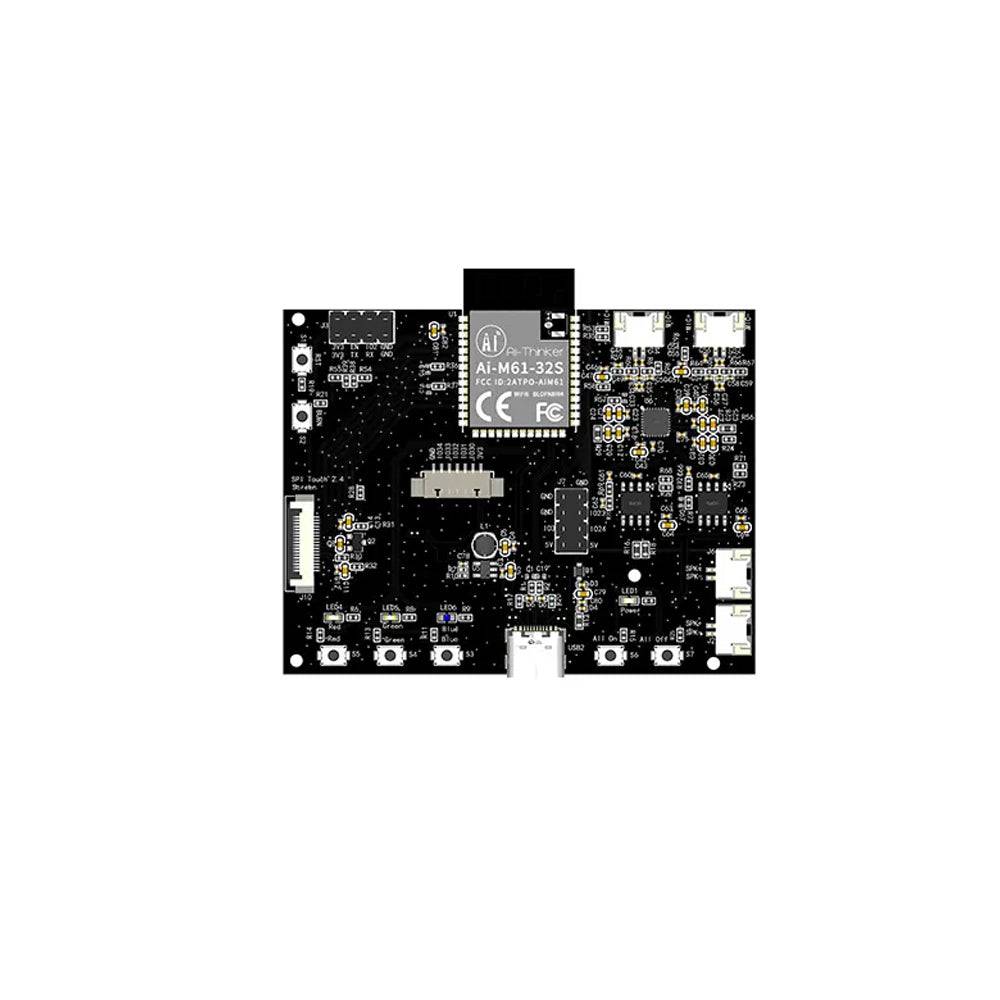

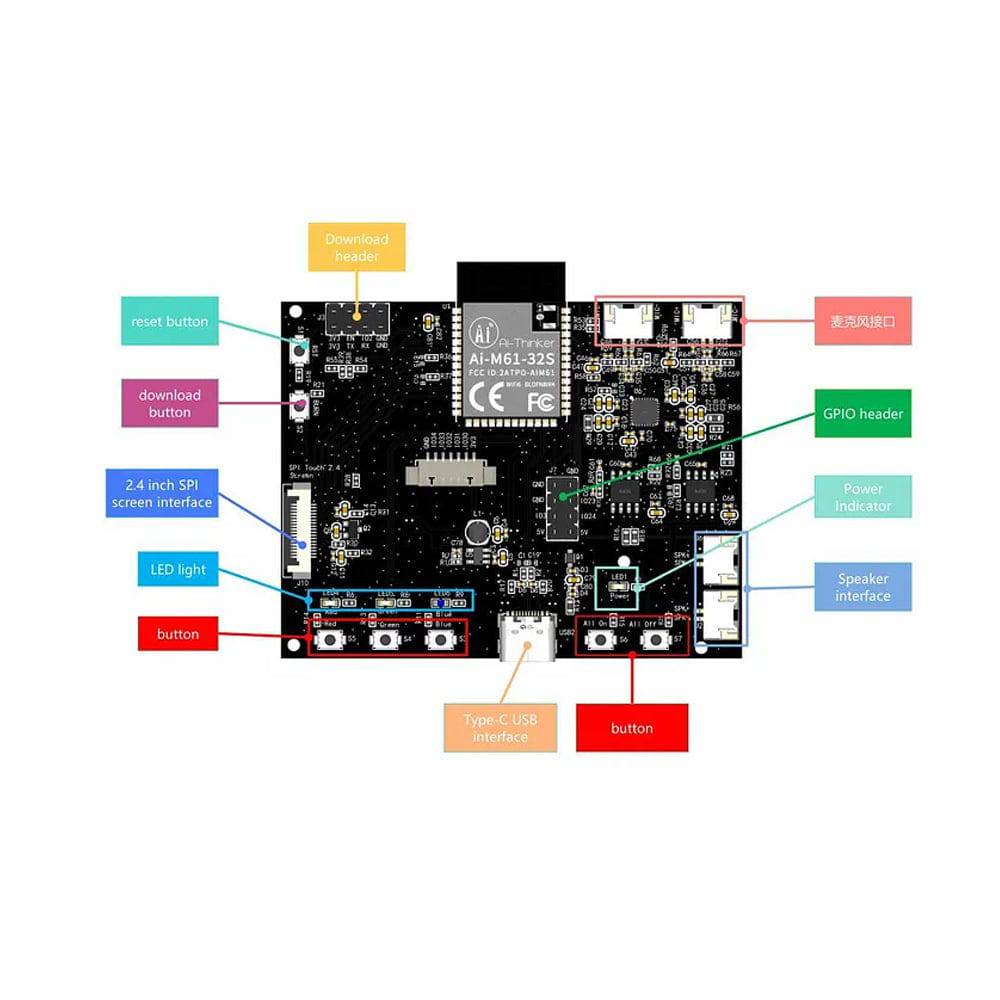

AiPi-SCP-2.4 uses the Ai-Thinker Ai-M61 module as the control core. The Type-C interface is used for power supply. The 2.4-inch RGB LCD screen is connected through the SPI interface, and the external audio circuit is used for voice broadcast and button group for physical control. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.
Specifications:
- Model: AiPi-SCP-2.4
- Display: 2.4-inch RGB LCD Screen
- Connectivity: Ethernet (EMAC)., USB2.0
- Communication Interface: I2C, SPI, UART
Features:
- Utilizes the Type-C interface for easy and convenient power supply.
- AiPi-SCP-2.4 features a 2.4-inch RGB LCD screen for vibrant and clear visual displays.
- Utilizes the SPI interface for efficient communication with the RGB LCD screen.
- External audio circuit for high-quality voice broadcast.
- Integrated button group for physical control, enhancing user interaction.
- USB 2.0 for high-speed connectivity.
- SDU, Ethernet (EMAC), and SD/MMC (SDH) for storage options.
- SPI, UART, I2C, I2S, PWM for versatile communication.
Package Included:

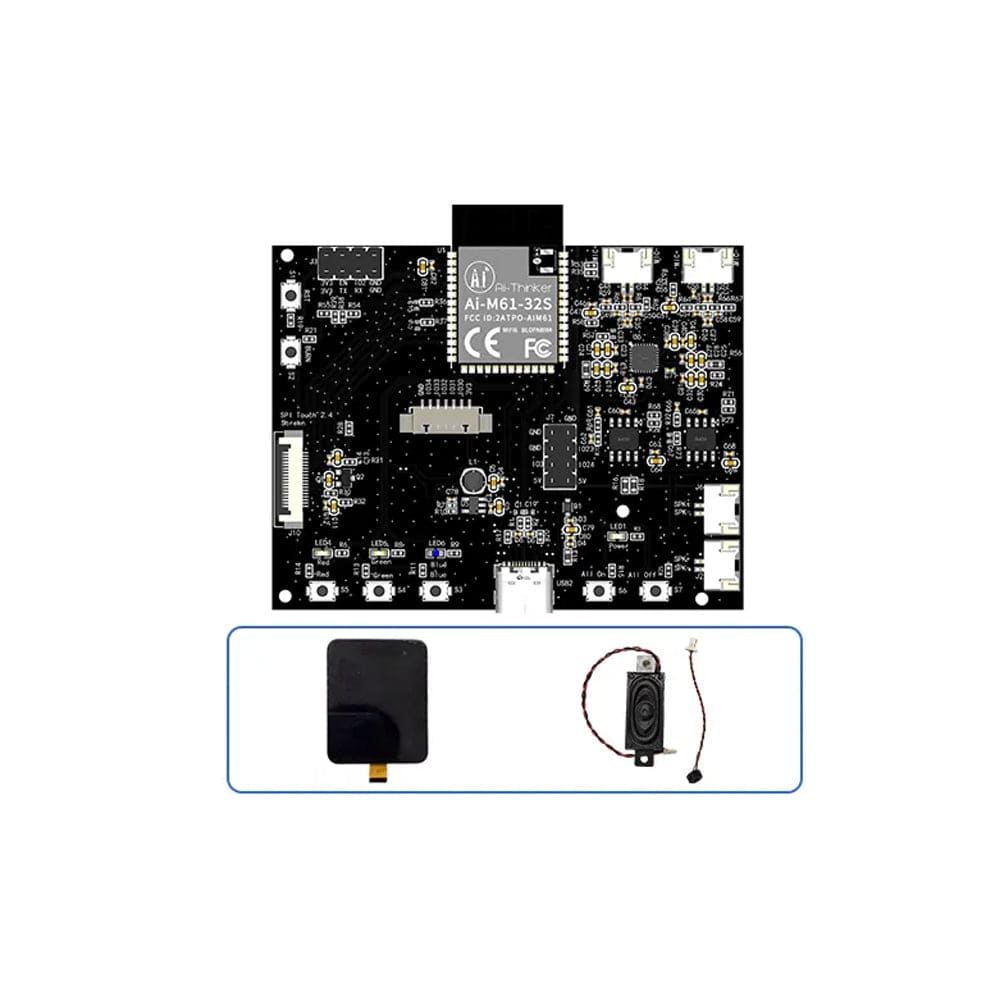

1 x Ai-Thinker AiPi-SCP-2.4 Open Source Hardware
