Description:

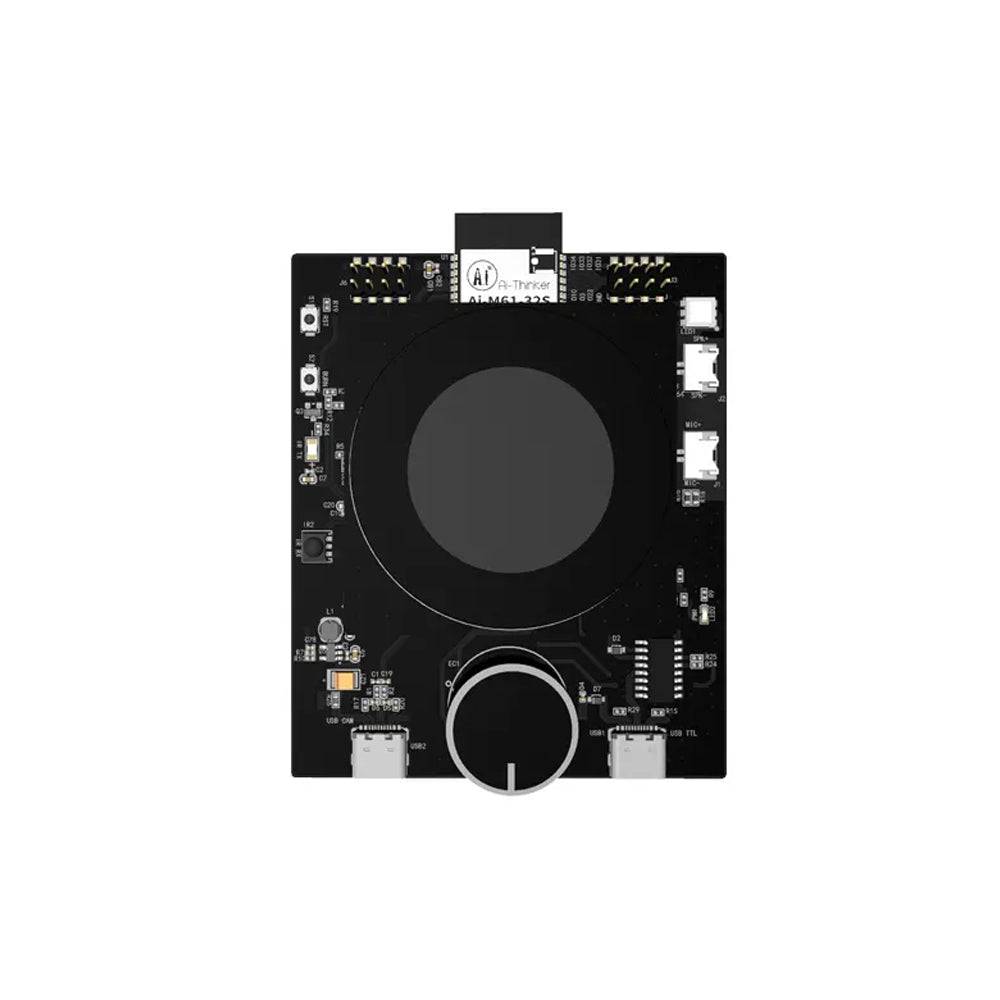

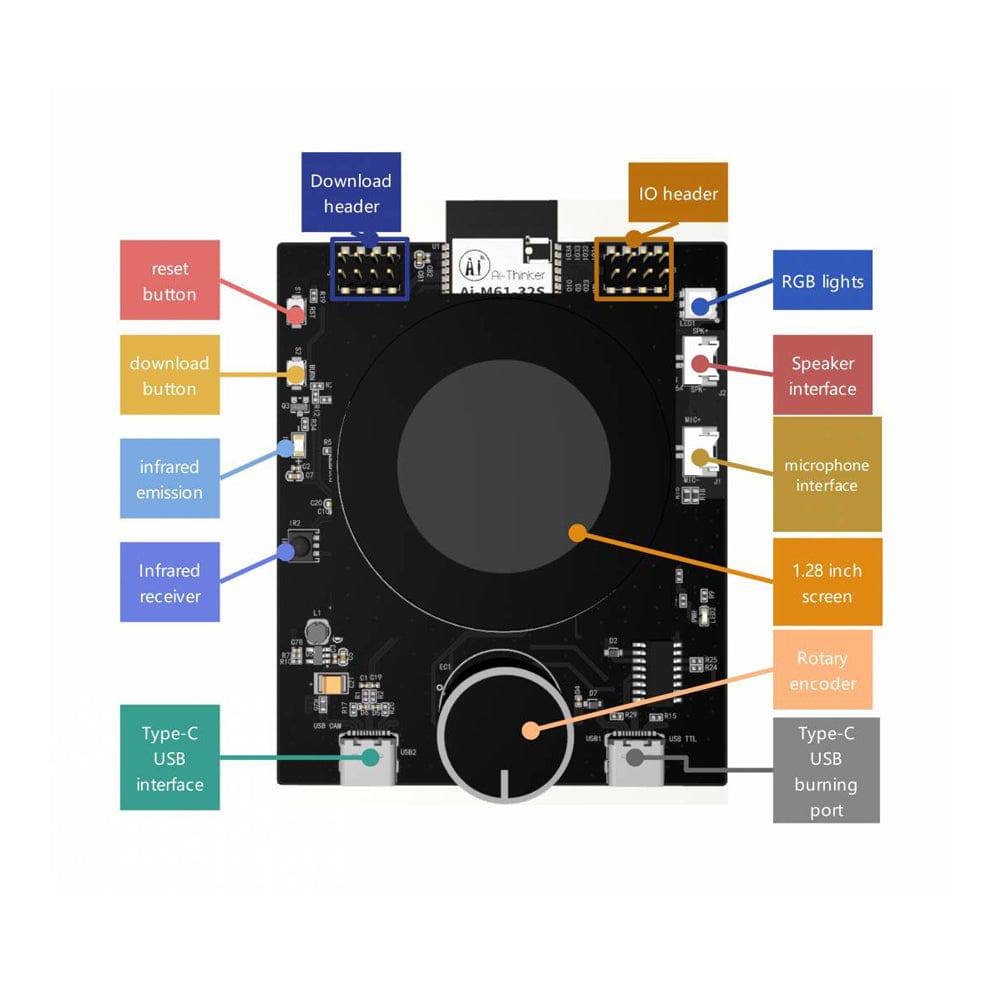

AiPi-Knob is a rotary encoder driver board (knob for short) designed by Ai-Thinker open-source team. It integrates a 1.28 round screen, pin header, rotary encoder, RGB light, built-in audio, infrared transmitter and receiver, download pin header, IO pin header, serial port download USB interface, and leads out the USB interface. AiPi-Knob has already burned the firmware at the factory, and made four demonstration interfaces: washing machine interface, RGB light interface, TV control interface, and air conditioner control interface. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet(EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.
Specifications:
- Model: AiPi-Knob
- Circular Screen: 1.28 inch
- Module: Ai-M61-32S
Features:
- Infrared emission and infrared reception
- Serial download a USB interface
- Outgoing USB interface.
- AiPi-SCP-Knob integrates a screen pin interface
Package Included:
1 xAi-Thinker AiPi-Knob V1.0 Rotary Encoder Driver Board On Board 1.28Inch Display
