Description:

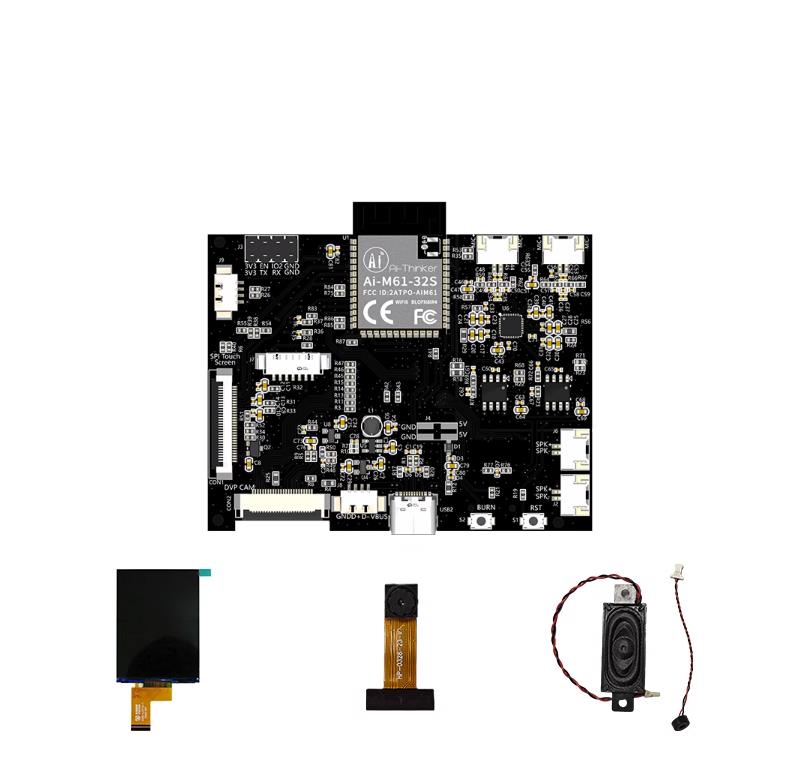

Ai-Pi-Eyes series is a development board specially designed for Ai-M61-32S by the Ai-Thinker open source team, supporting WiFi6 and BLE5.3. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. Aipi-Eyes-S1 integrates the SPI screen interface, DVP camera interface, and reserved TF deck, and leads out the USB interface, which can be connected to a USB camera.

Specifications:

  • Model: AiPi-Eyes-S1
  • Product type: open-source hardware
  • Chip: BL618(Ai-M61-32S module)
  • Display: 3.5inch

Features:

  • WIFI6+BLE5.3+Thread
  • Support IEEE 802.11 b/g/n/ax protocol
  • Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
  • Support 20/40MHz bandwidth, 1T1R，Maximum rate 229.4 Mbps
  • Support STA, SoftAP, STA+SoftAP and sniffer mode
  • Support XIP QSPI On-The-Fly AES Decryption (OTFAD)
  • Aipi-Eyes-S1 support TrustZone
  • Support AES-CBC/CCM/GCM/XTS mode
  • Support MD5, SHA-1/224/256/384/512
  • Dual-core 32-bit RISC-V CPU with FPU and DSP, the highest frequency can reach 320M
  • 532KB SRAM, 128KB ROM，4Kb eFuse
  • Integrated RF Balun, PA/LNA
  • Support TRNG (true random number generator)
  • Support for PKA (Public Key Accelerator) for RSA/ECC
  • Support Wi-Fi Quick Connect with BLE
  • General AT commands can be used convenient
  • Support secondary development, Windows, Linux environment

Package Included:

1 x Ai-Thinker Aipi-Eyes-S1 Eval Kit
