Description:

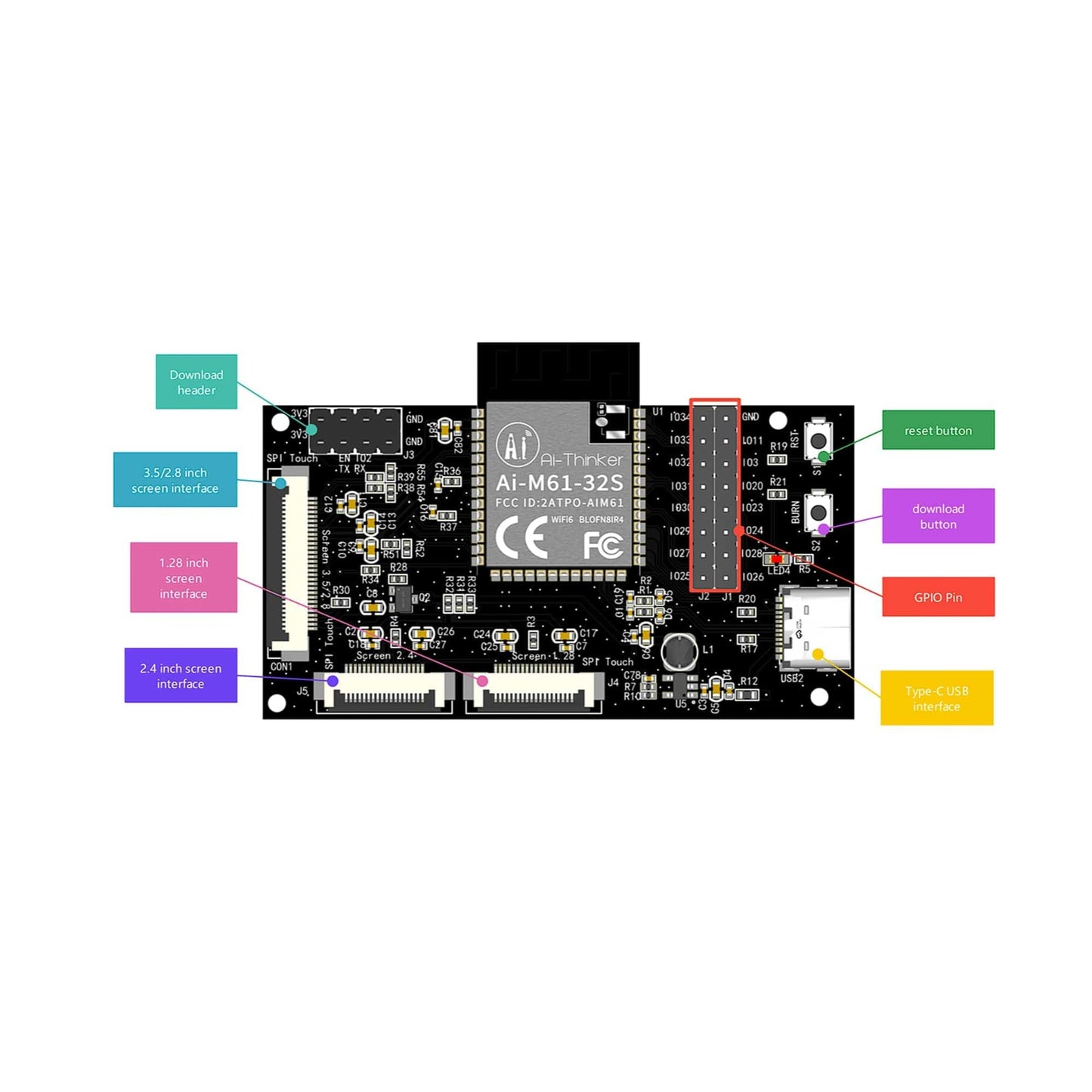

AiPi-DSL is a screen driver development board specially designed by Ai-Thinker open-source team for Ai-M61-32S. It supports 2.8/3.5-inch and other 30Pin SPI displays, 2.4-inch and 1.28-inch and other 18Pin SPI displays.
It has passed the test of 3.5-inch capacitive touch screen (GC9307), 2.4-inch capacitive touch screen (GC9307), and 1.28-inch circular capacitive touch screen (GC9A01).
The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.
Specifications:
- Model: AiPi-DSL
- Display: 3.5inch
- Display Module: Ai-M61-32S
Features:
- Compact screen size.
- Details on display resolution.
- It supports a 3.5inch display
- Explore supported interfaces.
Package Included:
1 x Ai-Thinker AiPi-DSL Open Source Hardware with 3.5 Inch Display
