Description:

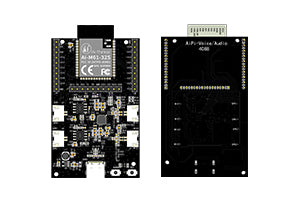

AiPi-Audio is an audio driver development board specially designed by the Ai-Thinker open-source team for Ai-M61-32S. AiPi-Audio is equipped with a BL618 chip and has an external ES8388 audio codec. It can design solutions such as walkie-talkies or combine them with other voice platforms. AiPi-Audio is an audio driver development board specially designed by the Anxinke team for Ai-M61-32S.
AiPi-Audio is equipped with a BL618 chip and an external ES8388 audio codec. It can design solutions such as walkie-talkies or combine them with other voice platforms to achieve voice recognition. The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.
Features:
- External ES8388 audio decoding chip
- Support single and dual input and output
- Support 8~48KHz two-channel audio
- Supports 16~32-bit depth audio
- Default two-way 2W 8ohm speakers
- Default dual-channel -65 dBm (sensitivity) microphone
- TypeC USB powered
- The code is open source and can be developed at will
Package Included:
1 x Ai-Thinker AiPi-Audio Development Board Open Source Hardware
