Description:

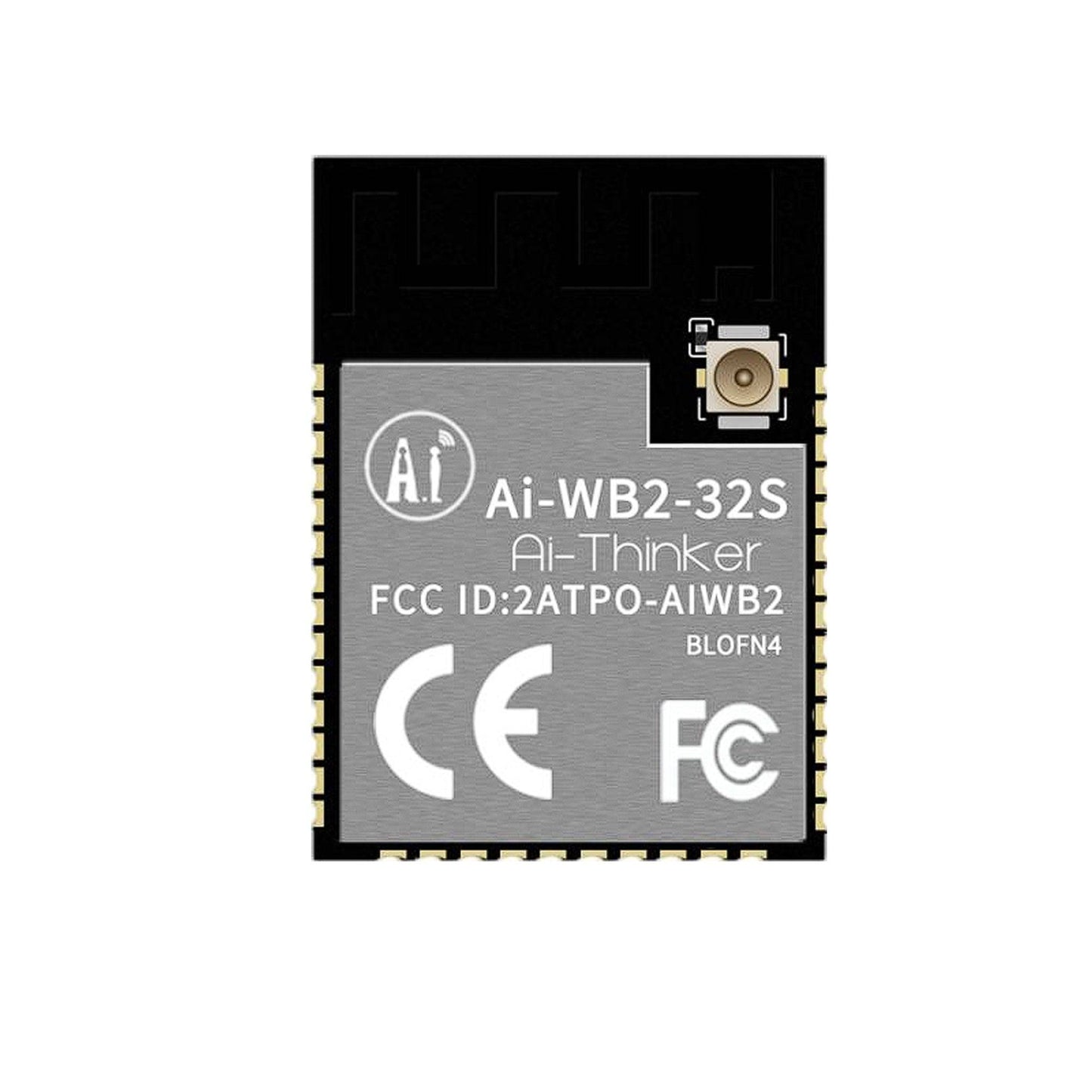

Ai-WB2-32S is a Wi-Fi& BT module developed by Ai-Thinker. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISCCPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields.
Specifications:
- Model: Ai-WB2-32S
- Package: SMD-38
- Antenna: on-board PCB antenna, IPEX connector
- Frequency: 2400 ~ 2483.5MHz
- Operating temperature: -40℃ ~ 85℃
- Storage temperature: 40℃ ~ 125℃, < 90%RH
- Power supply: Support voltage 2.7V ~ 3.6V,supply current ≥500mA

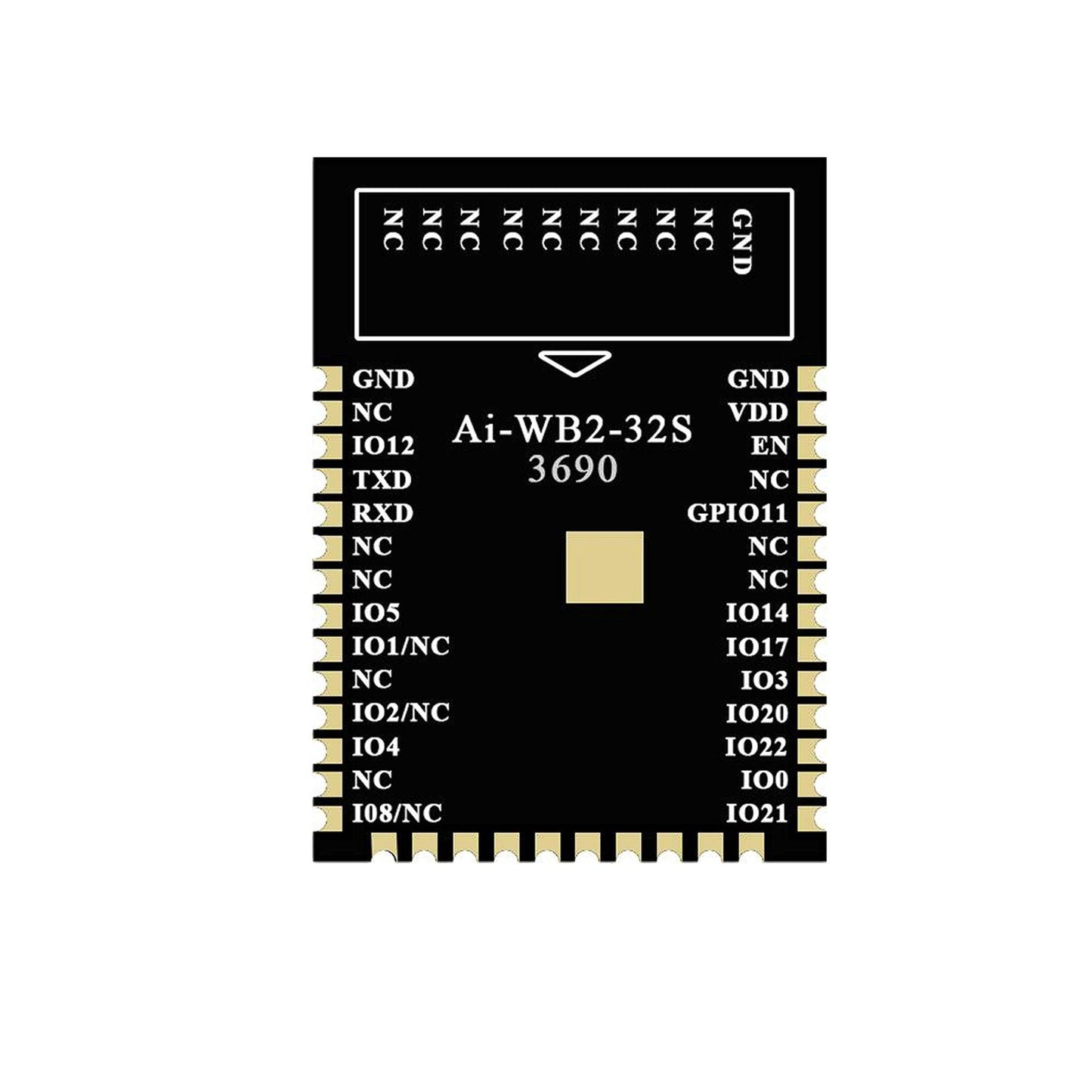

- Interface: UART/GPIO/ADC/PWM/I2C/SPI
- IO: 15
- UART rate: Default 115200 bps
- Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Flash: Default 4MByte,Support expansion
Features:
- The package is SMD-38
- Ai-WB2-32S support IEEE 802.11 b/g/n protocol
- Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Supports 20MHz bandwidth and the Max rate is 72.2 Mbps
- Bluetooth BLE 5.0, Bluetooth Mesh
- Support Station + BLE, Station + SoftAP + BLE
- Support 32-bit RISC CPU, 276KB RAM
- Secure startup supports mirroring with ECC-256 signature
- Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR
- Support AES 128/192/256-bit encryption engine
- Ai-WB2-32S support SHA-1/224/256
- Support true Random number generator (TRNG)
- Public key Accelerator (PKA), supports a large number of basic operations, software provides signature, verification and other application program interface
- Ai-WB2-32S has integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
- Support a variety of sleep modes, deep sleep current 12μA
- Universal AT instruction for a quick start
- Support secondary development, integrated Windows, Linux development environment
Package Included:
1 x Ai-Thinker Ai-WB2-32S Module Support IEEE 802.11 b/g/n Protocol
