Description:

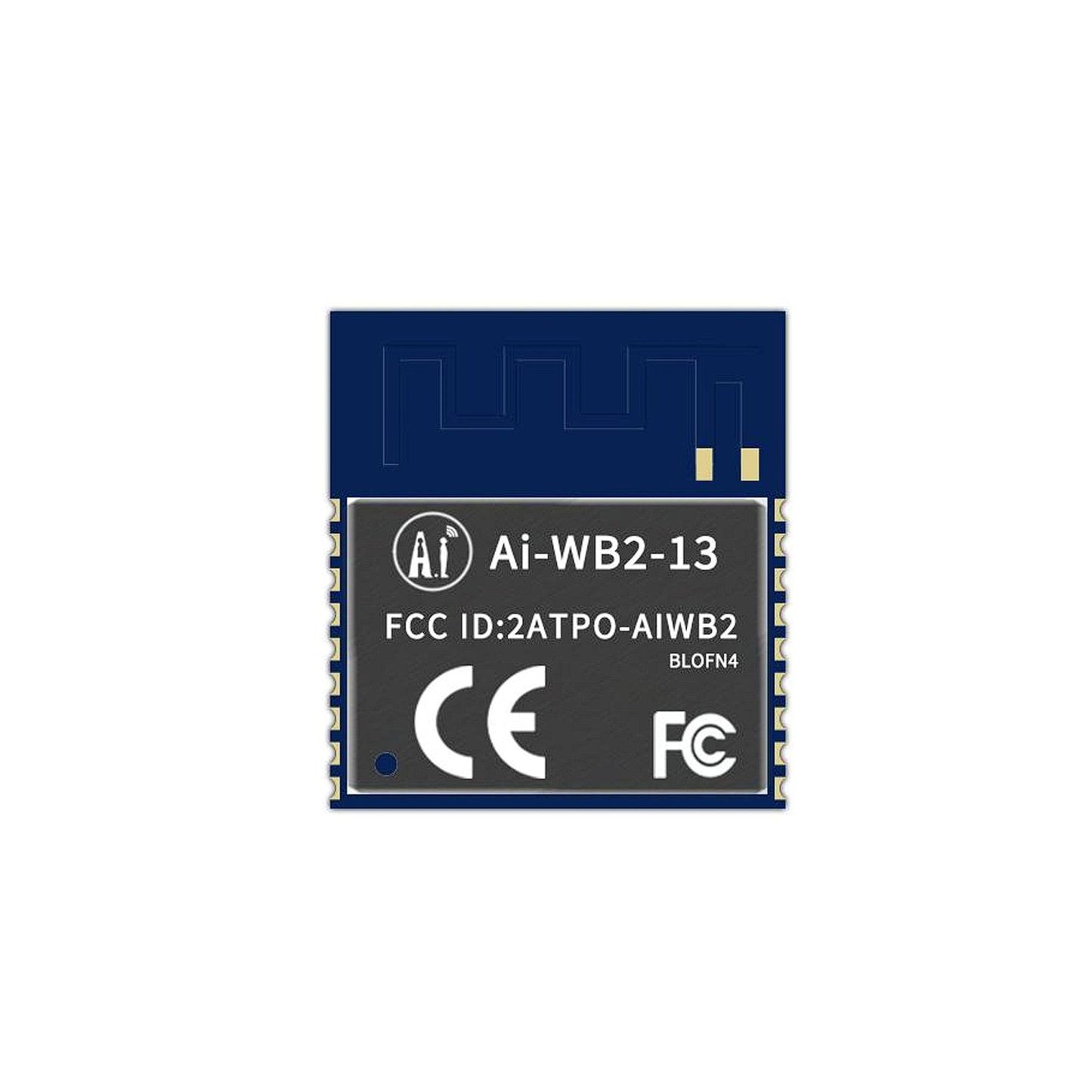

Ai-WB2-13 is a Wi-Fi& BT module developed by Ai-Thinker. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISCCPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IRRemote, PWM, ADC, DAC, PIR and GPIO. Ai-WB2-13 can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields.
Specifications:
- Model: Ai-WB2-13
- Package: SMD-18
- Antenna: on-board PCB antenna
- Frequency: 2400 ~ 2483.5MHz
- Operating Temperature: -40℃ ~ 85℃
- Storage Temperature: -40℃ ~ 125℃, < 90%RH
- Power Supply: Support voltage 2.7V ~ 3.6V,supply current ≥500mA

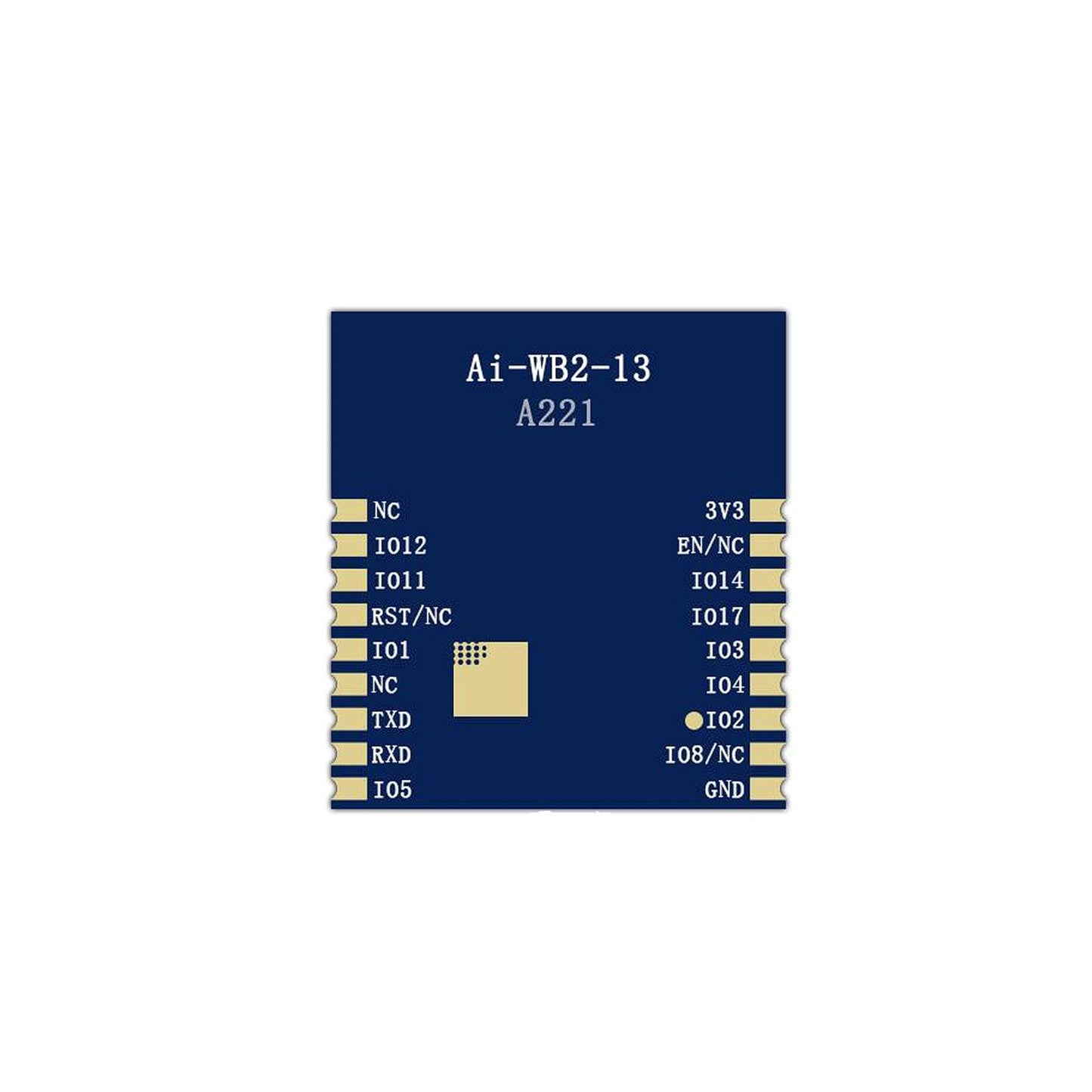

- Interface: UART/GPIO/ADC/PWM/I2C/SPI
- IO: 11
- UART rate: Default 115200 bps
- Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Flash: Default 4MByte,Support expansion
Features:
- The package is SMD-18
- Ai-WB2-13 support IEEE 802.11 b/g/n protocol
- Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Supports 20MHz bandwidth and the Max rate is 72.2 Mbps
- Bluetooth BLE 5.0, Bluetooth Mesh
- Support Station + BLE, Station + SoftAP + BLE
- Support 32-bit RISC CPU, 276KB RAM
- Secure startup supports mirroring with ECC-256 signature
- Support QSPI/SPI Flash On-The-Fly AES Decryption (OTFAD), support AES 128CTR
- Support AES 128/192/256-bit encryption engine
- Ai-WB2-13 support SHA-1/224/256
- Support true Random number generator (TRNG)
- Public key Accelerator (PKA), supports a large number of basic operations, software provides a signature, verification and other application program interface
- Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
- Support a variety of sleep modes, deep sleep current 12μA
- Universal AT instruction for a quick start
- Support secondary development, integrated Windows, Linux development environment
Package Included:
1 x Ai-Thinker Ai-WB2-13 Module Support IEEE 802.11 b/g/n Protocol
