Description:

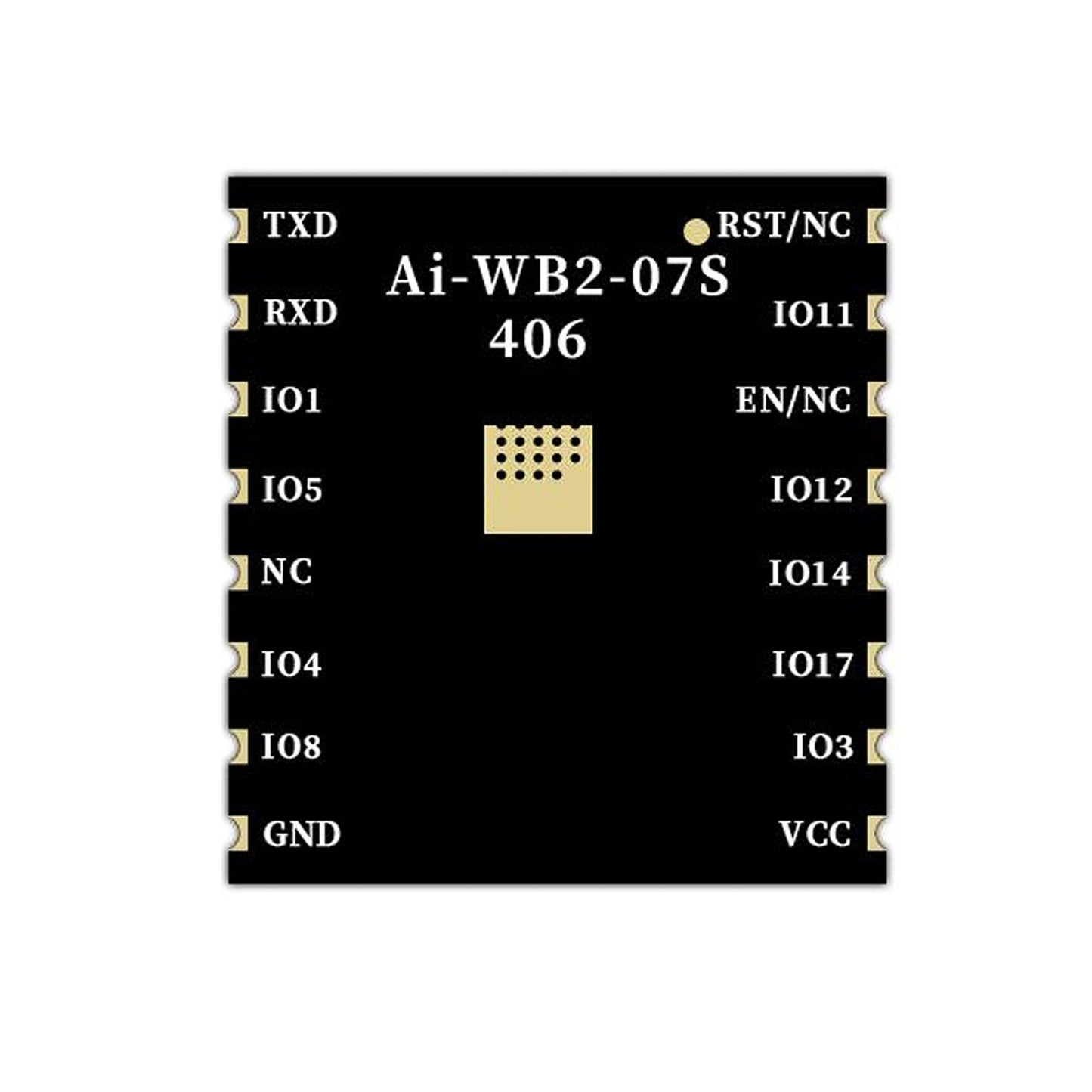

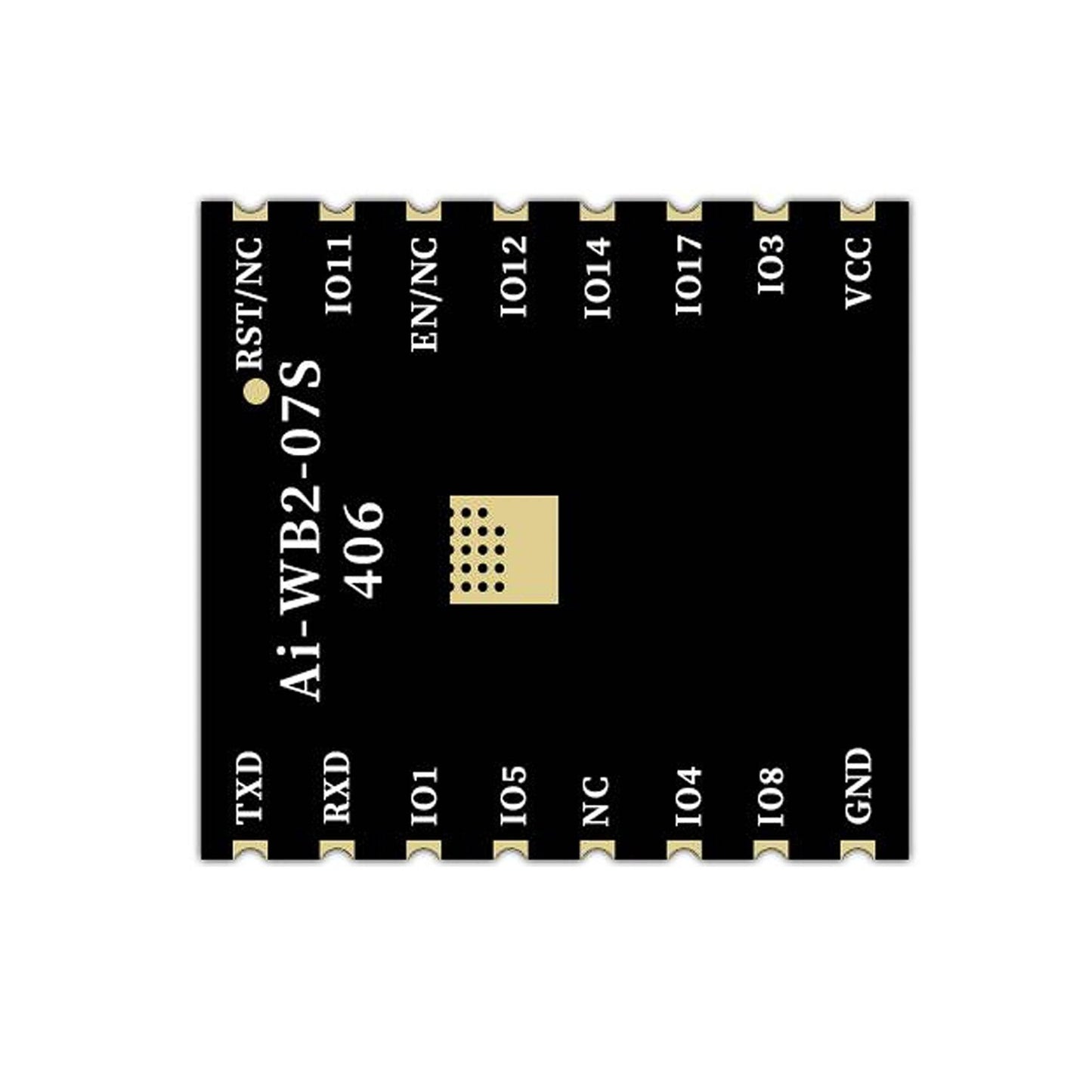

Ai-WB2-07S is a Wi-Fi&BT module developed by Ai-Thinker. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISCCPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR GPIO etc. Ai-WB2-07S can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields.

Specifications:

  • Model: Ai-WB2-07S
  • Antenna: IPEX connector
  • Frequency: 2400 ~ 2483.5MHz
  • Operating Temperature: -40℃ ~ 85℃
  • Storage Temperature: -40℃ ~ 125℃, < 90%RH
  • Power Supply: Support voltage 2.7V ~ 3.6V,supply current ≥500mA
  • Interface: UART/GPIO/ADC/PWM/I2C/SPI
  • IO: 11
  • UART: rate Default 115200 bps
  • Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Flash: Default 4MByte,Support expansion

Features:

  • The package is SMD-16
  • Ai-WB2-07S supports IEEE 802.11 b/g/n protocol
  • Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Supports 20MHz bandwidth and the Max rate is 72.2 Mbps
  • Bluetooth BLE 5.0, Bluetooth Mesh
  • Support Station + BLE mode, Station + SoftAP + BLE mode
  • Ai-WB2-07S support 32-bit RISC CPU, 276KB RAM
  • Secure start-up supports mirroring with ECC-256 signature
  • Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTRmode
  • Support AES 128/192/256-bit encryption engine
  • Support SHA-1/224/256
  • Support true Random number generator (TRNG)
  • Public key Accelerator (PKA), supports a large number of basic operations, software provides signature, verification and other application program interface
  • Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
  • Support a variety of sleep modes, deep sleep current 12μA
  • Universal AT instruction for a quick start
  • Support secondary development, integrated Windows, Linux development environment

Package Included:

1 x Ai-Thinker Ai-WB2-07S Wi-Fi & BT module Module
