Description:

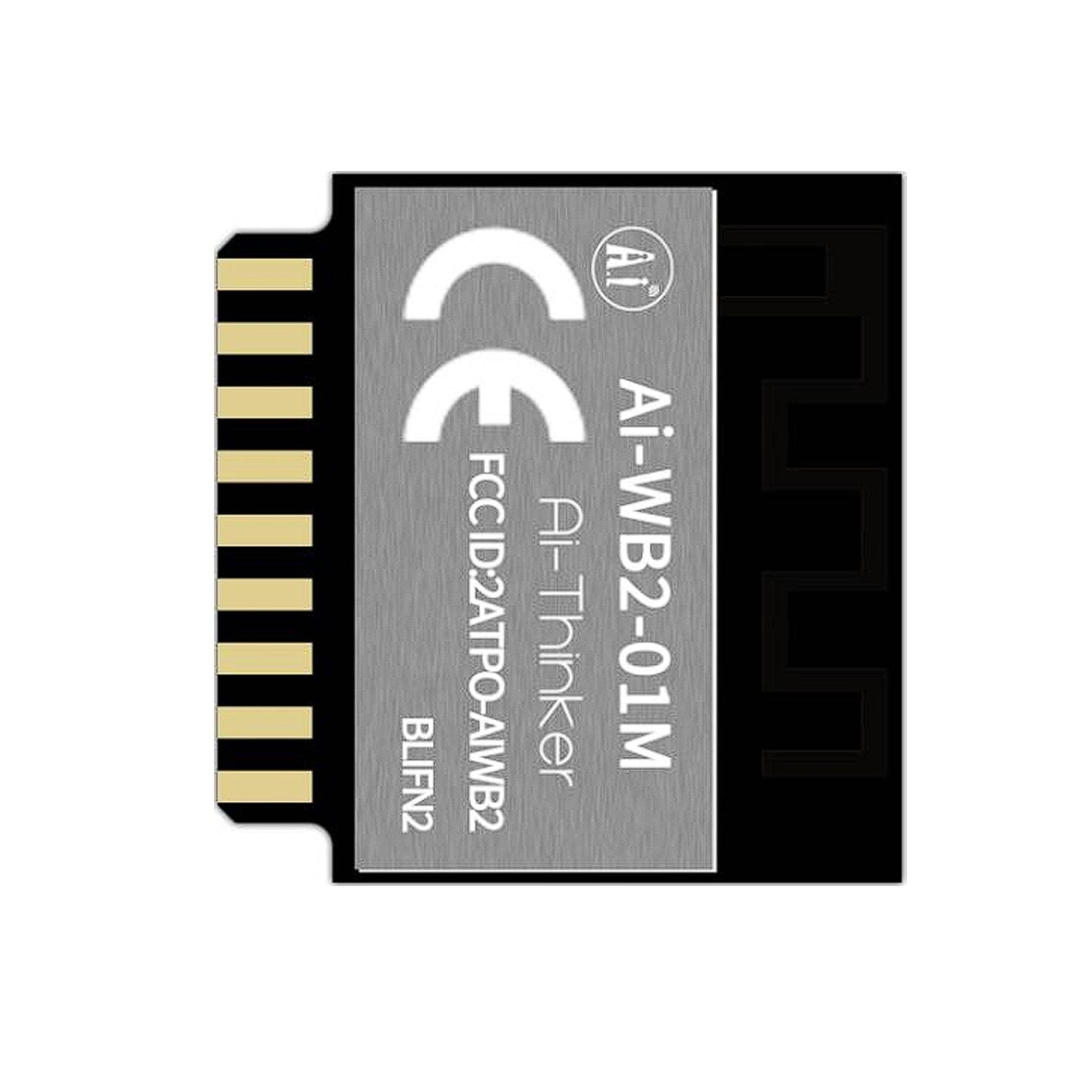

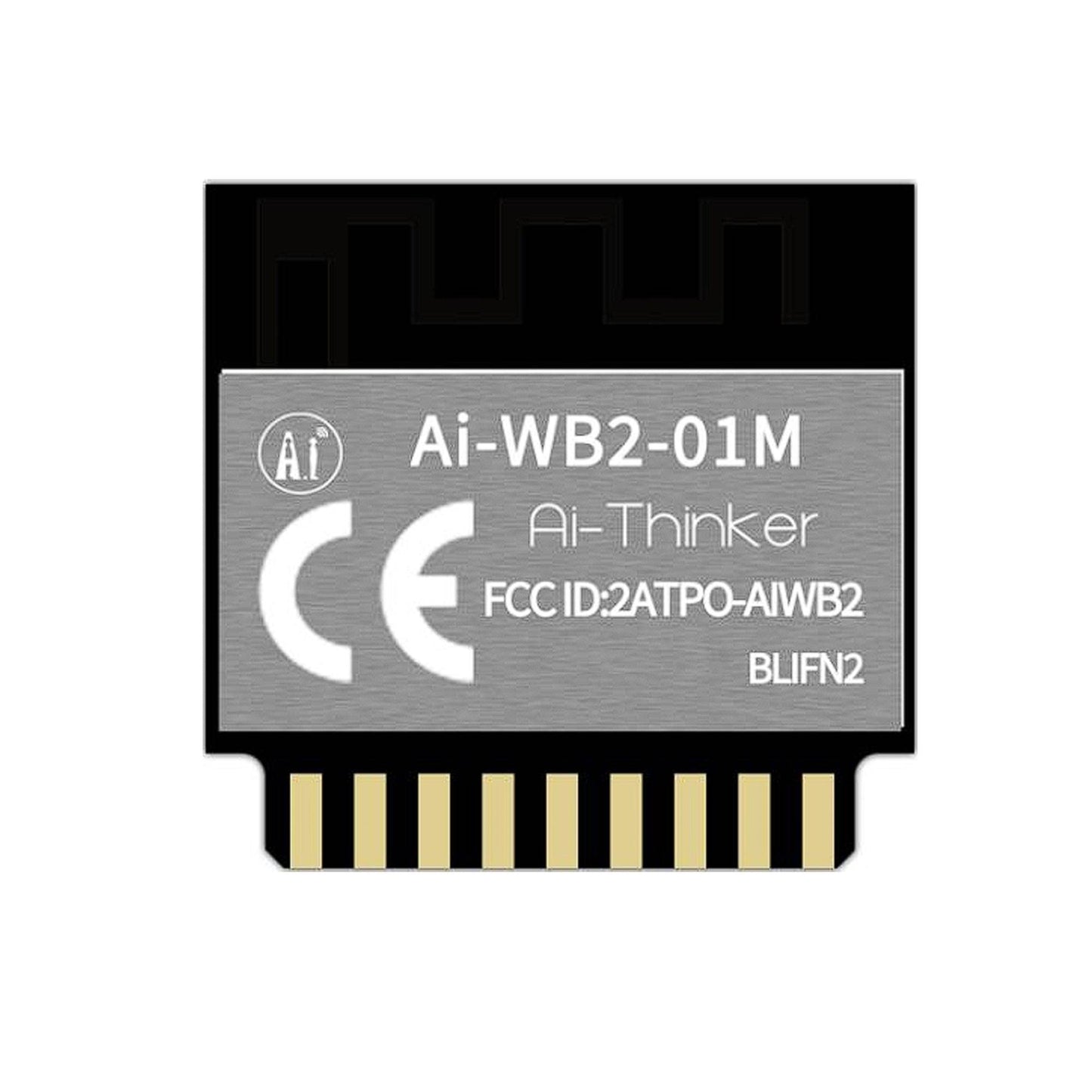

Ai-WB2-01M is a Wi-Fi&BT module developed by Ai-Thinker. The module is equipped with a BL602 chip as the core processor and supports the Wi-Fi 802.11b/ g/n protocol and the BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, GPIO, etc. Ai-WB2-01M can be widely used in the Internet of Things(IoT), mobile devices, wearable electronic devices, smart homes and other fields.

Specifications:

  • Model: Ai-WB2-01M
  • Package: DIP-18
  • Size: 18.0*18.0*2.8(±0.2)mm
  • Antenna: on-board PCB antenna
  • Frequency: 2400 ~ 2483.5MHz
  • Operating Temperature: -40℃ ~ 85℃
  • Storage Temperature: -40℃ ~ 125℃, 90%RH
  • Power Supply: Support voltage 2.7V ~ 3.6V,supply current ≥500mA

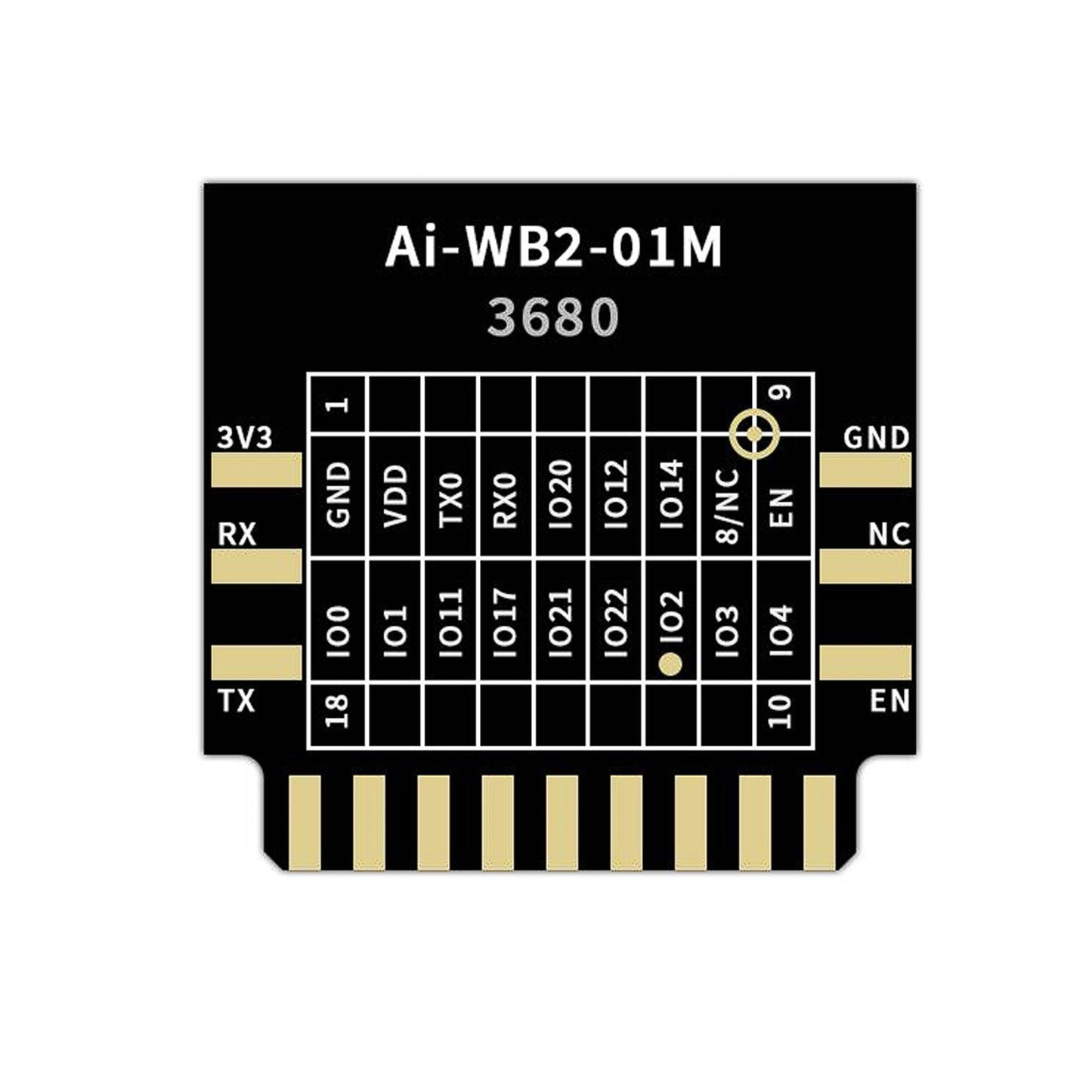

  • Interface: UART/GPIO/ADC/PWM/I2C/SPI IO 14
  • UART: rate Default 115200 bps Security WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Flash: Default 2MByte,Support expansion

Features

  • Ai-WB2-01M supports the IEEE 802.11 b/g/n protocol
  • Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Supports 20MHz bandwidth, and the Max rate is 72.2 Mbps
  • Bluetooth BLE 5.0, Bluetooth Mesh
  • Support Station + BLE mode, Station + SoftAP + BLE mode
  • Support 32-bit RISC CPU，276KB RAM
  • Secure start-up supports mirroring with ECC-256 signature
  • Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR mode
  • Support AES 128/192/256-bit encryption engine
  • Ai-WB2-01M support SHA-1/224/256
  • Support a true Random number generator (TRNG)
  • Public key Accelerator (PKA) supports a large number of basic operations, software provides signature, verification and other application programming interfaces
  • Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
  • Supports a variety of sleep modes, deep sleep current 12μA
  • Universal AT instruction for a quick start
  • Support secondary development, integrated Windows, Linux development environment

Package Included:

1 x Ai-Thinker Ai-WB2-01M Module 2400 ~ 2483.5MHz
