  • Ai-Thinker Ai-WB2-01F Module
1 3

Ai-Thinker

Ai-Thinker Ai-WB2-01F Module Wi-Fi BLE5.0 Low Power 32-bit RISC CPU Compatible with ESP-01F - RS5712

Ai-Thinker Ai-WB2-01F Module Wi-Fi BLE5.0 Low Power 32-bit RISC CPU Compatible with ESP-01F - RS5712

RS5712

Low stock: 5 left

Rs. 135.00
Rs. 135.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

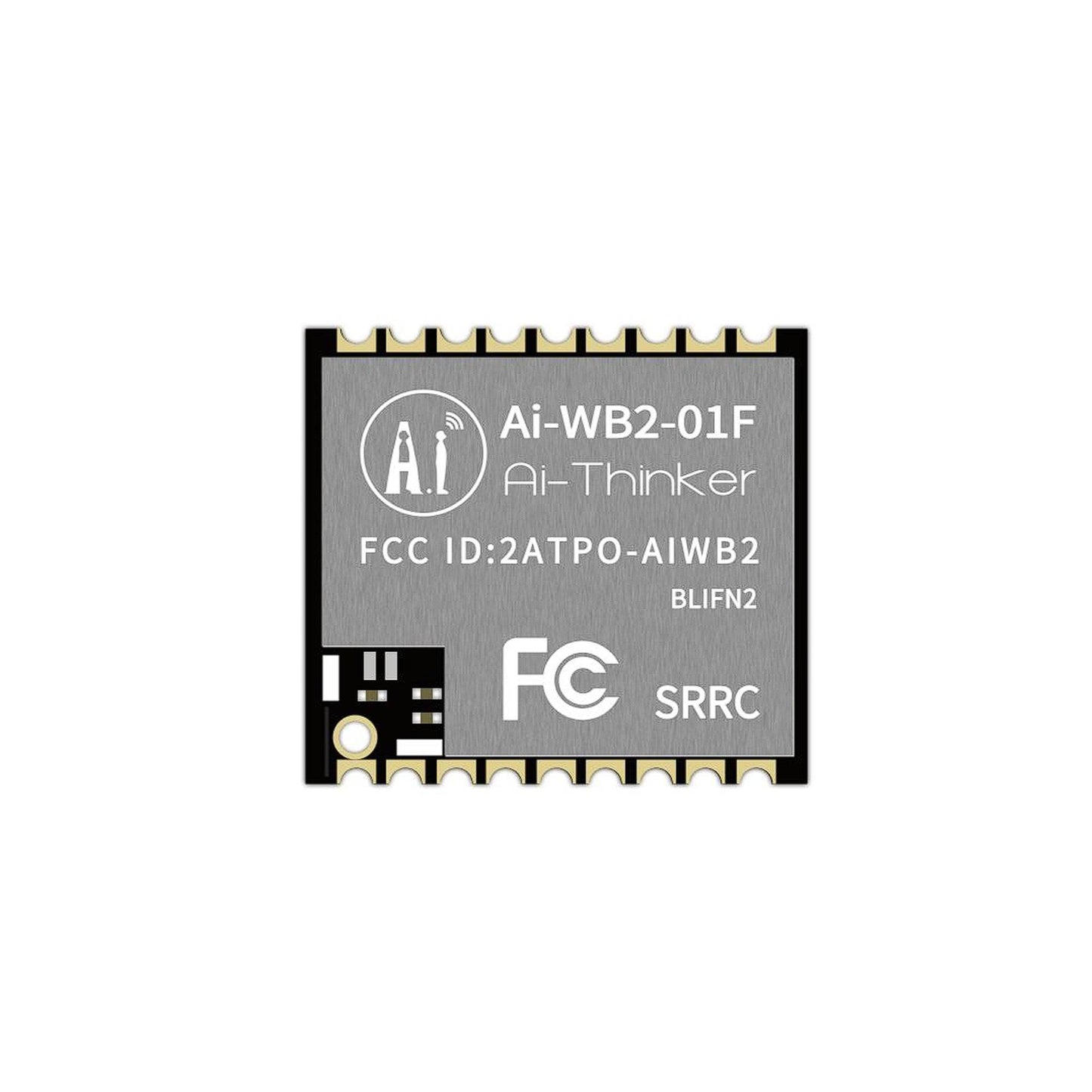

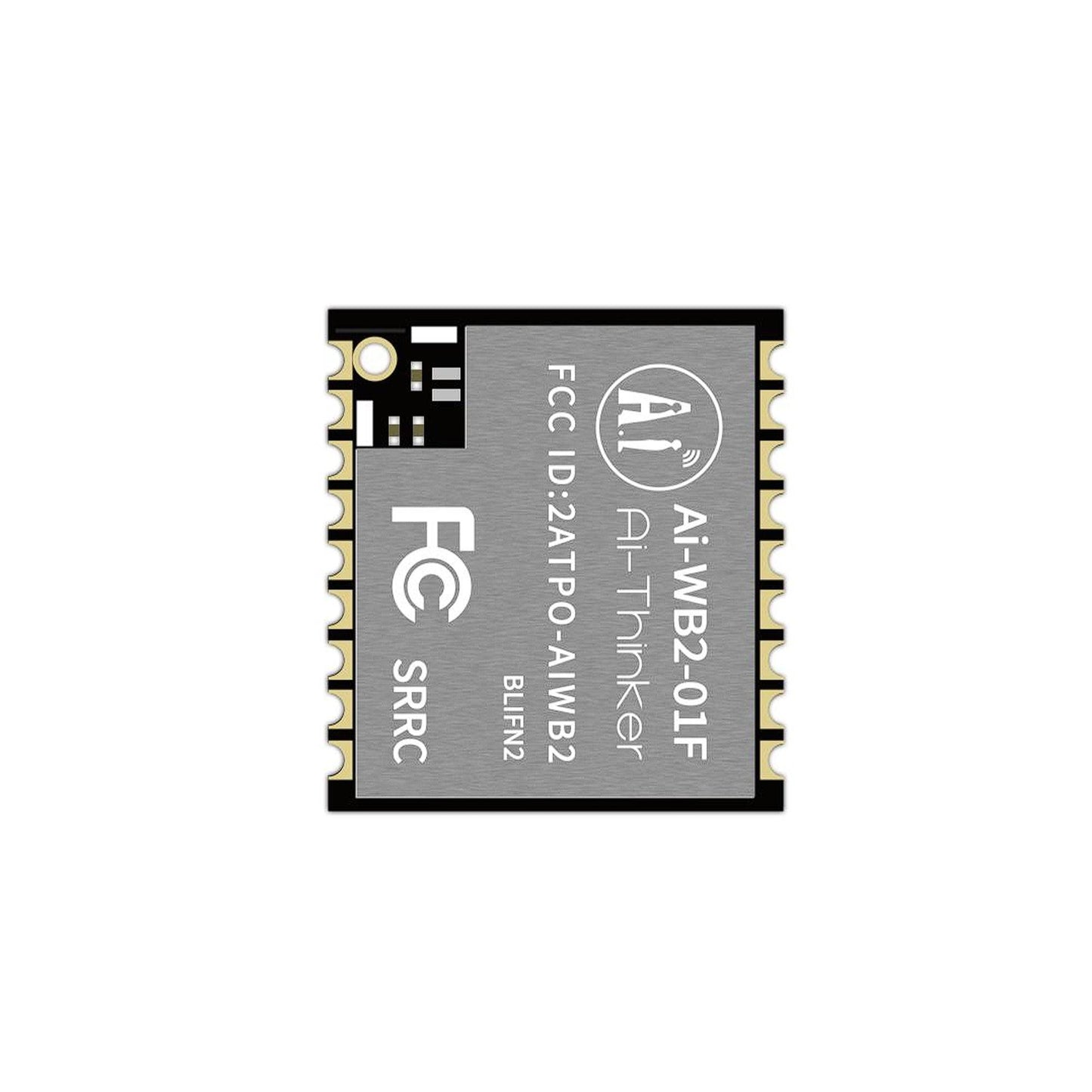

Ai-WB2-01F is a Wi-Fi BT module developed by Ai-Thinker. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi802.11b/g/nprotocol and BLE 5.0 protocol. The BL602 chip is equipped with a 32-bit RISCCPUwithlowpower consumption, 192 Hz main frequency, 276KB RAM and abundant peripheral interfaces, including SPI, UART, I2C, PWM, ADC, DAC and GPIO. Ai-WB2-01F can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields.

Specifications:

  • Model: Ai-WB2-01F
  • Package: SMD-18
  • Size: 10.0*11.0*3.1(±0.2)mm
  • Antenna: Half-hole antenna
  • Frequency: 2400 ~ 2483.5MHz
  • Operating temperature: -40℃ ~ 85℃
  • Storage temperature: -40℃ ~ 125℃, 90%RH
  • Power supply: Support voltage 2.7V ~ 3.6V, supply current ≥500mA
  • Interface: UART/GPIO/ADC/DAC/PWM/I2C/SPI
  • IO: 11
  • UART: rate Default 115200 bps
  • Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Flash Default 2MByte, Supported Expansion

Features:

  • The package is SMD-18
  • Ai-WB2-01F support IEEE 802.11 b/g/n protocol
  • Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Supports 20MHz bandwidth and the Max rate is 72.2 Mbps
  • Bluetooth BLE 5.0, Bluetooth Mesh
  • Support Station + BLE mode, Station + SoftAP + BLE mode
  • Ai-WB2-01F support 32-bit RISC CPU, 276KB RAM
  • Secure start-up supports mirroring with ECC-256 signature
  • Support QSPI/SPI Flash instant AES decryption (OTFAD), support either AES128CTRmode
  • Support AES 128/192/256-bit encryption engine
  • Support SHA-1/224/256  Support true Random number generator (TRNG)
  • Public key Accelerator (PKA), supports a large number of basic operations, software provides signature, verification and other application program interface
  • Support SPI, UART, I2C, PWM, ADC, DAC, GPIO etc
  • integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
  • Support a variety of sleep modes, deep sleep current 12μA
  • Universal AT instruction for a quick start
  • Support secondary development, integrated Windows, Linux development environment

Package included:

1 x Ai-Thinker Ai-WB2-01F Module Wi-Fi BLE5.0 Low Power 32-bit RISC CPU Compatible with ESP-01F
