Description:

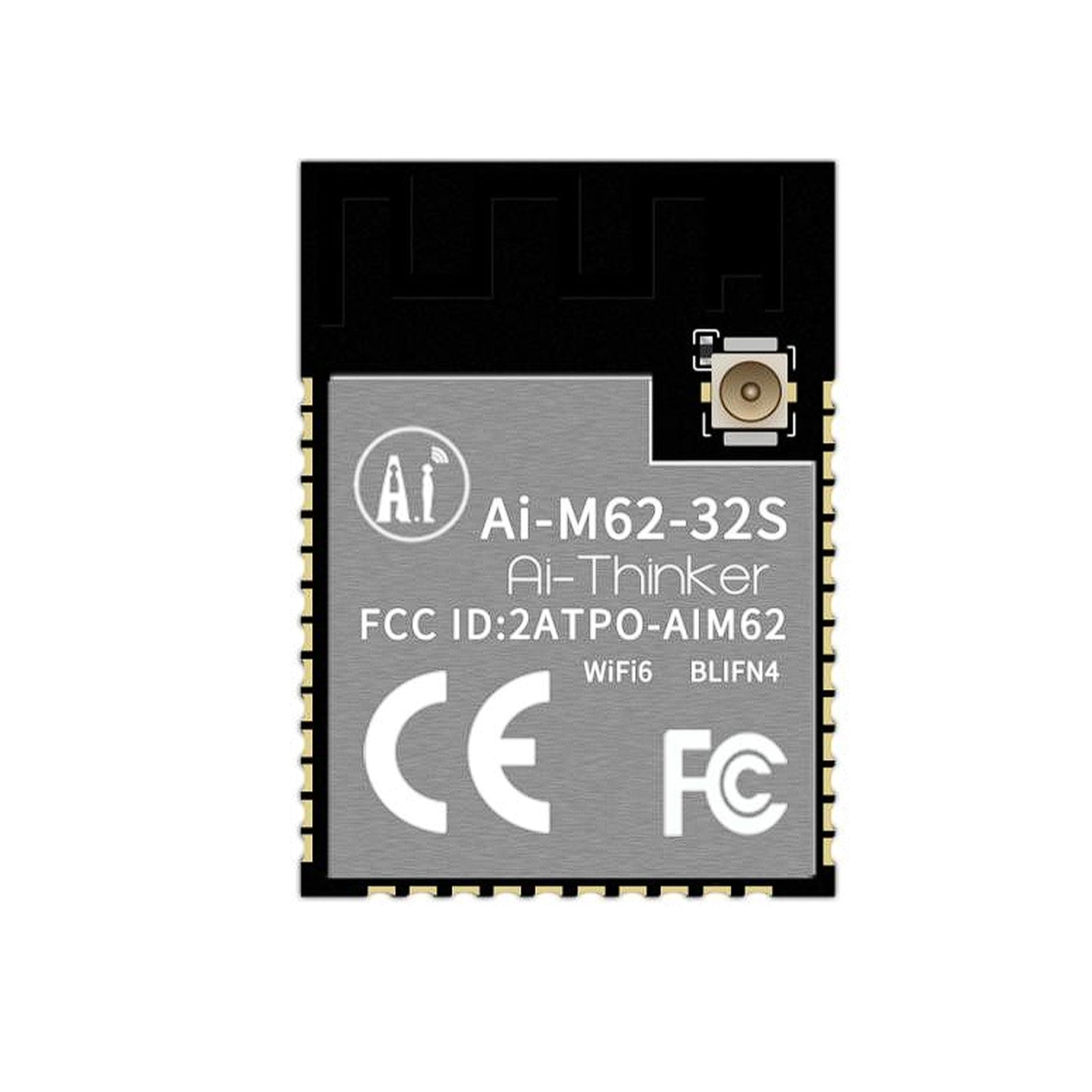

Ai-M62-32S is a Wi-Fi 6 + BLE5.3 module developed by Ai-Thinker. The Ai-M62-32S module is equipped with a BL616 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 system includes a low-power 32-bit RISC-V CPU with floating-point unit, DSP unit, cache and memory, with a maximum dominant frequency of 320M. The Ai-M62-32S module has rich peripheral interfaces, including Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields. The Ai-M62-32S module Sec Eng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field.

Specifications:

  • Model: Ai-M62-32S
  • Antenna: Onboard antenna/IPEX seat
  • Frequency: 2400~2483.5MHz
  • Operating Temperature: -40 ℃ ~ 85 ℃
  • Storage Temperature: -40℃ ~ 125℃, < 90%RH
  • Power Supply: The power supply voltage is 2.97V ~ 3.6V, and the power supply current is≥ 500mA.
  • Interface: Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.

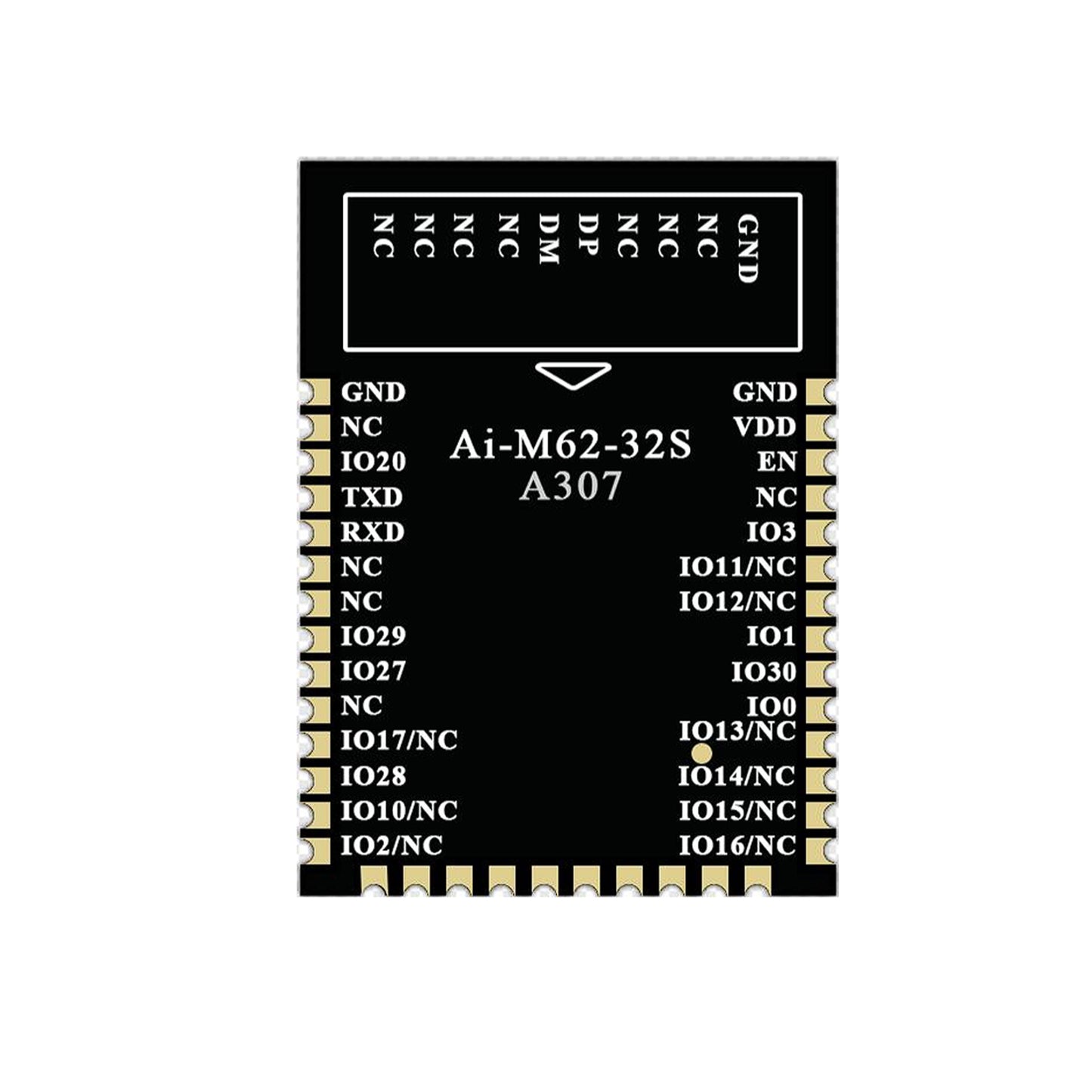

  • IO: 18
  • UART: rate Default 115200 bps
  • Security: WPS/WEP/WPA/WPA2/WPA3
  • Flash: Default 4MByte, Support expansion

Features:

  • The package is DIP-38
  • Support 2.4GHz frequency
  • Support IEEE 802.11 b/g/n/ax
  • Support Thread
  • Support Wi-Fi/BLE/Thread coexistence
  • Support BLE5.3

Package Included:

1 x Ai-Thinker Ai-M62-32S Wi-Fi BLE Module
