Description:

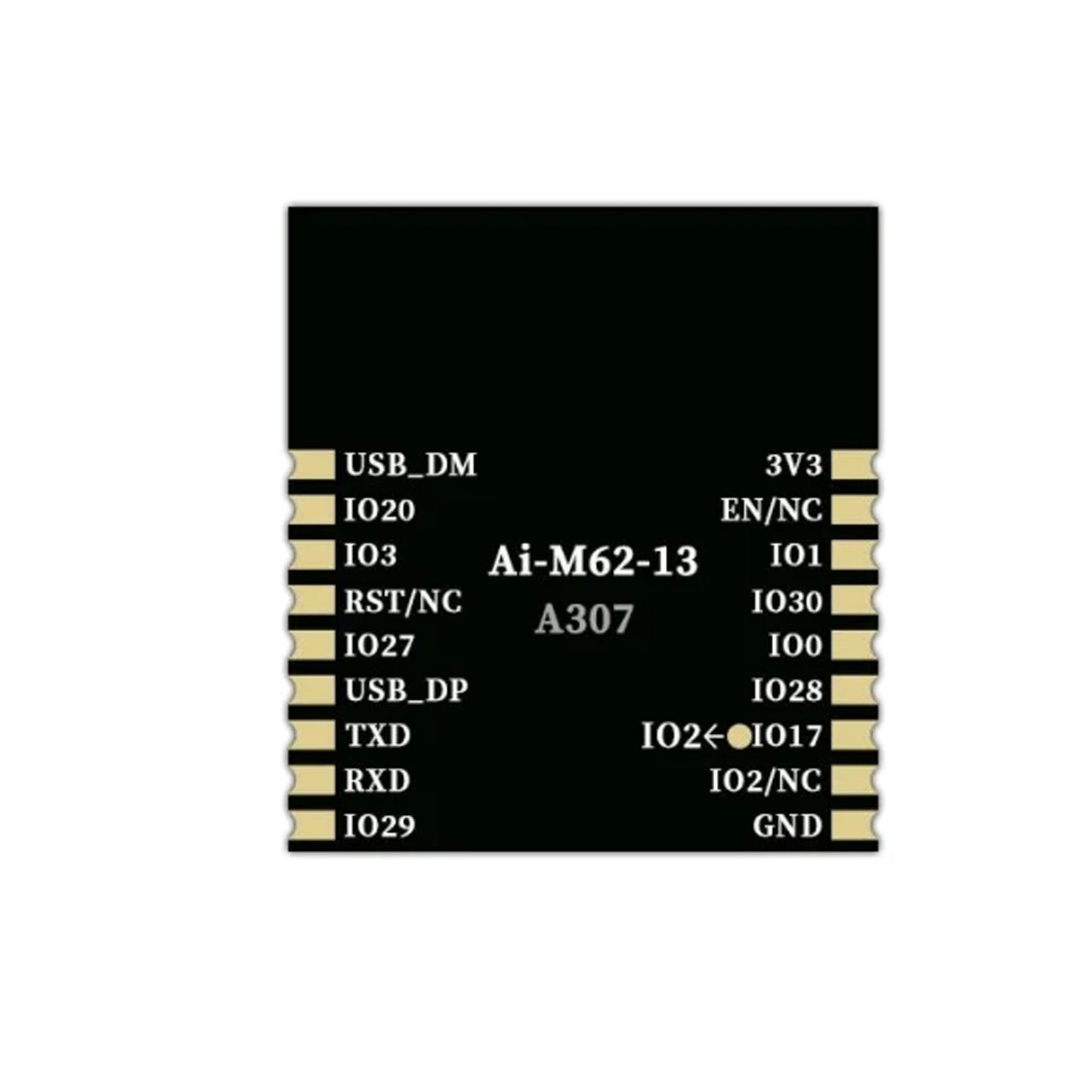

Ai-M62-13 is a Wi-Fi 6 + BLE5.3 module developed by Ai-Thinker. The module is equipped with a BL616 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 system includes a low-power 32-bit RISC-V CPU with floating-point unit, DSP unit, cache and memory, with a maximum dominant frequency of 320M. The Ai-M62-13 module has rich peripheral interfaces, including Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields
Specifications:
- Model: Ai-M62-13
- Package: SMD-18
- Size: 20*18.0*3.2(±0.2)mm
- Antenna: On-board PCB antenna
- Frequency: 2400 ~ 2483.5MHz
- Operating Temperature: -40℃ ~ 85℃
- Storage Temperature: -40℃ ~ 125℃, 90%RH
- Power Supply: Support voltage 2.97V ~ 3.6V, supply current ≥500mA
- Interface: Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO and so on
- IO: 11
- UART Rate: Default 115200 bps
- Security: WPS/WEP/WPA/WPA2/WPA3
- Flash: Default 4MByte, Support expansion
Features:
- SMD-18 package
- Supports 2.4GHz operating frequency band
- Support IEEE 802.11 B/g/n/ax
- Support BLE5.3
- Support Thread
- Support Wi-Fi/BLE/Thread coexistence
- Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
- Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
- Support STA, SoftAP, STA + SoftAP and sniffer modes
- 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M 532KB SRAM,128KB ROM,4Kb eFuse
- Support Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.
- Integrated RF Balun, PA/LNA
- Support for safe startup and safe debugging
- Support XIP QSPI On-The-Fly AES decryption (OTFAD)
- Support TrustZone
- Support AES-CBC/CCM/GCM/XTS mode
- Support MD5, SHA-1/224/256/384/512
- TRNG (True Random Number Generator) is supported
- Support PKA (Public Key Accelerator) for RSA/ECC
- BLE-enabled Wi-Fi fast connection
- Universal AT command can be used quickly. Supports secondary development and integrates Windows and Linux development
- environments
Package Included:
1 x Ai Thinker Ai-M62-13U Wi-Fi6 BLE5.3 Dual-Band Wi-Fi Wi-Fi 6 Module With BLE 5.3 For IoT Applications Embedded Wi-Fi and Bluetooth Module For Smart Devices High-Performance Wireless Communication Module
