Description:

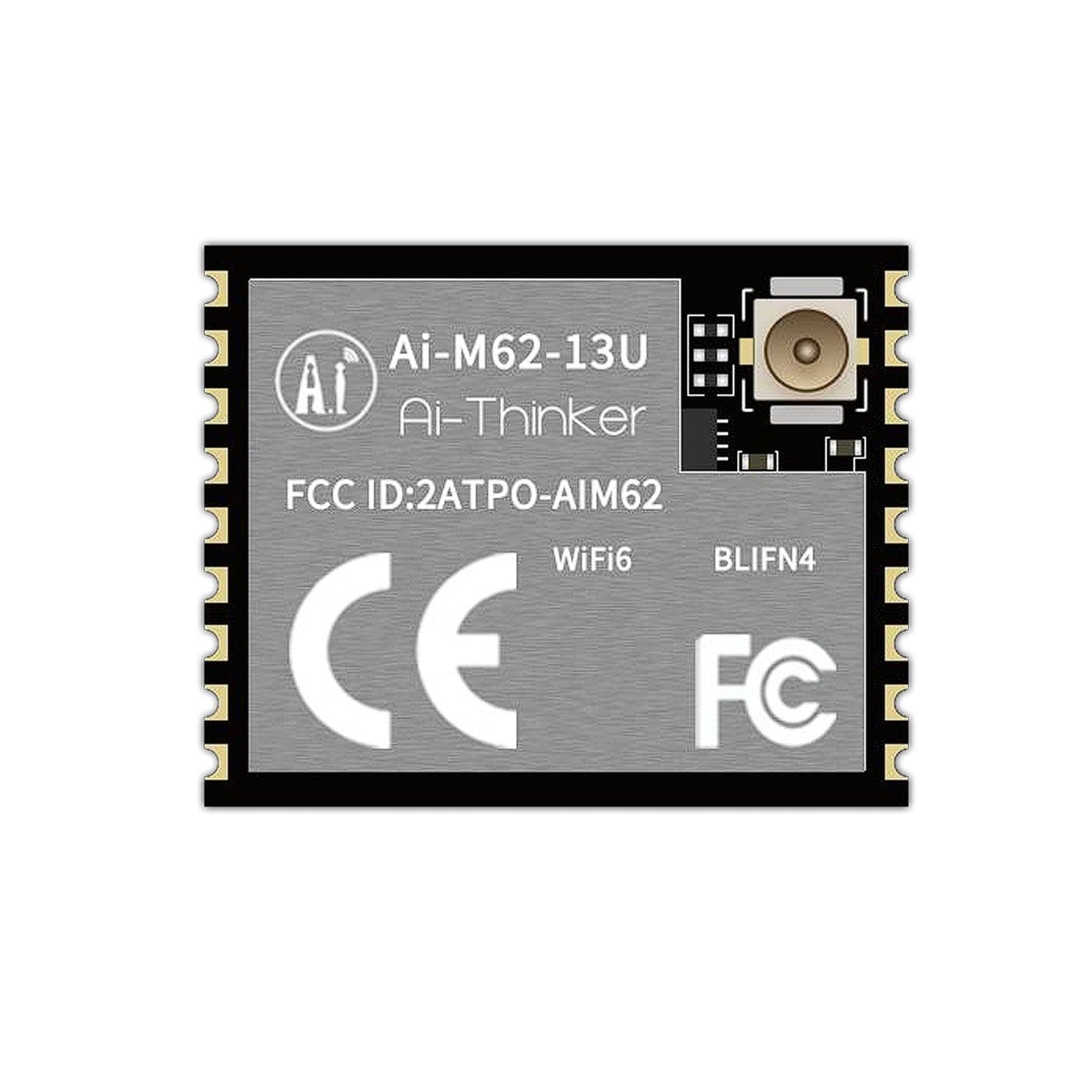

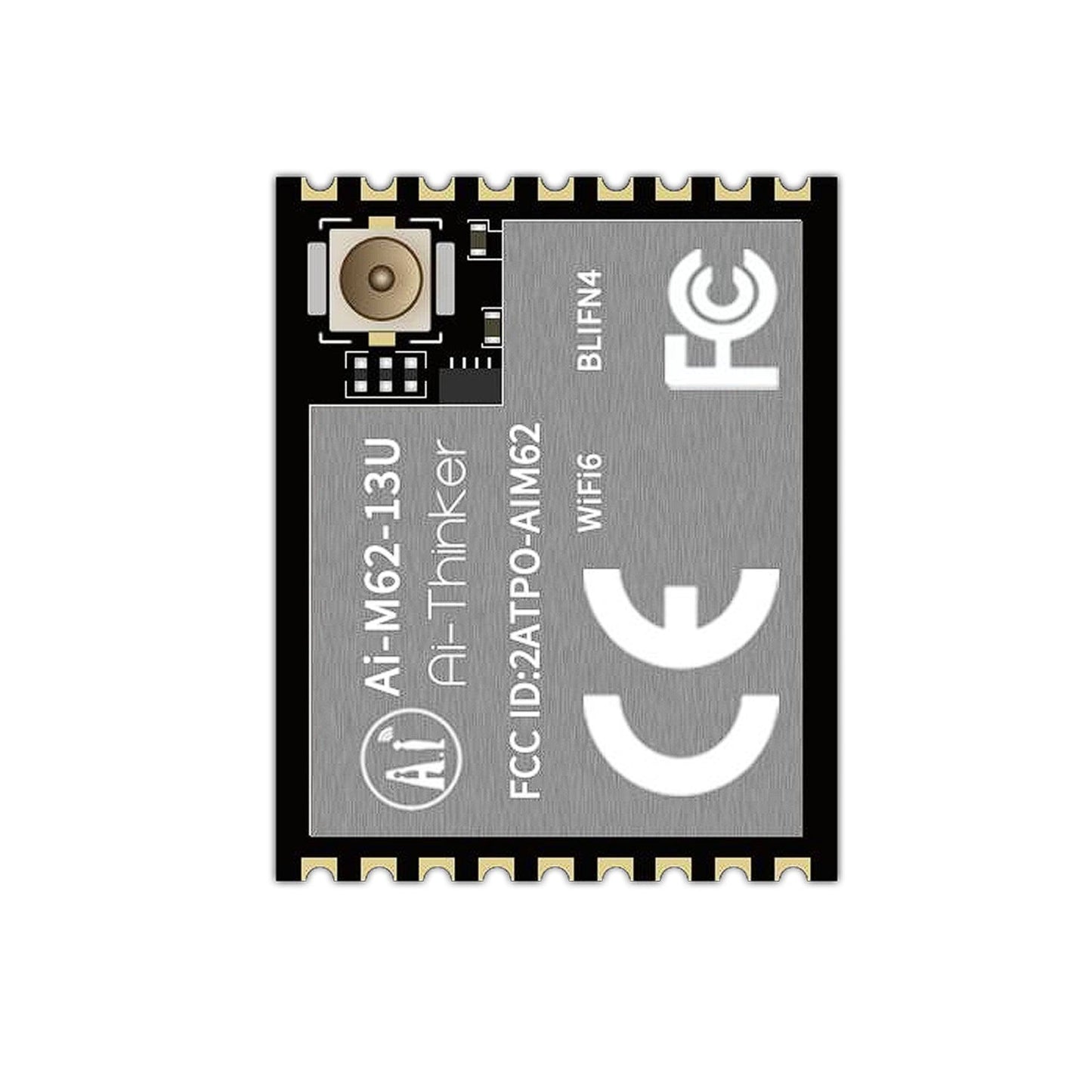

Ai-M62-13U is a Wi-Fi 6 + BLE5.3 module developed by Ai-Thinker. The Ai-M62-13U module is equipped with a BL616 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 system includes a low-power 32-bit RISC-V CPU with floating-point unit, DSP unit, cache and memory, with a maximum dominant frequency of 320MHz. The Ai-M62-13U module has rich peripheral interfaces, including Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields. The Ai-M62-13U Sec Eng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field.

Specifications:

  • Model: Ai-M62-13U
  • Antenna: IPEX
  • Frequency: 2400 ~ 2483.5MHz
  • Operating Temperature: -40℃ ~ 85℃
  • Storage Temperature: -40℃ ~ 125℃, < 90%RH
  • Power Supply: Support voltage 2.97V ~ 3.6V, supply current ≥500mA

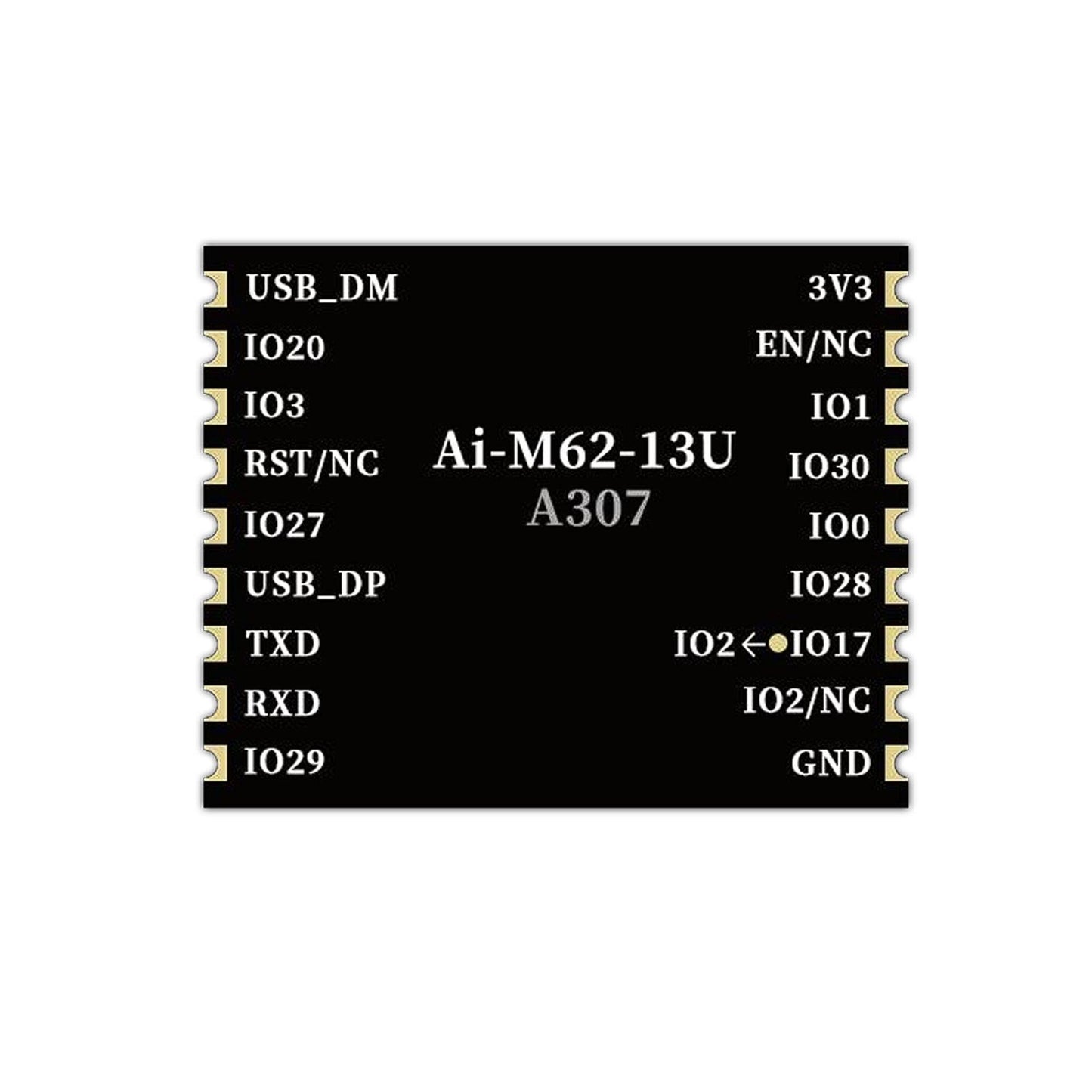

  • IO: 11
  • UART Rate: Default 115200 bps
  • Security: WPS/WEP/WPA/WPA2/WPA3
  • Flash: Default 4MByte, Support expansion
  • Interface: Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO and so on

Features:

  • SMD-18 package
  • Supports 2.4GHz operating frequency band
  • Support IEEE 802.11 B/g/n/ax
  • Support BLE5.3
  • Support Thread
  • Support Wi-Fi/BLE/Thread coexistence
  • Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
  • Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4Mbps
  • Support STA, SoftAP, STA
  • 32-bit RISC-V CPU with FPU and DSP with a maximum dominant frequency of 320MHz
  • 532KB SRAM,128KB ROM,4Kb eFuse
  • Support Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.
  • Integrated RF Balun, PA/LNA
  • TRNG (True Random Number Generator) is supported
  • BLE-enabled Wi-Fi fast connection

Package Included:

1 x Ai-Thinker Ai-M62-13U Wi-Fi6 BLE5.3 Combo Module 20/40MHz Bandwidth Support Wi-Fi/BLE/Thread Coexistence
