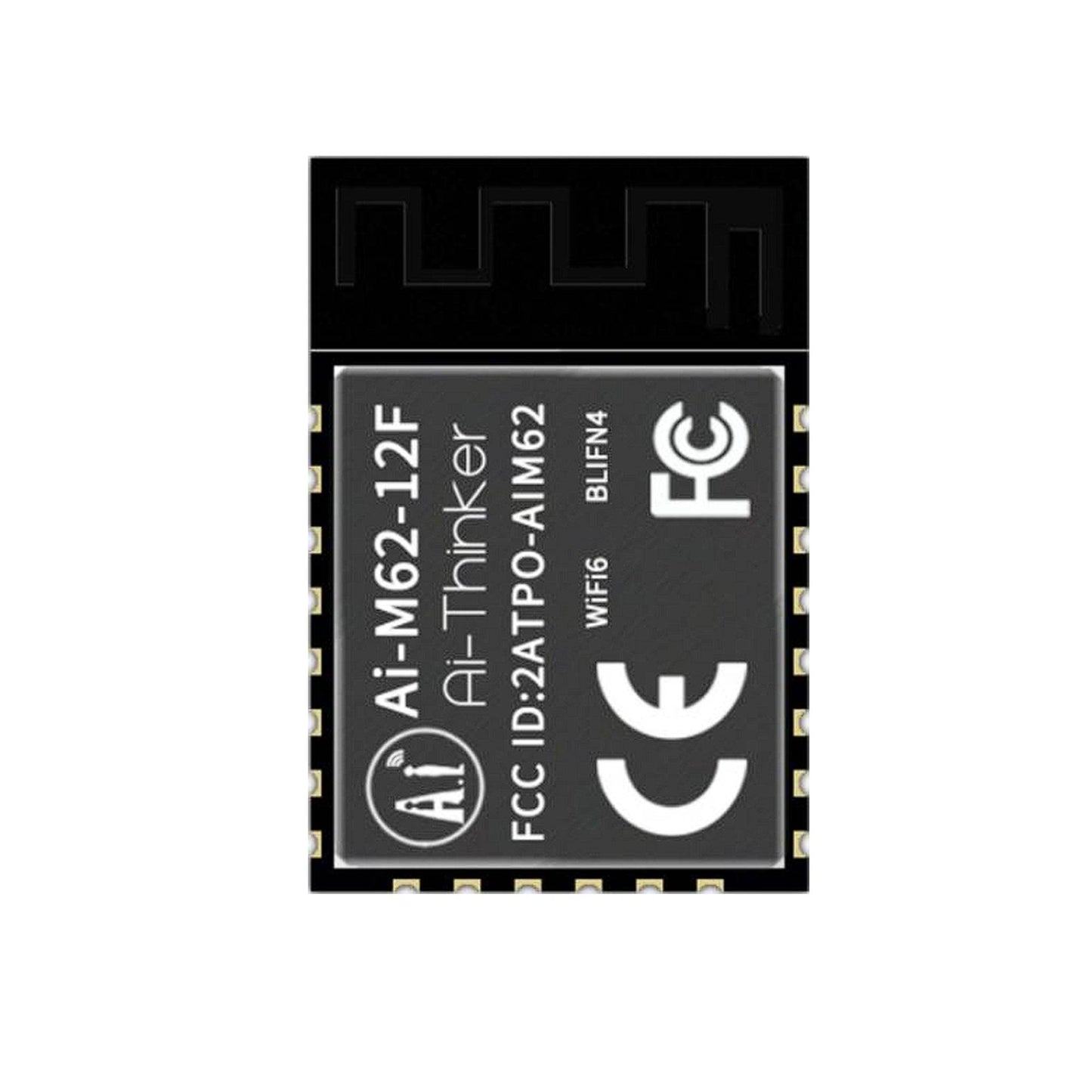

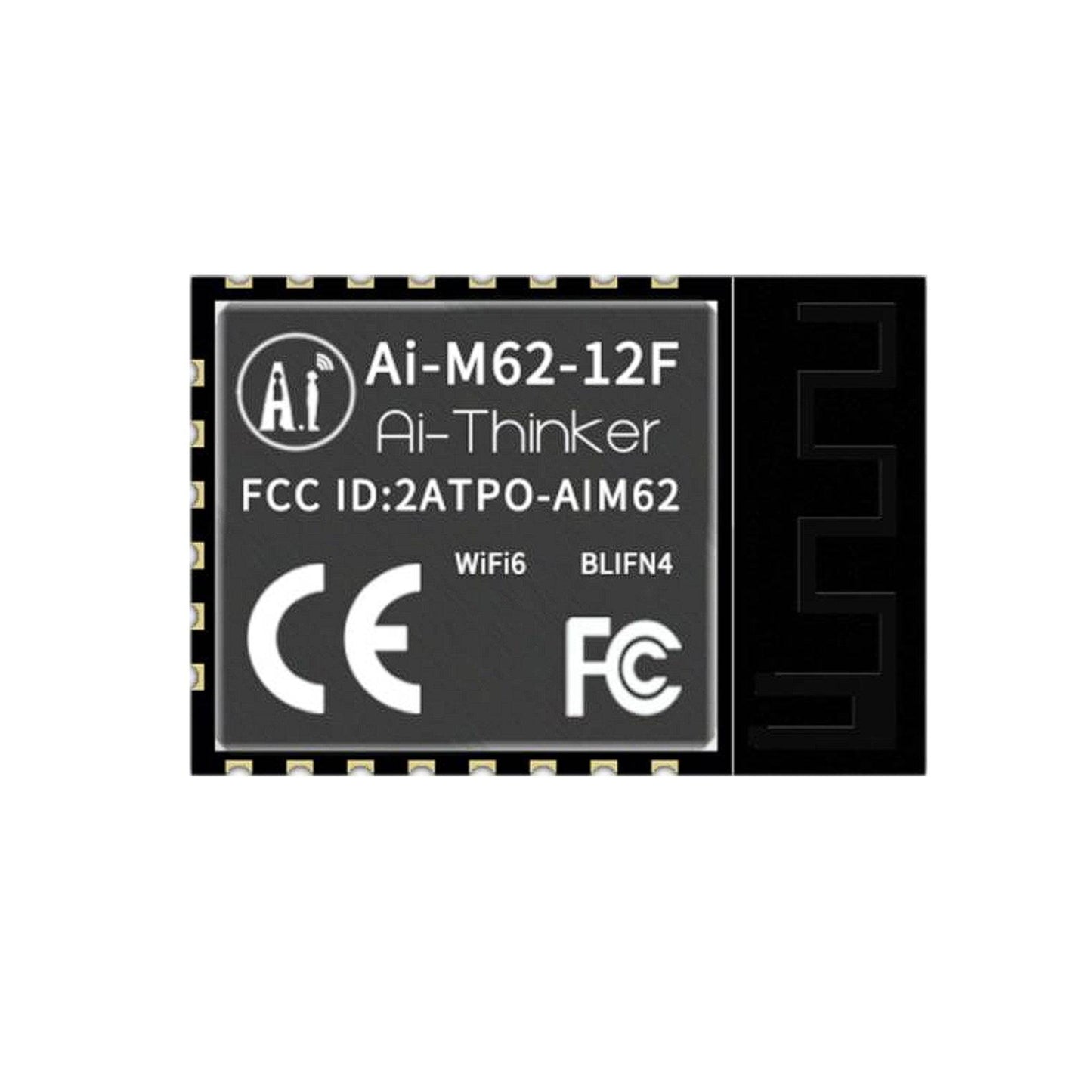

  • Ai-Thinker Ai-M62-12F Wi-Fi 6+BLE5.3 Module
1 3

Ai-Thinker

Ai-Thinker Ai-M62-12F Wi-Fi 6+BLE5.3 Module - RS5714

Ai-Thinker Ai-M62-12F Wi-Fi 6+BLE5.3 Module - RS5714

RS5714

Low stock: 3 left

Rs. 240.00
Rs. 240.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Ai-M62-12F is a Wi-Fi 6 + BLE5.3 module developed by Shenzhen Ai-Thinker TechnologyCo., Ltd. The module is equipped with a BL616 chip as the core processor, supports Wi-Fi 802.11b/g/n/ax protocol and BLE protocol, and supports Thread protocol. The BL616 system includes a low-power 32-bit RISC-V CPU with floating-point unit, DSP unit, cache and memory, with a maximum dominant frequency of 320M. The Ai-M62-12F module has rich peripheral interfaces, including Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc. It can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields. The Ai-M62-12F module Sec Eng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field.

Specifications:

  • Model: Ai-M62-12F
  • Antenna: onboard antenna
  • Frequency: 2400~2483.5MHz
  • Operating Temperature: -40 ℃ ~ 85 ℃
  • Storage Temperature: -40℃ ~ 125℃, 90%RH
  • Power Supply: The power supply voltage is 2.97V ~ 3.6V, and the power supply current is≥ 500mA.
  • Interface: Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.

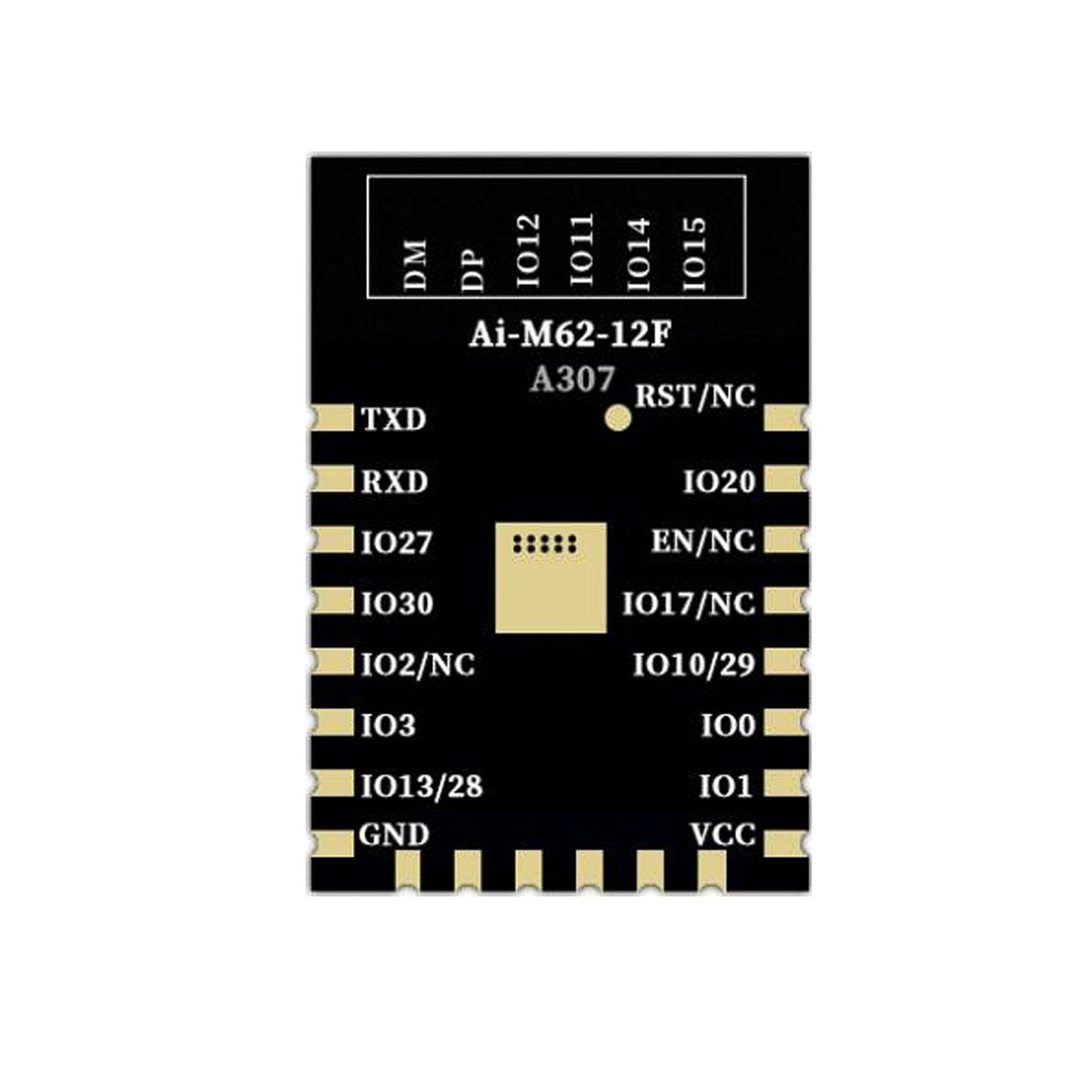

  • IO: 15
  • UART rate: Default 115200 bps
  • Security: WPS/WEP/WPA/WPA2/WPA3
  • Flash: Default 4MByte, Support expansion

Features:

  • SMD-22 package
  • Supports 2.4GHz operating frequency band
  • Support IEEE 802.11 B/g/n/ax
  • Support BLE5.3  Support Thread
  • Support Wi-Fi/BLE/Thread coexistence
  • Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
  • Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
  • Support STA, SoftAP, STA + SoftAP and sniffer modes
  • 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M
  • 532KB SRAM,128KB ROM,4Kb eFuse
  • Support Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.
  • Integrated RF Balun, PA/LNA
  • Ai-M62-12F Support for safe startup and safe debugging
  • Support XIP QSPI On-The-Fly AES decryption (OTFAD)
  • Support TrustZone  Support AES-CBC/CCM/GCM/XTS mode
  • Support MD5, SHA-1/224/256/384/512
  • TRNG (True Random Number Generator) is supported
  • Ai-M62-12F Support PKA (Public Key Accelerator) for RSA/ECC
  • BLE-enabled Wi-Fi fast connection
  • Universal AT command can be used quickly.

Package Included:

1 x Ai-Thinker Ai-M62-12F Wi-Fi 6+BLE5.3 Module
